Mishimoto MMUIC-15 Universal Air-to-Air Race Intercooler Core 20.5x6.25x2.5

Vehicle Fitment

• Universal - not vehicle-specific. Designed for custom intercooler piping fabrication, track builds, and applications where a specific size/rating core is needed rather than a direct-fit unit

Fitment Notes

• This is a bare core only - no inlet/outlet piping, end tank modifications, or mounting hardware are included; installation requires custom fabrication
• Best suited for experienced fabricators or shops building a custom intercooler setup, not a bolt-in replacement for any specific vehicle

Features

• Robust bar-and-plate construction for efficient heat dissipation under sustained boost
• Rated for up to 400 hp
• Compact 20.5 x 6.25 x 2.5 in. size suited to tight-clearance installs
• Quality-controlled construction built to handle repeated boost cycling
• Shipped in a raw, unfinished state, ready for fabrication and custom finishing
• Backed by Mishimoto's Lifetime Warranty

Specifications

• Core type: bar-and-plate, air-to-air

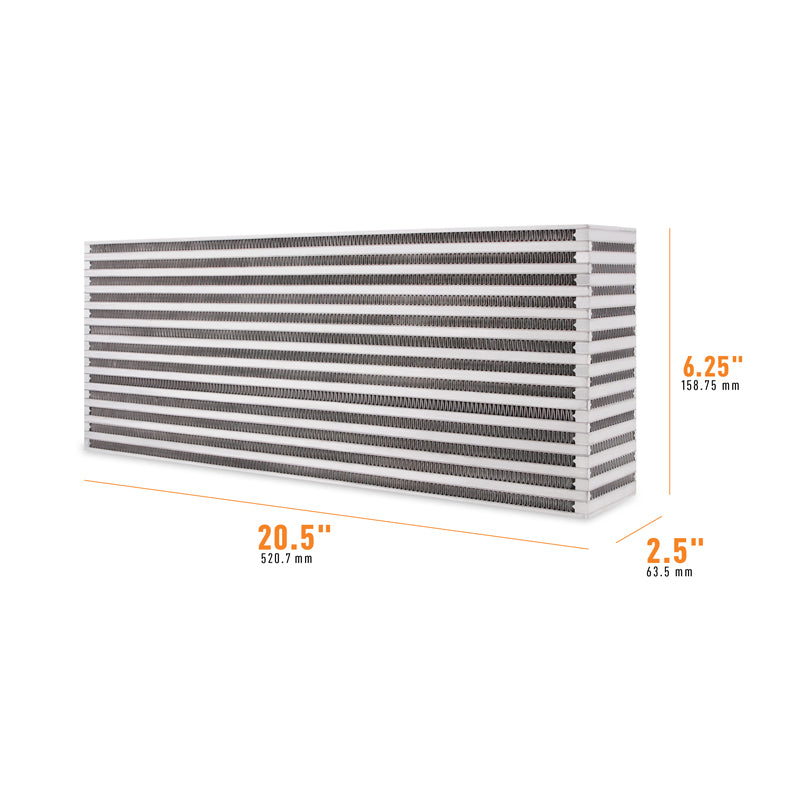

• Core size: 20.5 in. x 6.25 in. x 2.5 in. (520.7mm x 158.7mm x 63.5mm)
• Maximum recommended horsepower: 400 hp
• Finish: raw (unfinished)

Included Components

• 1x Universal Race Intercooler Core

Product Description

This Mishimoto universal intercooler core is a bare bar-and-plate core built for custom fabrication projects, from tight-clearance builds to dedicated track cars. Rated for up to 400 hp, it's sized at a compact 20.5 x 6.25 x 2.5 inches, giving fabricators a solid heat-dissipation platform to build a custom piping and end-tank setup around without being locked into a pre-made, vehicle-specific unit.

The core ships in a raw, unfinished state so it's ready for cutting, welding, and custom end tank work without needing to strip a factory-style coating first. It's a good fit for anyone building a one-off intercooler system where a direct-fit kit doesn't exist or doesn't suit the application, and it's backed by Mishimoto's lifetime warranty on the core itself.
