Mishimoto MMOCC-LA Large Aluminum Oil Catch Can Polished 900cc PCV CCV

Vehicle Fitment

• Universal - suitable for any turbocharged or naturally aspirated vehicle with a PCV or CCV system. Custom hose routing and bracket fabrication or relocation may be required depending on the specific engine bay layout. Some adaptation may be required.

Fitment Notes

• Universal fitment. This catch can is not a direct-fit, vehicle-specific kit - the installer is responsible for routing hoses from the PCV and/or CCV ports on their specific engine to the catch can inlet and outlet. Verify that your engine's PCV or CCV hose diameter is compatible with the 5/8-inch ID hose connection provided.
• Inlet and outlet use M12 x 1.0 female threads accepting a 14mm OD fitting with a 16mm barb that fits 5/8-inch ID hose. Drain plug is M14 x 1.25.
• This is the polished natural aluminum finish. Also available in wrinkle black (MMOCC-RB) and wrinkle red. For a smaller capacity version, see MMOCC-SA (Small, 16 fl. oz.).
• This is a non-heated catch can - it permanently retains collected blow-by rather than draining it back to the oil pan. The can must be manually drained periodically through the M14 x 1.25 drain plug.
• This is the original-style aluminum catch can, not the baffled design. For a baffled catch can with a bronze sintered filter and internal baffle for improved oil separation, see the Mishimoto Compact Baffled Oil Catch Can line.

Features

• Large 900cc (30 fl. oz.) capacity aluminum oil catch can designed to intercept and collect oil blow-by from PCV and CCV systems before it can re-enter the intake tract, intercooler, and charge piping - keeping these components clean and operating at full efficiency.
• Separates oil particles and contaminated fuel vapors from the crankcase air stream - unlike heated air-oil-separator (AOS) systems that drain collected blow-by back into the oil pan, this catch can retains the captured contamination permanently, ensuring it never returns to the engine.
• Built-in sight tube on the can body allows for quick visual inspection of fluid level without removing the can - enabling informed, timely draining without guesswork.
• Prevents oil accumulation in the turbocharger, intercooler, intake manifold, and charge piping - oil buildup in these components degrades intercooler efficiency, contaminates the intake charge, and in boosted applications can cause coupler blowoff under sustained boost pressure.
• 3.5-inch diameter x 7.0-inch height compact cylindrical form factor fits in tight engine bay positions where larger catch cans cannot be accommodated, and is compatible with a wide range of universal mounting bracket positions.
• Lightweight aluminum construction keeps added weight to a minimum while providing durability and resistance to the oil, heat, and vibration environment of the engine bay.

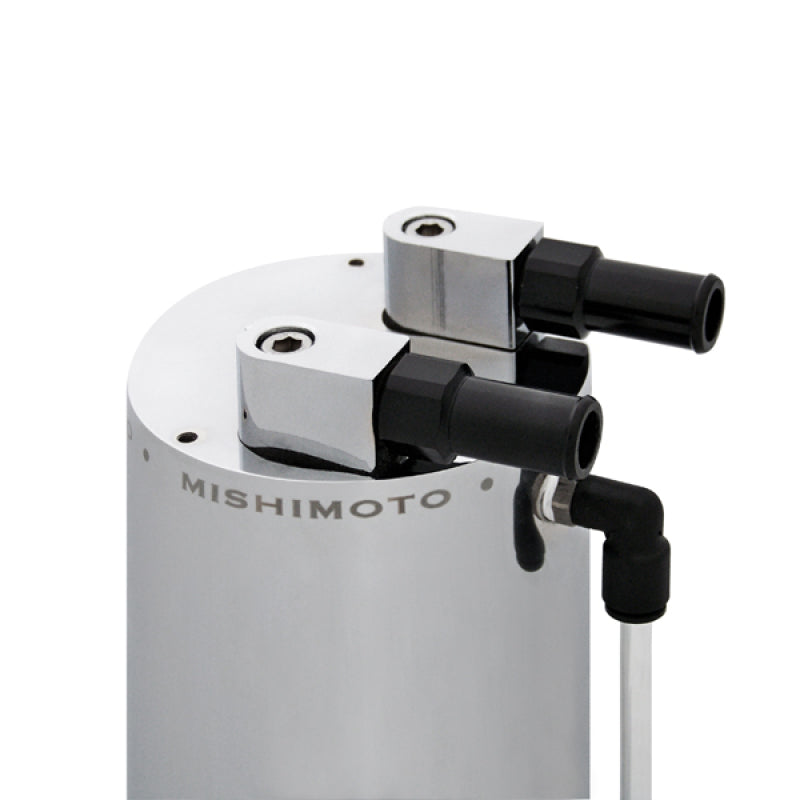

• Polished natural aluminum finish provides a clean, bright appearance that complements both stock and modified engine bays and is visible confirmation of proper installation.
• Complete kit includes mounting bracket, hose, all necessary clamps, fittings, and mounting hardware - no additional hardware shopping required.
• Installation difficulty rated Easy. Backed by the Mishimoto Lifetime Warranty.

Specifications

• Type: Universal aluminum oil catch can (non-baffled)
• Material: Aluminum
• Finish: Polished (natural aluminum)
• Height: 7.0 in
• Diameter: 3.5 in
• Capacity: 900cc / 30 fl. oz.
• Inlet/Outlet Thread: M12 x 1.0 female (14mm OD fitting, 16mm barb, accepts 5/8" ID hose)
• Drain Plug Thread: M14 x 1.25
• Sight Tube: Yes (built-in)
• Heated (AOS style): No - permanently retains collected blow-by

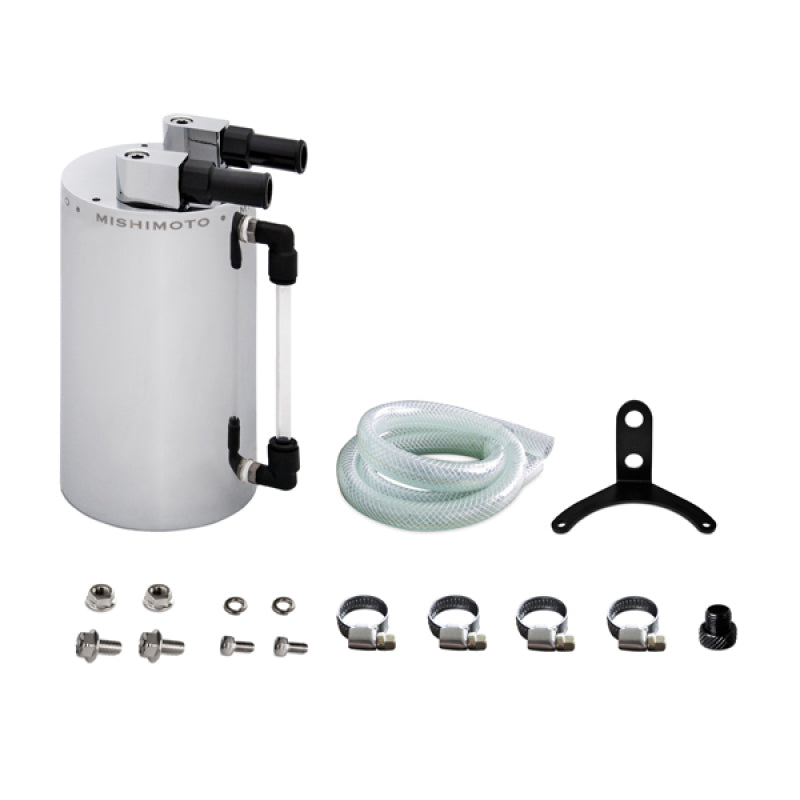

Included Components

• 1x Polished aluminum oil catch can (900cc / 30 fl. oz.)
• 1x Mounting bracket
• 31.5 in. of hose (5/8" ID compatible)
• All necessary clamps, fittings, and mounting hardware
• Mishimoto Lifetime Warranty

Product Description

The Mishimoto MMOCC-LA is a large-capacity universal aluminum oil catch can with a 900cc (30 fl. oz.) reservoir, designed to intercept crankcase blow-by from PCV and CCV systems before it re-enters the intake tract. On any internal combustion engine, combustion gases and oil vapor regularly pass the piston rings and enter the crankcase - the OEM PCV system routes this blow-by back into the intake manifold to be re-burned. While this meets emissions requirements, it continuously introduces oil contamination, low-octane vapor, and combustion byproducts into the intake stream. Over time this accumulation degrades intercooler efficiency, contaminates the throttle body, dirties the intake manifold, and in turbocharged applications contributes to charge coupler blowoffs where oil-soaked rubber connections lose their grip under sustained boost pressure. A catch can intercepts this blow-by before it reaches the intake, trapping the oil and vapor in a reservoir that is periodically drained and emptied.

Mishimoto's large aluminum catch can differs from most air-oil-separator (AOS) systems in two key ways. First, it is not heated - AOS systems use engine coolant or heat to keep the blow-by in a vapor state so it drains back to the oil pan, which means the contamination returns to the engine. The Mishimoto catch can is unheated, so all blow-by - including low-octane oil vapors and contaminated fuel vapors - condenses in the can and is permanently retained, never re-entering the oil or intake system. Second, the contents of the can must be manually drained through the M14 x 1.25 drain plug at regular service intervals; the frequency will depend on engine blow-by volume. A built-in sight tube on the body of the can allows visual level checks without removal. The 3.5-inch diameter x 7-inch height form factor fits a wide range of engine bay mounting locations using the included bracket and hardware.

The polished natural aluminum finish provides a clean, high-visibility appearance. The complete kit includes a mounting bracket, 31.5 inches of hose, all clamps, fittings, and hardware required for installation. This is the large capacity version; a small version is available as MMOCC-SA (16 fl. oz.). For applications requiring more advanced oil separation with an internal baffle and 50-micron bronze filter, Mishimoto's Compact Baffled Oil Catch Can range offers enhanced separation efficiency. This catch can is also available in wrinkle black (MMOCC-RB) for engine bays where the polished finish is not preferred. Covered by the Mishimoto Lifetime Warranty.
