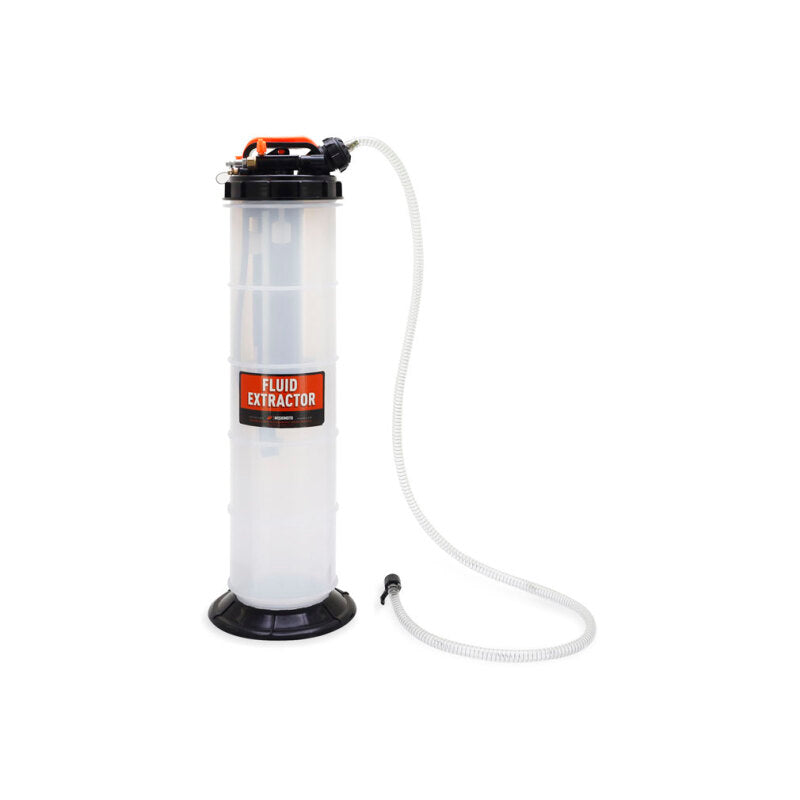

Mishimoto MMTL-FEX-MP95 Manual Pneumatic Fluid Extractor 9.5L Universal No-Spill

Vehicle Fitment

• Universal - compatible with any vehicle requiring fluid extraction via dipstick tube, filler neck, or bleeder screw.
• Suitable for passenger cars, trucks, SUVs, motorcycles, ATVs, and shop use on any make or model.
• No vehicle-specific fitment required - draw straws and adapters accommodate most dipstick tube and filler neck diameters.

Fitment Notes

• Recommended shop air pressure: 85 psi. Maximum operating pressure: 120 psi - do not exceed.
• Maximum operating temperature: 175°F (79°C) - not suitable for extraction of very high-temperature fluids above this threshold.
• Select the appropriate draw straw diameter for your dipstick tube or access point before use - four sizes included (2mm, 4mm, 6mm, 7mm).
• For manual operation, no compressed air source is required - use the hand pump action to generate suction.
• The automatic shut-off float will stop extraction when the canister approaches capacity - do not bypass this safety feature.

Features

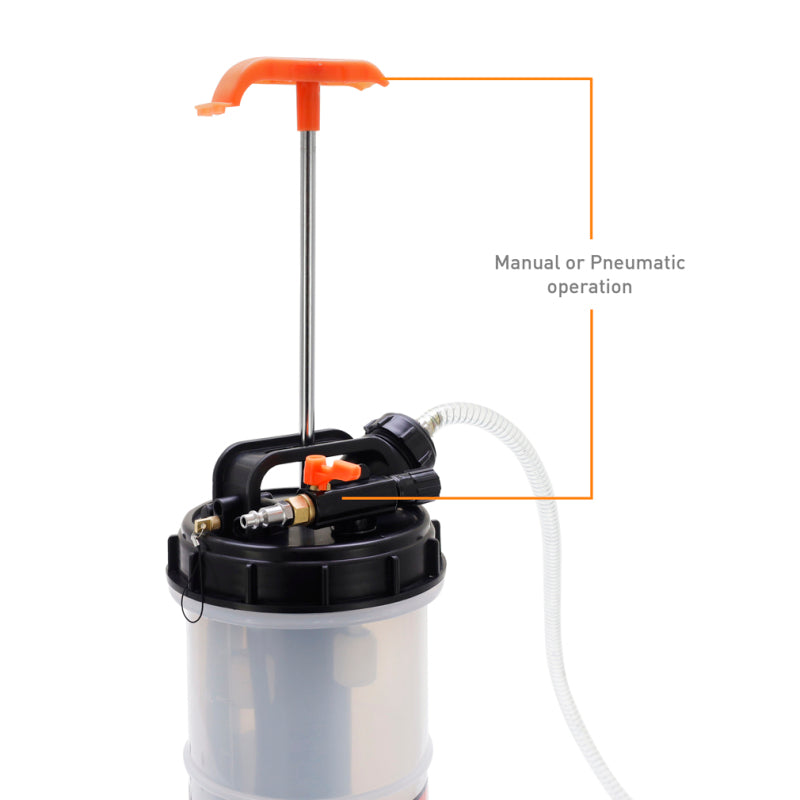

• Dual-mode operation - pneumatic mode uses shop air for fast hands-free extraction; manual pump mode works anywhere without an air compressor.
• 9.5L (2.5 gallon) capacity handles multi-quart oil changes, full ATF drains, and large coolant flushes in a single pull.

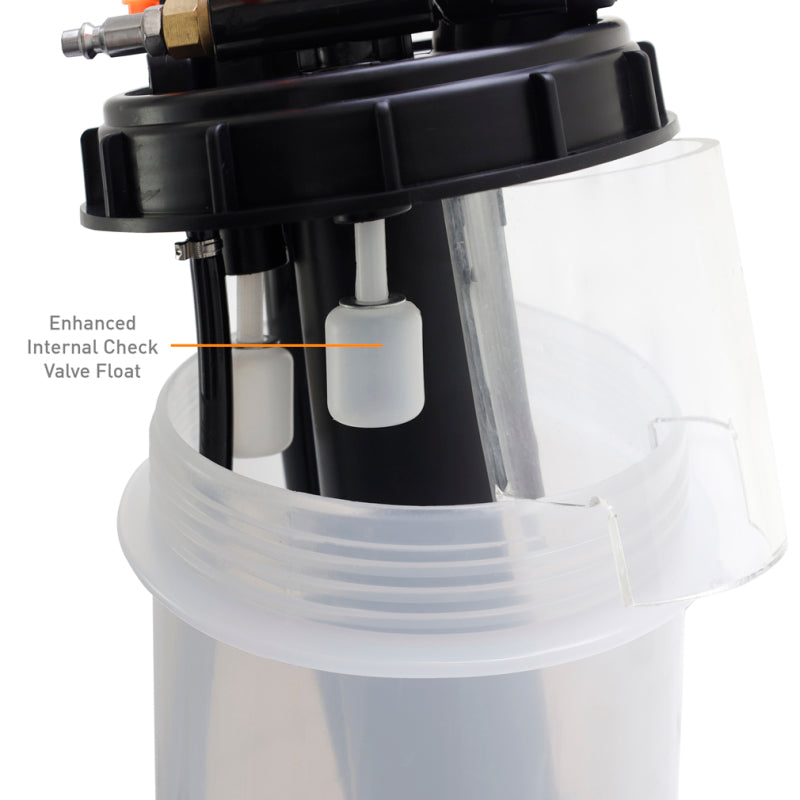

• Automatic shut-off float prevents canister overfill, stopping suction when capacity is reached.

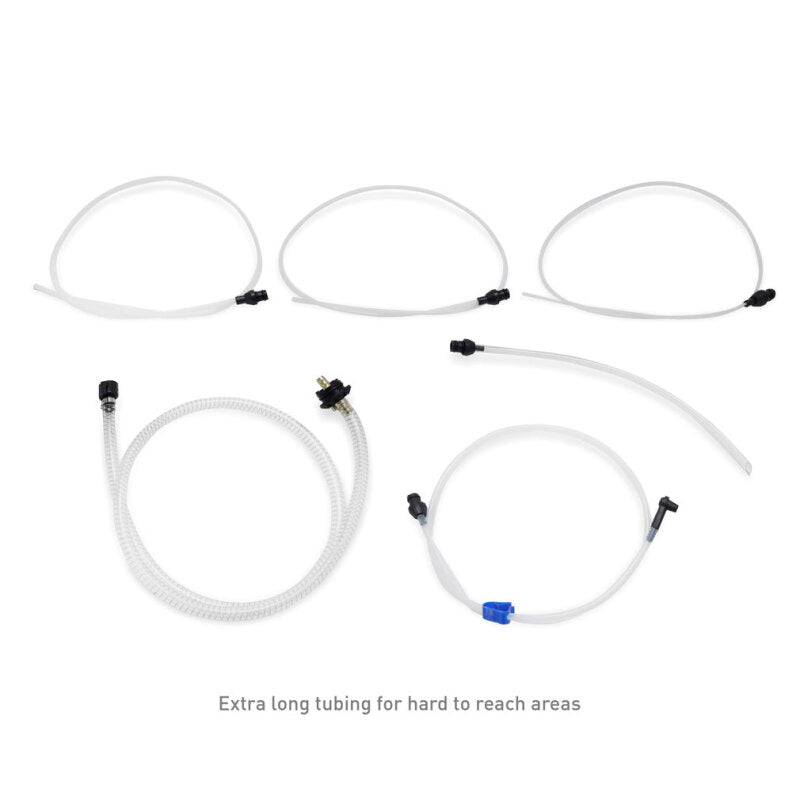

• Four draw straws (2mm, 4mm, 6mm, 7mm) at 4 ft. length fit virtually all dipstick tubes and tight access points.
• Bleeder screw adapter enables mess-free brake and clutch fluid extraction without opening the bleed valve by hand.
• Removable lid allows fluid to be poured directly into a recycling container - no secondary transfer needed.
• Robust plastic construction stands up to professional and weekend-warrior use across multiple fluid types.
• Backed by Mishimoto's Lifetime Warranty.

Specifications

• Operation Modes: Manual (hand pump) and Pneumatic (compressed air)
• Capacity: 9.5L (2.5 gallons)
• Recommended Air Pressure: 85 psi
• Maximum Air Pressure: 120 psi
• Maximum Operating Temperature: 175°F (79°C)
• Overall Dimensions: 9 in. L x 9 in. W
• Weight: 14.64 lbs
• Pump Material: Plastic
• Hose Material: Plastic
• Compatible Fluids: Engine Oil, Automatic Transmission Fluid (ATF), Power Steering Fluid, Coolant, Brake Fluid
• Fitment: Universal

Included Components

• 1x Fluid Extractor Unit (9.5L)
• 1x Adapter Hose
• 1x 2mm Draw Straw (4 ft.)
• 1x 4mm Draw Straw (4 ft.)
• 1x 6mm Draw Straw (4 ft.)
• 1x 7mm Draw Straw (4 ft.)
• 1x Bleeder Screw Adapter
• 1x Air Fitting
• 1x Mishimoto Lifetime Warranty

Product Description

The Mishimoto MMTL-FEX-MP95 is the larger of Mishimoto's two dual-mode fluid extractors, offering a 9.5-liter (2.5-gallon) capacity that handles full-drain oil changes, automatic transmission fluid services, brake fluid flushes, coolant drains, and power steering fluid replacements without ever requiring you to lie under the vehicle or fight with a drain plug. Two operating modes are built into a single unit: connect to a shop air line for fast pneumatic extraction at 85 psi, or use the integrated hand pump when working away from the compressor or in the field. Either mode draws fluid cleanly and efficiently through the included draw straws.

The four draw straws - ranging from 2mm to 7mm in diameter at 4 feet long - fit virtually all dipstick tubes and access points across every common vehicle platform. The included bleeder screw adapter allows brake and clutch fluid extraction directly from the caliper or slave cylinder, making fluid changes at the bleed point straightforward and mess-free. An automatic shut-off float stops extraction when the canister is full, preventing overflow, and the removable lid allows the collected fluid to be poured directly into a recycling container when the job is complete.

Built for both the serious home mechanic and the professional shop, the MMTL-FEX-MP95 eliminates the mess, time, and physical difficulty associated with traditional drain-plug oil changes and fluid services. Whether paired with a shop air system or used in standalone manual mode, it covers every common fluid type on virtually every vehicle. Backed by Mishimoto's Lifetime Warranty.
