Mishimoto MMDCC-3540BK DuraCore Silicone Straight Transition Boot 3.5in to 4in

Vehicle Fitment

• Universal fit - compatible with any custom intercooler piping, charge pipe, or turbo system requiring a straight 3.5" to 4.0" diameter transition silicone boot

Fitment Notes

• Inlet Inside Diameter: 3.5 in. (88.9mm) - verify your smaller pipe's outer diameter before ordering
• Outlet Inside Diameter: 4.0 in. (101.6mm) - verify your larger pipe's outer diameter before ordering
• Straight profile - no angular bend; connects two pipes in-line while transitioning from 3.5" to 4.0" diameter
• Ideal for charge pipe or intercooler connections where pipe diameter increases without changing direction
• Hose clamps are not included - use appropriately sized T-bolt or worm-gear clamps on each end
• Available in black (BK), blue (BL), and red (RD) - this listing is for the black version
• Part of the full Mishimoto DuraCore™ boot lineup: available in straight, straight hump, transition, 45-degree, and 90-degree configurations in 3" to 4" sizing

Features

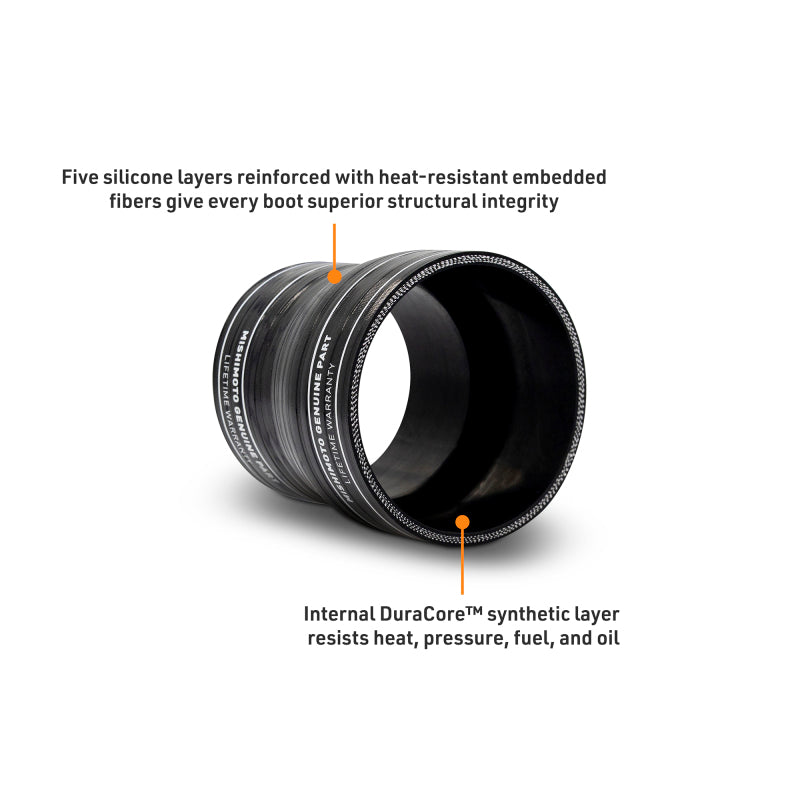

• DuraCore™ synthetic inner layer provides superior resistance to heat, pressure, fuel, and oil versus standard silicone
• Five-layer silicone construction with heat-resistant embedded fibers delivers maximum structural integrity
• Smooth straight transition from 3.5" to 4.0" allows clean diameter step-up in custom piping layouts
• Reinforcing rings at connection points lock the boot rigid under high boost to prevent blowouts
• Engineered for intercooler and charge pipe builds - withstands oil and fuel exposure in high-boost diesel and gas applications
• Black finish provides a clean, professional underhood appearance
• Backed by the Mishimoto Lifetime Warranty

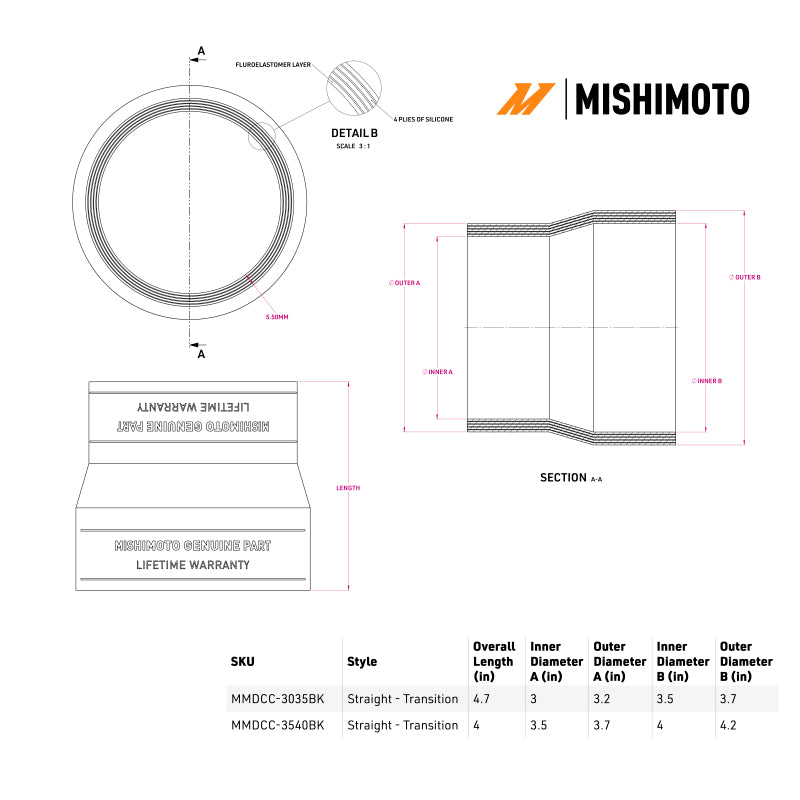

Specifications

• Part Number: MMDCC-3540BK
• Inlet Inside Diameter: 3.5 in. (88.9mm)
• Outlet Inside Diameter: 4.0 in. (101.6mm)
• Style: Straight Transition
• Construction: 5-layer silicone with heat-resistant embedded fiber reinforcement
• Inner Layer: DuraCore™ synthetic material (superior heat, pressure, fuel, and oil resistance)
• Reinforcing Rings: Yes - at connection points for blowout resistance
• Color: Black
• Application: Intercooler piping, charge pipe, turbo inlet/outlet connections
• Clamps Included: No
• Warranty: Mishimoto Lifetime Warranty

Included Components

• 1x DuraCore™ Silicone Intercooler Boot (3.5 in. to 4.0 in., Straight Transition, Black)

Product Description

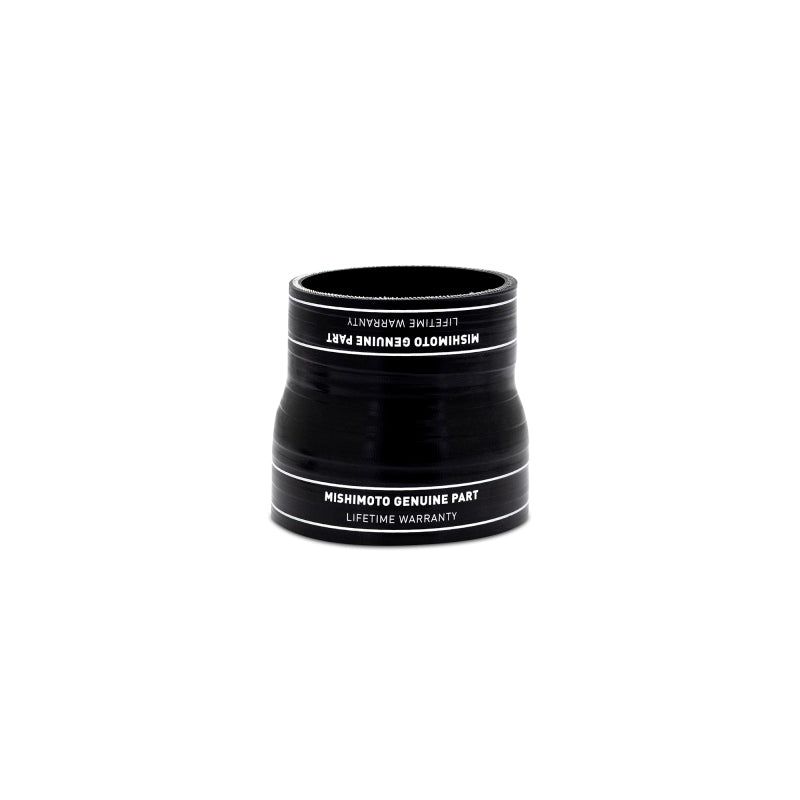

The Mishimoto MMDCC-3540BK is a straight transition DuraCore™ silicone intercooler boot designed for custom charge pipe and intercooler builds that require a clean in-line step-up from a 3.5" pipe to a 4.0" pipe without changing direction. This makes it the ideal connector for linking different-diameter components in a direct line - such as a turbo outlet to a larger intercooler inlet, or between sections of a custom fabricated charge pipe kit where flow expands.

Built from five layers of silicone reinforced with heat-resistant embedded fibers and lined internally with DuraCore™ synthetic material, this boot resists heat, pressure, fuel, and oil better than standard silicone alone. Reinforcing rings at each clamping zone eliminate blowout risk under sustained boost. Clamps are sold separately - T-bolt clamps are recommended for high-boost builds. Backed by the Mishimoto Lifetime Warranty.
