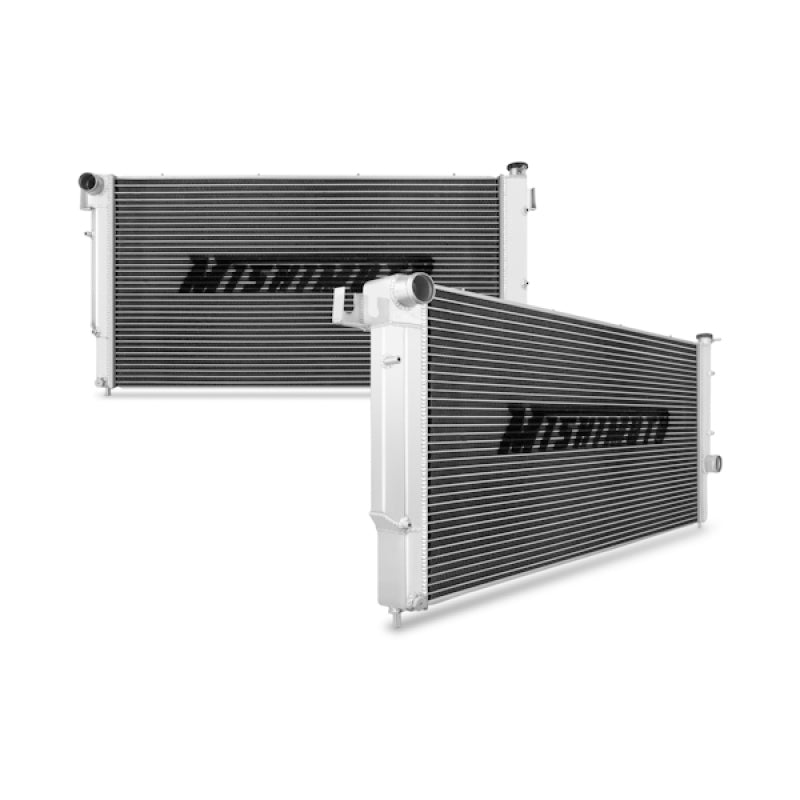

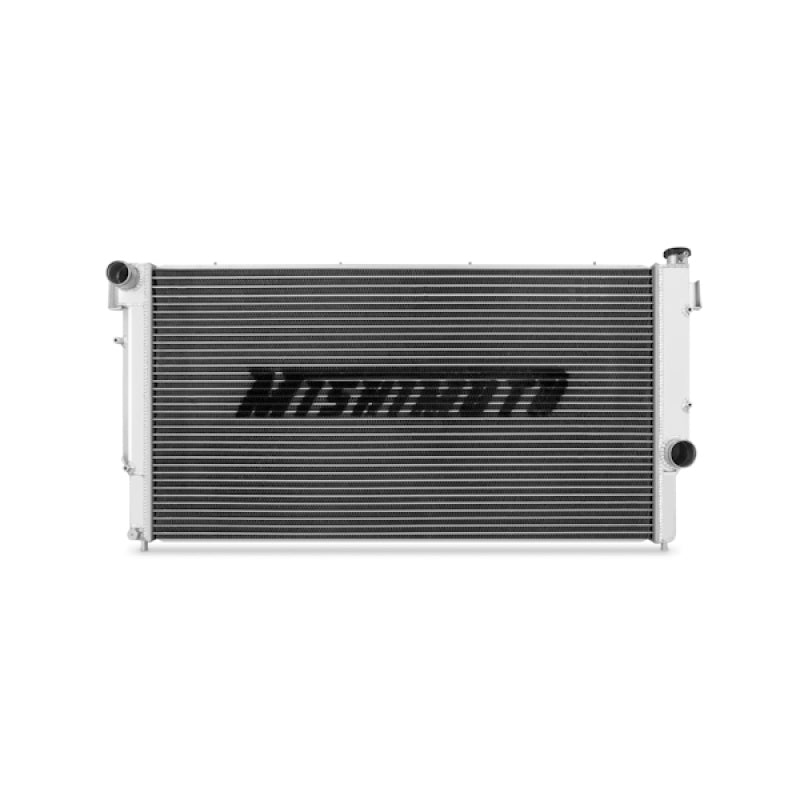

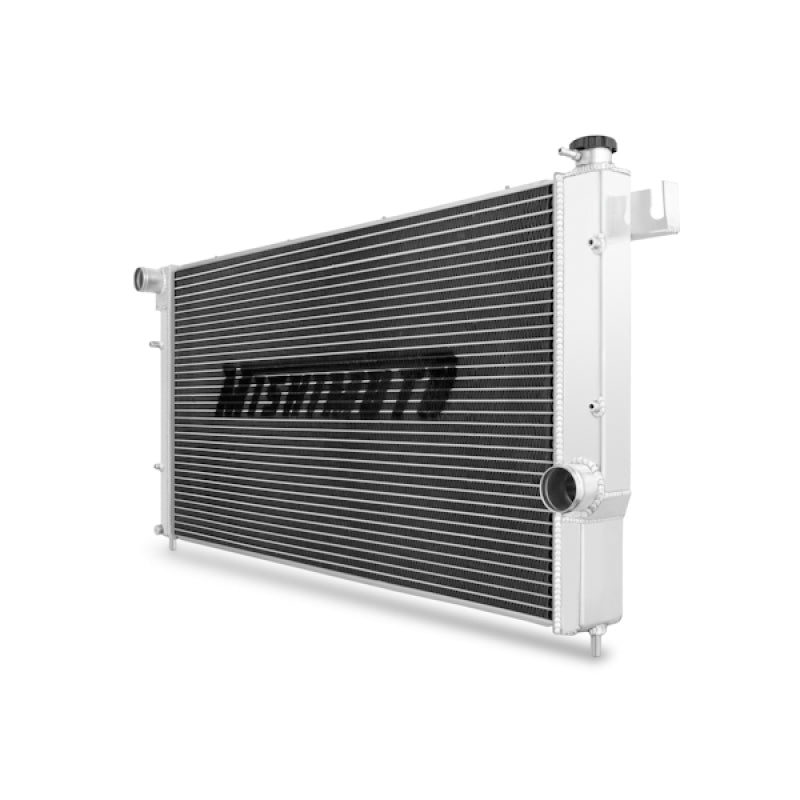

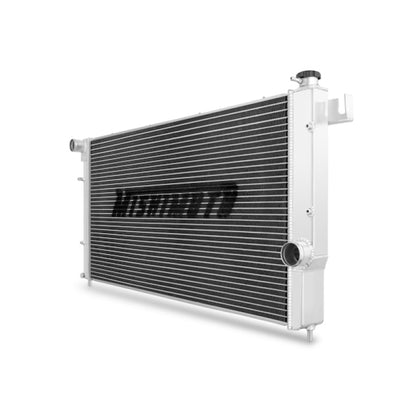

Mishimoto MMRAD-RAM-94 Aluminum Radiator 1994-2002 Dodge Ram 2500 5.9L Cummins

Vehicle Fitment

• 1994-2002 Dodge Ram 2500 (5.9L Cummins 12V and 24V, Manual and Automatic Transmission, 4WD/2WD)
• 1994-2002 Dodge Ram 3500 (5.9L Cummins 12V and 24V, Manual and Automatic Transmission, 4WD/2WD)

Fitment Notes

• Fits both the first-generation 12-valve 5.9L Cummins (1994-1998, engine code 6BT) and the second-generation 24-valve 5.9L Cummins (1998.5-2002, engine code ISB). Both generations share the same radiator dimensions on the BR/BE chassis.
• Compatible with both automatic (47RE/48RE) and manual (NV4500/NV5600) transmission applications. This radiator does not include an integrated transmission fluid cooler - automatic transmission owners with factory ATF cooler lines routed through the radiator will need to retain or add a separate transmission cooler.
• Radiator style: Crossflow - upper driver-side inlet (1.77 in), lower outlet (1.97 in). Verify hose routing matches before purchase.
• Fan shroud bolt caution: This radiator ships with 4x M6 x 1.0 replacement fan shroud bolts. Do not reinstall the original factory fan shroud bolts - use only the supplied bolts. If the M6 x 1.0 bolts are not present in the shipment, contact Mishimoto customer service before proceeding with installation.
• Drain plug thread size: M12 x 1.5. Coolant capacity: 6.78 gal.
• Installation difficulty rated Medium. Official Mishimoto PDF installation guide is available for download.

Features

• Direct OEM-fit performance aluminum radiator engineered specifically for the 1994-2002 Dodge Ram 2500 and 3500 with the 5.9L Cummins turbodiesel - covers the full second-generation Ram span across both the 12-valve and 24-valve Cummins generations, with no cutting, modification, or drilling required for installation.
• Full aluminum construction with TIG-welded end tanks - eliminates the plastic end-tank cracking failure mode of the OEM radiator, which is a well-documented aging characteristic on these trucks, particularly under the sustained thermal load of heavy towing and hauling.
• Three-row, 2.44-inch thick 100% brazed aluminum core provides a substantial increase in coolant capacity (6.78 gal) and heat transfer surface area versus the OEM radiator, delivering efficient temperature reduction under sustained towing, hauling, drag strip, and high-ambient-temperature conditions.

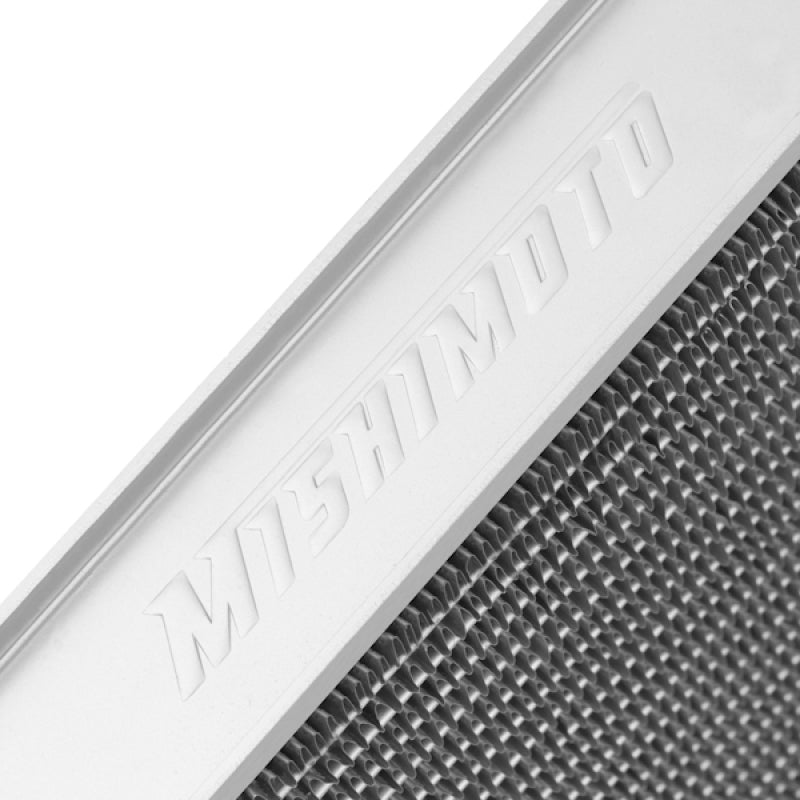

• Brazed core construction provides minimal joint distortion, low thermal stress at tube-to-fin bonds, and consistent structural integrity across the full core - the same construction standard used in Mishimoto's full Cummins radiator lineup.

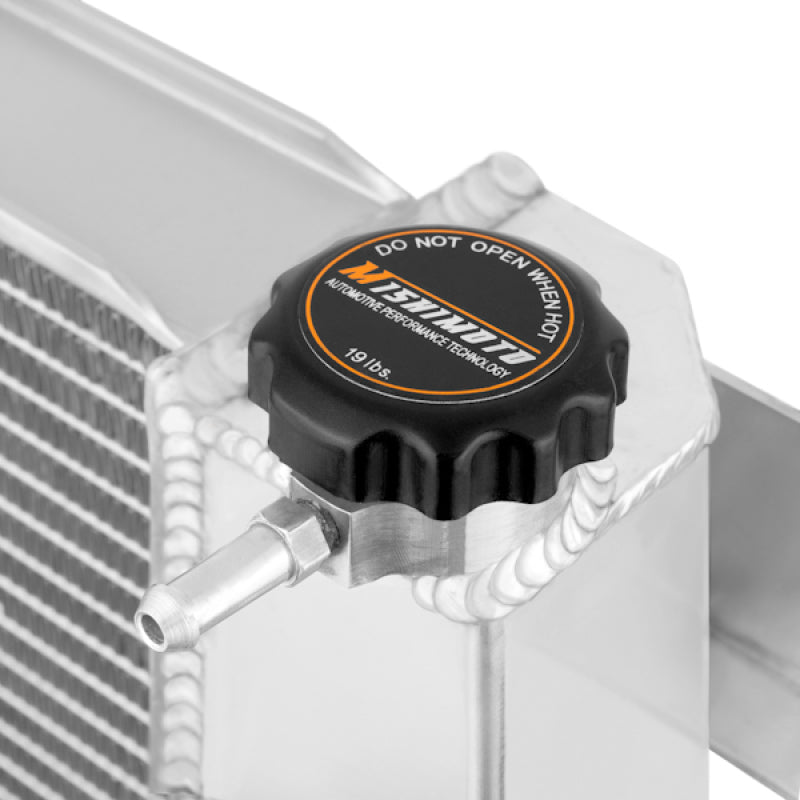

• Includes a 1.3 bar high-pressure radiator cap that raises the effective boiling point of the cooling system above standard atmospheric pressure, providing increased thermal headroom and reducing the risk of coolant boilover during sustained hard work cycles.
• Includes a magnetic drain plug (M12 x 1.5) that captures ferrous metallic particles from the coolant stream before they can circulate through the core and water pump, extending service life of the cooling system components.
• Includes 4x replacement M6 x 1.0 fan shroud bolts - factory bolts must not be reused; the supplied bolts are required for proper fan shroud attachment to this radiator.

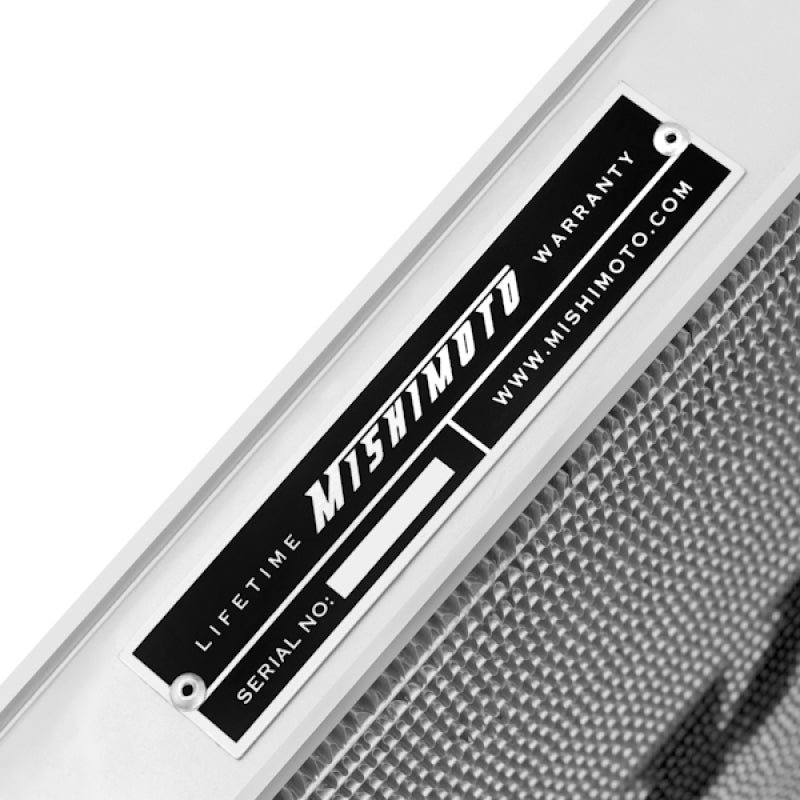

• DPI: 1553. Backed by the Mishimoto Lifetime Warranty.

Specifications

• Overall Dimensions: 45.4 in (L) x 21.9 in (H) x 4.8 in (W)
• Core Dimensions: 36.42 in (L) x 19.21 in (H) x 2.44 in thick
• Rows: 3
• Inlet: 1.77 in (upper driver side)
• Outlet: 1.97 in
• Radiator Style: Crossflow
• Coolant Capacity: 6.78 gal
• Drain Plug Thread: M12 x 1.5
• DPI: 1553
• Transmission Cooler: Not included
• Engine: 5.9L Cummins 6BT (12V, 1994-1998) / ISB (24V, 1998.5-2002)

Included Components

• 1x Mishimoto performance aluminum radiator
• 1x Mishimoto 1.3 bar high-pressure radiator cap
• 1x Magnetic drain plug (M12 x 1.5)
• 4x M6 x 1.0 fan shroud bolts (must use - do not reuse factory bolts)
• Mishimoto Lifetime Warranty

Product Description

The Mishimoto MMRAD-RAM-94 is a direct OEM-fit performance aluminum radiator engineered for the 1994-2002 Dodge Ram 2500 and 3500 equipped with the 5.9L Cummins turbodiesel - covering both the 12-valve 6BT (1994-1998) and the 24-valve ISB (1998.5-2002) generations on the BR/BE chassis. The second-generation Ram with the 5.9L Cummins is one of the most enduringly popular diesel platforms in the aftermarket - robust, torque-rich, and deeply tuneable - but the factory radiator, constructed with plastic end tanks, has a well-earned reputation for cracking and leaking on trucks that are regularly used for towing, hauling, or any application that pushes the cooling system toward its limits. The plastic-to-aluminum tank interface is a structural weak point that degrades with repeated heat cycling; when it fails on a loaded truck in hot weather, the consequences range from a roadside breakdown to engine damage.

Mishimoto's replacement eliminates this failure mode entirely with a full aluminum construction - TIG-welded aluminum end tanks bonded to a 100% brazed three-row core that is 2.44 inches thick and holds 6.78 gallons of coolant. The brazed core construction provides consistent, low-stress tube-to-fin joints across the full 36.42" x 19.21" core face, maximizing heat transfer surface area and coolant thermal mass for sustained heavy-duty operation. The radiator fits both automatic and manual transmission Rams; note that it does not include an integrated ATF cooler, so automatic transmission owners whose factory setup routes transmission fluid through the radiator will need to account for transmission cooling separately.

The kit includes a Mishimoto 1.3 bar high-pressure radiator cap that raises the system's boiling point above the stock cap's rating, providing additional thermal headroom during demanding operation. A magnetic drain plug is included to capture metallic debris from the coolant circuit. Critically, the radiator ships with 4x M6 x 1.0 replacement fan shroud bolts - the factory shroud bolts must not be reused with this radiator; only the supplied bolts should be used. If these bolts are absent from the shipment, contact Mishimoto customer service before installing. Installation is rated Medium difficulty, and a Mishimoto PDF installation guide is available. Pairs with the Mishimoto 5.9L Cummins intercooler, intercooler pipe kit, and silicone hose kit for a comprehensive cooling system upgrade. Covered by the Mishimoto Lifetime Warranty.
