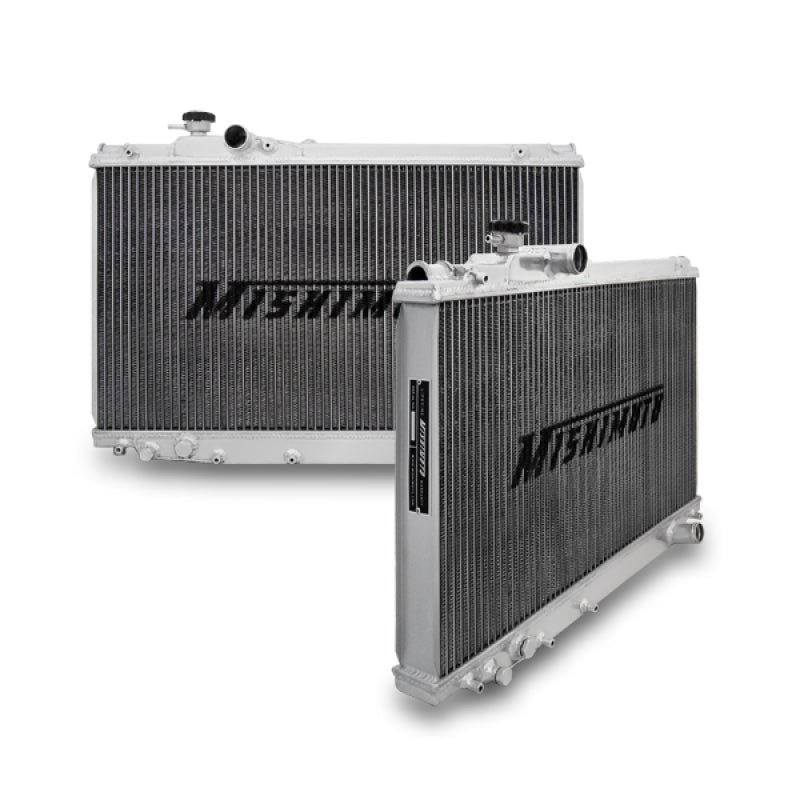

Mishimoto MMRAD-SUP-93T Performance Aluminum Radiator for 1993-1998 Toyota Supra

Vehicle Fitment

• 1993-1997 Toyota Supra (MKIV; JZA80 Chassis; 2JZ-GE 3.0L Inline-6 Non-Turbo; Manual Transmission Only - W58)
• 1993-1998 Toyota Supra Turbo (MKIV; JZA80 Chassis; 2JZ-GTE 3.0L Twin-Turbo Inline-6; Manual Transmission Only - V160)

Fitment Notes

• Fits both turbo (2JZ-GTE) and non-turbo (2JZ-GE) MKIV Supra variants - no separate part number required
• Manual transmission vehicles only - automatic transmission applications require the optional Mishimoto Universal Transmission Cooler Kit (MMTC-U), sold separately
• Direct bolt-on OEM fit - no cutting or modification required
• For additional cooling efficiency, Mishimoto also offers a Supra MKIV aluminum fan shroud, racing thermostat, and silicone hose kit

Features

• Direct fit for the 1993-1998 MKIV Toyota Supra - compatible with both 2JZ-GE and 2JZ-GTE engines
• Two-row 100% brazed aluminum core with a 1.97" thick profile delivers increased heat dissipation over the aging OEM radiator

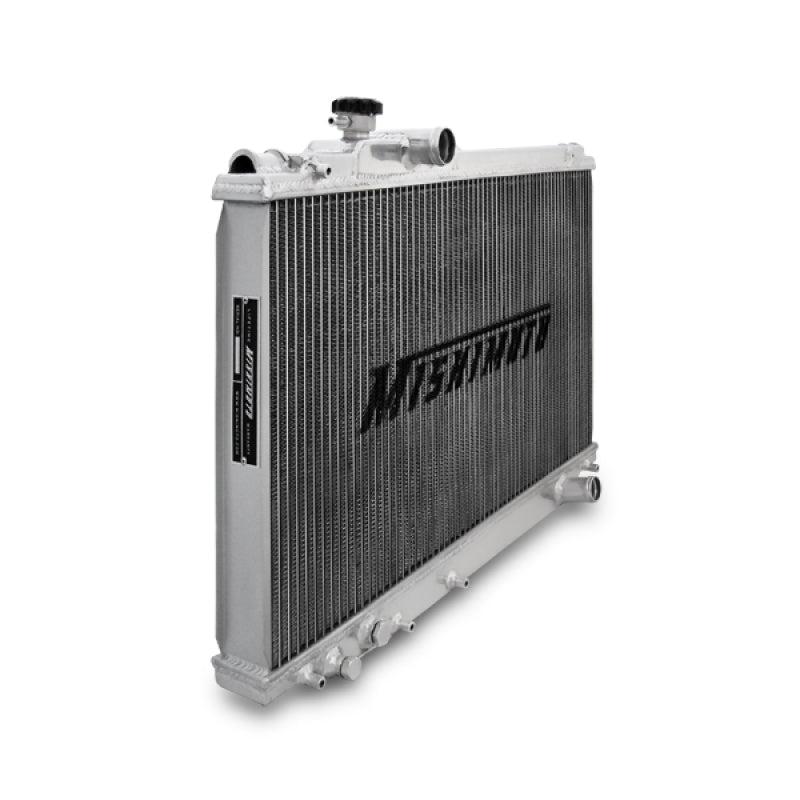

• Precision TIG-welded aluminum end tanks replace corroded or cracked factory components for long-term reliability
• Increased fluid capacity for improved thermal regulation during sustained street driving, track sessions, and high-boost 2JZ-GTE applications

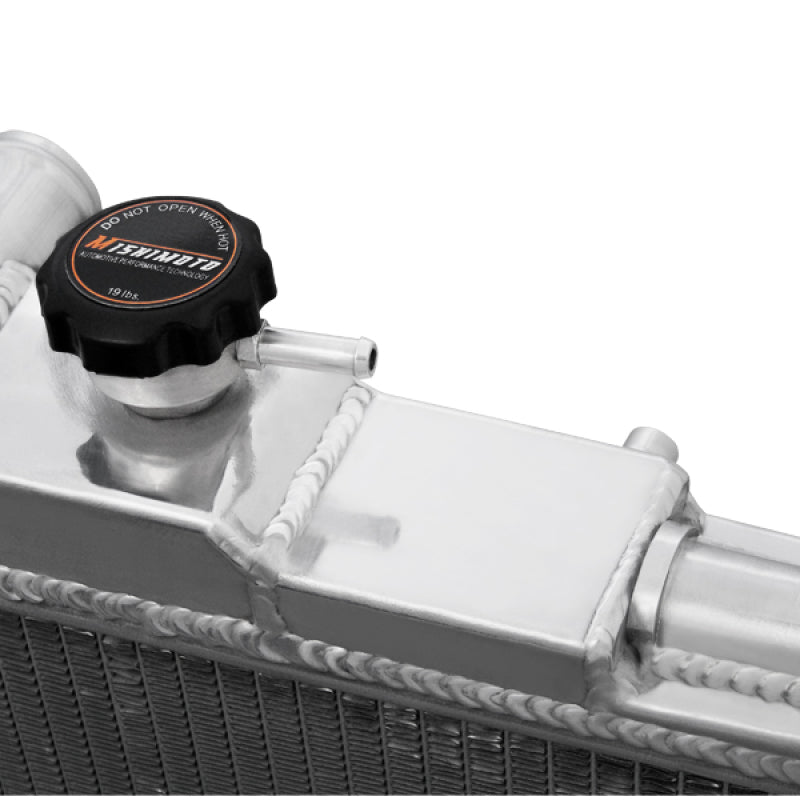

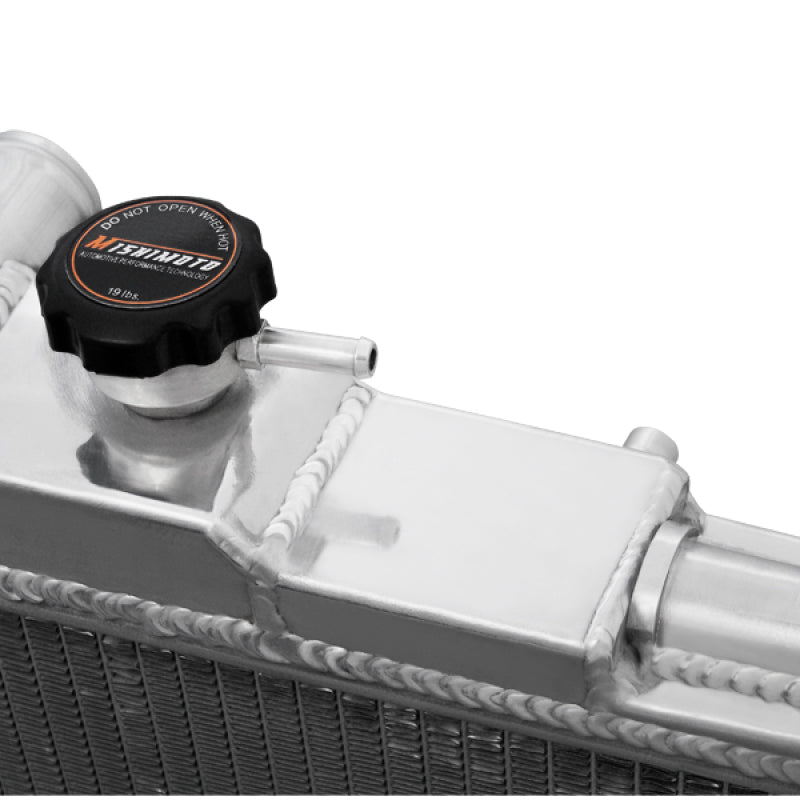

• Included 1.3 bar high-pressure radiator cap raises the coolant boiling point for a safer, more efficient system under load
• Included magnetic drain plug captures metallic debris and particles circulating in the coolant circuit
• Suitable for stock, modified, and high-horsepower 2JZ builds requiring reliable base cooling
• Backed by the Mishimoto Lifetime Warranty

Specifications

• Part Number: MMRAD-SUP-93T
• Construction: 100% Brazed Aluminum Core with TIG-Welded Aluminum End Tanks
• Number of Rows: 2
• Overall Size: 29.7" x 20.8" x 2.47"
• Core Size: 15.75" x 29.05"
• Core Thickness: 1.97"
• Inlet Diameter: 1.4"
• Outlet Diameter: 1.4"
• Fill Neck Diameter: 1.25"
• Tank Wall Thickness: 0.08"
• Drain Plug Thread Size: M16
• Radiator Cap Pressure: 1.3 Bar (High-Pressure, included)
• Engine Codes: 2JZ-GE (3.0L NA), 2JZ-GTE (3.0L Twin-Turbo)
• Chassis Code: JZA80
• Transmission: Manual Only (W58 NA / V160 Turbo)
• Installation Difficulty: Medium

Included Components

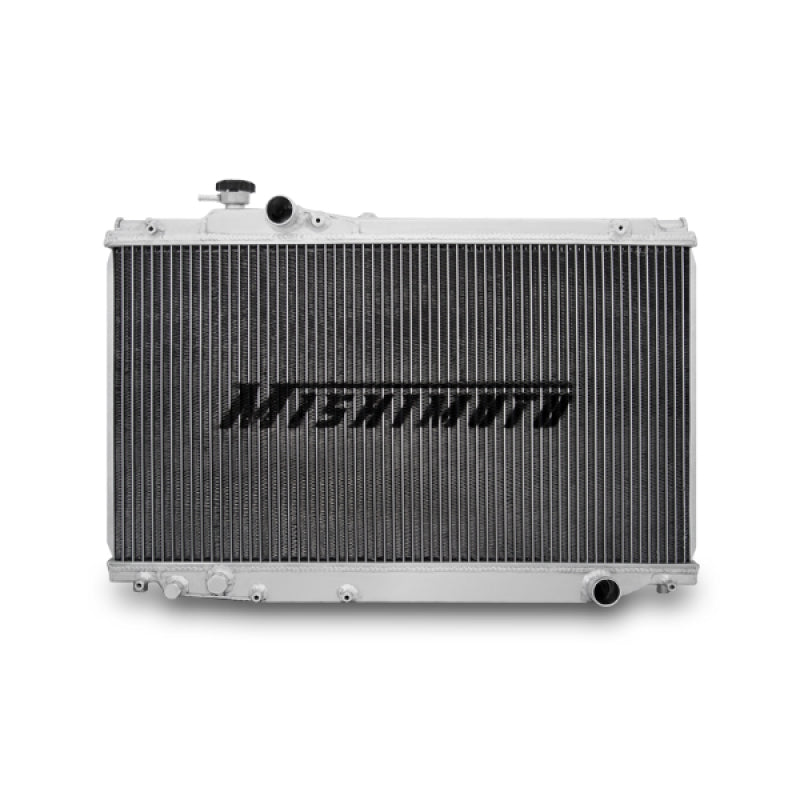

• 1x Mishimoto 2-Row Performance Aluminum Radiator
• 1x Mishimoto 1.3 Bar High-Pressure Radiator Cap
• 1x Magnetic Drain Plug

Product Description

The Mishimoto MMRAD-SUP-93T is a direct-fit 2-row performance aluminum radiator engineered for the 1993-1998 Toyota Supra MKIV (JZA80 chassis), covering both the naturally aspirated 2JZ-GE and the twin-turbocharged 2JZ-GTE engine with manual transmission. After three decades, the OEM Supra radiator is well past its service life - corroded or cracked end tanks and reduced cooling efficiency are common failures that put valuable 2JZ engines at risk. Mishimoto's aluminum replacement eliminates these failure points with a fully brazed 2-row core and TIG-welded aluminum end tanks, delivering increased coolant capacity and superior heat dissipation for both stock and modified MKIV builds.

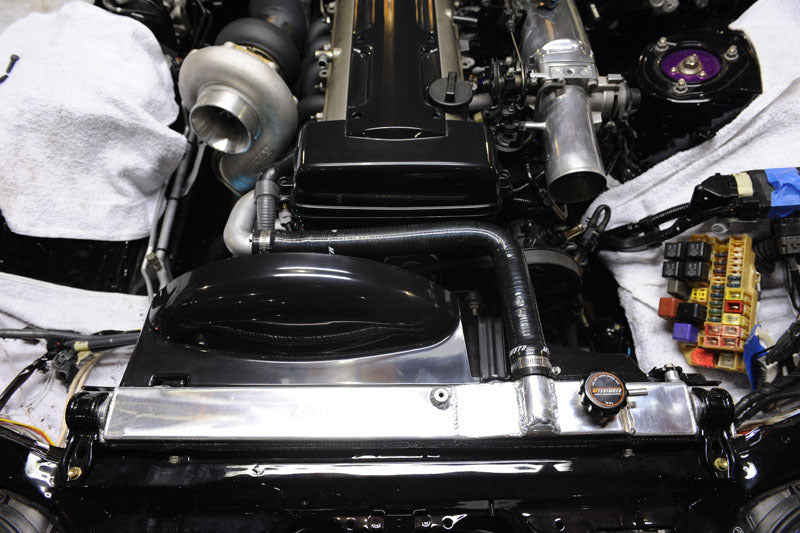

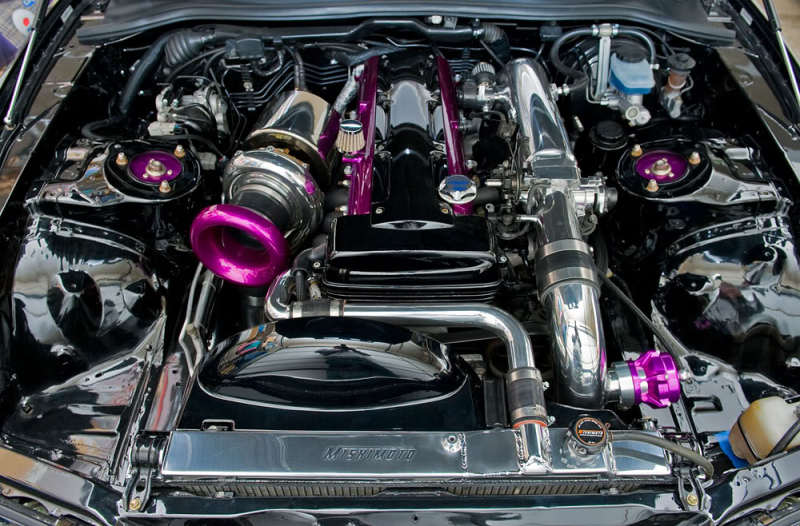

The MMRAD-SUP-93T is a confirmed direct OEM fit requiring no cutting or modification - it installs in place of the factory radiator across both turbo and non-turbo variants. The included 1.3 bar high-pressure radiator cap raises the coolant boiling point for improved safety during hard driving, and the magnetic drain plug captures metallic particles from the coolant circuit during each fluid change. For a more aggressive cooling upgrade on high-horsepower 2JZ builds, Mishimoto also offers the MMRAD-SUP-93TX X-Line 3-row version of this radiator. Backed by the Mishimoto Lifetime Warranty.
