Mishimoto MMRAD-LCR-58X 3-Row Aluminum Radiator for 58-84 Toyota FJ40 F/2F

Vehicle Fitment

• 1958-1984 Toyota Land Cruiser FJ40 (F 3.9L Inline-6 and 2F 4.2L Inline-6; Manual/Automatic)
• 1958-1980 Toyota Land Cruiser (FJ Series non-FJ40 body styles; F 3.9L and 2F 4.2L Inline-6; Manual/Automatic)

Fitment Notes

• Fits F-series inline-6 engines only - F (3.9L) and 2F (4.2L); does not fit later diesel variants
• Compatible with both manual and automatic transmissions - includes an internal transmission cooler with female 1/4-inch BSPP thread ports for automatic transmission fluid cooling
• Inlet location: Upper driver side; Outlet location: Lower passenger side
• Drain plug thread size: M12 x 1.5
• Euro-spec and market-specific FJ40 variants should verify fitment against OEM dimensions before purchase

Features

• 3-row X-Line core delivers substantially increased cooling capacity over the aging stock radiator
• 100% brazed aluminum core with precision TIG-welded aircraft-quality aluminum end tanks for superior heat dissipation and long-term durability
• Large 4.99-gallon fluid capacity provides exceptional thermal mass for sustained off-road and overland use
• Internal transmission cooler supports automatic transmission fluid temperature regulation
• All factory inlet, outlet, and sensor connections retained for a clean OEM-style installation
• Included magnetic drain plug captures metallic debris circulating in the coolant circuit
• Ideal for stock, modified, turbocharged, and overland-built FJ40 applications
• Backed by the Mishimoto Lifetime Warranty

Specifications

• Part Number: MMRAD-LCR-58X
• Radiator Style: Downflow
• Construction: 100% Brazed Aluminum Core with TIG-Welded Aluminum End Tanks
• Number of Rows: 3
• Overall Size: 22.75" L x 20.0" H x 5.1" W
• Core Size: 19.4" L x 17.1" H
• Core Thickness: 2.0"
• Fluid Capacity: 4.99 gallons
• Inlet Diameter: 1.5" (Upper Driver Side)
• Outlet Diameter: 1.5" (Lower Passenger Side)
• Drain Plug Thread Size: M12 x 1.5
• Internal Transmission Cooler: Yes - Female 1/4" BSPP ports
• Engine Codes: F (3.9L Inline-6), 2F (4.2L Inline-6)
• DPI: 180
• Material: Aluminum
• Installation Difficulty: Medium

Included Components

• 1x Mishimoto 3-Row Performance Aluminum Radiator

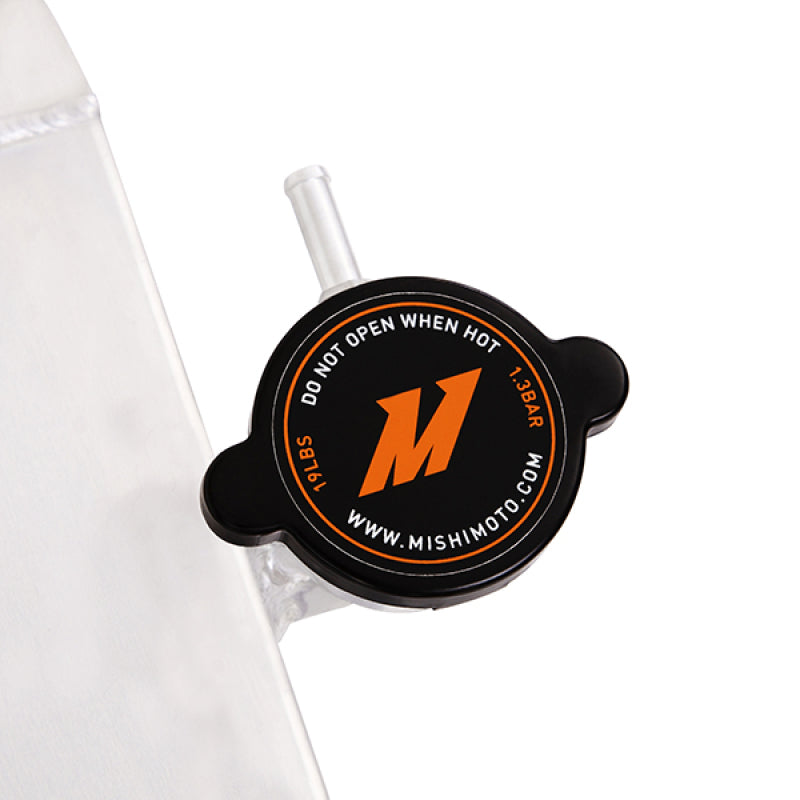

• 1x Mishimoto High-Pressure Radiator Cap
• 1x Magnetic Drain Plug (M12 x 1.5)

Product Description

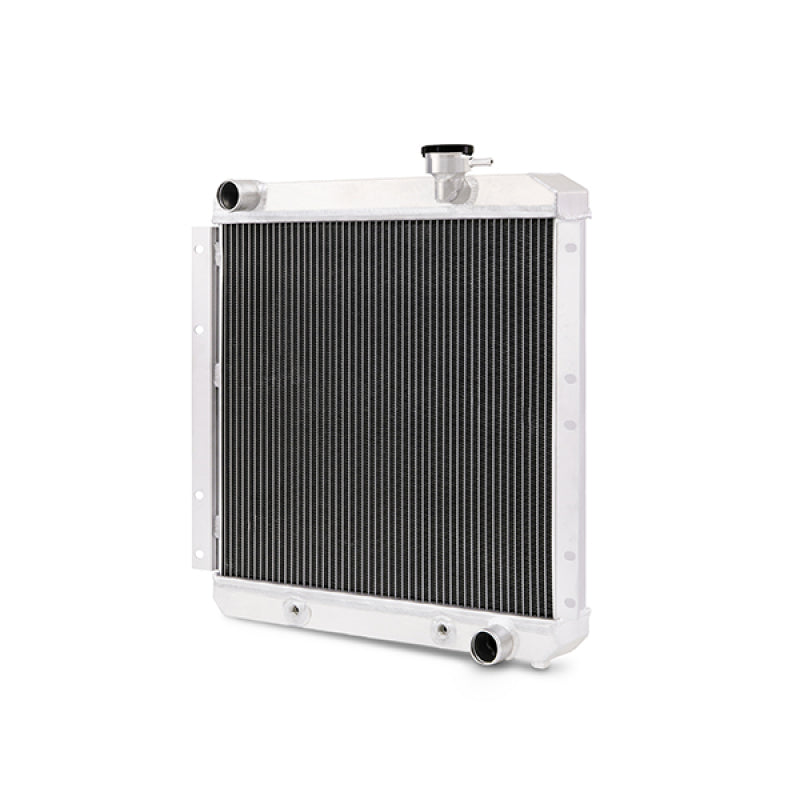

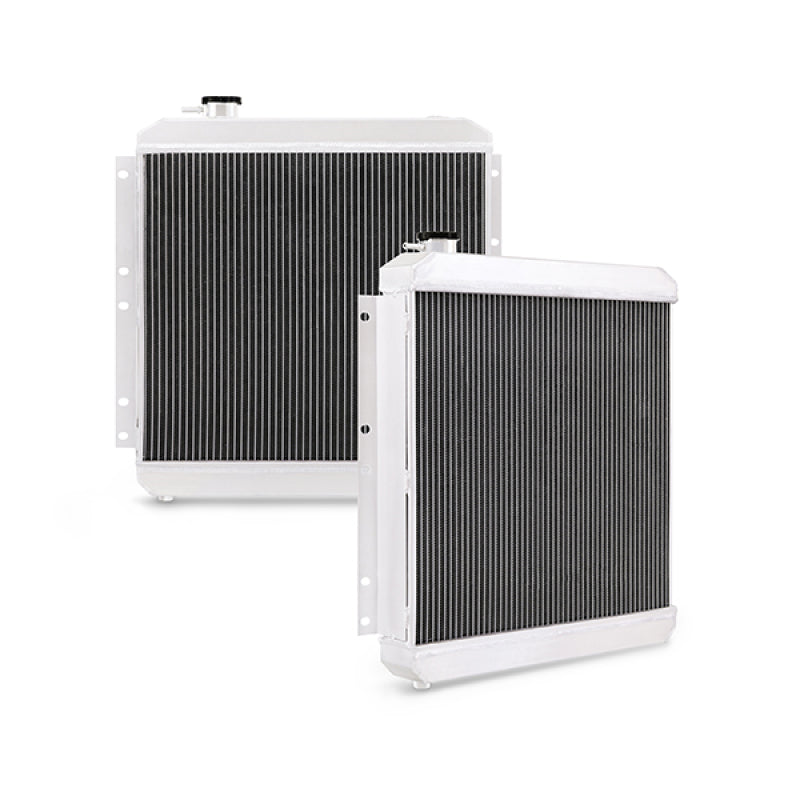

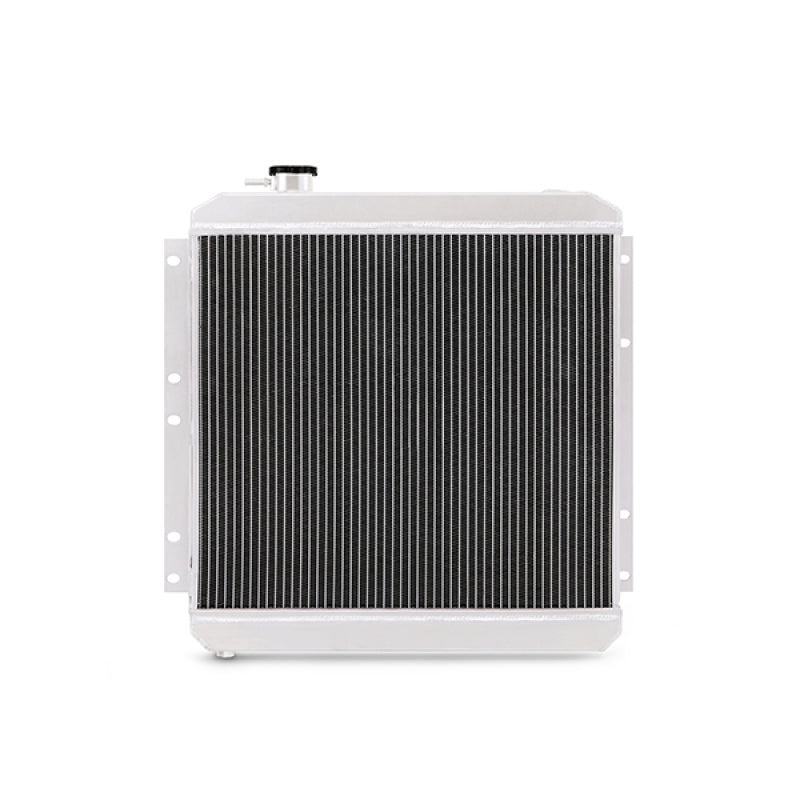

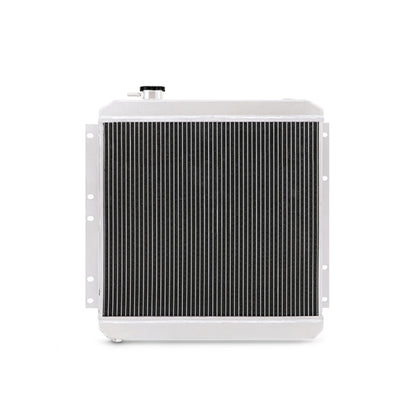

The Mishimoto MMRAD-LCR-58X is a direct-fit 3-row performance aluminum radiator engineered for the 1958-1984 Toyota Land Cruiser FJ40 and compatible FJ-series models equipped with the F 3.9L or 2F 4.2L inline-6 engine. The stock FJ40 radiator - by now 40 to 65 years old - is a common failure point prone to corrosion, leaks, and reduced cooling efficiency. Mishimoto's fully aluminum replacement eliminates these weaknesses with a 3-row brazed aluminum core and TIG-welded aircraft-quality aluminum end tanks, delivering a substantial increase in coolant capacity (4.99 gallons) and heat dissipation for stock, modified, and hard-working off-road builds.

The radiator supports both manual and automatic transmissions, featuring an internal transmission cooler with female 1/4-inch BSPP ports for automatic fluid temperature regulation. All factory inlet, outlet, and sensor connection points are retained for a straightforward bolt-on swap. The included magnetic drain plug captures metallic debris during coolant changes, and the high-pressure radiator cap raises the coolant boiling point for added safety in demanding conditions. Backed by the Mishimoto Lifetime Warranty, this radiator is the definitive cooling system upgrade for any FJ40 owner - whether a trail rig, overland build, or restored classic.
