Mishimoto MMTC-TAC-24 Performance Transmission Cooler for 2024-26 Toyota Tacoma

Vehicle Fitment

• 2024-2026 Toyota Tacoma (All Trims, 2.4L I4 Turbo T24A-FTS, N400 Chassis, 4WD/RWD)

Fitment Notes

• Fits all 2024+ Toyota Tacoma trims equipped with the 2.4L turbocharged I4 (T24A-FTS) engine and automatic transmission.
• The passenger-side radiator duct requires slight trimming for transmission line clearance - no other modifications to the vehicle are required.
• Works in conjunction with the factory liquid-to-liquid coolers - both OEM coolers remain active to preserve quick warm-up times in cold conditions.
• Transmission lines meet SAE J1532 standards for transmission fluid compatibility and pressure tolerance.
• Not compatible with manual transmission variants if applicable - verify automatic transmission fitment before ordering.

Features

• High-capacity tube-and-fin core with 14 rows and high-efficiency internal fins maximizes heat dissipation from transmission fluid before it reaches the stock cooler.
• Supplements the factory liquid-to-liquid coolers, reducing overall thermal load on the Tacoma's primary cooling system without eliminating OEM warm-up function.

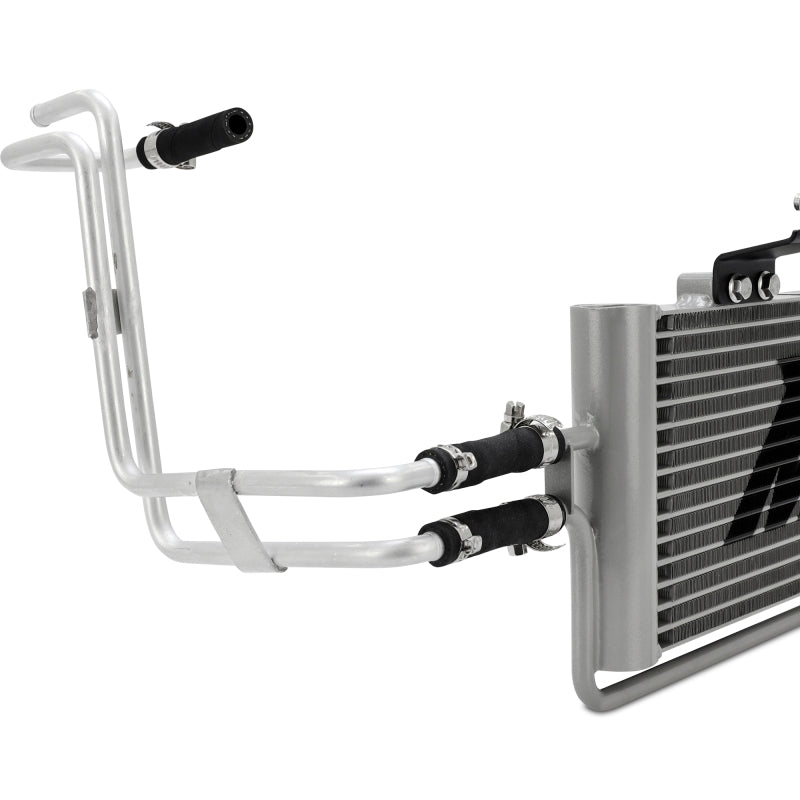

• AEM line sections flex around factory hardlines, providing transmission-fluid-compatible hose with leak-free operation and resistance to abrasion.

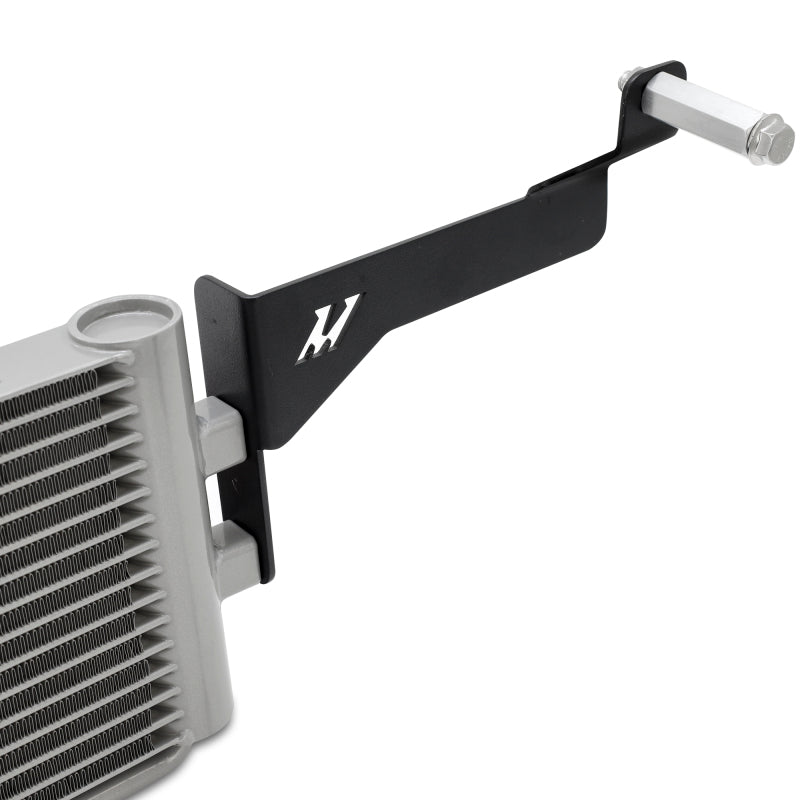

• Direct-fit design with pre-cut hoses, durable hose clips, and 3mm thick steel mounting brackets - no fabrication required.
• Powder-coated aluminum construction resists corrosion and environmental damage across off-road and towing conditions.
• Designed, engineered, and tested in the USA.
• Backed by Mishimoto's Lifetime Warranty.

Specifications

• Fitment: 2024-2026 Toyota Tacoma, 2.4L I4 Turbo (T24A-FTS), N400 Chassis
• Core Type: Tube-and-Fin
• Rows: 14
• Inlet/Outlet Size: 3/8 in.
• Core Length: 10.83 in.
• Core Height: 5.94 in.
• Core Thickness: 1.26 in.
• Overall Length: 14.70 in. (16.50 in. packaged)
• Overall Height: 7.52 in. (9.50 in. packaged)
• Overall Width: 1.42 in. (9.00 in. packaged)
• Weight: 6 lb.
• Material: Aluminum with Powder-Coated Finish
• Hose Standard: SAE J1532
• Bracket Thickness: 3mm Steel
• Position: Front-Mount (Air-to-Fluid)

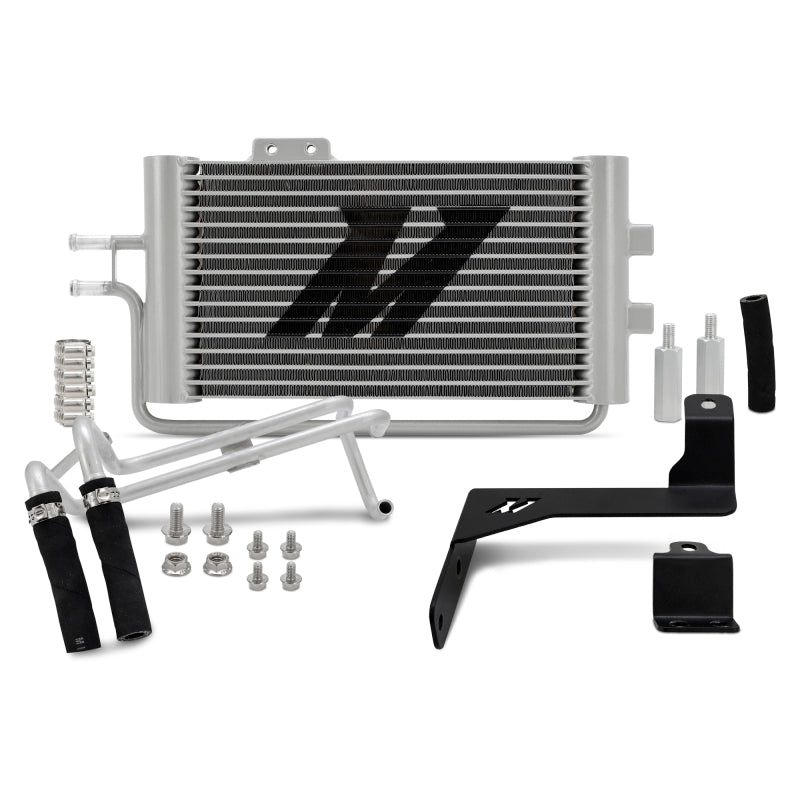

Included Components

• 1x Mishimoto Transmission Cooler (Powder-Coated Aluminum)
• 1x Bracket Kit (3mm Steel Mounting Brackets)
• 1x Hardline Kit (Pre-Cut Hoses with AEM Line Sections)
• 1x Hose Clip Set
• 1x Mishimoto Lifetime Warranty

Product Description

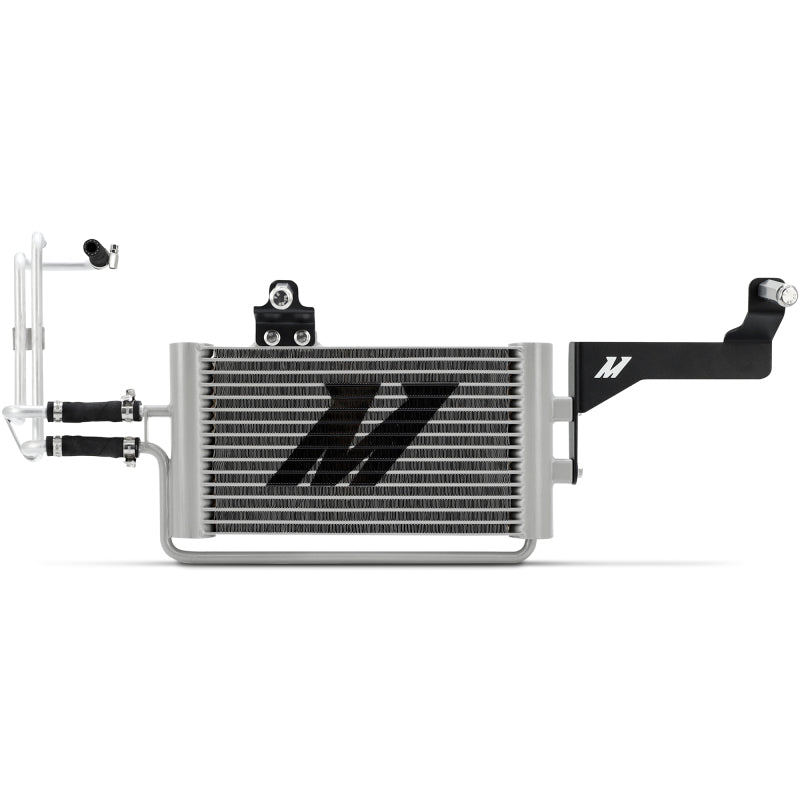

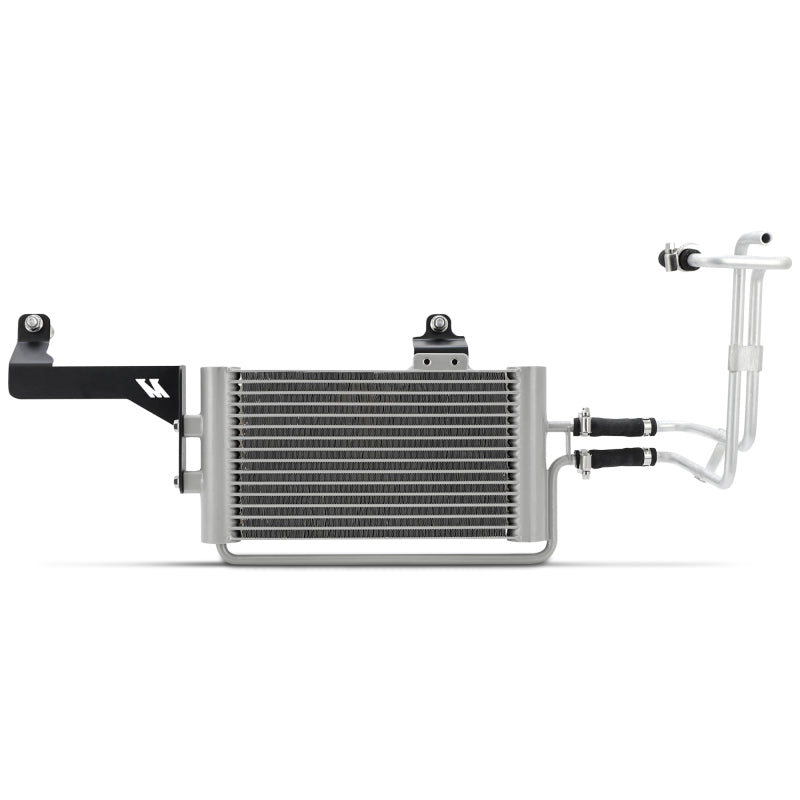

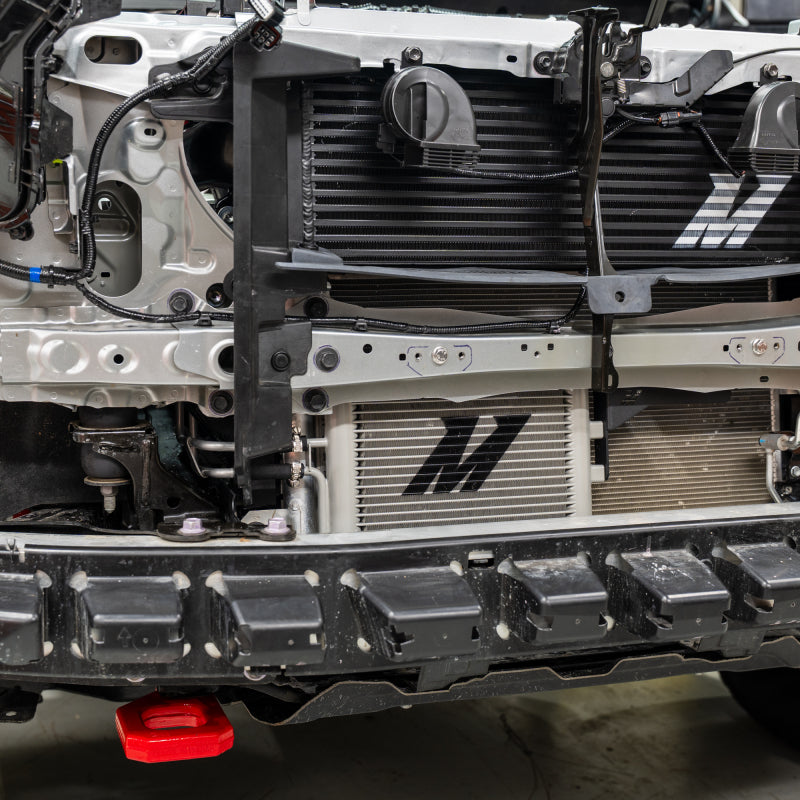

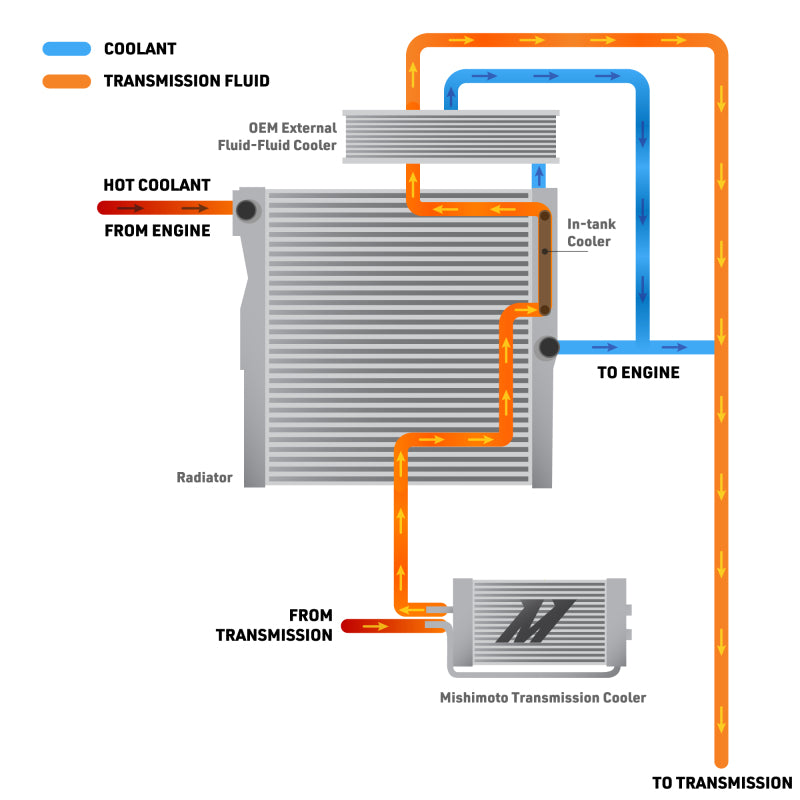

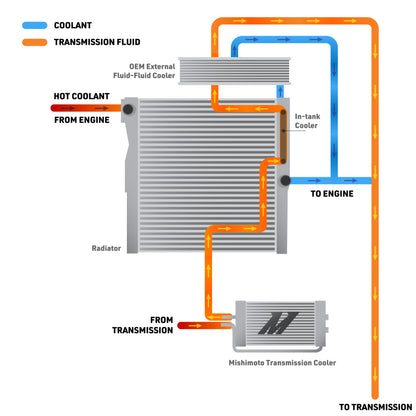

The Mishimoto MMTC-TAC-24 is a direct-fit performance transmission cooler purpose-built for the fourth-generation Toyota Tacoma (N400 chassis) powered by the 2.4L turbocharged I4. Designed for owners who tow, haul, or push their Tacoma hard on the trail, this cooler addresses a key limitation of the factory system: the stock liquid-to-liquid coolers in the radiator and fan shroud are efficient at warming the transmission fluid quickly, but their surface area is constrained under sustained high-load conditions. Adding a dedicated front-mount, air-to-fluid tube-and-fin cooler before the stock system means the fluid arrives at lower temperatures, reducing thermal stress across the entire drivetrain cooling circuit.

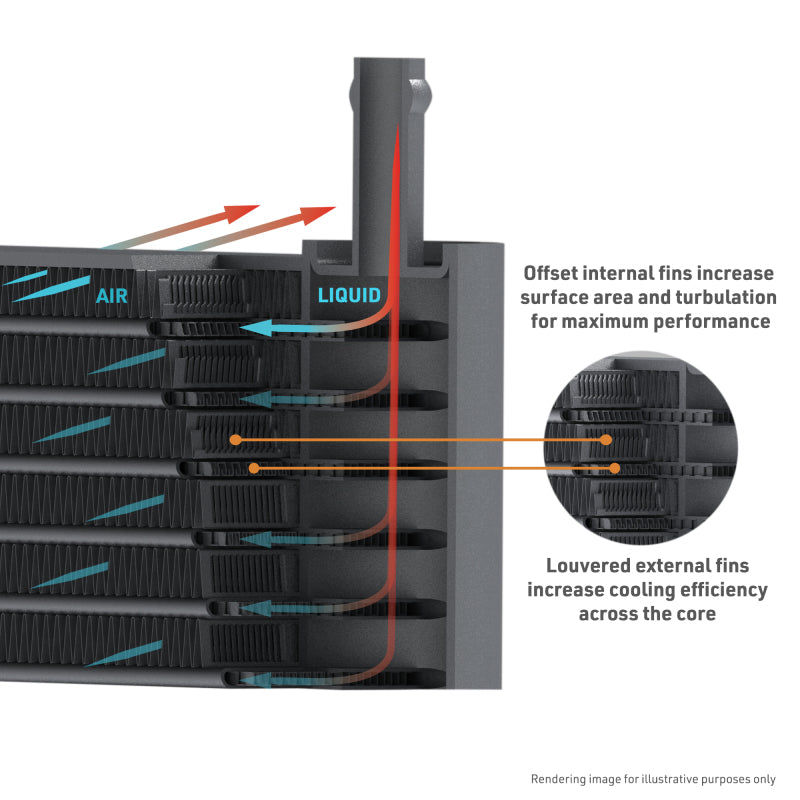

The 14-row tube-and-fin core features high-efficiency internal fins that pull heat from the fluid before it reaches the factory cooler, while the external fins transfer that heat to passing ambient air. Because both OEM coolers remain in operation, the system retains the factory's quick warm-up behavior in cold weather and short-trip driving - only adding capacity when temperatures climb under heavy load. AEM line sections connect the cooler to the factory hardlines, providing the correct fluid resistance and flexibility to prevent fatigue and leaks, and all hose routing is secured with durable clips. The passenger-side radiator duct requires minor trimming for line clearance - the only modification to the Tacoma required.

Every MMTC-TAC-24 is designed, engineered, and tested in the USA and arrives with a powder-coated finish to resist corrosion in off-road and harsh-weather environments. Whether the Tacoma is used for trailer towing, overlanding, daily hauling, or weekend trail use, this cooler provides the additional thermal headroom needed to keep the transmission operating reliably mile after mile. Backed by Mishimoto's Lifetime Warranty.
