Mishimoto MMINT-MUS4-24KBKBK Black Intercooler Kit for 24+ Mustang EcoBoost 2.3L

Vehicle Fitment

• 2024+ Ford Mustang EcoBoost - 2.3L turbo I4 (S650 chassis)

Fitment Notes

• This is a current, still-in-production platform, so fitment is listed as open-ended (2024+) per Mishimoto's own published applications rather than a fabricated end year
• This is the complete kit (intercooler + piping); the intercooler core alone (MMINT-MUS4-24BK) is also sold separately for owners who want to stage the upgrade
• Extra clearance is built in for compatibility with the Mishimoto performance radiator for this platform

Features

• Delivers up to 12 hp and 11 ft-lbs of torque with no tuning required
• Reduces charged-air temperature at the outlet by up to 60°F

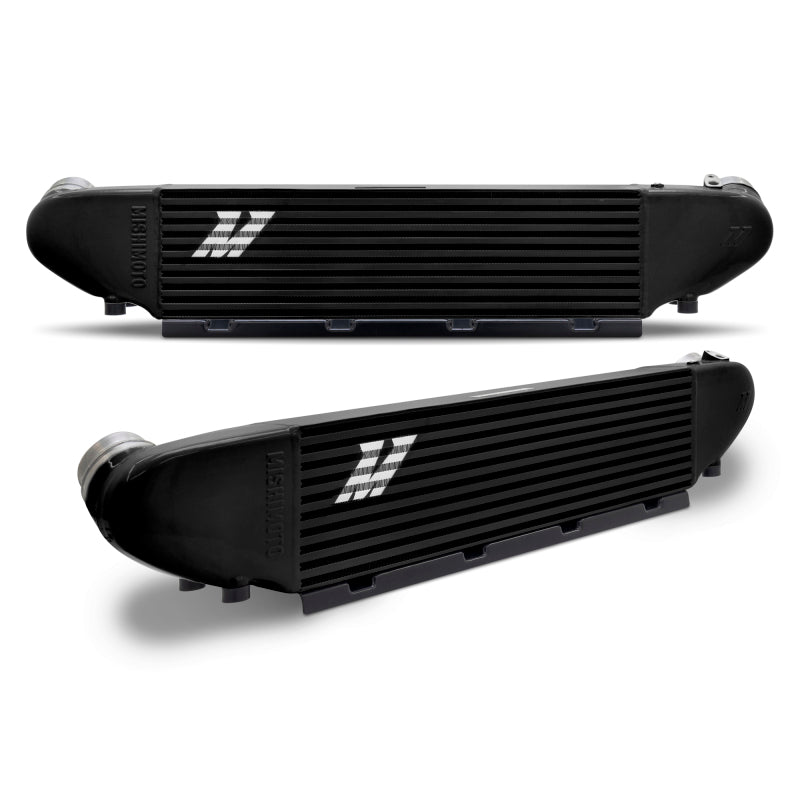

• 60% increase in core volume - the largest core that fits the stock location
• Oversized 63mm inlet and outlet diameters improve charge air flow versus stock
• Diverter plate in the hot-side end tank promotes even airflow distribution across the core

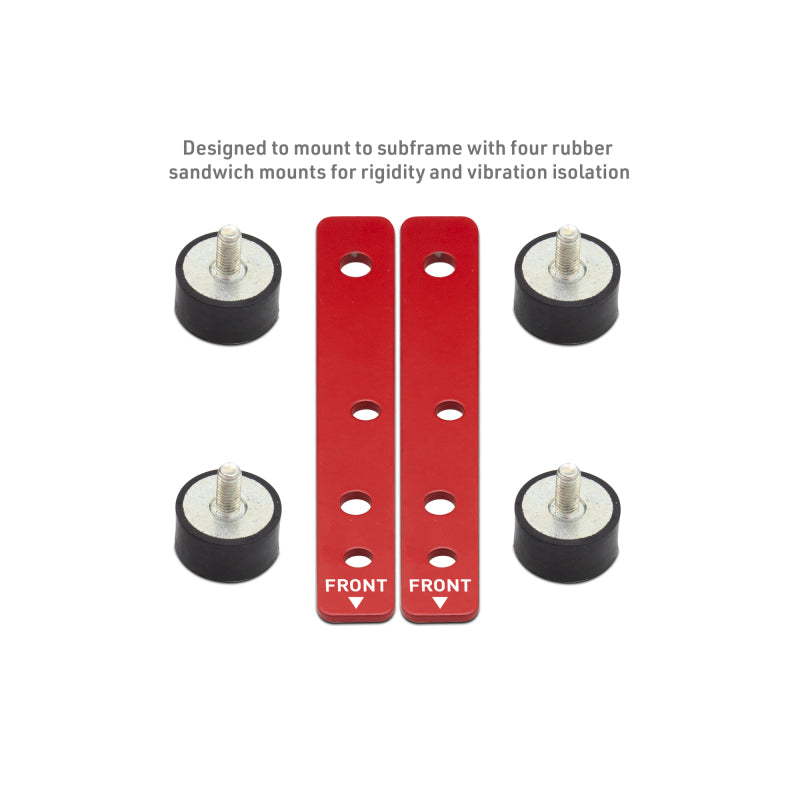

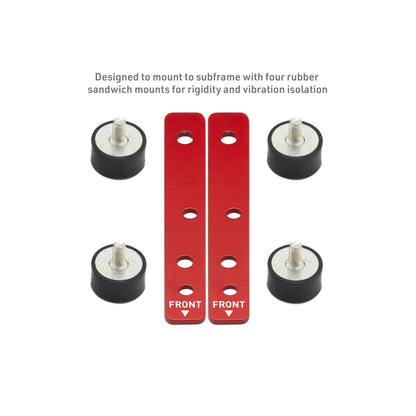

• Mounts to the subframe with four EPDM rubber sandwich mounts for rigidity and vibration isolation
• Foam sealing strips and a custom-formed air deflector maximize airflow and reduce NVH

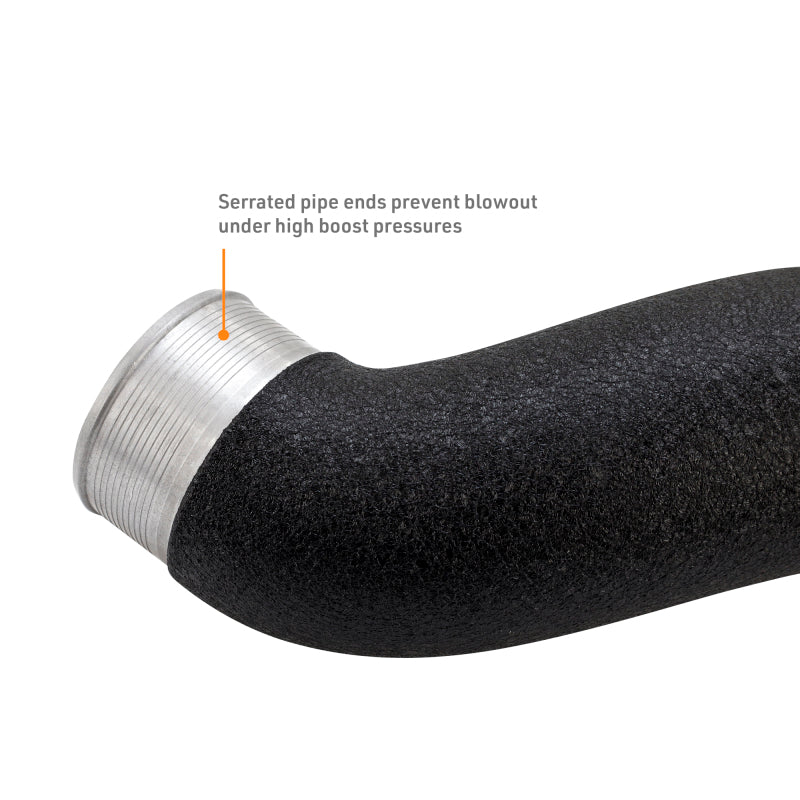

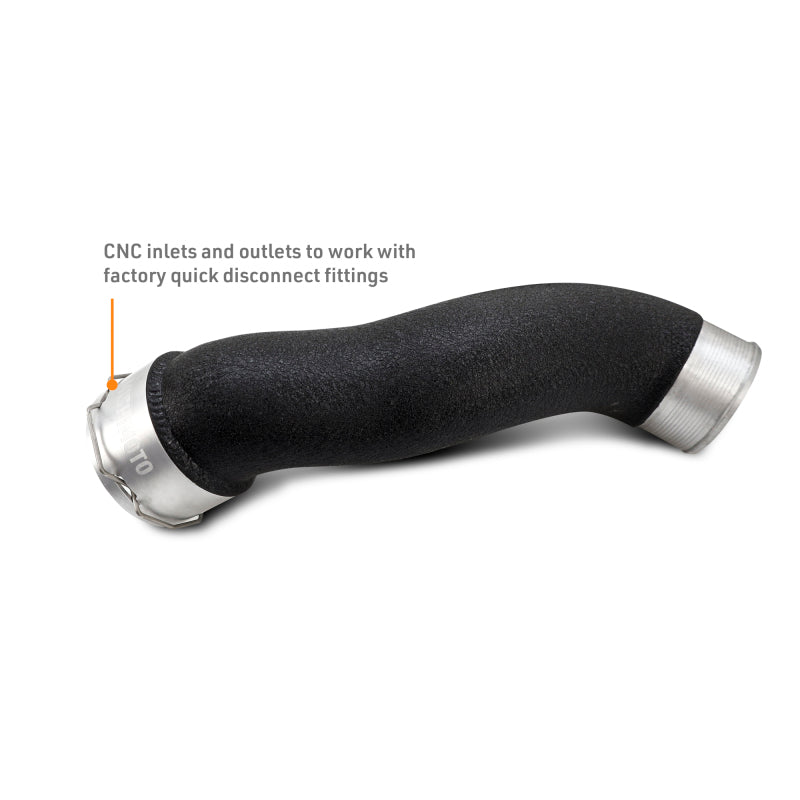

• Cast end sections on both intercooler pipes for a smooth transition and precise fitment
• ID-matched transition coupler on the cold side for smooth, even airflow into the intercooler

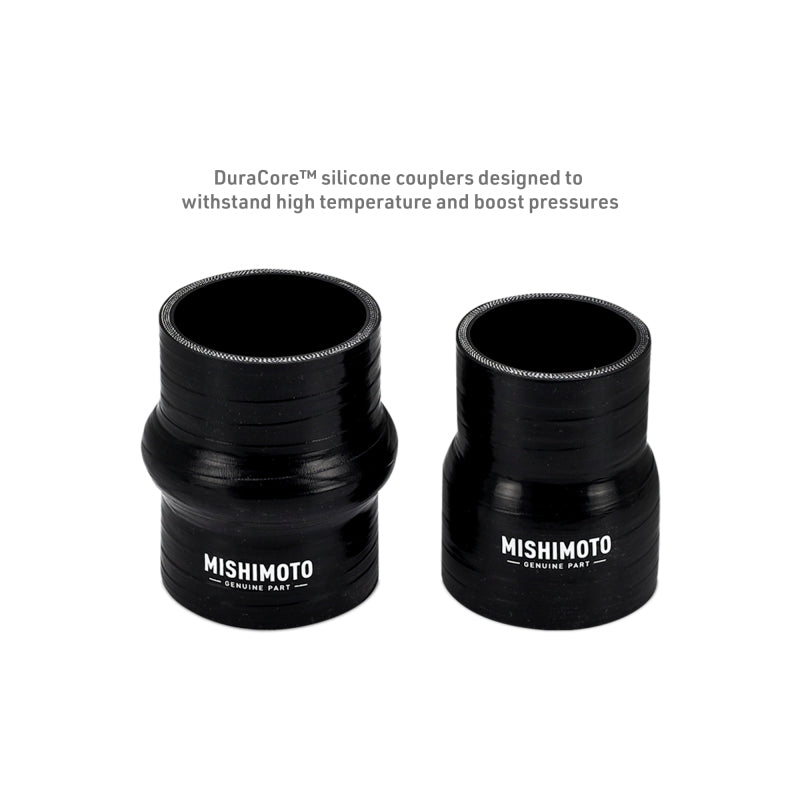

• DuraCore™ silicone couplers and high-torque worm-gear clamps handle elevated boost and heat
• Cast turbo outlet elbow integrates the blow-off valve seat and retains factory harness clipping points

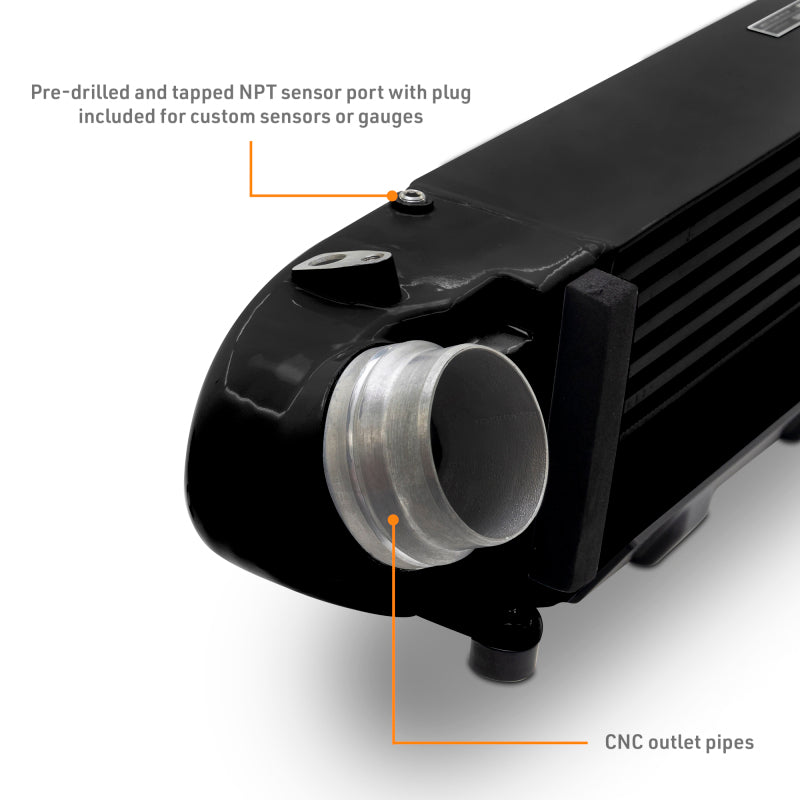

• Pre-drilled NPT port allows for auxiliary sensors or data logging
• Rated to support builds up to 526 hp
• Backed by Mishimoto's Lifetime Warranty

Specifications

• Core color: black
• Piping finish: wrinkle black

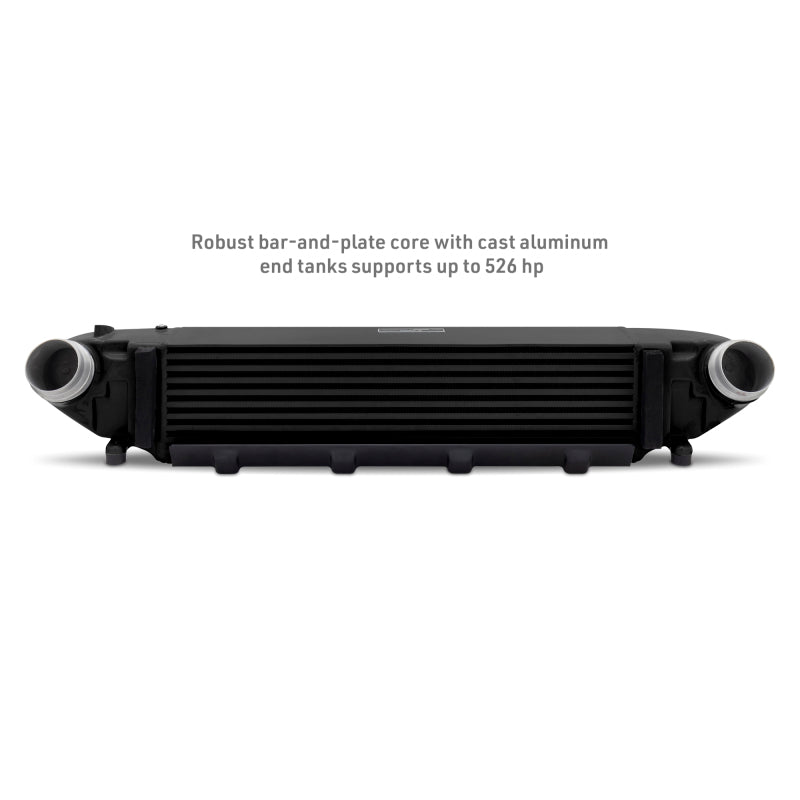

• Core type: bar-and-plate
• Core thickness: 3.54 in.
• Core length: 22.83 in.
• Core height: 6.08 in.
• Inlet/outlet: 2.44 in.
• Pipe diameter: 2.75 in.
• Centerline radius: 3.15 in.
• Overall length: 35.7 in.
• Overall height: 6.5 in.
• Overall width: 5.3 in.
• Weight: 17.00 lbs.
• Maximum recommended boost pressure: 50 PSI
• Maximum recommended horsepower: 526
• Installation difficulty: medium

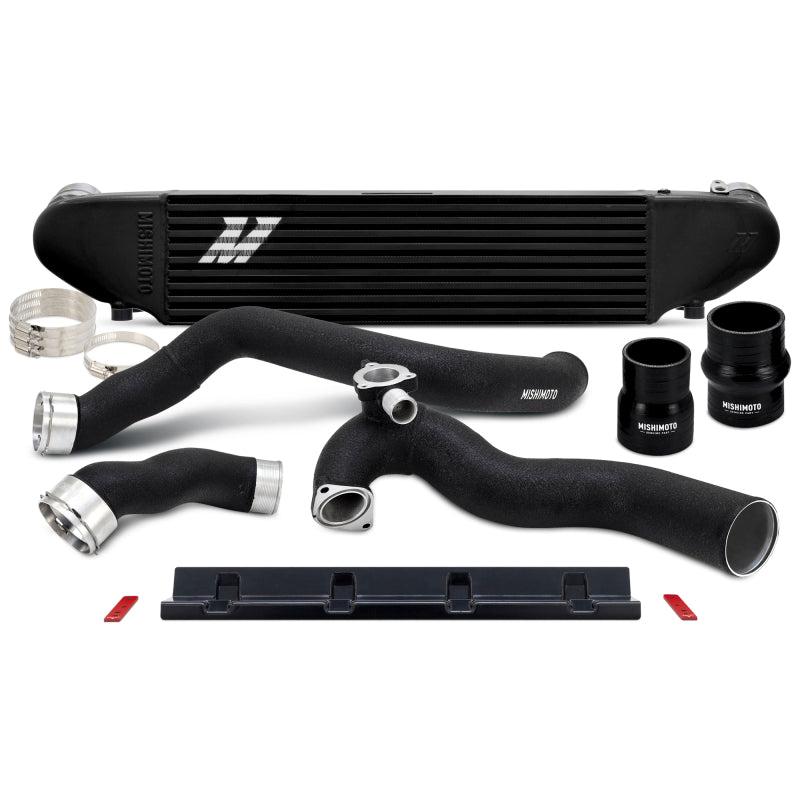

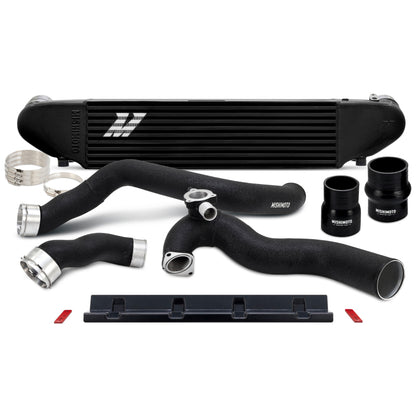

Included Components

• 1x Mishimoto Performance Intercooler
• 1x Deflector Panel Kit
• 1x Bracket Kit
• 2x Hot Side Pipes
• 1x Cold Side Pipe
• 2x DuraCore Couplers
• 4x Spring Clamps
• 2x O-Rings
• 3x Buttonhead Locking Bolts
• 1x Tree Clip Zip Tie

Product Description

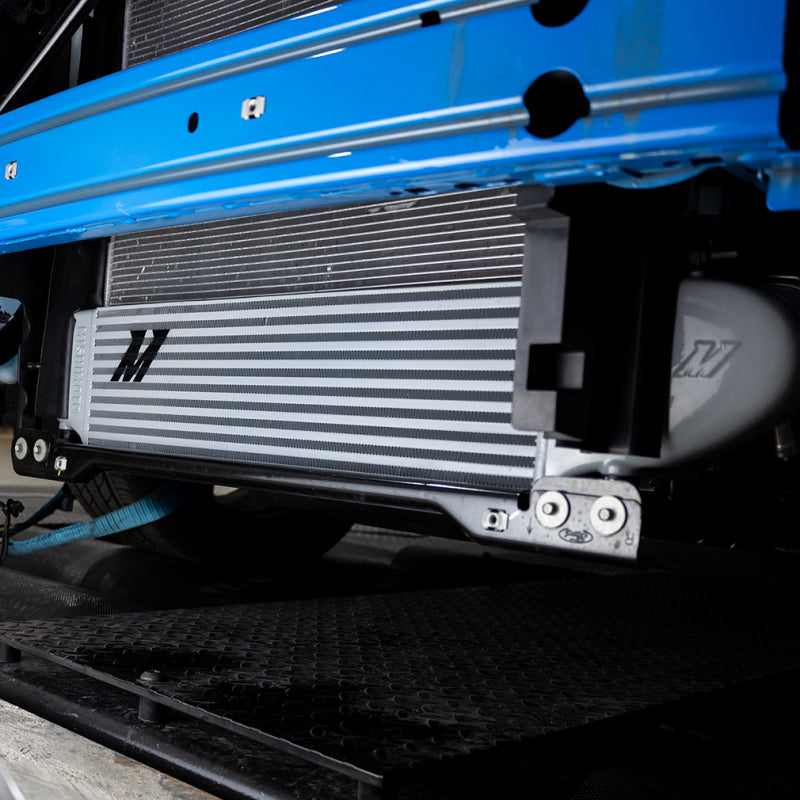

This Mishimoto intercooler and pipe kit is a complete, direct-fit cooling system upgrade for the 2024+ Ford Mustang EcoBoost's turbocharged 2.3L four-cylinder. Ford's factory intercooler is a compact tube-and-fin unit that works fine for casual driving but shows its limits under sustained load. Mishimoto's replacement uses the largest bar-and-plate core that fits the stock location - a 60% increase in volume - paired with oversized 63mm inlets/outlets and high-flow hot- and cold-side piping to deliver up to 12 hp and 11 ft-lbs of torque with no tune required.

Cast pipe sections, an ID-matched cold-side transition coupler, and DuraCore silicone couplers keep airflow smooth and sealed under boost, while a pre-drilled NPT port makes it easy to add a sensor or gauge later. Four rubber sandwich mounts and foam sealing strips keep the whole system rattle-free and quiet. Rated to support builds up to 526 hp, finished in all black for a clean underhood look, and backed by Mishimoto's lifetime warranty.
