Mishimoto MMINT-GRC-23KBKBK Intercooler & Pipe Kit Black/Black 2023-2026 GR Coro

Vehicle Fitment

• 2023-2026 Toyota GR Corolla (All Trims - Core, Circuit Pack, Morizo Edition, G16E-GTS 1.6L 3-Cylinder Turbo, AWD)

Fitment Notes

• Direct fit for all 2023+ Toyota GR Corolla trims equipped with the G16E-GTS 1.6L turbocharged 3-cylinder engine across all AWD configurations.
• This is the full intercooler and pipe kit (Black cooler / Black pipes) - includes intercooler core, adapter sets, ducting, hot-side and cold-side aluminum pipes, silicone couplers, and all hardware.
• The pipe kit portion is compatible with the Mishimoto Performance Aluminum Radiator - designed for integration with other Mishimoto GR Corolla cooling system components.

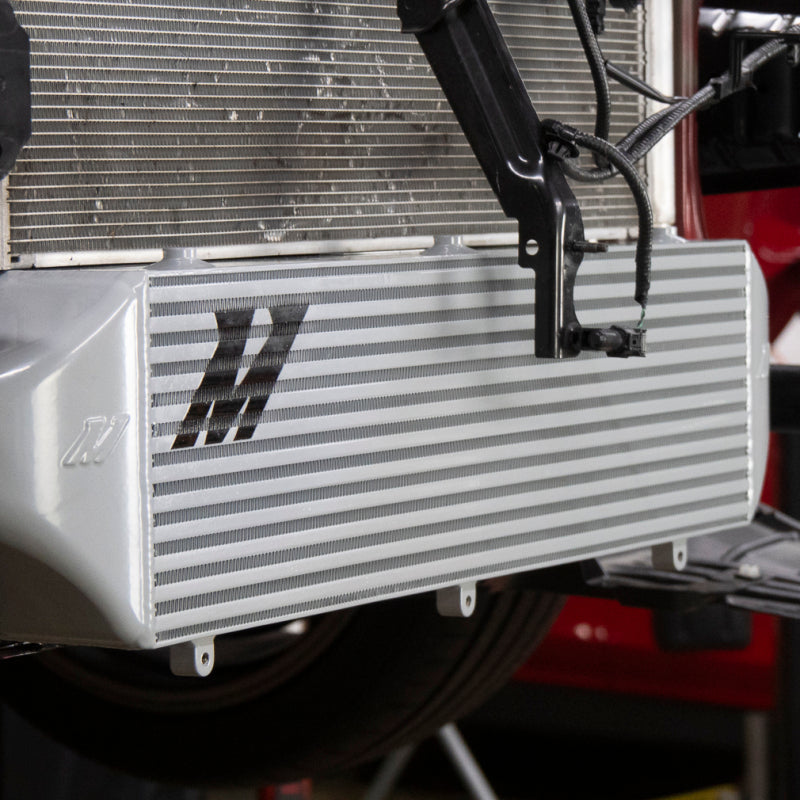

• Also available in Silver cooler / Black pipes (MMINT-GRC-23KSLBK) and Black cooler / Red pipes (MMINT-GRC-23KBKRD) - same core and performance specifications, different finish combinations.
• For owners who already have the Mishimoto GR Corolla intercooler core installed, the pipe kit is available separately as MMICP-GRC-23BK.

Features

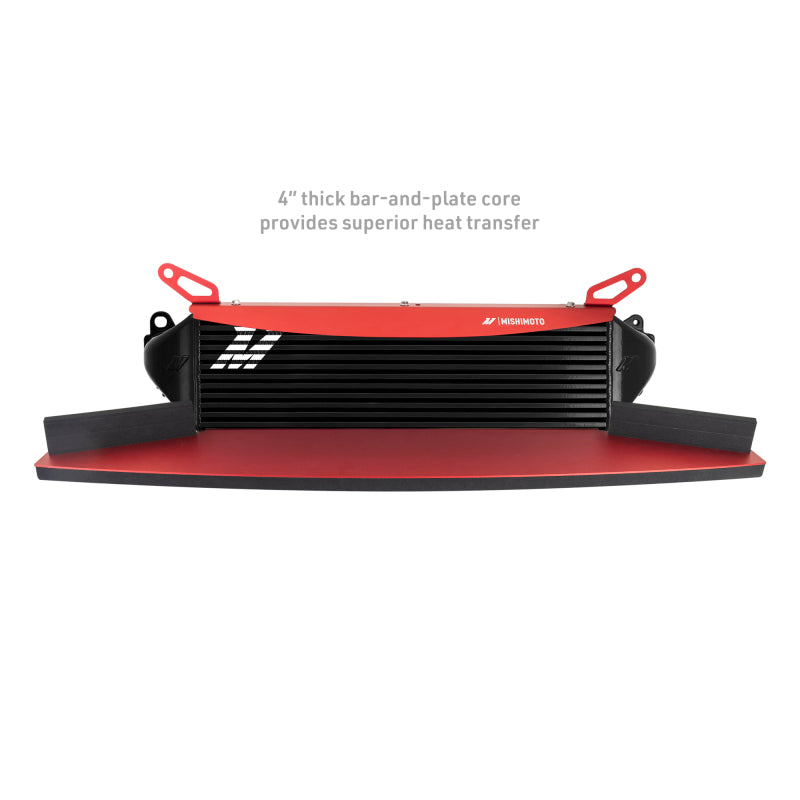

• 4" thick bar-and-plate core delivers 52% greater core volume than the factory intercooler - provides dramatically improved heat dissipation and charge air cooling capacity under spirited driving, aggressive tuning, and track use.
• 38.5°F reduction in intercooler outlet temperatures vs. stock - directly improves charge density, engine efficiency, and throttle response under load.
• Bolt-on power gains of up to 11.42 horsepower and 14.93 lb-ft of torque with no tune required - repeatable, measured results on the factory G16E-GTS calibration.

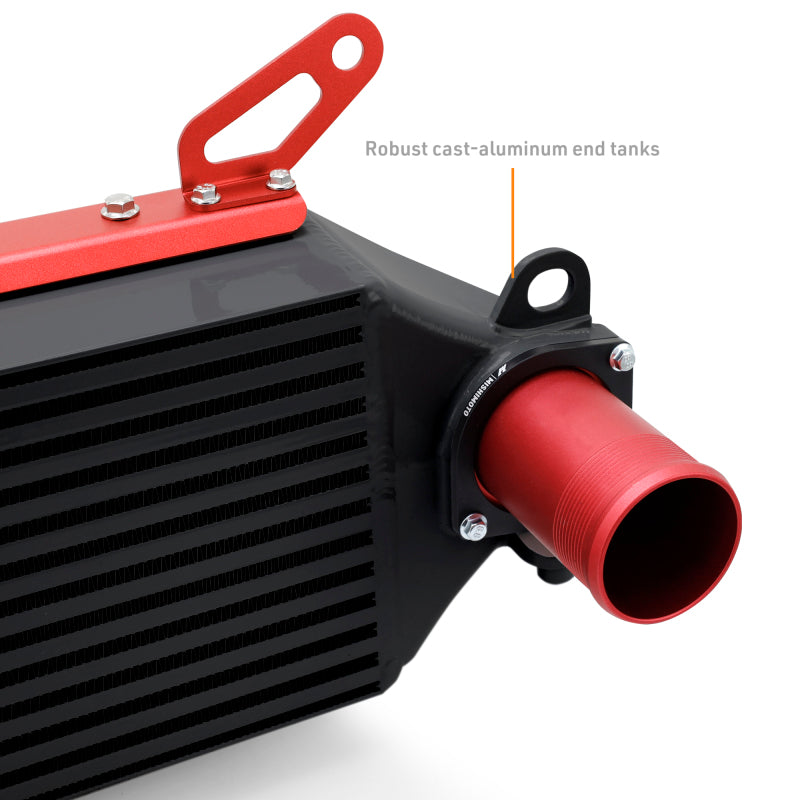

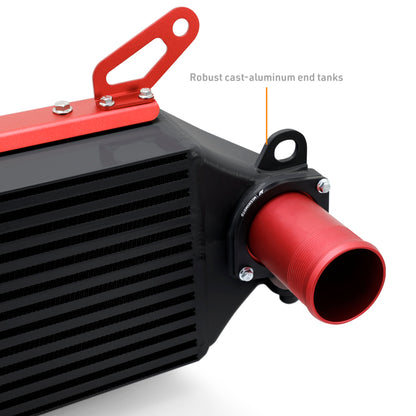

• Cast aluminum end tanks and CNC-machined inlet/outlet connections ensure smooth, unrestricted charge air flow and long-term durability under high boost pressure.
• Anodized aluminum ducting channels airflow precisely through the intercooler's external fins - prevents hot air bypass and maximizes cooling efficiency through the full core face.
• Cast throttle body elbow on the charge pipe provides drastically improved airflow and throttle response vs. the factory plastic throttle body connection.

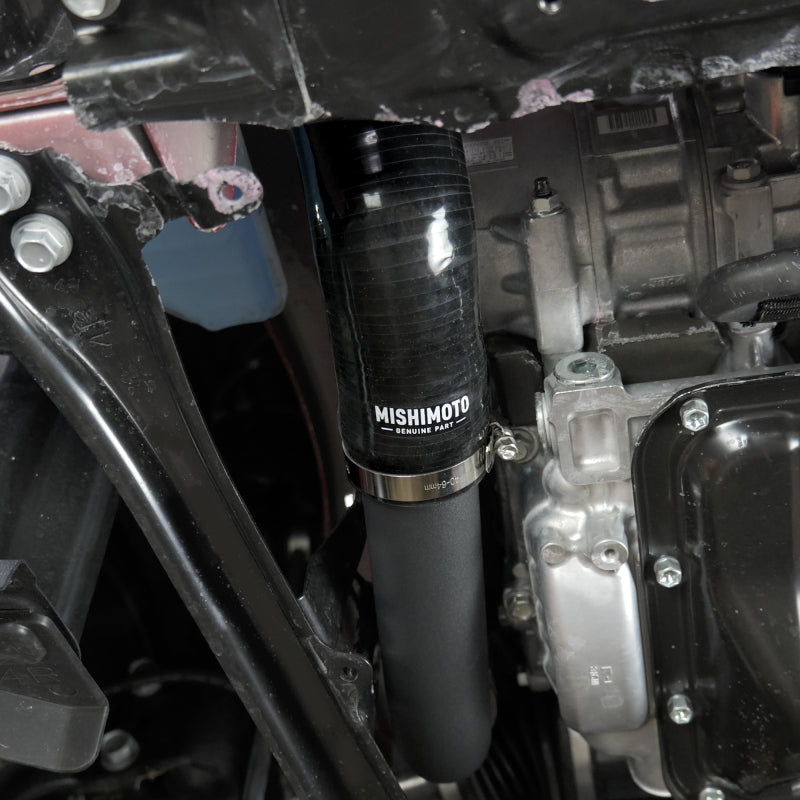

• Wire-reinforced 5-layer silicone couplers with heat-resistant fibers maintain structural integrity under sustained high boost and high-temperature charge air conditions.
• High-torque worm-gear clamps provide secure, leak-free connections at all coupler junctions throughout the charge air system.
• Complete system - replaces the restrictive factory intercooler and plastic charge pipes in a single purchase with all hardware included.
• Backed by Mishimoto's Lifetime Warranty.

Specifications

• Fitment: 2023-2026 Toyota GR Corolla (All Trims), G16E-GTS 1.6L Turbo 3-Cylinder, AWD
• Core Type: Bar-and-Plate
• Core Thickness: 4 in. (102mm)
• Core Volume Increase vs. Stock: 52%
• End Tank Material: Cast Aluminum
• Outlet Temperature Reduction vs. Stock: 38.5°F
• Power Gains (No Tune): Up to 11.42 hp / 14.93 lb-ft
• Intercooler Finish: Black Powder Coat
• Pipe Finish: Black (Micro Wrinkle)
• Throttle Body Elbow: Cast Aluminum
• Couplers: Wire-Reinforced 5-Layer Silicone with Heat-Resistant Fibers
• Ducting: Anodized Aluminum

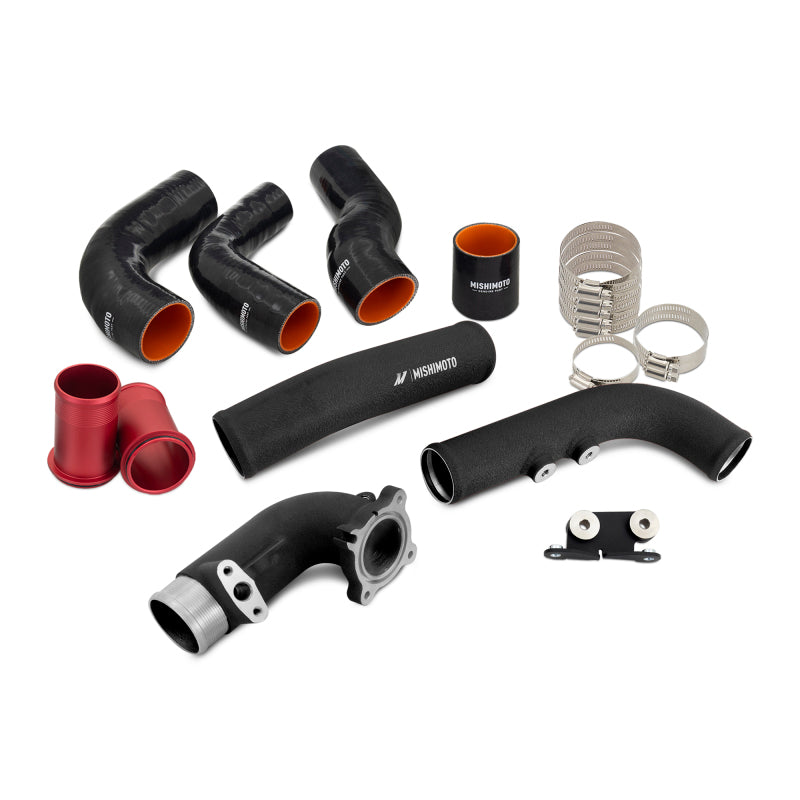

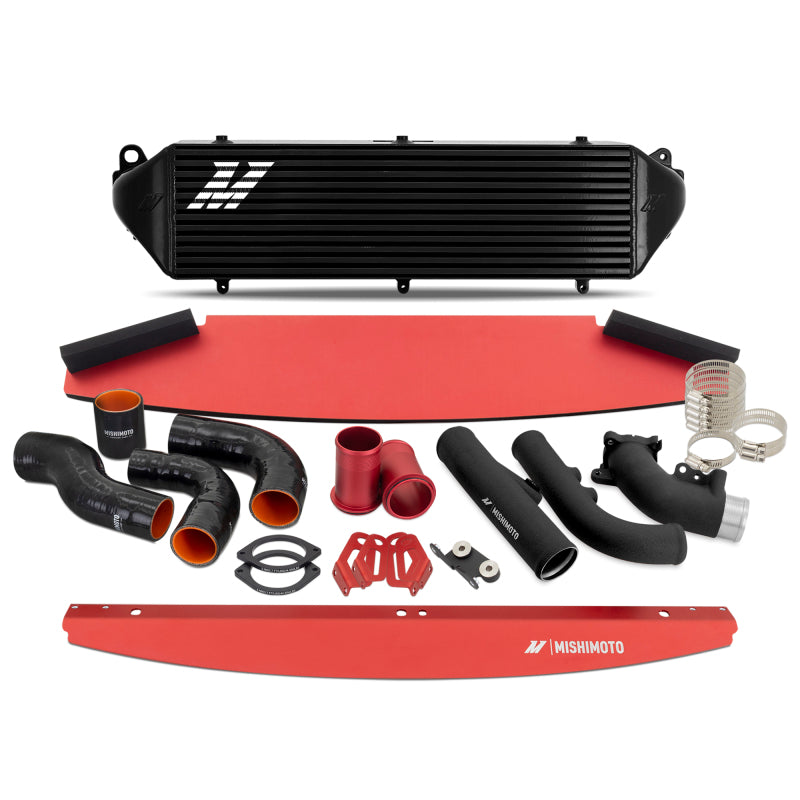

Included Components

• 1x Mishimoto Performance Intercooler (Black, 4" Bar-and-Plate)

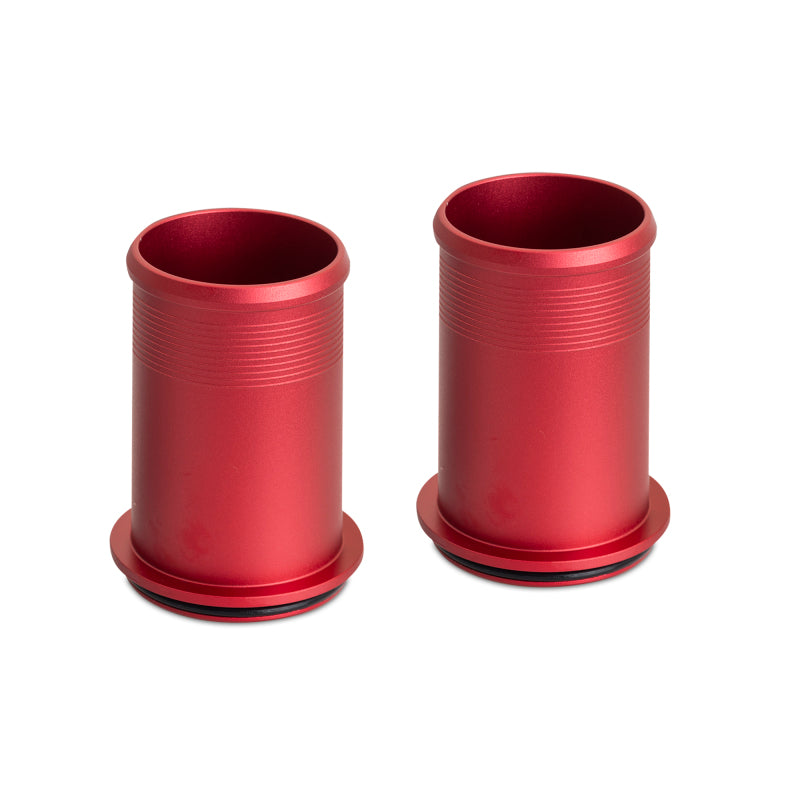

• 1x Intercooler Adapter Set
• 1x Intercooler Adapter Retainer Set
• 1x Anodized Aluminum Intercooler Ducting Set
• 1x Hot-Side Aluminum Intercooler Pipe
• 1x Cold-Side Aluminum Intercooler Pipe (with Cast Throttle Body Elbow)
• Wire-Reinforced 5-Layer Silicone Couplers
• High-Torque Worm-Gear Clamps
• 1x Mishimoto Lifetime Warranty

Product Description

The Mishimoto MMINT-GRC-23KBKBK is a complete direct-fit intercooler and charge pipe kit engineered specifically for the 2023-2026 Toyota GR Corolla equipped with the G16E-GTS 1.6L turbocharged 3-cylinder engine. The GR Corolla is one of the most performance-focused hot hatches available - pushing 100 horsepower per cylinder from the factory - but that extreme specific output generates significant heat in the charge air system during sustained hard driving. The factory intercooler is compact and effective for stock output during single pulls, but under repeated acceleration runs, canyon carving, or track conditions, the stock unit builds heat soak that progressively reduces charge density and engine output. The restrictive factory plastic charge pipes compound the issue by limiting airflow capacity as boost levels climb.

This kit addresses both problems in a single purchase. The 4" thick bar-and-plate intercooler core carries 52% more volume than the stock unit, dropping outlet air temperatures by 38.5°F compared to stock under demanding conditions. The result is up to 11.42 horsepower and 14.93 lb-ft of torque gained on a completely stock tune - measurable improvement from charge density alone without ECU recalibration. Cast aluminum end tanks and CNC-machined inlet/outlet connections replace the factory's molded plastic construction with a system built to handle sustained high boost without deformation or failure. An anodized aluminum ducting set channels airflow directly through the core's external fins to prevent hot air from bypassing the intercooler - a design detail that maximizes the full 52% core advantage in real-world conditions.

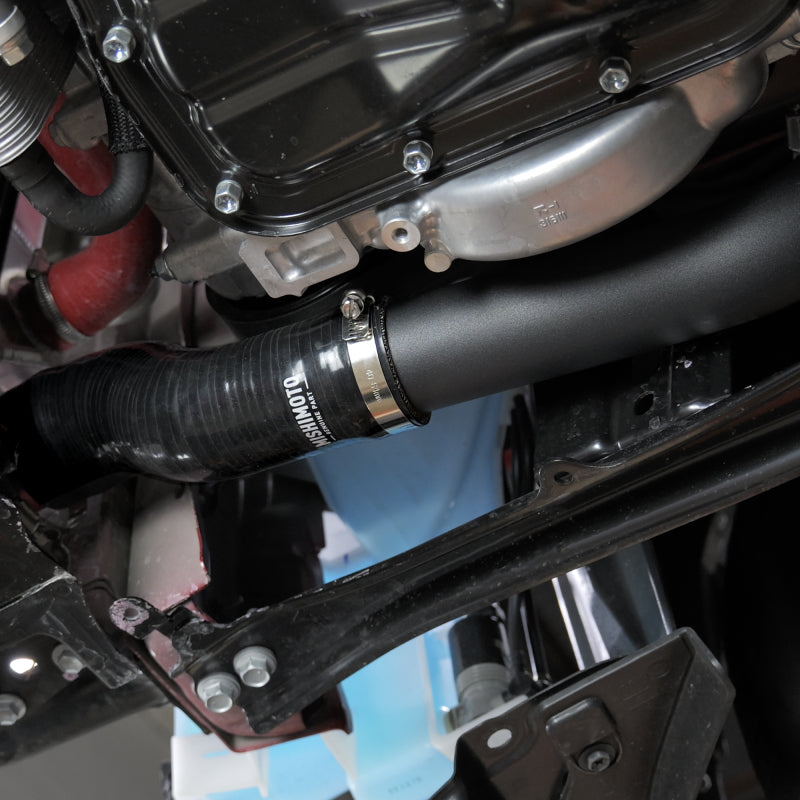

The charge pipe kit replaces the stock plastic piping with high-flow aluminum hot-side and cold-side pipes, including a cast throttle body elbow that provides substantially improved airflow into the intake manifold compared to the factory plastic inlet. Wire-reinforced 5-layer silicone couplers with heat-resistant fibers maintain boost seal integrity under sustained high-pressure and high-temperature conditions, and high-torque worm-gear clamps secure every connection. Also available in Silver/Black (MMINT-GRC-23KSLBK) and Black/Red (MMINT-GRC-23KBKRD) combinations for owners who prefer a different finish pairing. Backed by Mishimoto's Lifetime Warranty.
