Mishimoto MMINT-CIV-22KSLWRD IC Kit for 22-26 Civic/23-26 CR-V/Integra 1.5L I4

Vehicle Fitment

• 2022-2024 Honda Civic EX, 1.5L I4 Turbo (L15CA), FWD
• 2022-2024 Honda Civic EX-L, 1.5L I4 Turbo (L15CA), FWD
• 2022-2026 Honda Civic Si, 1.5L I4 Turbo (L15CA), FWD
• 2022-2024 Honda Civic Sport Touring, 1.5L I4 Turbo (L15CA), FWD
• 2022-2024 Honda Civic Touring, 1.5L I4 Turbo (L15CA), FWD
• 2023-2025 Acura Integra Base, 1.5L I4 Turbo (L15CA), FWD
• 2023-2025 Acura Integra A-Spec, 1.5L I4 Turbo (L15CA), FWD
• 2023-2026 Honda CR-V LX, 1.5L I4 Turbo, FWD/AWD
• 2023-2026 Honda CR-V EX, 1.5L I4 Turbo, FWD/AWD
• 2023-2026 Honda CR-V EX-L, 1.5L I4 Turbo, FWD/AWD

Fitment Notes

• Designed for 1.5L turbocharged applications using the compatible factory turbocharger and intercooler configuration.
• 2022-2026 Honda Civic Si is specifically supported; Civic Type R is not included in this application list.
• Acura Integra Type S is not supported; it uses the separate Type S-specific intercooler application.
• Does not fit vehicles equipped with the factory air dam.
• Does not fit with the factory front splash shield.
• No front bumper cutting or crash-bar removal is required for installation.
• 2025-2026 Civic EX, EX-L, Sport Touring, and Touring applications are not confirmed for this part and are therefore not listed.

Features

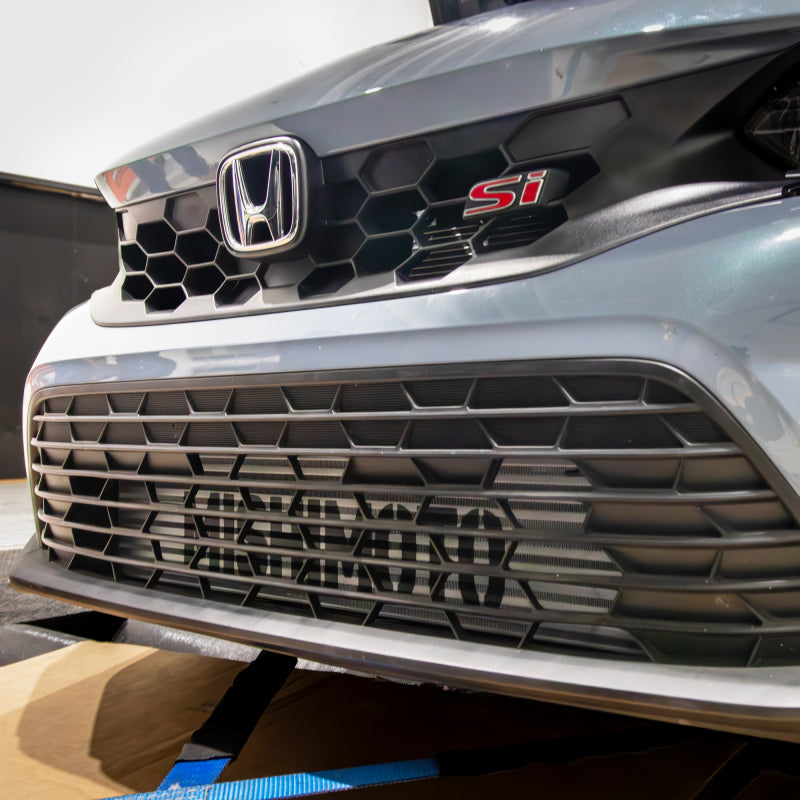

• Complete performance intercooler and charge-piping kit
• Silver intercooler core with red aluminum piping
• Bar-and-plate intercooler core construction
• Cast aluminum end tanks for improved airflow distribution
• 146% increase in intercooler core volume compared with stock
• Average outlet temperature reduction of 18.1°F in Mishimoto testing
• Up to 8.1 horsepower and 8.1 lb-ft of torque gain over stock in testing

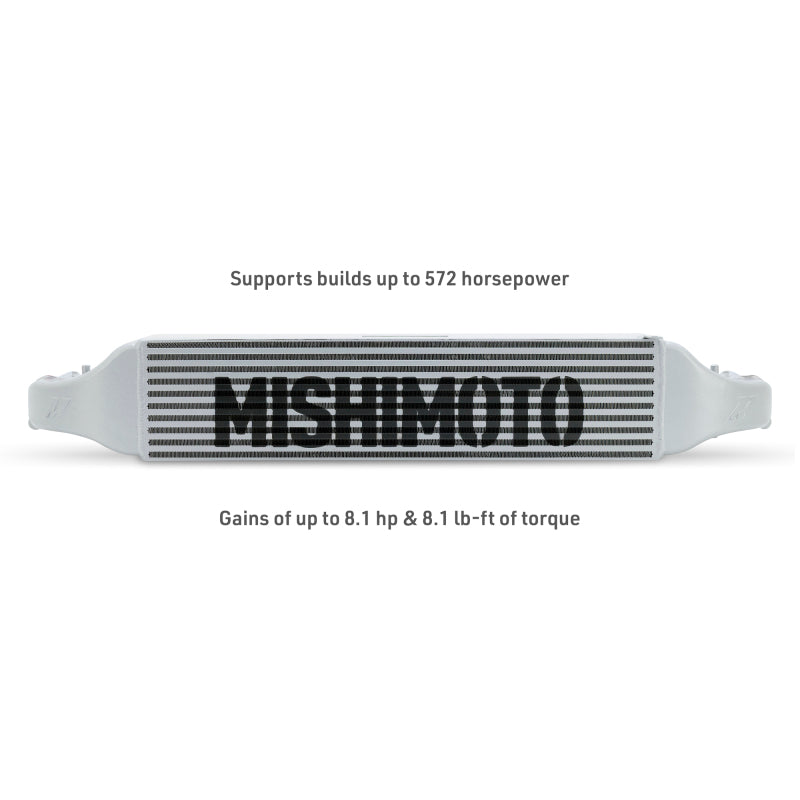

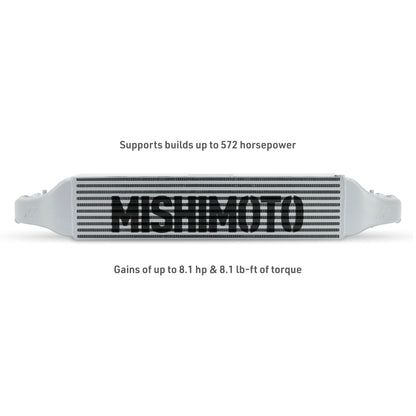

• Supports builds producing up to 572 horsepower
• Hot-side piping increases flow area by 103% compared with factory piping
• Cold-side piping increases flow area by 75% compared with factory piping

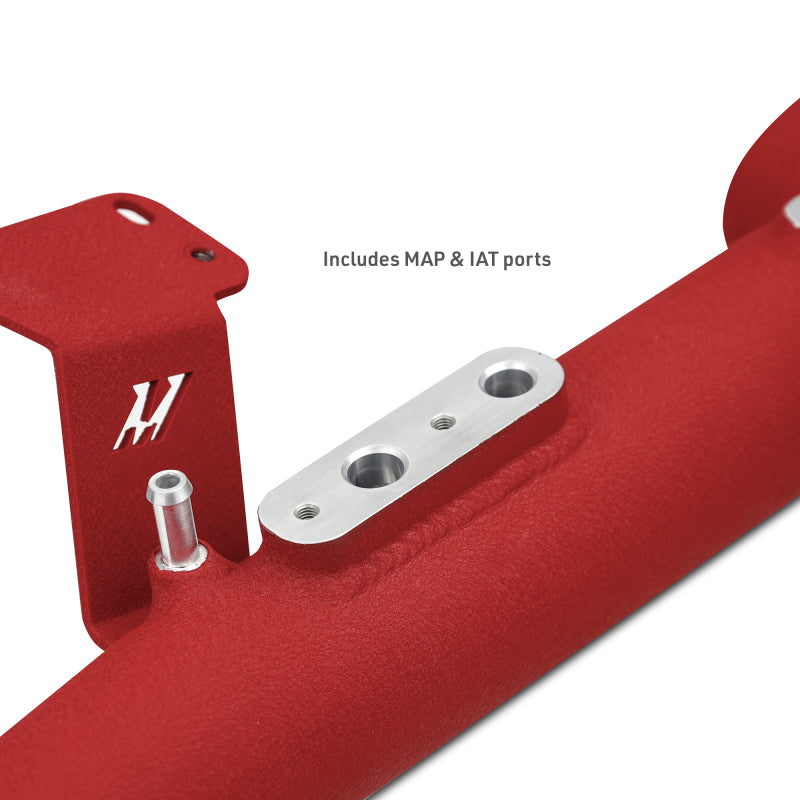

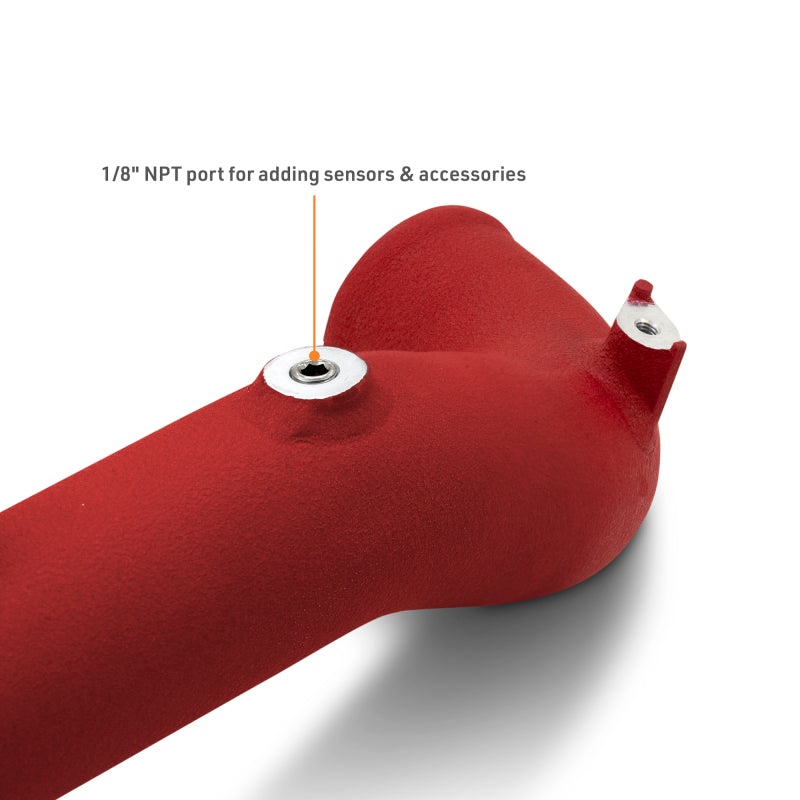

• Pre-drilled 1/8-inch NPT sensor port on the cold-side piping
• Removes the OEM intercooler resonator for a sharper induction sound under boost

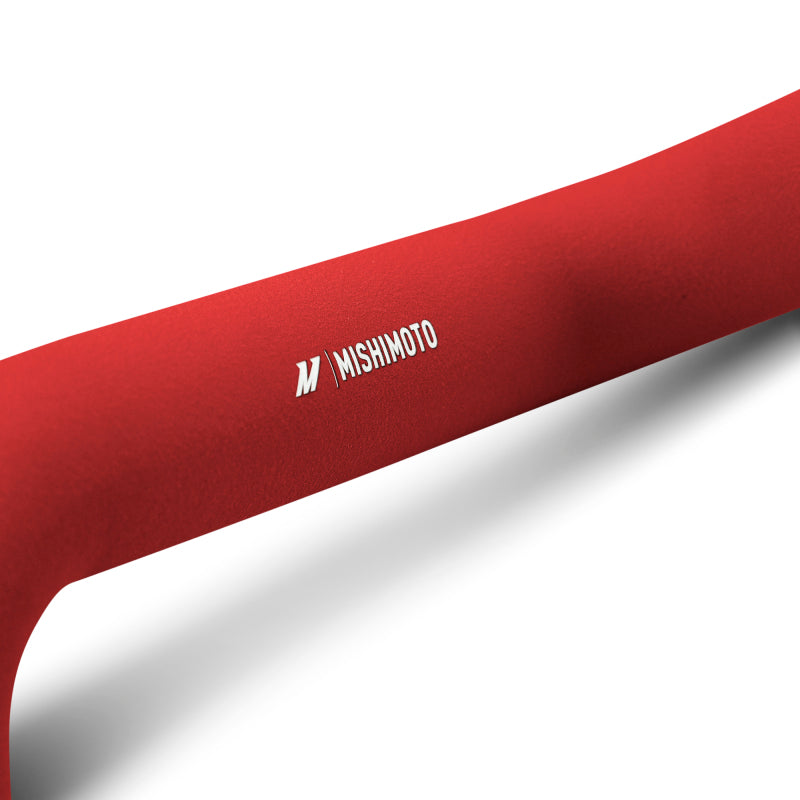

• Mandrel-bent aluminum charge piping reduces restrictive bends

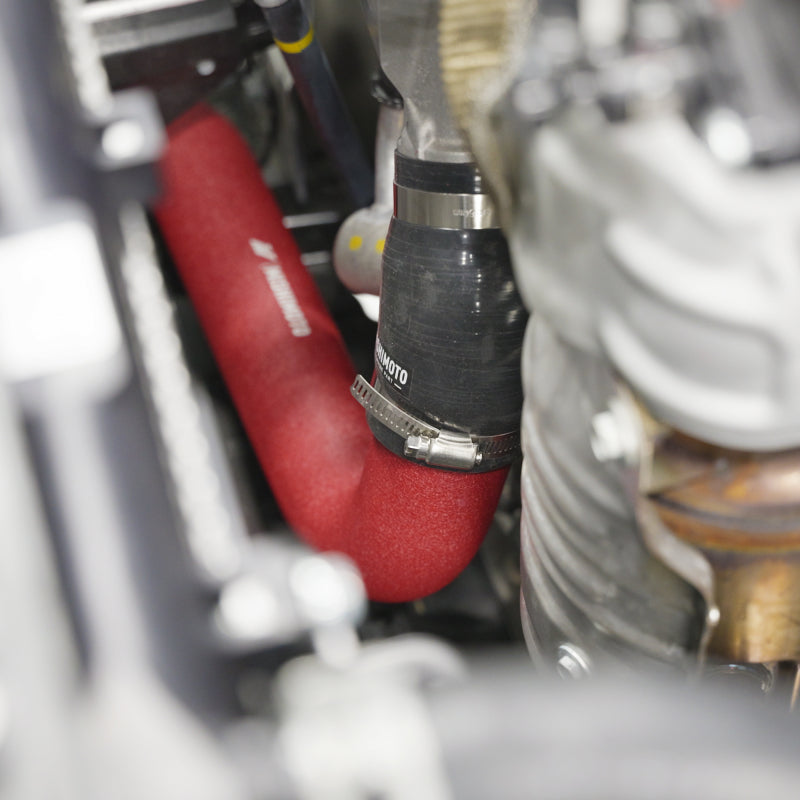

• Includes DuraCore silicone couplers and application-specific mounting hardware
• Designed for direct-fit installation without front bumper or crash-bar modification
• Compatible with the OEM radiator and Mishimoto aluminum radiator

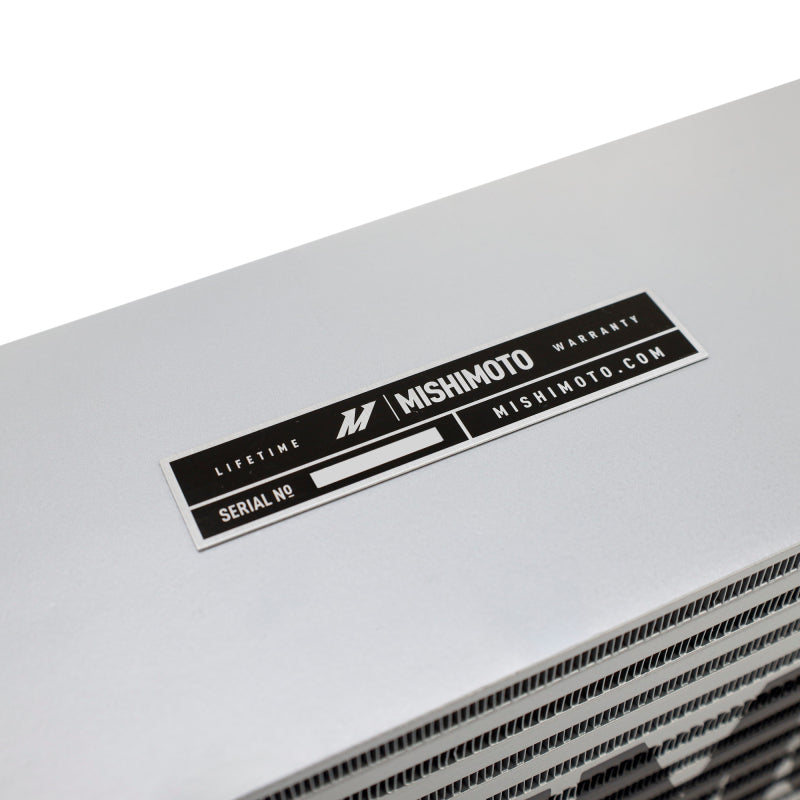

• Backed by Mishimoto's Lifetime Warranty

Specifications

• Brand: Mishimoto
• Part Number: MMINT-CIV-22KSLWRD
• Product Type: Performance Intercooler Kit
• Intercooler Finish: Silver
• Piping Color: Red
• Core Type: Bar-and-Plate
• Core Material: Aluminum
• Core Dimensions: 21.65 x 7.44 x 3.54 inches
• Overall Dimensions: 27.6 x 12 x 4.2 inches
• Hot-Side Flow Area Increase: 103%
• Cold-Side Flow Area Increase: 75%
• Core Volume Increase: 146%
• Average Outlet Temperature Reduction: 18.1°F
• Maximum Supported Power: 572 hp
• Sensor Port: 1/8-inch NPT
• Engine Application: 1.5L Turbocharged I4
• Warranty: Mishimoto Lifetime Warranty

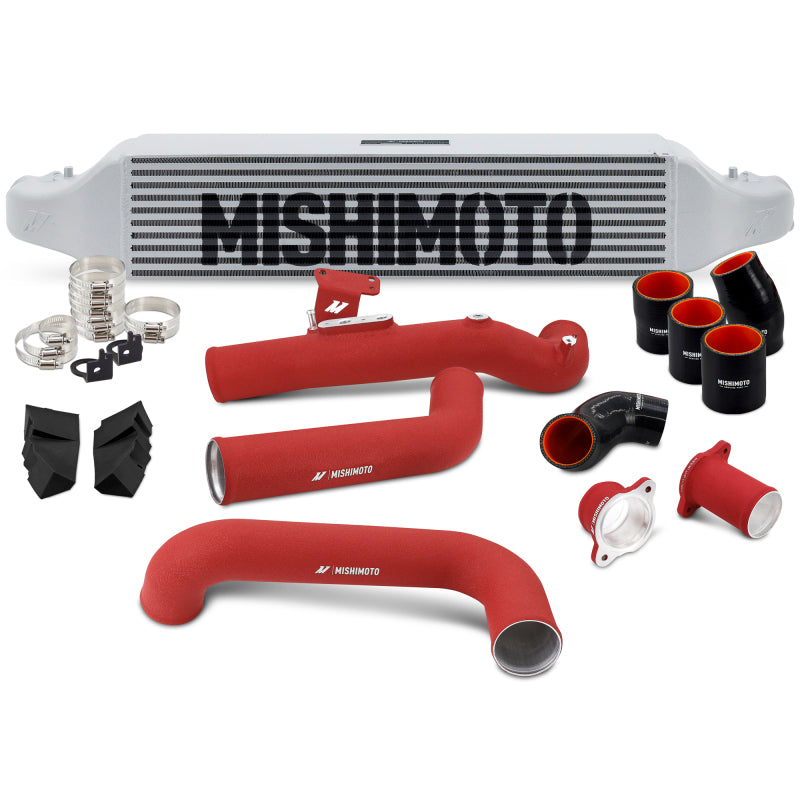

Included Components

• 1x Mishimoto Performance Intercooler

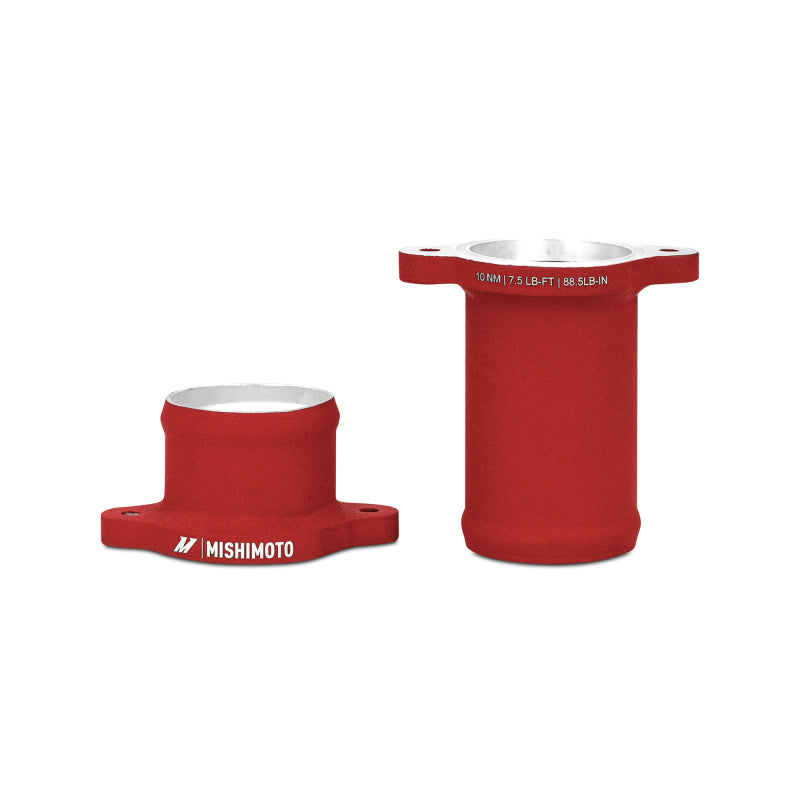

• 2x Intercooler Adapters
• 2x Mounting Brackets
• 1x Intercooler Ducting
• 1x Mishimoto Intercooler Piping Set
• 5x Silicone Couplers
• 1x Mounting Hardware Set
• 1x Trim Removal Tool

Product Description

Mishimoto MMINT-CIV-22KSLWRD is a performance intercooler kit designed for 1.5L turbocharged Honda Civic, Acura Integra, and Honda CR-V applications. The system combines a robust bar-and-plate aluminum intercooler with cast aluminum end tanks and high-flow red aluminum charge piping to improve charge-air cooling and airflow compared with the factory system.

The intercooler provides a 146% increase in core volume and achieved an average outlet temperature reduction of 18.1°F in Mishimoto testing. The supplied piping increases hot-side flow area by 103% and cold-side flow area by 75%, while the complete system is rated to support builds producing up to 572 horsepower. Mishimoto testing also recorded gains of up to 8.1 horsepower and 8.1 lb-ft of torque over stock.

The kit is engineered for direct-fit installation without cutting the front bumper or removing the crash bar. It includes the intercooler, aluminum piping, adapters, mounting brackets, silicone couplers, hardware, and trim-removal tool required for installation. The supplied cold-side pipe also features a 1/8-inch NPT sensor port for compatible auxiliary sensors or gauges.
