Mishimoto MMINT-CIV-22KSLWBK Intercooler Kit for 2022-2026 Honda Civic 1.5L I4

Vehicle Fitment

• 2022-2024 Honda Civic EX, 1.5L I4 Turbo (L15CA), FWD
• 2022-2024 Honda Civic EX-L, 1.5L I4 Turbo (L15CA), FWD
• 2022-2026 Honda Civic Si, 1.5L I4 Turbo (L15CA), FWD
• 2022-2024 Honda Civic Sport Touring, 1.5L I4 Turbo (L15CA), FWD
• 2022-2024 Honda Civic Touring, 1.5L I4 Turbo (L15CA), FWD
• 2023-2026 Acura Integra A-Spec, 1.5L I4 Turbo (L15CA), FWD
• 2023-2026 Acura Integra Base, 1.5L I4 Turbo (L15CA), FWD
• 2023-2026 Honda CR-V EX, 1.5L I4 Turbo, FWD/AWD
• 2023-2026 Honda CR-V EX-L, 1.5L I4 Turbo, FWD/AWD
• 2023-2026 Honda CR-V LX, 1.5L I4 Turbo, FWD/AWD

Fitment Notes

• Designed for 1.5L turbocharged applications listed above; engine code L15CA is specified by Mishimoto for the core application.
• Honda Civic Type R and Civic models equipped with engines other than the listed 1.5L turbo are not supported.
• The kit replaces the factory intercooler piping and removes the OEM resonator when the supplied Mishimoto piping is installed.
• Factory air dam and front factory splash shield compatibility restrictions apply; verify clearance before installation.
• 2025 Honda Civic EX, EX-L, Sport Touring, and Touring are not listed as supported applications.

Features

• Complete performance intercooler and aluminum piping kit
• Silver intercooler finish with black aluminum piping
• Cast aluminum end tanks with welded aluminum construction
• Bar-and-plate intercooler core design
• 146% increase in core volume compared with the factory intercooler

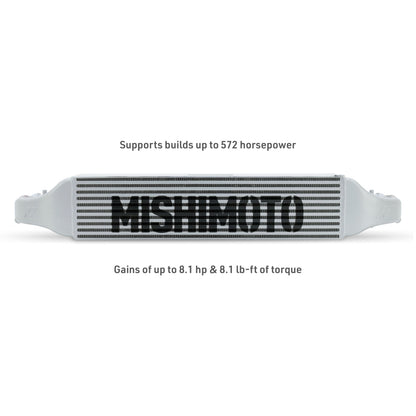

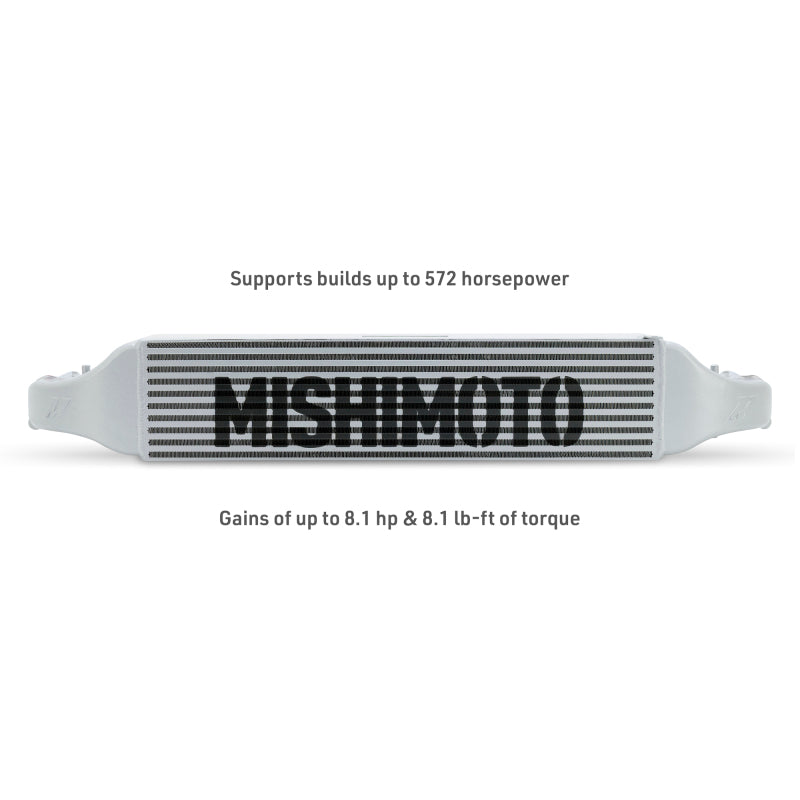

• Up to 8.1 hp and 8.1 lb-ft of torque gain over stock
• Average outlet temperature reduction of 18.1°F
• Hot-side piping increases flow area by 103%
• Cold-side piping increases flow area by 75%
• Supports builds producing up to 572 horsepower

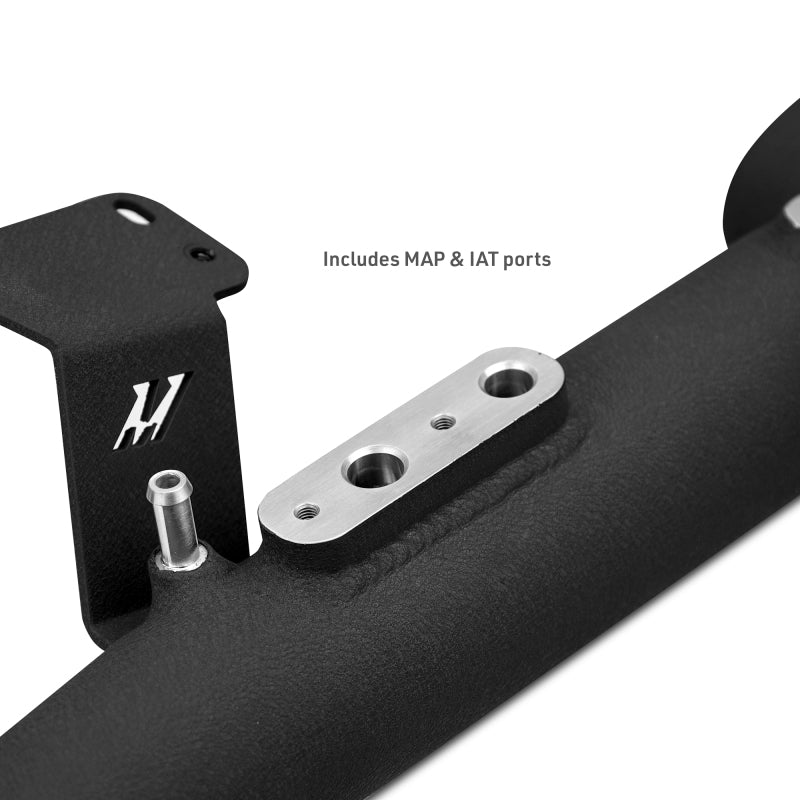

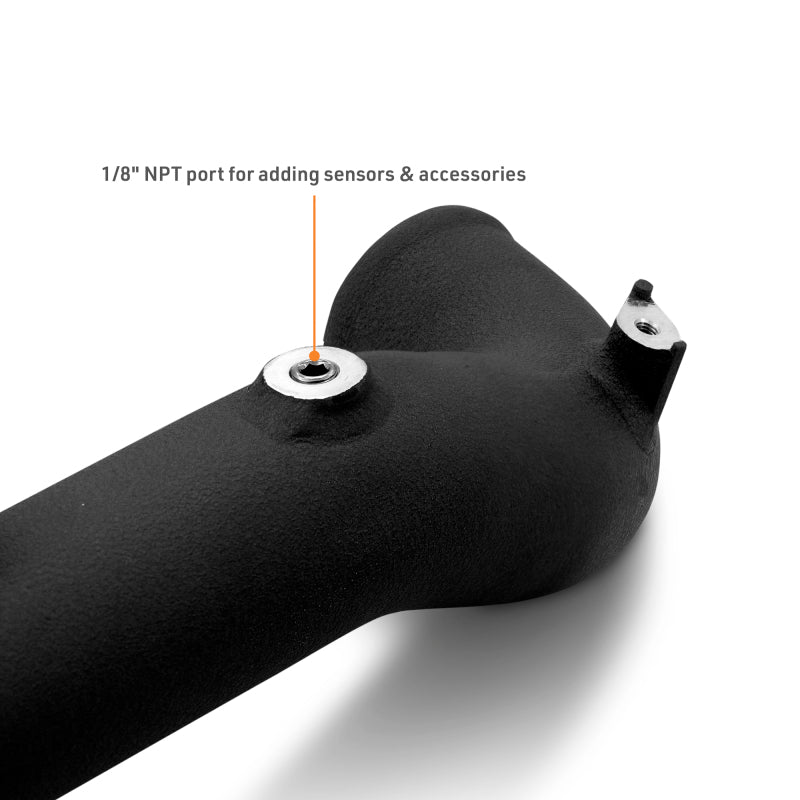

• Pre-drilled 1/8-inch NPT sensor port on the cold-side piping
• OEM resonator removal provides a sharper induction sound under boost
• Direct-fit installation without front bumper or crash-bar modifications
• Includes DuraCore silicone couplers and application-specific mounting hardware
• Covered by Mishimoto's Lifetime Warranty

Specifications

• Brand: Mishimoto
• Part Number: MMINT-CIV-22KSLWBK
• Product Type: Performance Intercooler Kit
• Intercooler Finish: Silver
• Piping Finish: Black
• Core Type: Bar-and-Plate
• Core Length: 26.0 inches
• Core Height: 6.00 inches
• Core Thickness: 4.50 inches
• Inlet Diameter: 2.10 inches
• Outlet Diameter: 2.10 inches
• Overall Width: 5.9 inches
• Engine Application: 1.5L Turbocharged I4
• Chassis Code: FE1 where specified
• Sensor Port: 1/8-inch NPT
• Installation Difficulty: Medium
• Approximate Installation Time: 1-2 hours
• Warranty: Mishimoto Lifetime Warranty

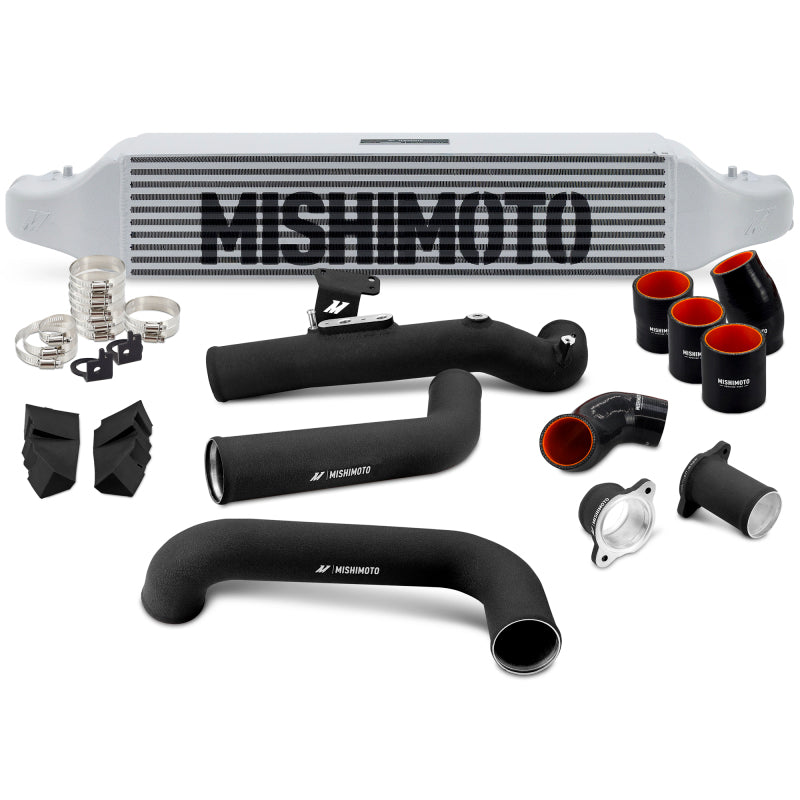

Included Components

• 1x Mishimoto Performance Intercooler

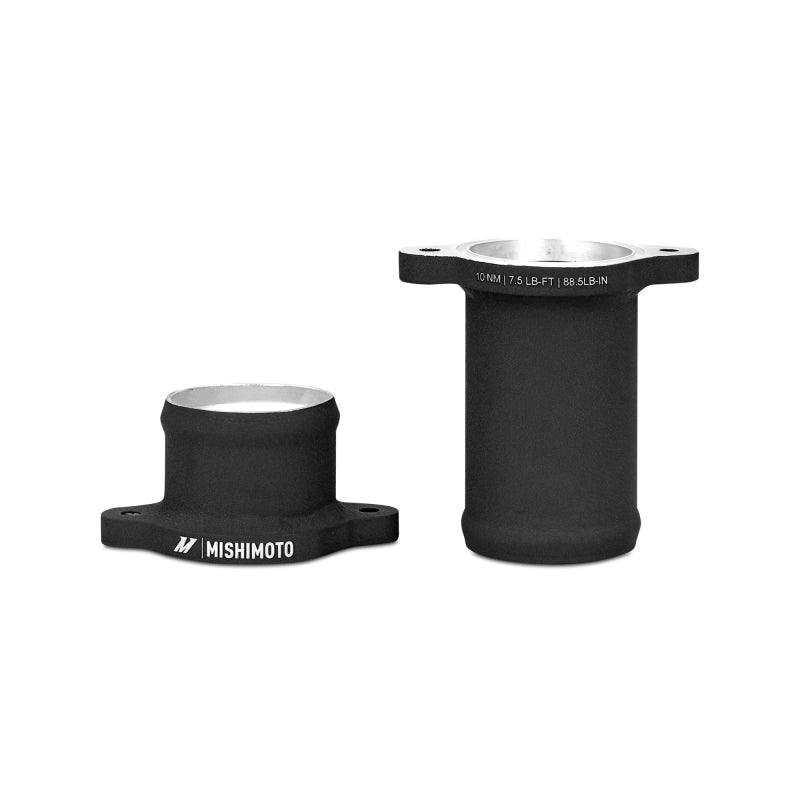

• 2x Intercooler Adapters
• 2x Mounting Brackets
• 1x Intercooler Ducting

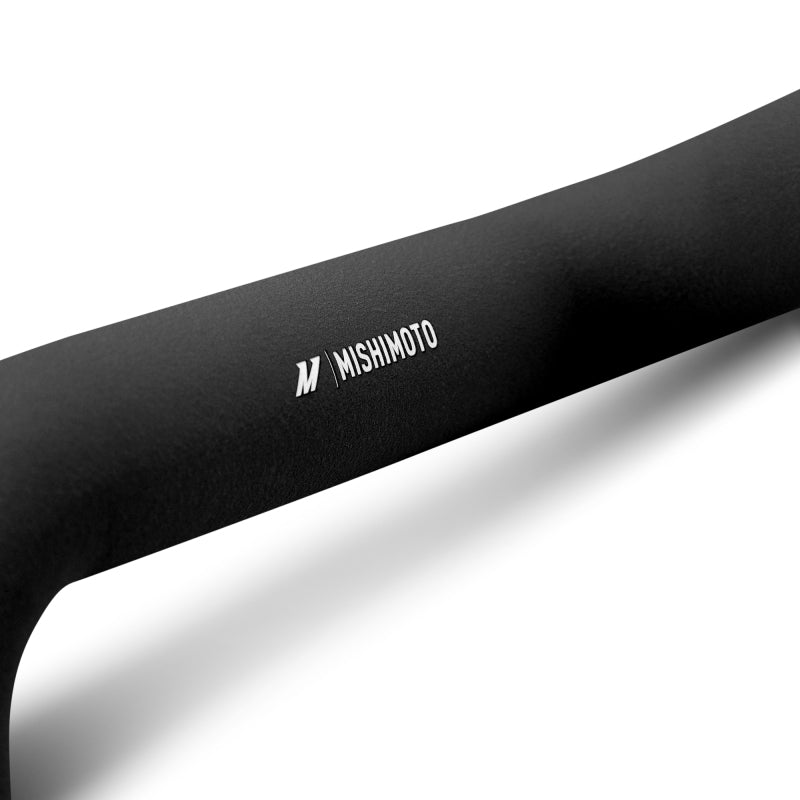

• 1x Mishimoto Intercooler Piping Set
• 5x Silicone Couplers
• 1x Mounting Hardware Set
• 1x Trim Removal Tool

Product Description

Mishimoto MMINT-CIV-22KSLWBK is a complete performance intercooler kit engineered for 1.5L turbocharged Honda Civic, Civic Si, Acura Integra, and Honda CR-V applications. The kit combines a robust bar-and-plate intercooler with cast aluminum end tanks and high-flow aluminum piping to increase cooling capacity and improve airflow through the turbocharged intake system.

Compared with the factory setup, the intercooler provides a 146% increase in core volume and can reduce average outlet temperatures by 18.1°F. The supplied hot-side and cold-side piping increase flow area by 103% and 75%, respectively, while the system can support builds up to 572 horsepower. Mishimoto rates the complete system for gains of up to 8.1 horsepower and 8.1 lb-ft of torque over stock.

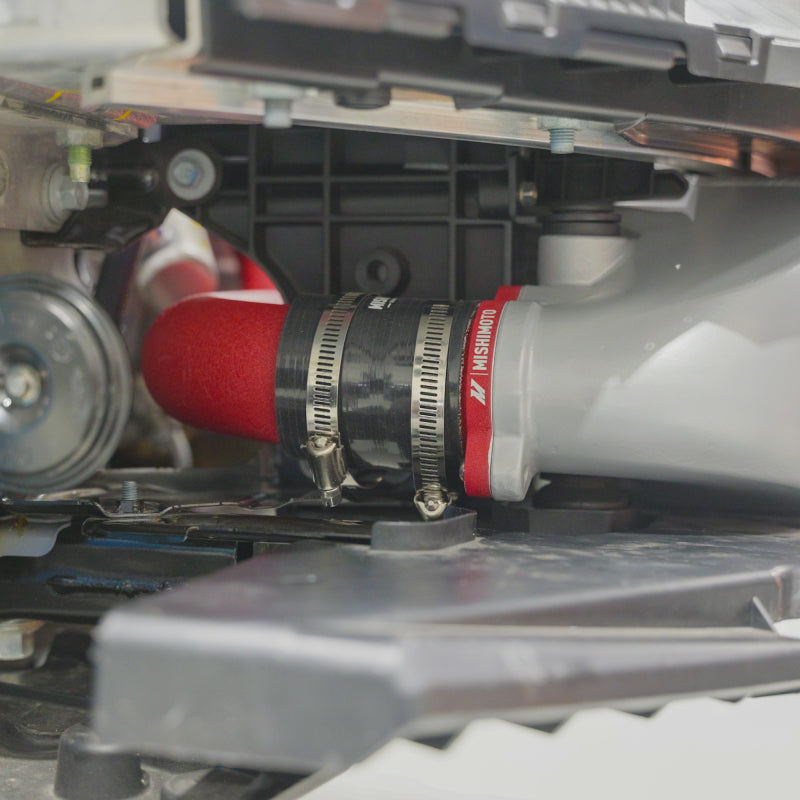

The kit is designed for direct-fit installation without cutting the front bumper or removing the crash bar. Installation requires transferring select factory mounting grommets and installing the supplied adapters, brackets, couplers, and piping. Verify the specific vehicle trim, 1.5L turbo engine, drivetrain, and factory underbody components before installation.
