Mishimoto MMTMIC-WRX-15RBK WRX TMIC Kit Black Intercooler Red Pipe 2015-2021

Vehicle Fitment

• 2015-2021 Subaru WRX (VA Chassis, FA20DIT 2.0L Turbocharged H4, AWD)
• 2014-2018 Subaru Forester XT (FA20DIT 2.0L Turbocharged H4, AWD)

Fitment Notes

• This is the black powder-coated intercooler + wrinkle red charge pipe color combination. Other available configurations include black/black (MMTMIC-WRX-15BBK), black/polished, silver/polished, silver/black, silver/red, and additional combinations across the Race TMIC kit lineup.
• This kit is the Race top-mount intercooler, rated for 300-450 whp with a hard limit of approximately 500 whp / 35 PSI boost. Applications exceeding this threshold require a front-mount intercooler conversion. For stock-to-stage-2 builds (up to approximately 350 whp), the Mishimoto Street Performance TMIC (MMTMIC-WRX-15X series) is also available.
• Engine cover compatibility: The Mishimoto Race TMIC core is physically larger than the OEM unit and will NOT fit under the stock engine cover. The stock engine cover must be removed.
• Tuning is not required for installation. However, dyno-proven performance figures (+15 whp / +8 wtq, 35°F charge temp drop) were recorded on a stage 2 EcuTek-tuned test vehicle equipped with a Mishimoto WRX downpipe. Results on stock or differently tuned vehicles will vary.
• CARB E.O. Number: D-759.
• Worm gear clamp torque specification: 22 in-lbs (2.5 Nm) recommended; operating range 18-27 in-lbs; maximum 27 in-lbs (3 Nm).
• Installation difficulty rated Medium. Official Mishimoto PDF installation guide and engineering report are available for download.

Features

• Direct OEM-fit Race top-mount intercooler kit engineered specifically for the 2015-2021 Subaru WRX FA20DIT - drops directly into the stock top-mount intercooler position with no modification to the engine bay and installs in under 1 hour, delivering up to +15 whp and +8 wtq with a 35°F charge temperature reduction on a stage 2 tune.
• 4-inch thick bar-and-plate core with 625 cubic inches of total core volume - one of the largest top-mount intercoolers available for the VA WRX platform, engineered to support the FA20DIT from stock output up to 500 whp without restriction. Dense offset fin pitch optimizes heat transfer across the full power band.
• 100% aluminum construction with durable cast aluminum end tanks TIG-welded to the bar-and-plate core - eliminates the stock intercooler's plastic end tanks, which are a known failure point at elevated boost pressures and repeated WOT cycling on the FA20DIT.
• Mandrel-bent one-piece aluminum charge pipe (wrinkle red powder coat, this SKU) replaces the stock multi-piece charge pipe routing with a single continuous flow path, eliminating multiple coupler-and-clamp leak points and improving charge air flow characteristics versus the factory setup.
• Application-specific air diverter (air splitter) included - mounts to the front of the intercooler to redirect intake airflow into the intercooler core for improved heat exchange efficiency, addressing the heat soak issue inherent in top-mount intercooler positioning on the FA20DIT layout.
• Complete kit includes every component required for a bolt-on installation: intercooler, charge pipe, mounting bracket, air diverter, charge-pipe-to-intercooler hose, intercooler-to-throttle-body hose, bypass valve hoses (3x), T-bolt clamps, worm gear clamps, and all mounting hardware. No sourcing of additional components or fasteners required.
• Pre-marked NPT sensor port on the intercooler core allows for optional charge air temperature sensor installation for data logging without drilling.
• CARB E.O. D-759. Backed by the Mishimoto Lifetime Warranty.

Specifications

• Intercooler Type: Air-to-air, bar-and-plate, top-mount
• Core Construction: Bar-and-plate with dense offset fin pitch
• End Tank Material: Cast aluminum, TIG-welded
• Intercooler Finish: Stealth Black powder coat (this SKU)
• Charge Pipe Finish: Wrinkle Red powder coat (this SKU)
• Overall Dimensions: 24 in (L) x 10 in (H) x 5 in (W)
• Core Thickness: 4 in
• Core Volume: 625 cu in
• Inlet: 2.5 in / Outlet: 3 in
• Power Support: Stock to 500 whp (rated 300-450 whp; 35 PSI max boost)
• Dyno Results (Stage 2 + Mishimoto downpipe): +15 whp / +8 wtq; 35°F charge temp drop
• Engine Code: FA20DIT
• Chassis Code: VA
• CARB E.O.: D-759
• Stock Engine Cover Compatibility: No - cover must be removed

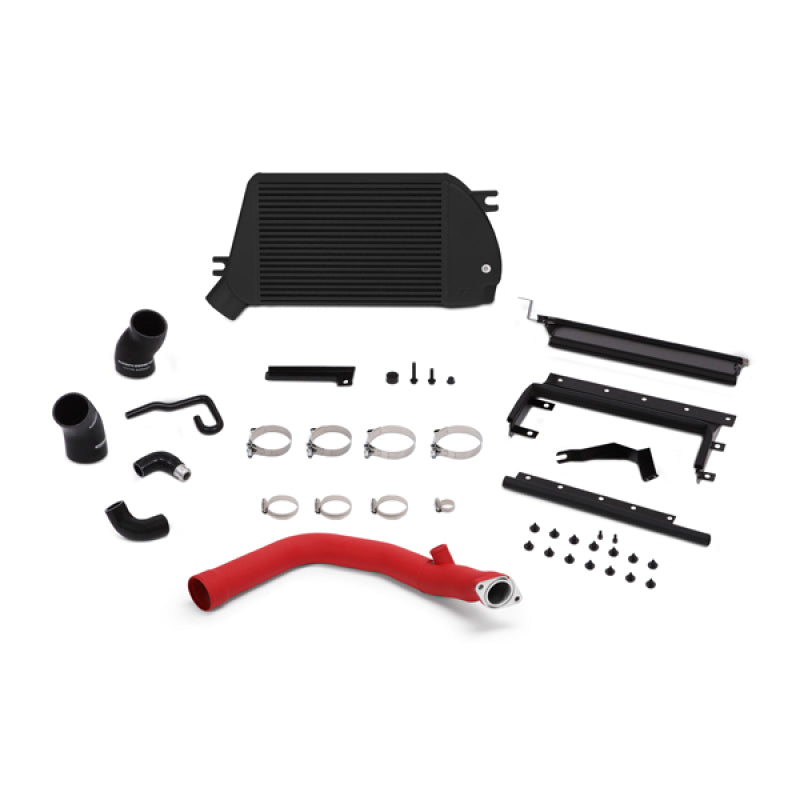

Included Components

• 1x Bar-and-plate intercooler (black powder coat)
• 1x Mandrel-bent aluminum charge pipe (wrinkle red powder coat)
• 1x Intercooler mounting bracket
• 1x Air diverter with attached rubber gaskets
• 1x Charge-pipe to intercooler hose
• 1x Intercooler to throttle body hose
• 3x Bypass valve hoses
• 2x 3-inch T-bolt clamps
• 2x 3.5-inch T-bolt clamps
• 4x Worm gear clamps
• Mounting hardware
• Mishimoto Lifetime Warranty

Product Description

The Mishimoto MMTMIC-WRX-15RBK is the Race top-mount intercooler kit for the 2015-2021 Subaru WRX, featuring a black powder-coated intercooler core and wrinkle red charge pipe. The 2015+ VA-chassis WRX's FA20DIT direct-injection turbocharged flat-four is a highly capable and tuneable engine, but the stock top-mount intercooler is a well-documented limitation on performance potential - prone to heat soak during back-to-back wide-open-throttle pulls, track sessions, and sustained aggressive street driving. When the intercooler saturates with heat, charge air temperatures rise, knock retard occurs, and tuned power targets cannot be maintained. Addressing the intercooler is one of the highest-leverage modifications available for the FA20DIT platform.

Mishimoto's Race TMIC replaces the stock unit with a 4-inch thick bar-and-plate core with 625 cubic inches of total volume - one of the largest top-mount intercooler cores available for the VA WRX in the OEM position. The core uses a dense offset fin pitch to maximize heat transfer surface area and minimizes pressure drop across the core. Cast aluminum end tanks are TIG-welded to the core, eliminating the stock plastic end tanks that are a failure point at elevated boost on the FA20DIT. The kit includes Mishimoto's one-piece mandrel-bent aluminum charge pipe, which replaces the factory multi-piece routing and eliminates the multiple coupler junction points that are potential boost leak sources. An application-specific air diverter is included to direct airflow into the intercooler core. Testing on a stage 2 EcuTek-tuned test vehicle with a Mishimoto downpipe demonstrated a 35°F charge temperature drop and +15 whp / +8 wtq bolt-on gains.

The kit is rated to support the FA20DIT from stock output up to a hard limit of approximately 500 whp / 35 PSI. Builds exceeding this threshold require a front-mount intercooler conversion. The intercooler's larger core does not clear the stock engine cover - the cover must be removed for installation. All hardware, hoses, clamps, and brackets required for a complete bolt-on installation are included; no additional component sourcing is necessary. CARB E.O. D-759. Covered by the Mishimoto Lifetime Warranty.
