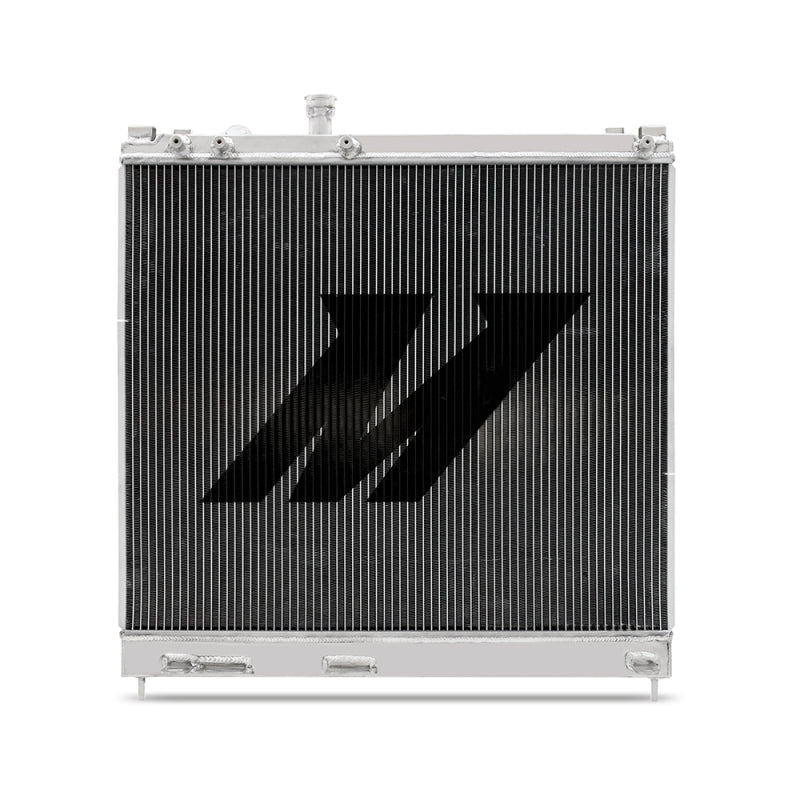

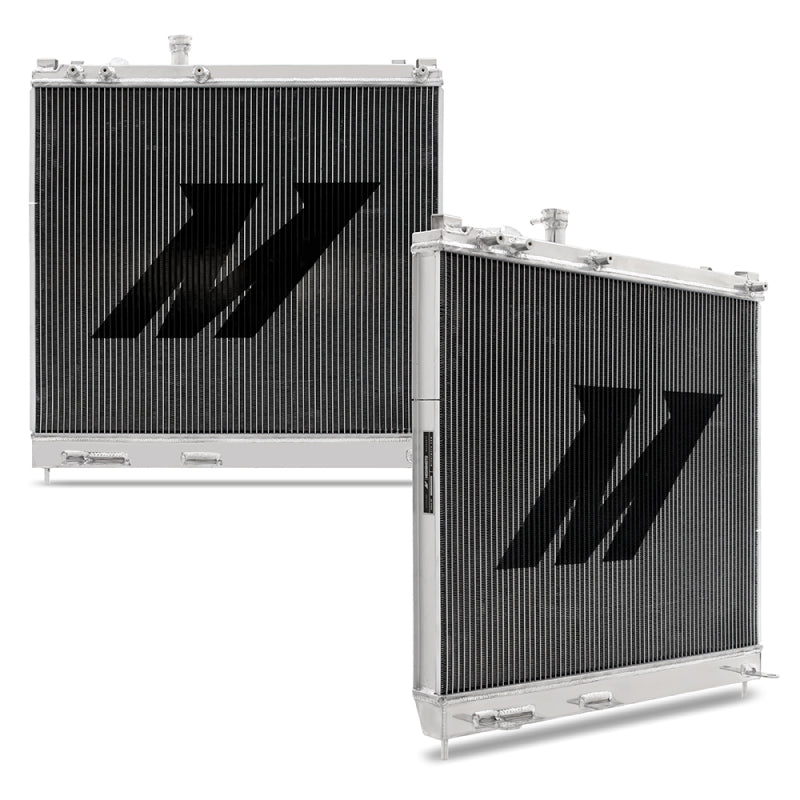

Mishimoto MMRAD-TTN-04 Aluminum Radiator 04-14 Nissan Titan/Armada Infiniti QX56

Vehicle Fitment

• 2004-2014 Nissan Titan (5.6L VK56 V8 - all trims: King Cab and Crew Cab, XE, SE, LE, PRO-4X, SV, SL)
• 2005-2014 Nissan Armada (5.6L VK56 V8 - all trims: SE, LE, Platinum, SV, SL)
• 2004-2013 Infiniti QX56 (5.6L VK56 V8 - all trims)

Fitment Notes

• Fits 5.6L VK56 V8 models only - confirm engine before ordering
• Direct-fit replacement - no cutting or modification required; installs using factory mounting locations and OEM hose connections
• Radiator cap is NOT included - this radiator is designed to function with the OEM radiator cap; using an aftermarket radiator cap is not recommended and may result in cooling system issues
• Includes an integrated internal transmission cooler - replaces the factory in-tank trans cooler with CNC-machined aluminum fittings that are integral to the lower tank, eliminating the risk of the factory cooler fitting failures that cause coolant/trans fluid cross-contamination

Features

• 37% increase in core volume over the factory radiator - substantially more coolant capacity and thermal mass for improved heat rejection under towing, hauling, and sustained load conditions

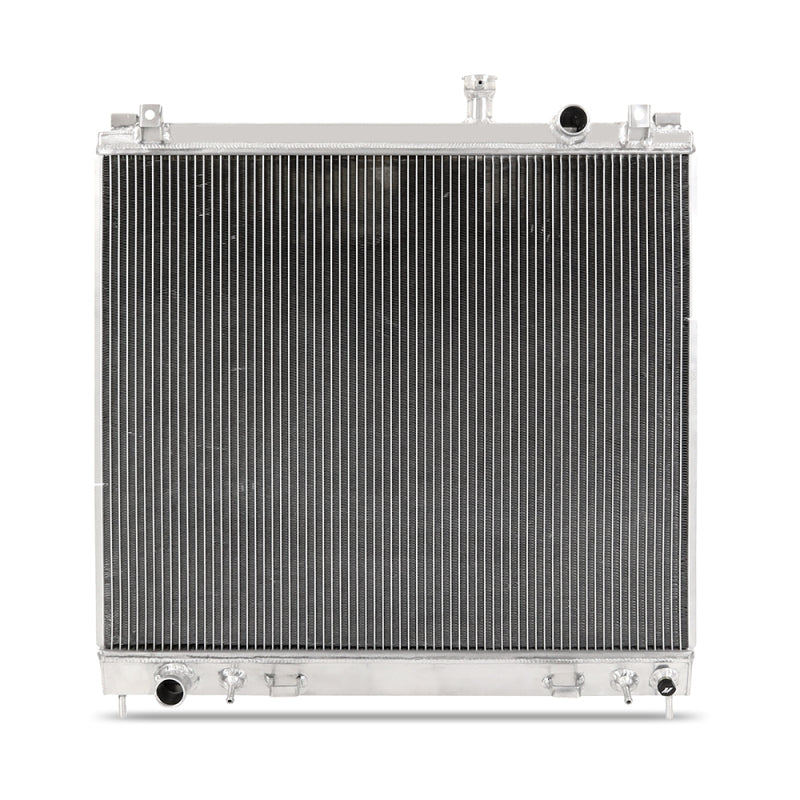

• 2-row brazed aluminum core is 38% thicker than stock - increased surface area and tube count for more effective heat transfer from coolant to ambient air

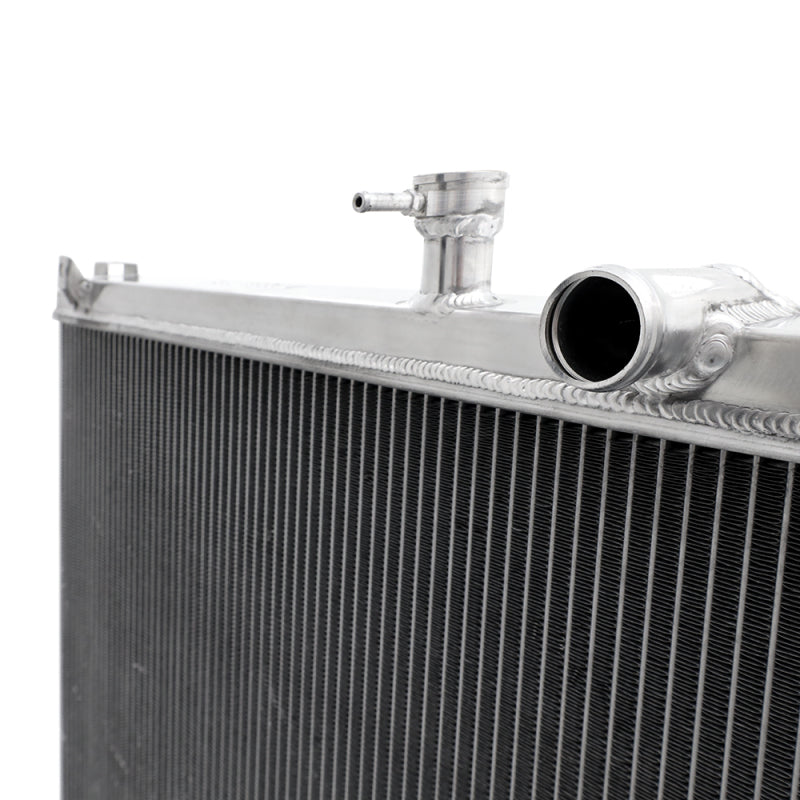

• Aircraft-grade aluminum end tanks are precision TIG-welded - unlike the factory plastic end tanks, which become brittle over time and are prone to cracking and coolant leaks
• Internal transmission cooler with CNC-machined aluminum fittings integral to the lower tank - the fittings cannot loosen or break like the factory plastic cooler fittings, eliminating the risk of catastrophic cross-contamination of engine coolant and transmission fluid
• Magnetic drain plug captures ferrous metal debris circulating in the cooling system, preventing it from accumulating in coolant passages and damaging the water pump or thermostat
• 100% brazed aluminum core provides minimal distortion, low internal stress, and clean joints for long-term reliability under repeated heating and cooling cycles

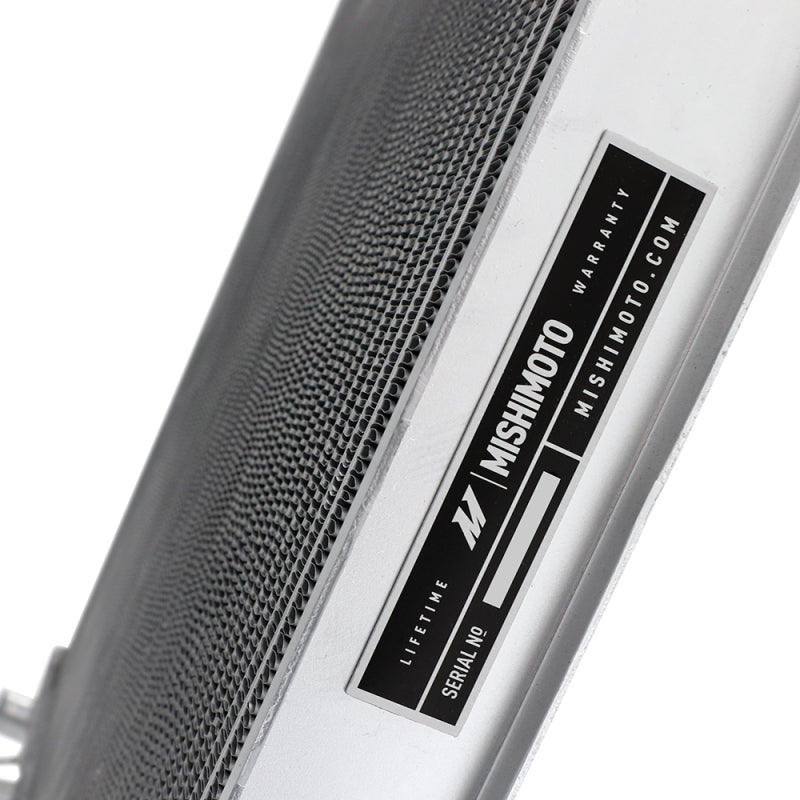

• Backed by Mishimoto's Lifetime Warranty

Specifications

• Part Number: MMRAD-TTN-04
• Type: Performance Aluminum Radiator with Internal Transmission Cooler
• Radiator Style: Downflow
• Core Construction: 2-row brazed aluminum
• Core Volume Increase vs. Stock: 37%
• Core Thickness Increase vs. Stock: 38%
• Overall Width: 27.06 in.
• Inlet Location: Upper passenger side
• Outlet Location: Lower driver side
• End Tank Material: Aircraft-grade aluminum, TIG-welded
• Transmission Cooler: Internal, CNC-machined aluminum fittings (integral to lower tank)
• Radiator Cap: NOT included - use OEM cap only
• Warranty: Mishimoto Lifetime Warranty

Included Components

• 1x Mishimoto Performance Aluminum Radiator with Internal Transmission Cooler
• 1x Mishimoto Magnetic Drain Plug

Product Description

The Mishimoto MMRAD-TTN-04 is a direct-fit performance aluminum radiator for the 2004-2014 Nissan Titan, 2005-2014 Nissan Armada, and 2004-2013 Infiniti QX56 equipped with the 5.6L VK56 V8. The factory radiator on these platforms has two significant failure points that Mishimoto addresses simultaneously. First, the factory plastic end tanks become brittle after years of thermal cycling and are prone to cracking and coolant leaks - a well-documented problem on high-mileage examples. Mishimoto replaces them with aircraft-grade aluminum tanks TIG-welded to a 2-row brazed aluminum core that is 38% thicker and 37% larger in core volume than stock.

The second - and potentially more damaging - failure point is the factory in-tank transmission cooler. The factory cooler's plastic fittings are known to crack or loosen, causing engine coolant and automatic transmission fluid to mix. This cross-contamination destroys transmission clutch packs and can result in complete transmission failure. Mishimoto eliminates this failure mode by replacing the factory in-tank cooler with CNC-machined aluminum transmission cooler fittings that are made integral to the lower aluminum tank - they cannot loosen, back out, or crack under normal operation. A magnetic drain plug is included to capture ferrous debris from the cooling system. Radiator cap not included; use the OEM cap. Backed by Mishimoto's Lifetime Warranty.
