Mishimoto MMOC-GTO-04T Oil Cooler Kit for 2004-2006 Pontiac GTO 5.7L/6.0L V8

Vehicle Fitment

• 2004 Pontiac GTO Base (V-Body, LS1 5.7L V8, RWD)
• 2005 Pontiac GTO Base (V-Body, LS2 6.0L V8, RWD)
• 2006 Pontiac GTO Base (V-Body, LS2 6.0L V8, RWD)

Fitment Notes

• Direct-fit application for the 2004-2006 Pontiac GTO.
• 2004 GTO uses the LS1 5.7L V8; 2005-2006 GTO uses the LS2 6.0L V8.
• All listed U.S.-market GTO applications use rear-wheel drive.
• Designed around the V-Body chassis and application-specific oil-filter housing configuration.
• The kit uses an inline thermostat rather than a thermostatic sandwich plate because of the GTO's oil-filter housing space constraints.

Features

• Direct-fit thermostatic oil cooler kit for the Pontiac GTO.

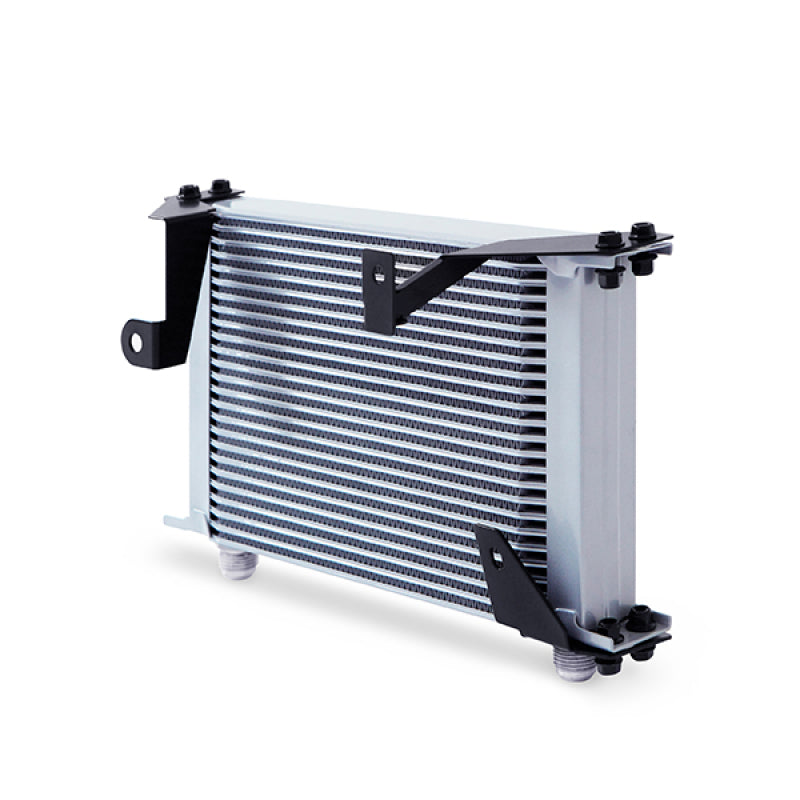

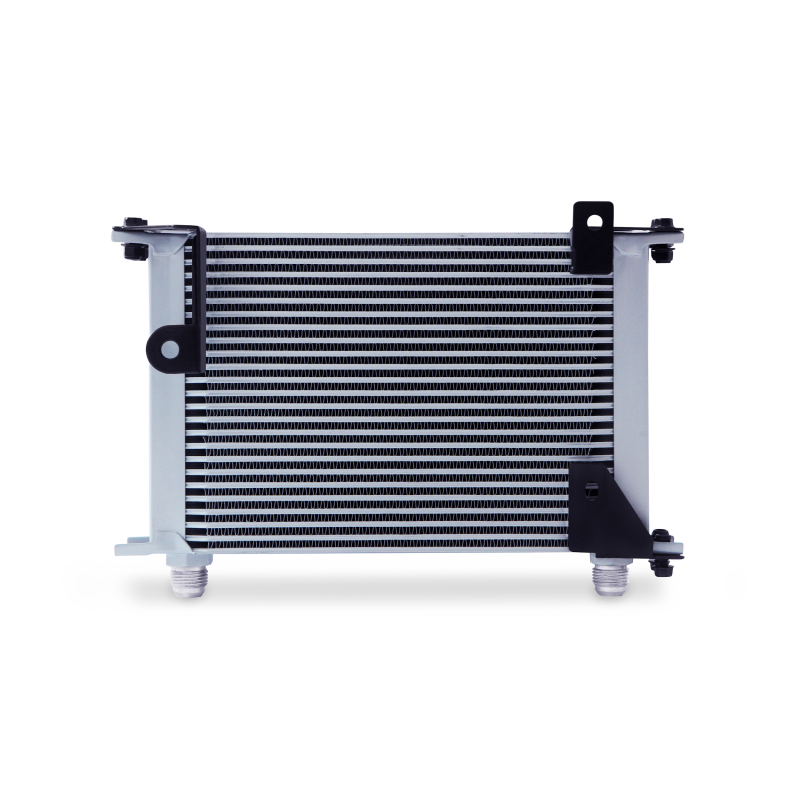

• 25-row stacked-plate oil cooler provides high-capacity heat transfer.
• Application-specific mounting brackets provide vehicle-specific installation.
• Inline oil thermostat regulates oil temperature at approximately 185°F.
• Testing demonstrated an oil-temperature reduction of up to 65°F with the thermostat bypassed.
• Low-restriction design helps minimize oil pressure loss through the cooler circuit.
• Application-specific LS1/LS2 oil cooler adapter connects at the oil filter housing.
• Preassembled stainless-steel braided oil lines simplify routing and installation.
• -10AN fittings provide secure connections between the cooler, thermostat, and adapter.
• Oil cooler mounts in the upper kidney-grille area for strong airflow.
• Increases engine oil capacity by approximately 1.0 quart.
• Designed specifically around the GTO's limited oil-cooler installation space.

Specifications

• Product Type: Thermostatic Engine Oil Cooler Kit
• Part Number: MMOC-GTO-04T
• Vehicle: 2004-2006 Pontiac GTO
• Chassis: V-Body
• Engine: LS1 5.7L V8 / LS2 6.0L V8
• Drivetrain: RWD
• Cooler Type: Stacked-Plate
• Cooler Rows: 25
• Core Length: 11 in
• Core Height: 7.32 in
• Core Thickness: 1.97 in
• Thermostat Operating Temperature: 185°F
• Oil Cooler Position: Upper kidney-grille area
• Oil Line Size: -10AN
• Adapter Bolt Torque: 108-120 in-lbs
• Straight Fitting and Banjo Bolt Torque: 15-25 lb-ft
• Maximum Fitting Torque: 35 lb-ft
• Finish: Silver oil cooler

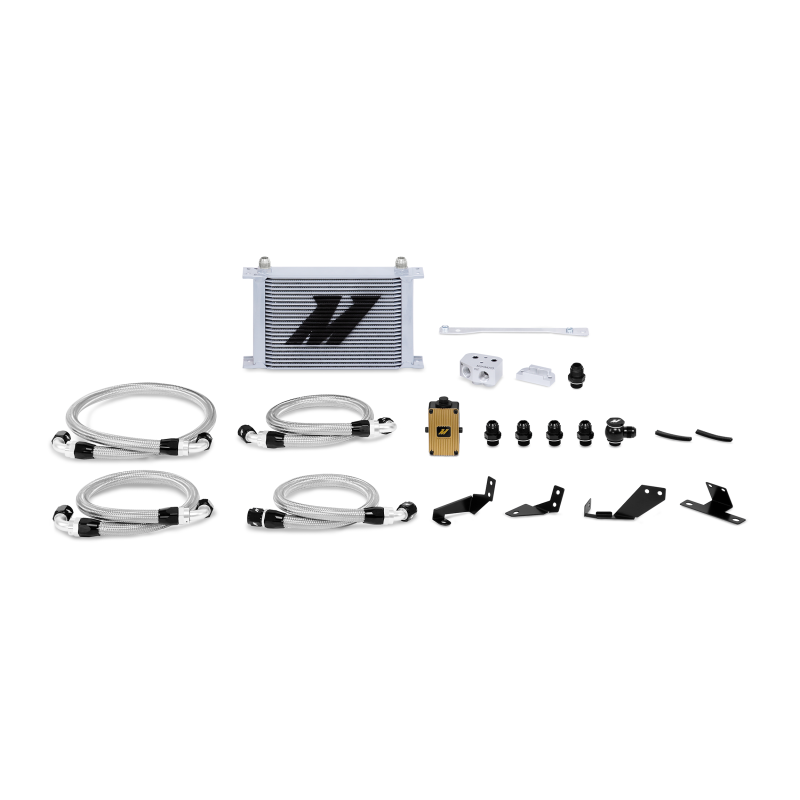

Included Components

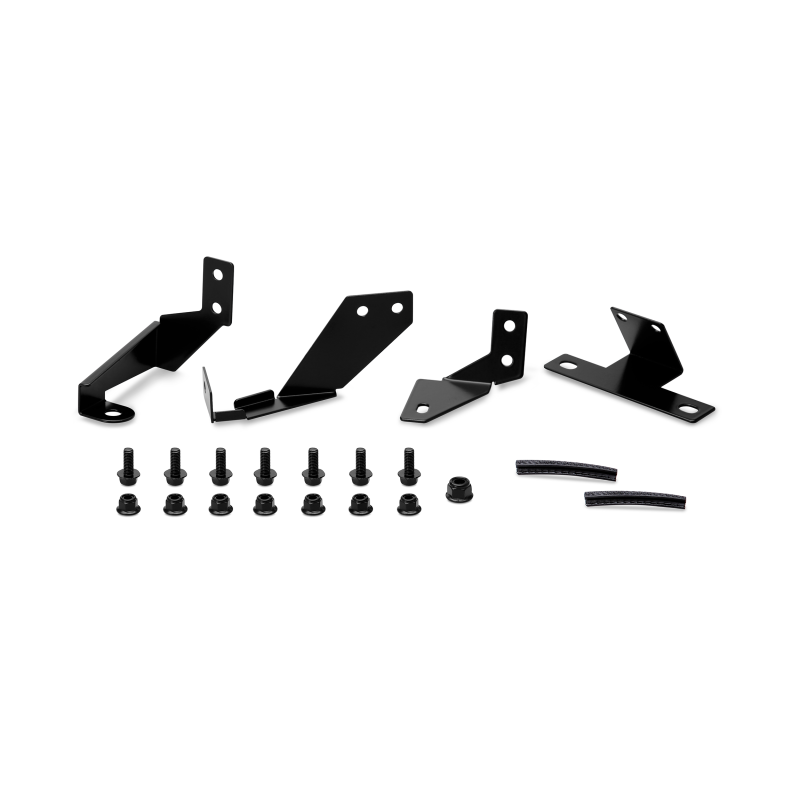

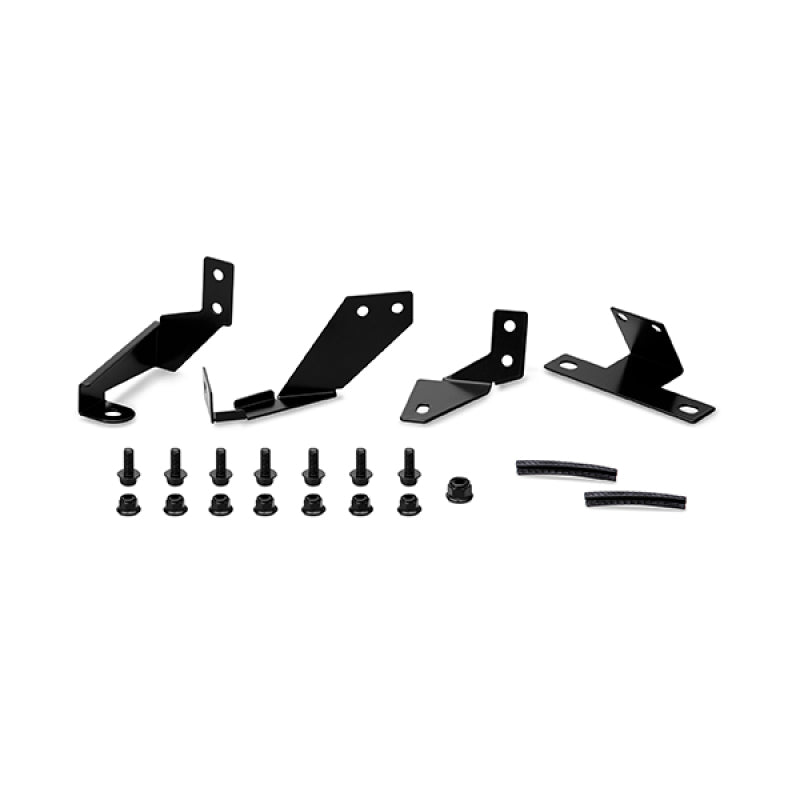

• 1x Application-Specific Mounting Bracket Set
• 1x 25-Row Oil Cooler
• 1x Mishimoto Inline Oil Thermostat
• 1x Inline Oil Thermostat Mounting Bracket
• 1x Mishimoto LS1/LS2 Oil Cooler Adapter
• 1x 2-ft 1-in Stainless-Steel Braided Hose with 45° and Straight -10AN Fittings
• 1x 2-ft 2-in Stainless-Steel Braided Hose with Two 90° -10AN Fittings
• 1x 2-ft 2.5-in Stainless-Steel Braided Hose with 45° and 120° -10AN Fittings
• 1x 3-ft Stainless-Steel Braided Hose with Two 90° -10AN Fittings
• 1x M20 x -10AN Banjo Fitting with Black Bolt
• 1x M20 x -10AN Black Straight Fitting
• 1x Mounting Hardware Set

Product Description

The Mishimoto MMOC-GTO-04T Thermostatic Oil Cooler Kit is engineered specifically for the 2004-2006 Pontiac GTO with the V-Body chassis and LS-series V8 engine. It is compatible with the 2004 LS1 5.7L V8 and the 2005-2006 LS2 6.0L V8. The system uses a large 25-row stacked-plate cooler positioned in the upper kidney-grille area, where it receives direct airflow for effective engine-oil heat rejection.

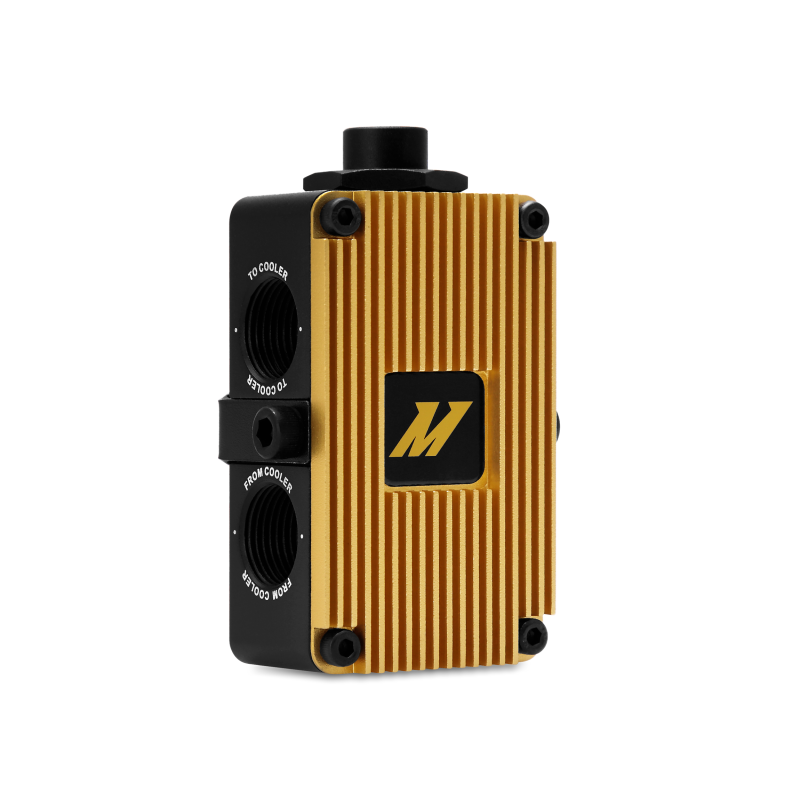

Instead of a conventional thermostatic sandwich plate, this kit uses a Mishimoto inline oil thermostat because of the limited space around the GTO oil-filter housing. The thermostat is designed to maintain approximately 185°F oil temperature, while Mishimoto testing recorded a 65°F oil-temperature reduction with oil continuously flowing through the cooler without thermostat regulation. The application-specific LS1/LS2 adapter connects at the oil-filter housing and feeds the cooler through preassembled stainless-steel braided -10AN lines.

The complete system includes application-specific mounting hardware, the 25-row cooler, inline thermostat and bracket, LS1/LS2 oil cooler adapter, multiple preassembled braided hoses, and the required AN fittings. Installation requires removal of the engine oil filter, and Mishimoto recommends replacing the engine oil and filter during installation. The kit adds approximately 1.0 quart to total oil capacity and is intended for Pontiac GTO owners seeking improved oil-temperature control during street or performance driving.
