McLeod 75253 Super Street Pro 11" Clutch Kit 23-Spline for 11-17 Ford Mustang GT

Vehicle Fitment

• 2011-2017 Ford Mustang GT (5.0L Coyote V8, Manual Transmission, 23-Spline)
• 2012-2013 Ford Mustang Boss 302 (5.0L Coyote V8, Manual Transmission, 23-Spline)

Fitment Notes

• Manual transmission only -- does NOT fit automatic
• 23-spline input shaft only -- confirm transmission spline count before ordering
• Does NOT fit GT500, GT350, or EcoBoost models
• Aftermarket flywheel required -- does NOT fit OEM 9-bolt pressure plate pattern flywheel
• Throwout bearing and flywheel not included -- must be sourced separately
• OEM pilot bushing must be reused or replaced separately
• 500-mile street break-in required -- no aggressive driving during break-in

Features

• Super Street Pro series -- street/strip rated up to 550 HP / 550 ft-lbs torque
• Dual-faced organic and ceramic disc -- smooth engagement with strong holding power
• High clamp load diaphragm pressure plate -- improved torque capacity over OEM
• Sprung hub disc -- reduces driveline shock and vibration
• SFI-approved assembly
• 90-day manufacturer warranty

Specifications

• Part Number: 75253
• Series: Super Street Pro
• Disc Diameter: 11 inches (279.4mm)
• Input Shaft: 1 inch x 23 spline
• Disc Material: Organic/Ceramic (dual-faced)
• Disc Style: Full face, sprung hub
• Pressure Plate Style: Diaphragm
• HP Rating: 550 HP
• Torque Rating: 550 ft-lbs
• Flywheel Included: No
• Throwout Bearing Included: No
• UPC: 887753010780
• Shipping Weight: 25 lbs.

Included Components

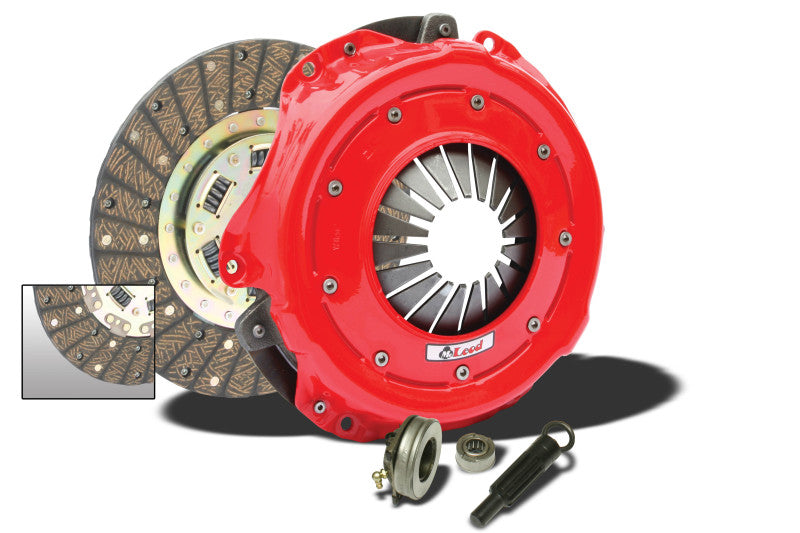

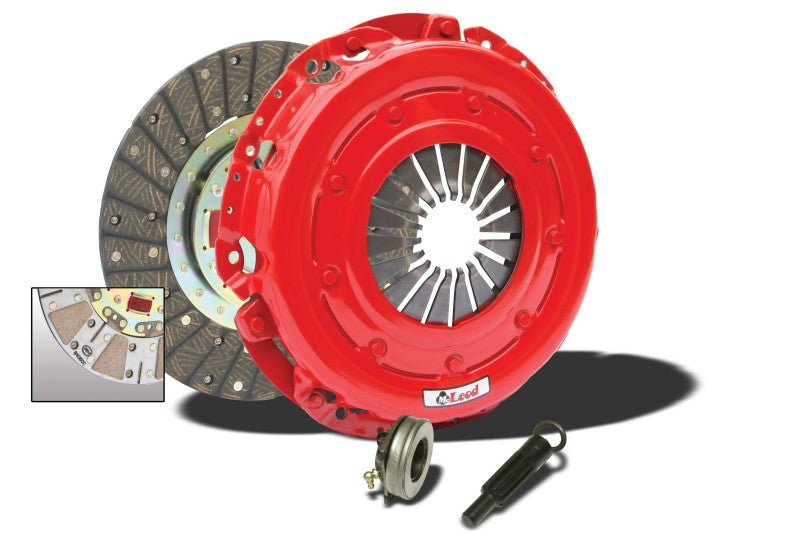

• 1x 11 inch pressure plate

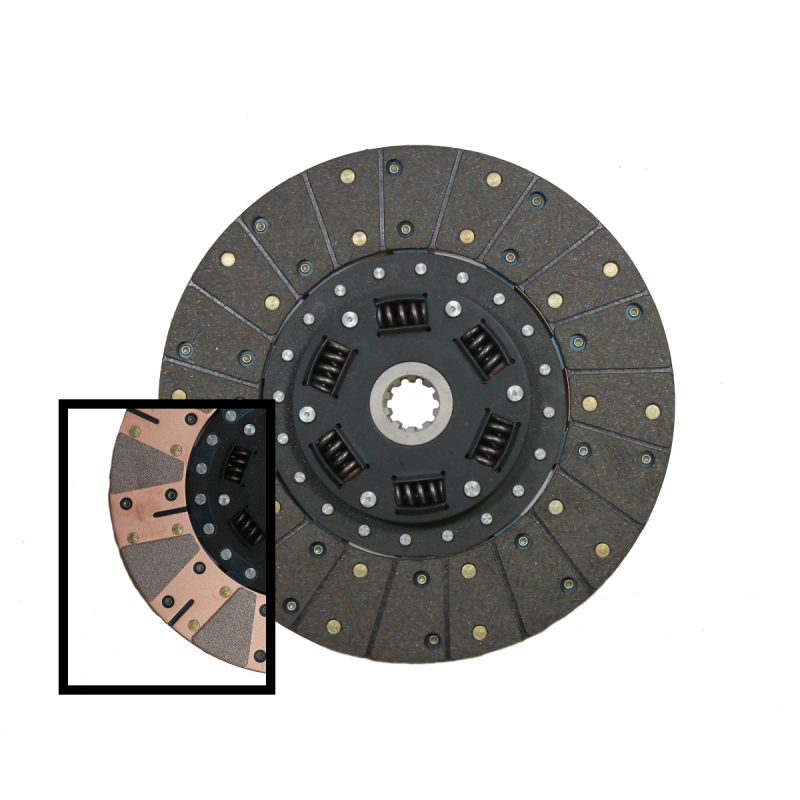

• 1x Dual-faced organic/ceramic clutch disc (23-spline)
• 1x Pilot alignment tool

Product Description

The McLeod 75253 Super Street Pro is a complete clutch kit engineered for 2011-2017 Ford Mustang GT and 2012-2013 Boss 302 models equipped with the 5.0L Coyote V8 and manual MT82 transmission. Rated to 550 HP and 550 ft-lbs of torque, the Super Street Pro is McLeod's most popular street/strip clutch -- designed for Mustangs with moderate bolt-on modifications including intake, exhaust, cam, and tune. The dual-faced organic and ceramic disc delivers the smooth engagement feel of a daily driver while providing the holding capacity to handle track use and aggressive street driving.

The high clamp load diaphragm pressure plate provides significantly more clamping force than the OEM unit for improved torque capacity, while the sprung hub disc reduces driveline shock and chatter. This kit is SFI-approved. An aftermarket flywheel is required for installation -- the OEM flywheel uses a 9-bolt pressure plate pattern that is not compatible. Flywheel, throwout bearing, and hardware are not included. Allow a 500-mile city-driving break-in period with no aggressive launches or speed shifting before full use.
