McLeod 75005 Street Level Clutch Kit for 86-01 Ford Mustang GT/Cobra 4.6L/5.0L

Vehicle Fitment

• 1986-2001 Ford Mustang GT with T-5 or T-45, 10-Spline Transmission
• 1993-1998 Ford Mustang SVT Cobra with T-5 or T-45, 10-Spline Transmission

Fitment Notes

• Requires 10-spline input shaft (1-1/16" diameter)
• Does NOT fit Mid-2001 and later Mustangs with TR-3650 transmission (26-spline)
• Also upgrades 1982-1985 Mustang V8 from factory 10" clutch to 10.5"
• Flywheel resurfacing or replacement recommended before installation
• Professional installation recommended

Features

• McLeod Street Level - perfect entry-level performance clutch replacement
• High clamp load diaphragm pressure plate for increased holding power over stock
• Organic friction disc provides smooth, progressive engagement ideal for daily driving
• Sprung hub disc design absorbs drivetrain shock and reduces chatter
• Rated for up to 300 HP and 300 lb-ft torque at the crank
• Slightly increased pedal effort over stock for improved feel and feedback
• Direct bolt-on replacement for factory clutch - no modifications required
• Complete kit includes throwout bearing and alignment tool
• Ideal for mildly modified bolt-on Mustangs
• 90-day McLeod warranty

Specifications

• Part Number: 75005
• Brand: McLeod Racing
• Product Line: Street Level
• Clutch Usage: Street
• Disc Diameter: 10.5 inches (266.7mm)
• Input Shaft: 1-1/16" Diameter x 10 Spline
• Disc Material: Organic
• Disc Style: Sprung Hub / Full Face
• Pressure Plate Style: Diaphragm (High Clamp Load)
• Number of Discs: Single
• Horsepower Rating: Up to 300 HP
• Torque Rating: Up to 300 lb-ft
• Flywheel Included: No
• Throwout Bearing Included: Yes
• Alignment Tool Included: Yes
• Pilot Bushing Included: Yes
• Warranty: 90 Days

Included Components

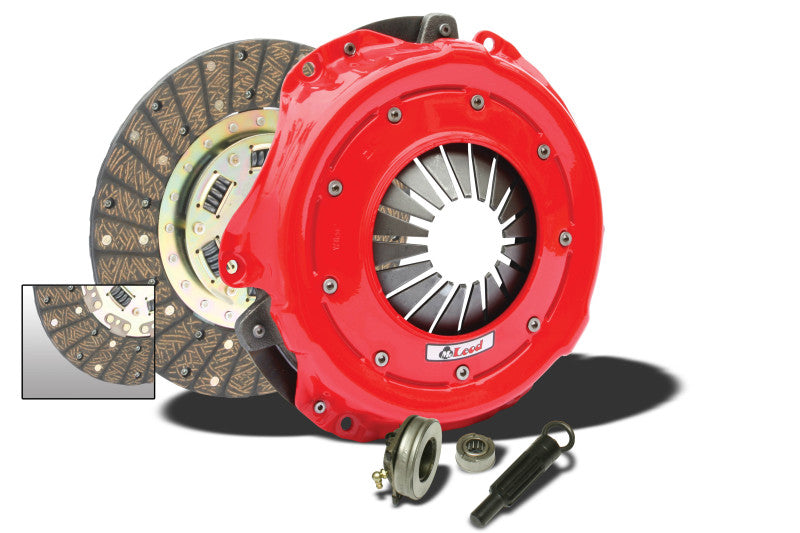

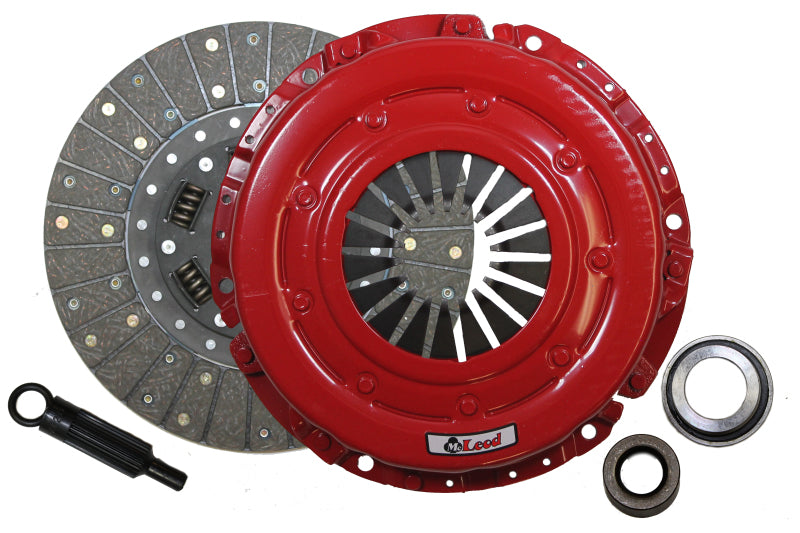

• (1) McLeod High Clamp Load Diaphragm Pressure Plate

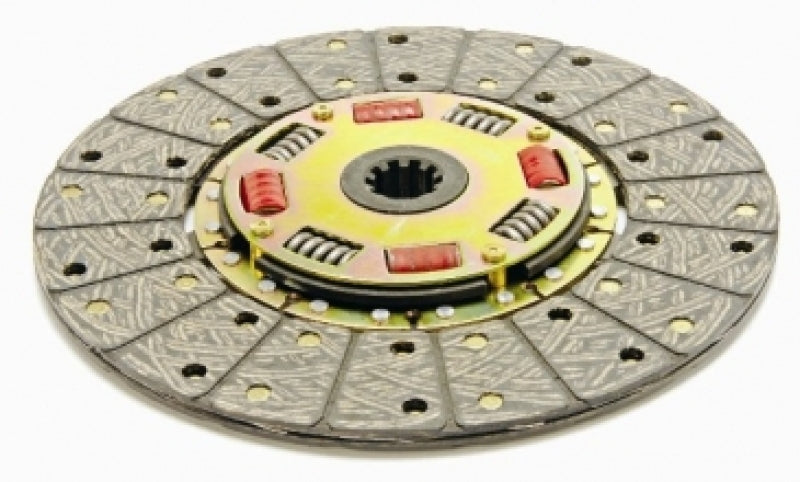

• (1) McLeod 10.5" Organic Clutch Disc (Sprung Hub)
• (1) Throwout Bearing

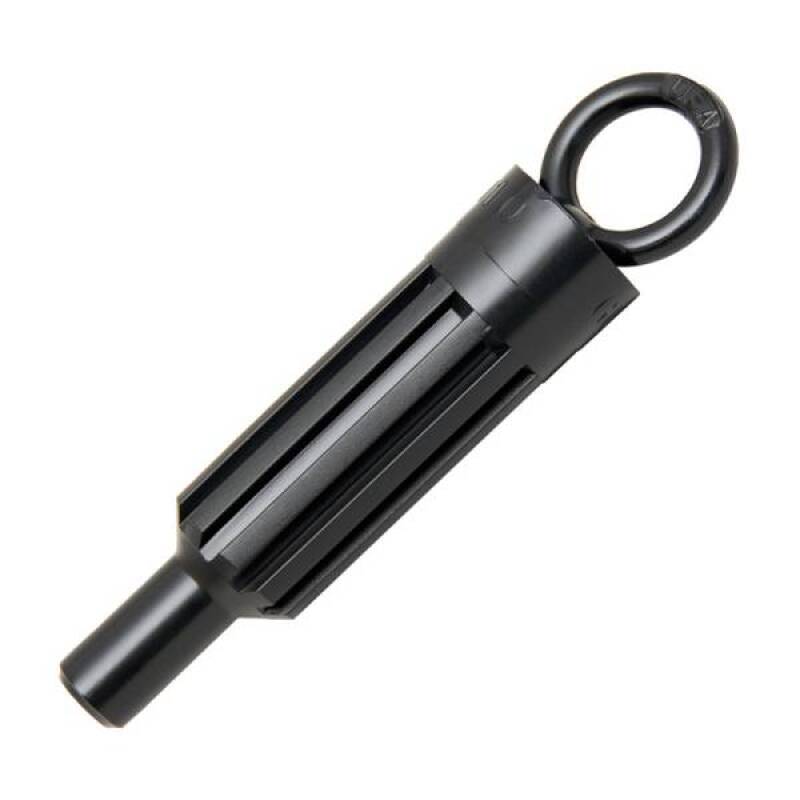

• (1) Clutch Alignment Tool
• (1) Pilot Bushing

Product Description

Replace your worn factory clutch with the McLeod 75005 Street Level Clutch Kit, the ideal performance upgrade for 1986-2001 Ford Mustang GT and 1993-1998 SVT Cobra models equipped with T-5 or T-45 10-spline manual transmissions. Designed for daily-driven Mustangs with mild bolt-on modifications producing up to 300 horsepower, this complete clutch kit delivers increased holding power without sacrificing streetability. The high clamp load diaphragm-style pressure plate provides significantly more clamping force than stock with only a modest increase in pedal effort, while the organic friction disc ensures the smooth, progressive engagement your daily driver needs. The sprung hub disc design absorbs drivetrain shock for chatter-free operation. McLeod includes everything needed for installation except the flywheel: pressure plate, organic clutch disc, throwout bearing, pilot bushing, and alignment tool. For best results, resurface or replace your flywheel before installation and follow McLeod's break-in procedure of 500-750 miles of stop-and-go driving. Backed by McLeod Racing's 90-day warranty.
