McLeod 6435825M RXT Twin Disc Clutch for 11-17 Mustang GT/Boss 302 5.0L V8

Vehicle Fitment

• 2011-2017 Ford Mustang GT (5.0L V8 Coyote, RWD, MT82)
• 2012-2013 Ford Mustang Boss 302 (5.0L V8 Coyote, RWD, MT82)

Features

• Handles up to 1,000 HP for high-performance street and strip applications
• Dual ceramic discs for superior heat resistance and fade-free performance
• Light pedal effort with smooth, consistent engagement
• Includes billet steel flywheel with 8-bolt crank pattern
• Designed for Ford Modular 5.0L Coyote engines
• Compatible with MT82 6-speed manual transmission
• Zero balance flywheel with 164-tooth ring gear
• Ideal for supercharged, turbocharged, or heavily modified Mustangs

Specifications

• Clutch Disc Quantity: 2
• Disc Diameter: 9.687 inches (246 mm)
• Input Shaft Diameter: 1.000 inch
• Input Spline Count: 23
• Flywheel Type: Billet Steel, 8-bolt, 164-tooth
• Flywheel Balance: Neutral (0 balance)
• Clutch Material: Ceramic
• Torque Capacity: Up to 1,000 HP
• Drivetrain: RWD

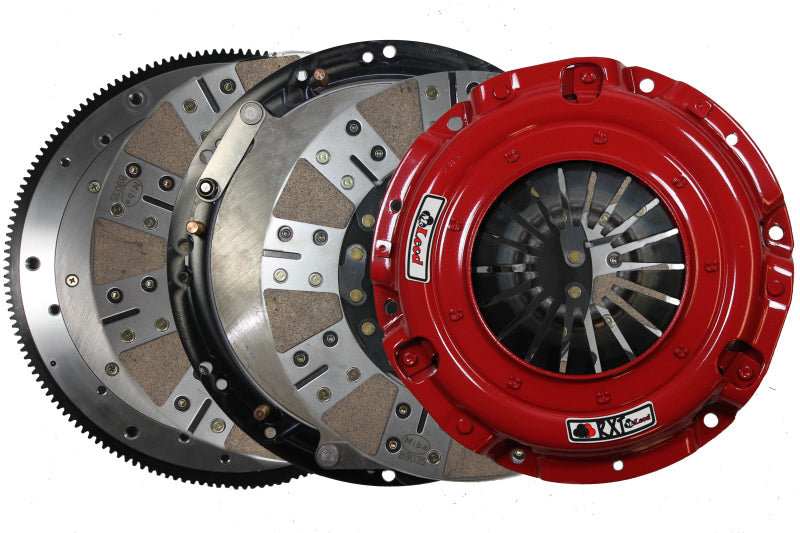

Included Components

• 1x Pressure Plate
• 2x Ceramic Friction Discs
• 1x Floater Plate
• 1x Billet Steel Flywheel (8-bolt, 164T)

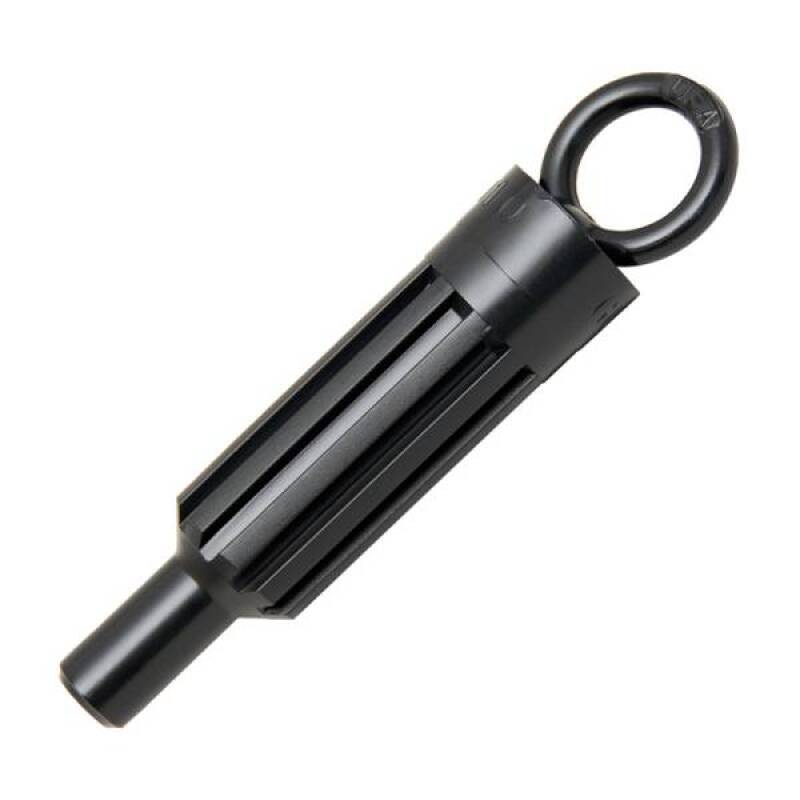

• 1x Alignment Tool

Product Description

The McLeod 6435825M RXT Twin Disc Clutch Kit is engineered for high-horsepower street and strip enthusiasts, capable of handling up to 1,000 horsepower. Its ceramic lined discs provide exceptional heat resistance and a light pedal effort, making it ideal for daily-driven vehicles that demand performance without sacrificing drivability.

Designed specifically for 2011-2017 Ford Mustang GT and 2012-2013 Boss 302 models equipped with the MT82 6-speed manual transmission, this clutch kit includes a billet steel flywheel with an 8-bolt crank pattern and 164-tooth ring gear. The diaphragm-style pressure plate ensures consistent clamping force, while the pre-balanced assembly reduces vibration for a smoother driving experience.

Note: This clutch kit is intended for use with Ford Modular 5.0L Coyote engines and is not compatible with other engine configurations. Ensure compatibility before installation.
