McLeod 6335825M RXT Street Twin Disc Clutch Kit for 11-17 Ford Mustang GT MT82

Vehicle Fitment

• 2011-2017 Ford Mustang GT 5.0L Coyote V8 (MT-82 transmission)
• 2012-2013 Ford Mustang BOSS 302 5.0L V8 (MT-82 transmission)

Fitment Notes

• Manual transmission vehicles only -- MT-82 6-speed
• 1" x 23 metric spline input shaft
• 8-bolt modular crankshaft flange
• 0 external balance
• 164-tooth ring gear on included aluminum flywheel
• Power Pack kit -- includes clutch assembly and billet aluminum flywheel
• Will not fit 2018+ Mustang GT (different spline count)
• Professional installation recommended (approximately 4 hours)

Features

• RXT Street Twin dual-disc clutch kit rated to 1,000 HP
• Ceramic/ceramic friction facing on both clutch discs
• Smooth engagement with soft pedal effort for street driving comfort
• Diaphragm-style pressure plate with high clamp load for extreme torque
• Multiple strap system eliminates floater plate rattle for street-friendly operation
• Billet aluminum flywheel reduces rotating mass for improved throttle response
• Designed for street/strip use -- daily driveable with track-capable holding power
• Fade-resistant ceramic material performs under sustained high-temperature abuse

Specifications

• Part number: McLeod 6335825M
• Series: RXT Street Twin Power Pack
• Type: Twin-disc clutch kit with aluminum flywheel
• Disc diameter: 9-11/16"
• Disc facing: Ceramic / Ceramic
• Input shaft spline: 1" x 23 metric
• Crankshaft bolt pattern: 8-bolt modular
• Balance: 0 (neutral)
• Ring gear teeth: 164
• Flywheel material: Billet aluminum
• Horsepower rating: 1,000 HP
• Pressure plate style: Diaphragm

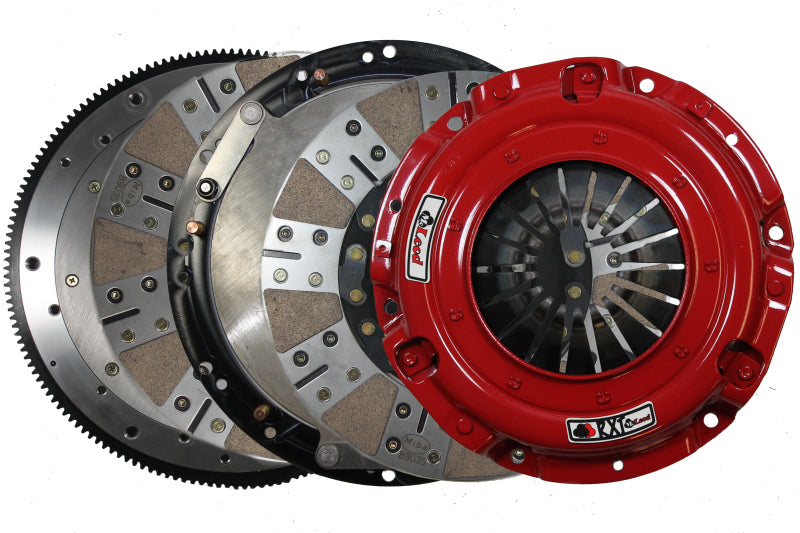

Included Components

• (1) RXT diaphragm pressure plate
• (2) Ceramic-faced clutch discs
• (1) Floater plate
• (1) Billet aluminum flywheel (8-bolt, 0 balance, 164-tooth)

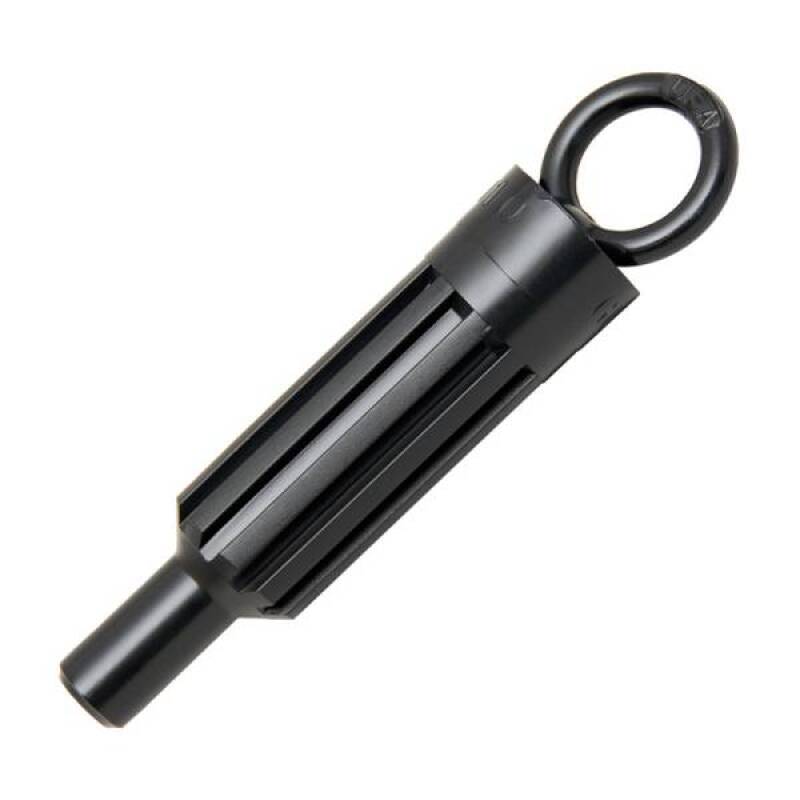

• (1) Pilot tool

Product Description

The McLeod 6335825M is an RXT Street Twin Power Pack clutch kit designed for 2011-2017 Ford Mustang GT and 2012-2013 BOSS 302 models equipped with the 5.0L Coyote V8 and MT-82 6-speed manual transmission. Rated to hold 1,000 horsepower, the twin-disc design splits clamping force across two ceramic-faced friction discs and a floater plate, providing massive holding capacity while keeping pedal effort light and engagement smooth enough for daily street driving. The ceramic friction material resists fade under sustained high-temperature use, making the RXT equally capable on the drag strip as it is in stop-and-go traffic. A multiple strap retention system eliminates the floater plate rattle common in twin-disc setups, further improving street manners. The included billet aluminum flywheel bolts directly to the 8-bolt modular crankshaft flange and significantly reduces rotating mass compared to the factory steel unit, sharpening throttle response and decreasing drivetrain losses. The complete Power Pack ships as a single part number with the pressure plate, both clutch discs, floater plate, flywheel, and pilot tool -- everything needed for installation except the throwout bearing, which is reused from the factory setup or can be upgraded separately.
