McLeod 6405807M RXT Twin Disc 1000HP Ceramic Clutch Kit Flywheel 8-Bolt LSA LSX

Engine Fitment

• GM LSA (6.2L Supercharged V8 -- 8-bolt crank)
• GM LS-X (572ci Crate Engine -- 8-bolt crank)
• All GM LS/LT-based engines with 8-bolt crank flange

Vehicle Fitment

• Retrofit / swap applications only -- not a direct bolt-in for OEM production vehicles
• Compatible with T56 Magnum and TKX transmissions (1-1/8" x 26-spline input shaft)
• Does not fit CTS-V or ZL1 -- OEM trans-axle applications require 6406807M
• Does not fit Corvette transaxle applications

Fitment Notes

• Retrofit applications only -- not for OEM direct replacement
• 8-bolt crank flange required
• Input shaft: 1-1/8" x 26-spline
• Flywheel included -- 168-tooth, 0-balance, billet steel
• Clutch pattern: RST/RXT steel adapter plate pattern
• Flywheel resurfacing required -- coarse stone-ground finish
• Break-in: 500-750 miles stop-and-go city driving (1,200-1,500 clutch cycles)
• Street/strip use -- NOT for competition or dyno use before break-in complete
• 90-day limited warranty

Features

• McLeod RXT Street Twin -- street/strip twin disc, 1,000 HP rated
• Ceramic (BRZ) disc facing -- higher torque capacity than organic RST version
• Twin disc design -- doubles friction surface area over single disc
• Smooth engagement and soft pedal effort -- streetable at rated HP levels
• Floater plate separates discs for full release
• Billet steel flywheel included -- 168-tooth, 8-bolt, 0-balance
• Street/strip capable -- not for dedicated competition environments

Specifications

• Series: RXT Street Twin
• Disc count: 2
• Disc diameter: 9-11/16"
• Disc facing: Ceramic / BRZ (metallic)
• Input shaft: 1-1/8" x 26-spline
• Crank bolt pattern: 8-bolt
• Flywheel: Billet steel, 168-tooth, 0-balance (included)
• HP rating: 1,000 HP
• Balance: 0 (neutral)
• Warranty: 90 days limited

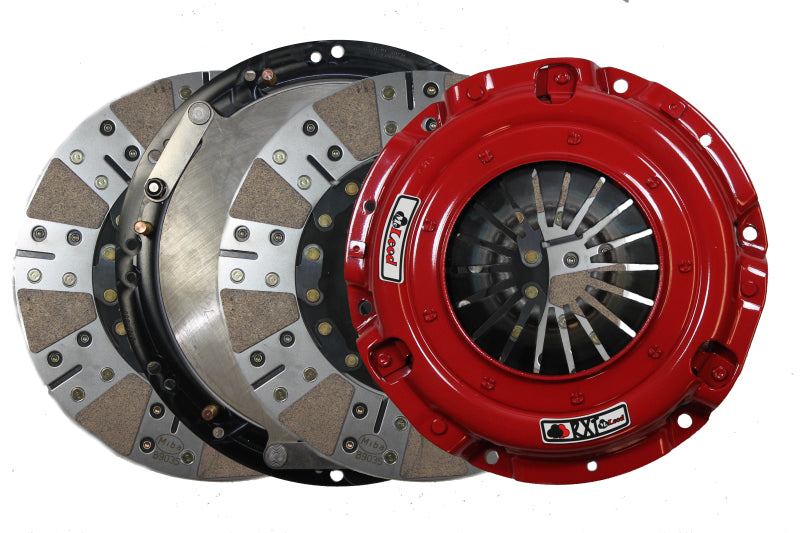

Included Components

• 1x Diaphragm pressure plate
• 2x Ceramic (BRZ) clutch discs
• 1x Floater plate
• 1x Billet steel flywheel (168-tooth, 8-bolt, 0-balance)
• 1x Pilot tool

Product Description

The McLeod 6405807M is an RXT Street Twin disc clutch kit with billet steel flywheel for GM LSA and LS-X 8-bolt crank retrofit applications -- the ceramic (BRZ) disc upgrade from the organic 6405807 RST. Where the RST handles 800 HP with organic discs, the RXT's ceramic/BRZ facing increases torque capacity to 1,000 HP while retaining the smooth engagement and soft pedal effort that makes it suitable for street and strip use rather than dedicated competition. The "M" suffix designates the ceramic disc variant (as opposed to the plain 6405807 with organic discs).

The 8-bolt crank variant is for T56 Magnum and TKX transmission applications -- not for OEM CTS-V, ZL1, or Corvette transaxle setups (those require 6406807M). Flywheel must be resurfaced with a coarse stone-ground finish before installation. Break-in requires 500-750 miles of stop-and-go city driving before WOT or drag use. Retrofit applications only. 90-day limited warranty.
