McLeod 6405507M RXT Twin Disc Clutch Kit for 97-19 GM LS1/LS2/LS3/LS6/LS7 6-Bolt

Regular price: $1,217.95
Regular price
Sale price: $1,217.95

Shipping calculated at checkout.

In Stock: 26

Orders by 1pm PST ship same business day

Free Shipping w/3-4 Day Delivery

Authorized Dealer

Fitment Guarantee

30-Day Hassle Free Returns

Product Specification:

SKU:MLR6405507M

MPN: 6405507M

UPC: 887753012296

Weight: 50.3 lb

Inventory: 26

Type: Clutch Kits - Multi

Vehicle Fitment

1997-2004 Chevrolet Corvette C5 (LS1 5.7L / LS6 5.7L)
2005-2013 Chevrolet Corvette C6 (LS2 6.0L / LS3 6.2L / LS7 7.0L)
1998-2002 Chevrolet Camaro Z28/SS (LS1 5.7L)
2010-2015 Chevrolet Camaro SS/Z28 (LS3 6.2L / L99 6.2L)
1998-2002 Pontiac Firebird/Trans Am (LS1 5.7L)
2004 Pontiac GTO (LS1 5.7L)
2005-2006 Pontiac GTO (LS2 6.0L)
2008-2009 Pontiac G8 GT/GXP (L76 6.0L / LS3 6.2L)
2004-2007 Cadillac CTS-V (LS6 5.7L / LS2 6.0L)
Also fits GM trucks with LS-series 6-bolt crank and manual transmission

Fitment Notes

Fits GM LS-series engines with 6-bolt crankshaft flange only
Does not fit 8-bolt crank (LSA, Gen V LT1/LT4) -- see McLeod 6405807M
2004-2007 Cadillac CTS-V requires slave cylinder spacer McLeod 1377-950 (sold separately)
1-1/8" x 26 spline input shaft -- verify transmission compatibility
Street/strip use -- designed for dual-purpose street and drag strip
For 800 HP street-only use: McLeod RST 6405507 (organic discs)
For 1200 HP street/strip use: McLeod RXT 1200 6405507HD
Aluminum flywheel version: McLeod 6305507M

Features

Twin disc design rated to 1,000 HP
Ceramic disc facing for increased holding power over organic
Slightly aggressive engagement with soft pedal effort
Lighter-than-stock pedal feel
Low rotating mass for quick revs
CNC-machined and anodized flywheel adapter ring
Blanchard ground floater with multiple straps to reduce noise
Billet steel flywheel included
Alignment tool included

Specifications

Part number: McLeod 6405507M
Product line: RXT Street Twin
Disc diameter: 9-11/16" (9.687")
Disc quantity: 2
Disc material: Ceramic/Ceramic
Disc style: Full face
Hub style: Rigid
Input shaft: 1-1/8" x 26 spline
Pressure plate style: Diaphragm
Flywheel material: Billet steel
Flywheel balance: 0 (internally balanced)
Ring gear: 168-tooth
Crank bolt pattern: 6-bolt
Throwout bearing style: Hydraulic (not included)
HP rating: 1,000
Clutch usage: Street/Strip
Weight: ~49.5 lbs
UPC: 887753012265
Warranty: 90-day limited

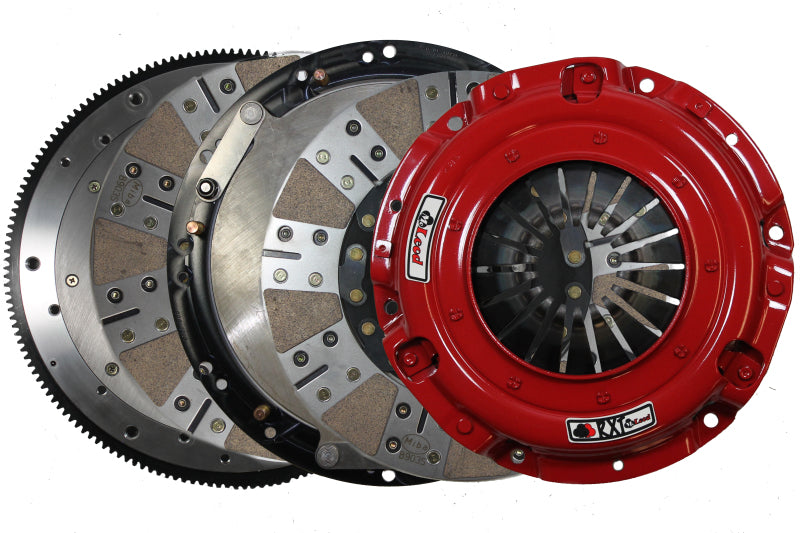

Included Components

One (1) diaphragm pressure plate
Two (2) ceramic friction discs
One (1) Blanchard ground floater plate
One (1) billet steel flywheel (168-tooth, 0 balance)

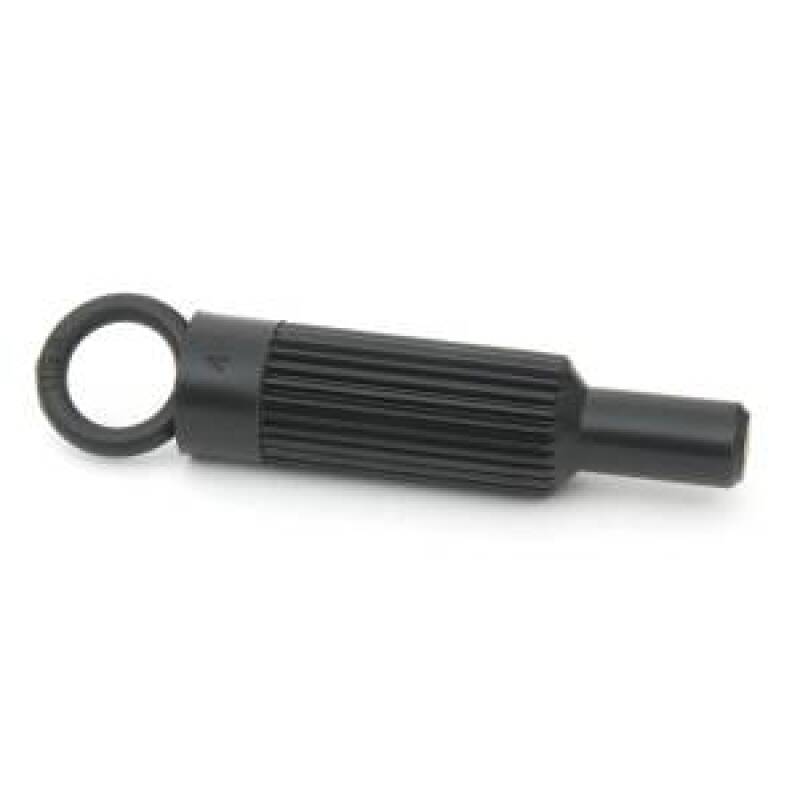

One (1) alignment tool

Product Description

The McLeod 6405507M is an RXT Street Twin disc clutch kit with a billet steel flywheel for GM LS-series engines with a 6-bolt crankshaft flange. Rated to 1,000 HP, this twin disc clutch is the step up from the RST (800 HP) for enthusiasts who need additional holding capacity for street and drag strip use. The ceramic disc facing provides increased holding power compared to the organic-lined RST, with slightly more aggressive engagement while maintaining a soft, lighter-than-stock pedal feel suitable for daily driving. The twin disc design distributes clamping force across two friction surfaces, allowing significantly more power capacity without requiring excessive pedal pressure. The included billet steel flywheel features a 168-tooth ring gear with 0 balance for internally balanced LS applications. A CNC-machined and anodized adapter ring ensures precise alignment, and the Blanchard ground floater plate with multiple straps reduces noise for streetability. Low rotating mass enables quicker engine response and faster revs. This kit fits a wide range of GM LS-powered vehicles including the Corvette C5/C6, Camaro, Firebird/Trans Am, Pontiac GTO, Pontiac G8, and Cadillac CTS-V. The 2004-2007 CTS-V requires a separately purchased slave cylinder spacer (McLeod 1377-950). This clutch is designed for dual-purpose street and strip use -- drive to the track, make passes, and drive home. For street-only applications at 800 HP, the organic-lined RST (6405507) offers smoother engagement. For higher power levels up to 1,200 HP, the RXT 1200 (6405507HD) is available. An aluminum flywheel version is also available as McLeod 6305507M. Break-in procedure requires 500-750 miles of stop-and-go city driving with 1,200-1,500 clutch actuations before track use. Backed by McLeod's 90-day limited warranty.
