McLeod 6405807MD RST HD Twin Clutch for 2009-2026 GM LS-X 8-Bolt Retrofit

Vehicle Fitment

• 2009-2026 GM LS-X 8-Bolt Retrofit Applications (1-1/8-inch x 26-spline manual transmission input, 168-tooth flywheel)

Fitment Notes

• Retrofit applications only; this is not a direct vehicle-specific replacement clutch.
• Requires a GM LS-X engine using an 8-bolt crankshaft configuration.
• Requires a compatible manual transmission with a 1-1/8-inch x 26-spline input shaft.
• Requires the included 168-tooth flywheel configuration.
• Vehicle-specific fitment cannot be assigned without confirming the engine, transmission, crankshaft and retrofit configuration.
• Manual-transmission applications only.

Features

• RST HD twin-disc clutch system designed for high-performance street and track use.
• Rated to handle applications producing up to 950 horsepower.
• Hybrid friction design combines smooth-engaging organic material with high-bite segmented ceramic material.
• Twin-disc construction provides increased torque capacity and improved heat management.
• Billet steel flywheel provides a durable foundation for high-power LS-X applications.
• 1-1/8-inch x 26-spline configuration supports compatible aftermarket manual transmissions.
• 168-tooth ring gear is matched to the supplied flywheel configuration.
• 8-bolt crankshaft pattern is designed for 2009-and-newer LS-X retrofit applications.

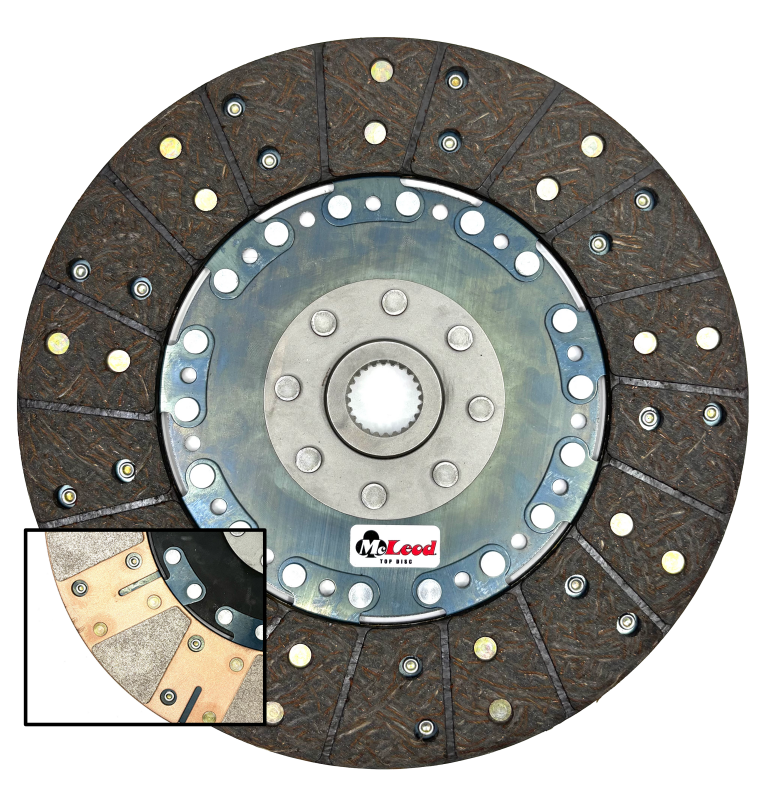

• Solid-hub clutch discs provide consistent power transfer under high loads.
• Diaphragm pressure plate is engineered for strong holding capacity with manageable pedal effort.

Specifications

• Brand: McLeod Racing
• Part Number: 6405807MD
• Series: RST HD Street Twin
• Application Type: GM LS-X Retrofit
• Clutch Type: Twin Disc
• Disc Quantity: 2x
• Disc Diameter: 9.688 inches
• Input Shaft Diameter: 1.125 inches
• Input Spline Quantity: 26
• Disc Material: Organic / Ceramic
• Disc Style: Full Face / Segmented
• Hub Style: Solid
• Pressure Plate Style: Diaphragm
• Flywheel Material: Billet Steel
• Ring Gear: 168-tooth
• Crankshaft-to-Flywheel Bolt Quantity: 8-bolt
• Engine Balance: Internal
• Horsepower Rating: 950 HP
• Flywheel Included: Yes
• Hardware Included: Yes
• Alignment Tool Included: Yes
• Throwout Bearing Included: No
• Pilot Bushing Included: No
• Position: Drivetrain / Clutch Assembly

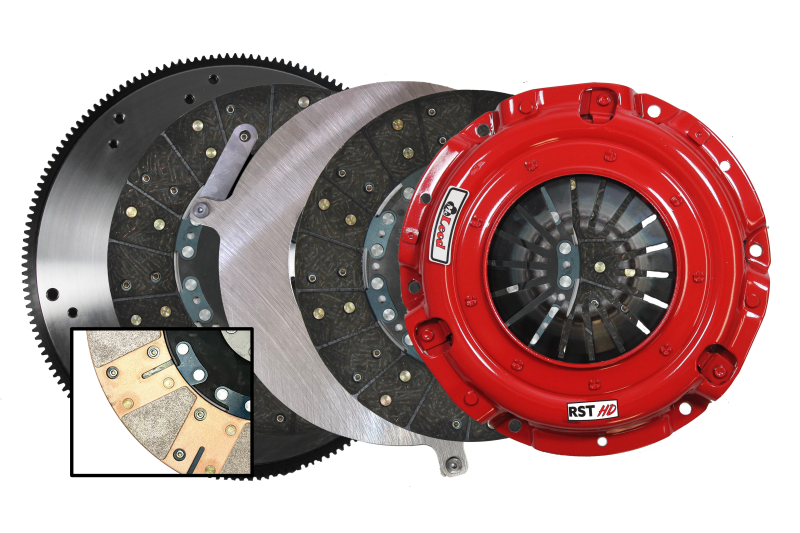

Included Components

• 1x Diaphragm Pressure Plate
• 2x Twin-Disc Clutch Discs
• 1x Floater Plate
• 1x Billet Steel Flywheel
• 1x Installation Hardware Set
• 1x Alignment Tool

Product Description

The McLeod 6405807MD RST HD Twin Disc Clutch Kit is engineered for 2009-2026 GM LS-X retrofit applications using an 8-bolt crankshaft. Unlike a vehicle-specific replacement clutch, this assembly is intended for performance builds where the engine, transmission and drivetrain configuration have been converted or otherwise configured for the required 1-1/8-inch x 26-spline input and 168-tooth flywheel.

The RST HD uses a hybrid twin-disc design combining organic and segmented ceramic friction surfaces. This configuration provides strong torque-holding capability while maintaining smooth, street-friendly engagement and manageable pedal effort. The included billet steel flywheel provides durability for high-output LS-X applications and is matched to the required 8-bolt crankshaft and 168-tooth ring gear.

Rated for up to 950 horsepower, the 6405807MD is suited to high-performance street, drag and road-course builds. Because it is specifically intended for retrofit applications, installation compatibility must be confirmed by matching the LS-X crankshaft pattern, transmission input spline, flywheel tooth count and complete clutch-actuation configuration. Throwout bearing and pilot bushing are not included.
