McLeod 6435825MD RST HD Twin Clutch for 2011-2017 Mustang GT/Boss 5.0L V8

Vehicle Fitment

• 2011-2017 Ford Mustang GT (5.0L V8 Coyote, RWD, MT82 manual transmission)
• 2012-2013 Ford Mustang Boss 302 (5.0L V8 Coyote, RWD, MT82 manual transmission)
• 2015 Ford Mustang GT 50 Years Limited Edition (5.0L V8 Coyote, RWD, MT82 manual transmission)
• 2015-2017 Ford Mustang GT Premium (5.0L V8 Coyote, RWD, MT82 manual transmission)

Fitment Notes

• Designed specifically for 2011-2017 Mustang GT/Boss 302 applications with the MT82 manual transmission configuration.
• Requires a 1-inch x 23M-spline transmission input shaft.
• Requires an 8-bolt crankshaft and 164-tooth flywheel configuration.
• Automatic-transmission applications are excluded.
• 2011-2017 Mustang GT applications with transmissions other than the specified 23M-spline configuration require compatibility verification before ordering.

Features

• RST HD twin-disc clutch system designed for high-performance street and track use.
• Rated to support applications producing up to 950 horsepower.

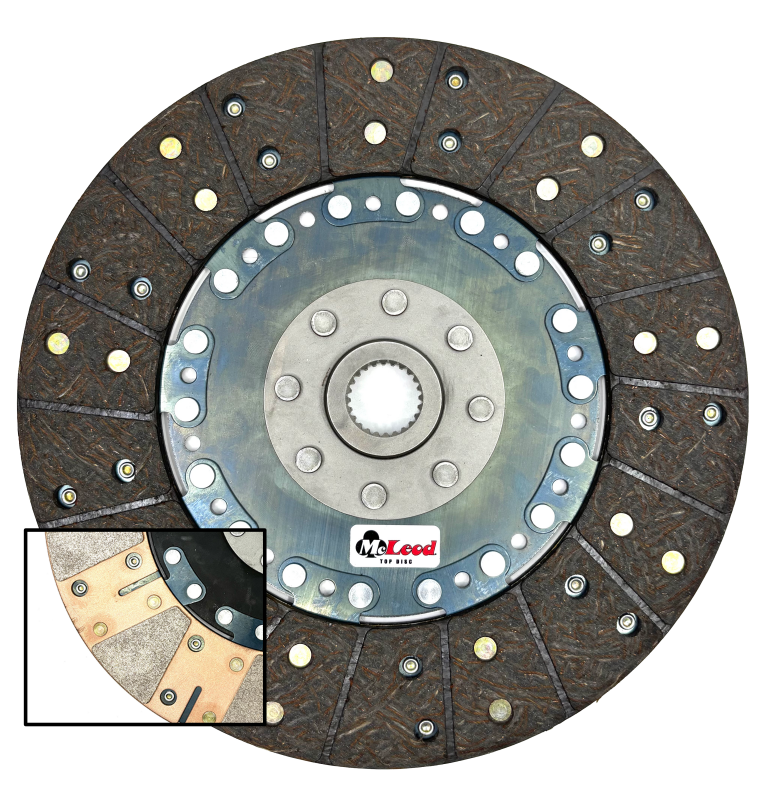

• Hybrid twin-disc friction design combines organic and ceramic friction characteristics.
• Full-face organic friction provides smooth engagement for street driving.
• Segmented ceramic friction provides increased bite and holding capacity under hard use.
• Steel flywheel provides increased durability and thermal capacity.
• 1-inch x 23M-spline configuration is matched to the specified Mustang MT82 input shaft.
• 164-tooth ring gear is matched to the 5.0L Coyote application.
• 8-bolt crankshaft pattern provides the required engine-to-flywheel mounting configuration.
• Twin-disc construction increases torque capacity compared with a conventional single-disc clutch.
• Designed to provide increased performance capability while retaining street-friendly drivability.

Specifications

• Brand: McLeod Racing
• Part Number: 6435825MD
• Series: RST HD Street Twin
• Clutch Type: Twin Disc
• Disc Quantity: 2x
• Disc Material: Organic / Ceramic
• Input Shaft Diameter: 1 inch
• Input Spline: 23M
• Flywheel Material: Steel
• Ring Gear: 164-tooth
• Crankshaft Pattern: 8-bolt
• Engine: 5.0L Coyote V8
• Transmission: MT82 manual
• Horsepower Rating: Up to 950 HP
• Flywheel Included: Yes
• Alignment Tool Included: Yes
• Throwout Bearing Included: No
• Pilot Bushing Included: No
• Position: Drivetrain / Clutch Assembly

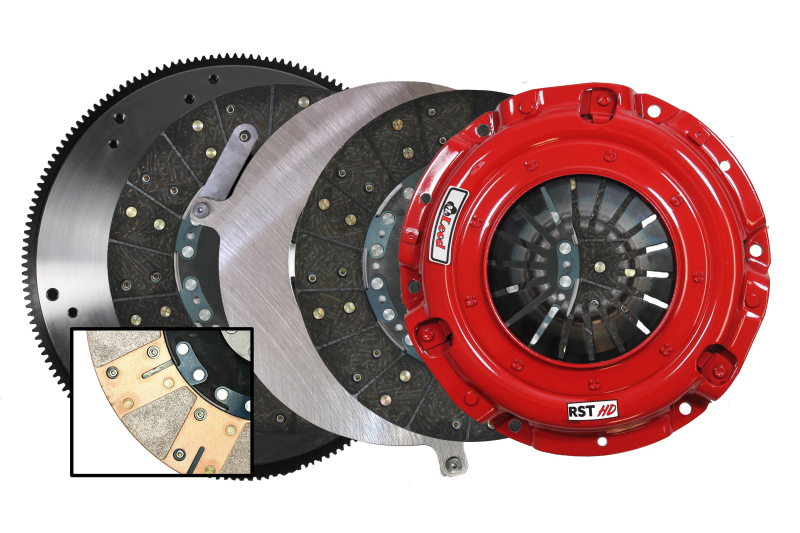

Included Components

• 1x Diaphragm Pressure Plate
• 2x Twin-Disc Clutch Discs
• 1x Floater Plate
• 1x Steel Flywheel
• 1x Installation Hardware Set
• 1x Alignment Tool

Product Description

The McLeod 6435825MD RST HD Twin Disc Clutch Kit is engineered for 2011-2017 Ford Mustang GT and 2012-2013 Boss 302 models equipped with the 5.0L Coyote V8 and compatible MT82 manual transmission. Its twin-disc design combines organic and segmented ceramic friction characteristics to deliver greater holding capacity while maintaining smooth engagement for street use.

This version includes a steel flywheel matched to the 5.0L Coyote's 8-bolt crankshaft and 164-tooth ring gear configuration. The 1-inch x 23M-spline input specification is designed specifically around the applicable MT82 transmission setup. The steel flywheel provides strong durability and thermal capacity for performance-oriented driving.

With a rating of up to 950 horsepower, the RST HD is suited to modified Mustang GT and Boss 302 builds that require substantially more clutch capacity than stock. Confirm the vehicle's 5.0L engine, MT82 transmission, 23M input spline, 8-bolt crankshaft and 164-tooth flywheel configuration before installation. The throwout bearing and pilot bushing are not included.
