McLeod 6335803MD RST HD Twin Clutch for 1996-2010 Mustang 4.6L V8

Vehicle Fitment

• 1996-2004 Ford Mustang GT (4.6L V8, RWD, manual transmission)
• 2005-2010 Ford Mustang GT (4.6L V8, RWD, manual transmission)
• 2007-2008 Ford Mustang Shelby GT (4.6L V8, RWD, manual transmission)
• 2008-2009 Ford Mustang Bullitt (4.6L V8, RWD, manual transmission)

Fitment Notes

• For compatible 4.6L Modular V8 applications using an 8-bolt crankshaft, 164-tooth flywheel and 1-1/16-inch x 10-spline transmission input.
• Manual-transmission applications only.
• Verify the transmission input spline, crankshaft configuration and flywheel tooth count before installation.
• Applications using a 26-spline transmission input require a different clutch configuration.
• Later 5.0L Coyote Mustang applications are not compatible with this 4.6L-specific kit.

Features

• RST HD twin-disc clutch design engineered for high-performance street and track use.
• Rated for applications producing up to 950 horsepower.
• Hybrid organic and segmented ceramic friction design balances street drivability with increased holding power.
• Twin-disc construction increases torque capacity and improves heat management compared with a single-disc clutch.
• Billet aluminum flywheel reduces rotating mass for improved engine response.
• 1-1/16-inch x 10-spline configuration matches compatible Mustang manual transmissions.
• 164-tooth flywheel is matched to the specified 4.6L Modular V8 configuration.
• 8-bolt crankshaft pattern provides the required engine-to-flywheel mounting configuration.
• Diaphragm pressure plate is designed to provide strong clamping force with manageable pedal effort.
• Solid hub design delivers consistent power transfer during high-load driving.

Specifications

• Brand: McLeod Racing
• Part Number: 6335803MD
• Series: RST HD Street Twin
• Clutch Type: Twin Disc
• Disc Quantity: 2x
• Disc Diameter: 9.688 inches
• Input Shaft Diameter: 1.063 inches (1-1/16 inch)
• Input Spline Quantity: 10
• Disc Material: Organic / Ceramic
• Disc Style: Full Face / Segmented
• Hub Style: Solid
• Pressure Plate Style: Diaphragm
• Flywheel Material: Billet Aluminum
• Ring Gear: 164-tooth
• Crankshaft-to-Flywheel Bolt Quantity: 8-bolt
• Engine Balance: Internal
• Horsepower Rating: 950 HP
• Flywheel Included: Yes
• Hardware Included: Yes
• Alignment Tool Included: Yes
• Throwout Bearing Included: No
• Pilot Bushing Included: No
• Position: Drivetrain / Clutch Assembly

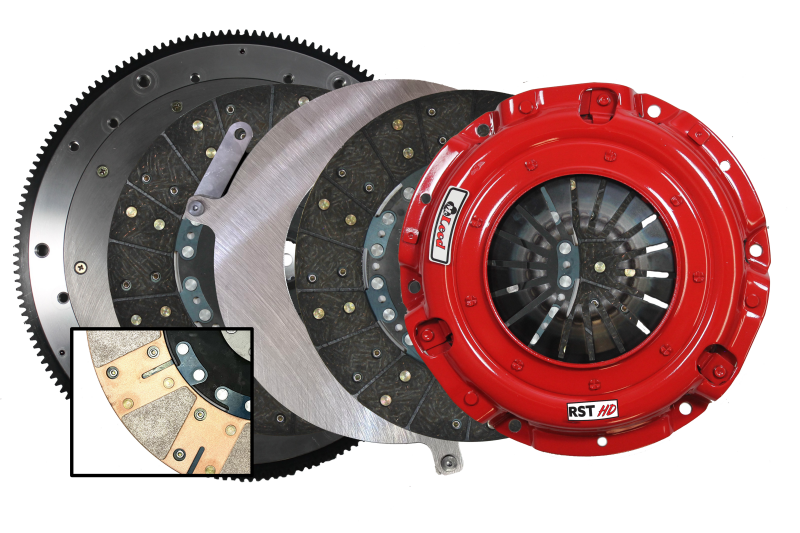

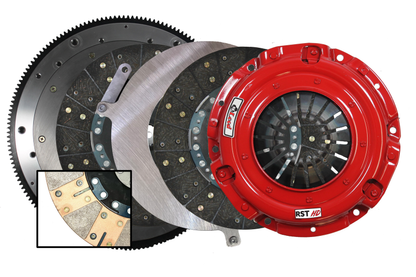

Included Components

• 1x Diaphragm Pressure Plate
• 2x Twin-Disc Clutch Discs
• 1x Floater Plate
• 1x Billet Aluminum Flywheel
• 1x Installation Hardware Set
• 1x Alignment Tool

Product Description

The McLeod 6335803MD RST HD Twin Disc Clutch Kit is designed for compatible 1996-2010 Ford Mustang 4.6L Modular V8 applications using an 8-bolt crankshaft and 1-1/16-inch x 10-spline manual transmission configuration. The RST HD twin-disc design combines organic and segmented ceramic friction surfaces to deliver increased torque capacity while maintaining smooth, street-friendly engagement.

The kit includes a matched billet aluminum flywheel with a 164-tooth ring gear. Its lightweight construction helps reduce rotating mass for improved engine response, while the twin-disc arrangement provides greater holding capability than a conventional single-disc clutch. The diaphragm pressure plate is designed to maintain strong clamping force without excessively heavy pedal effort.

This kit is suited to high-performance street and track-oriented Mustang builds rated up to 950 horsepower. Before installation, confirm the vehicle's 4.6L engine, 8-bolt crankshaft, 164-tooth flywheel requirement and 1-1/16-inch x 10-spline transmission input. Throwout bearing and pilot bushing are not included.
