McLeod 6333825MD RST HD Twin Clutch for 2018-2023 Mustang 5.0L V8

Vehicle Fitment

• 2018-2023 Ford Mustang GT (5.0L V8, RWD, manual transmission)
• 2018-2023 Ford Mustang GT Premium (5.0L V8, RWD, manual transmission)
• 2019-2020 Ford Mustang Bullitt (5.0L V8, RWD, manual transmission)
• 2021-2023 Ford Mustang Mach 1 (5.0L V8, RWD, manual transmission)

Fitment Notes

• For 5.0L V8 Mustang applications using the specified 1-inch x 23M-spline manual transmission input.
• Requires an 8-bolt crankshaft and 164-tooth flywheel configuration.
• Manual-transmission applications only.
• 2024-2026 Mustang GT and Dark Horse applications are not included; those applications use a different McLeod part number.

Features

• RST HD twin-disc clutch design engineered for high-performance street and track use.
• Rated to support applications producing up to 950 horsepower.
• Hybrid friction design combines organic material for smooth engagement with segmented ceramic material for increased bite.
• Twin-disc configuration increases torque-holding capacity compared with a conventional single-disc clutch.
• Billet aluminum flywheel helps reduce rotational mass for quicker engine response.
• 1-inch x 23M-spline configuration matches compatible Mustang manual transmissions.
• 164-tooth ring gear is matched to the specified Mustang 5.0L configuration.
• 8-bolt crankshaft pattern provides the required engine-to-flywheel mounting configuration.
• Solid hub design provides consistent power transfer during performance driving.
• Diaphragm pressure plate is designed for strong holding power with manageable pedal effort.

Specifications

• Brand: McLeod Racing
• Part Number: 6333825MD
• Series: RST HD Street Twin
• Clutch Type: Twin Disc
• Disc Quantity: 2x
• Disc Diameter: 9.688 inches
• Disc Material: Organic / Ceramic
• Disc Style: Full Face / Segmented
• Hub Style: Solid
• Input Shaft Diameter: 1 inch
• Input Spline: 23M
• Pressure Plate Style: Diaphragm
• Flywheel Material: Billet Aluminum
• Ring Gear: 164-tooth
• Crankshaft-to-Flywheel Bolt Quantity: 8-bolt
• Engine Balance: Internal
• Horsepower Rating: 950 HP
• Flywheel Included: Yes
• Hardware Included: Yes
• Alignment Tool Included: Yes
• Pilot Bushing Included: Yes
• Throwout Bearing Included: No
• Position: Drivetrain / Clutch Assembly

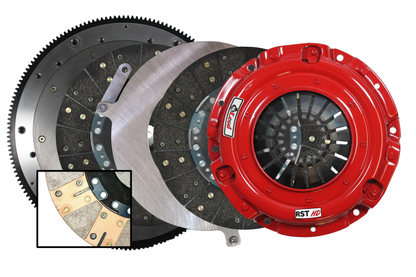

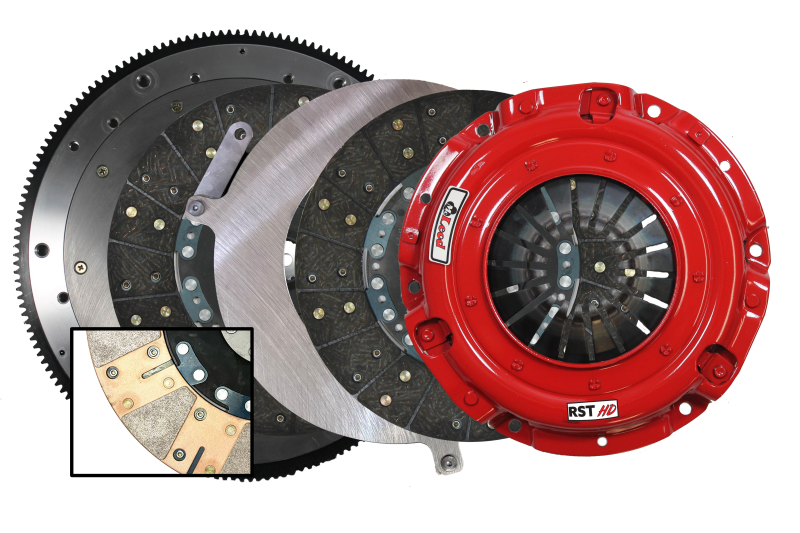

Included Components

• 1x Diaphragm Pressure Plate
• 2x Twin-Disc Clutch Discs
• 1x Floater Plate
• 1x Billet Aluminum Flywheel
• 1x Installation Hardware Set
• 1x Alignment Tool
• 1x Pilot Bushing

Product Description

The McLeod 6333825MD RST HD Twin Disc Clutch Kit is designed for 2018-2023 Ford Mustang 5.0L V8 manual-transmission applications requiring increased clutch capacity for performance driving. Its twin-disc configuration combines a full-face organic friction surface with segmented ceramic material to provide smooth street engagement while delivering stronger holding power under demanding conditions.

The kit includes a lightweight billet aluminum flywheel engineered around the Mustang 5.0L V8's 8-bolt crankshaft and 164-tooth ring gear configuration. The 1-inch x 23M-spline specification is matched to the applicable manual-transmission setup, while the twin-disc arrangement helps increase torque capacity without requiring an excessively aggressive single-disc clutch.

The 6333825MD is rated for up to 950 horsepower and is suited to high-performance street cars and track-oriented Mustang builds. Verify the vehicle's exact model year, 5.0L engine, manual transmission, spline specification, and 8-bolt crankshaft configuration before installation. The throwout bearing is not included.
