McLeod 6912-07MD RST HD Twin Clutch for 1997-2015 GM LS/2001-2017 Mustang

Vehicle Fitment

• 1997-2015 Chevrolet Corvette (LS1/LS2/LS3/LS6/LS7 V8, RWD, manual transmission, compatible flat-style flywheel)
• 1997-2015 Chevrolet Camaro (LS V8, RWD, manual transmission, compatible flat-style flywheel)
• 1997-2002 Pontiac Firebird (LS V8, RWD, manual transmission, compatible flat-style flywheel)
• 2004-2006 Pontiac GTO (5.7L/6.0L LS V8, RWD, manual transmission, compatible flat-style flywheel)
• 2009 Pontiac G8 (6.0L/6.2L LS V8, RWD, manual transmission, compatible flat-style flywheel)
• 2001-2017 Ford Mustang (4.6L/5.0L Modular V8, RWD, manual transmission, aftermarket transmission)

Fitment Notes

• Designed for existing compatible flywheels; flywheel is not included.
• GM LS applications require an LS1/LS6 flat-style flywheel.
• Does not fit LS2, LS3 or LS7 recessed-style flywheels.
• Ford Mustang applications require an aftermarket manual transmission.
• Requires a 1-1/8-inch x 26-spline transmission input shaft.
• Crank relief must be 6.250 inches or smaller for correct disc-to-flywheel contact.
• Automatic-transmission applications are excluded.

Features

• RST HD twin-disc clutch design engineered for high-performance street and track use.
• Rated for applications producing up to 950 horsepower.
• Hybrid organic and ceramic friction design balances drivability with increased torque capacity.
• Full-face organic friction provides smooth, street-friendly engagement.
• Segmented ceramic friction provides increased bite and holding capability under hard use.
• Twin-disc construction distributes clutch load across two friction discs.
• 1-1/8-inch x 26-spline hub configuration supports compatible manual transmissions.
• Solid hub design provides consistent power transfer during high-load operation.
• Diaphragm pressure plate provides strong clamping force with relatively light pedal effort.
• Metric ring design allows installation onto compatible existing flywheels.

Specifications

• Brand: McLeod Racing
• Part Number: 6912-07MD
• Series: RST HD Street Twin
• Clutch Type: Twin Disc
• Disc Quantity: 2x
• Disc Diameter: 9.688 inches
• Input Shaft Diameter: 1.125 inches
• Input Spline Quantity: 26
• Disc Material: Organic / Ceramic
• Disc Style: Full Face / Segmented
• Hub Style: Solid
• Pressure Plate Style: Diaphragm
• Clutch Pattern: 11-inch GM LS-X / 11-inch Ford Modular
• Flywheel Fitment: Ford Modular / GM LS-X
• Flywheel Included: No
• Horsepower Rating: 950 HP
• Hardware Included: Yes
• Alignment Tool Included: Yes
• Throwout Bearing Included: No
• Pilot Bushing Included: No
• Position: Drivetrain / Clutch Assembly

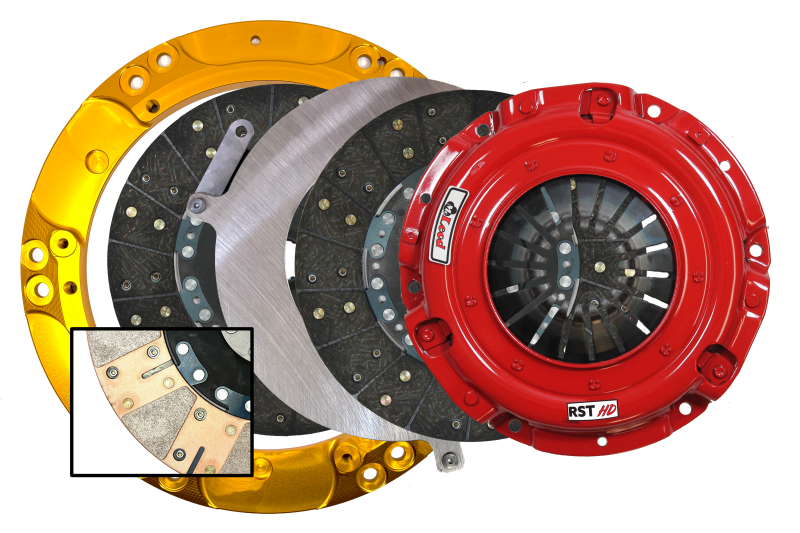

Included Components

• 1x Diaphragm Pressure Plate

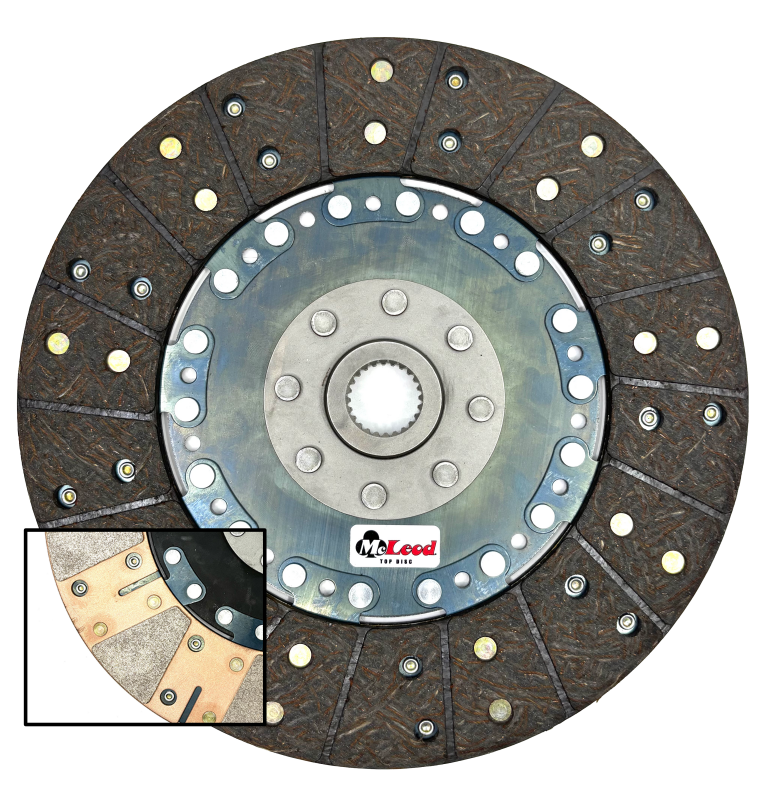

• 2x Twin-Disc Clutch Discs
• 1x Floater Plate

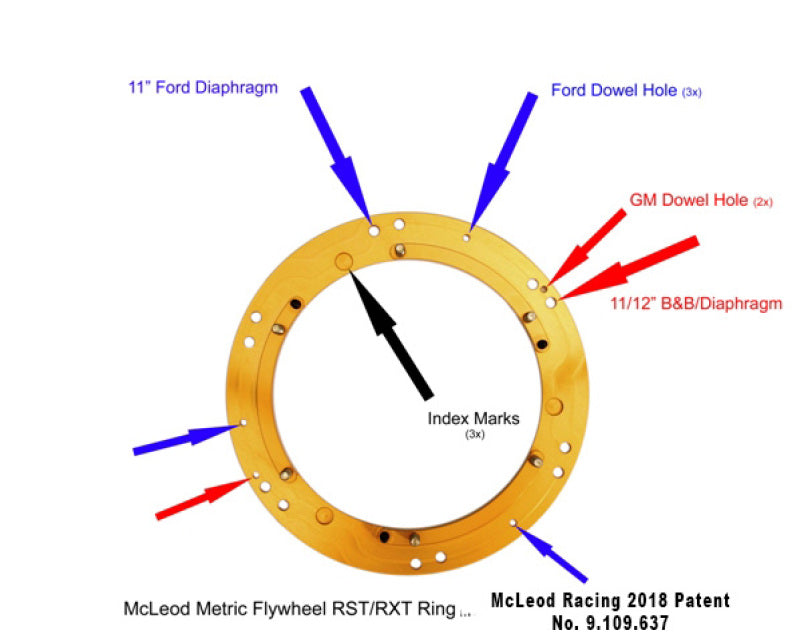

• 1x Metric Adapter Ring
• 1x Installation Hardware Set

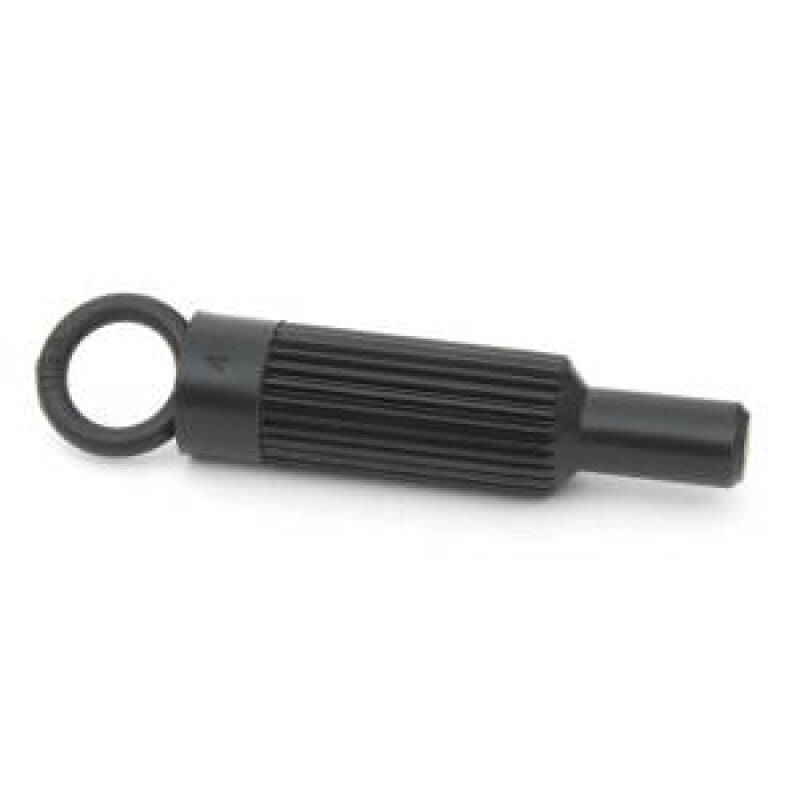

• 1x Alignment Tool

Product Description

The McLeod 6912-07MD RST HD Twin Disc Clutch Kit is designed for high-performance GM LS and Ford Modular applications requiring greater clutch capacity while maintaining street-friendly engagement. The twin-disc assembly uses a hybrid friction design combining full-face organic material with segmented ceramic material, providing a balance of smooth operation and strong torque-holding capability.

This version is supplied without a flywheel and is designed to bolt to a compatible existing flywheel. GM LS applications require an LS1/LS6 flat-style flywheel and are not compatible with LS2, LS3 or LS7 recessed flywheels. Ford Mustang applications require an aftermarket manual transmission with the specified 1-1/8-inch x 26-spline input.

With a 950 HP rating, the RST HD is suited to modified street cars, track builds and other high-output applications. Before installation, verify the engine, flywheel style, crank relief, transmission spline and clutch-actuation configuration. The flywheel, throwout bearing and pilot bushing are not included.
