McLeod 1434001 Hydraulic Clutch Conversion Kit for 55-57 Chevy C1 Corvette

Vehicle Fitment

• 1955-1957 Chevrolet Corvette C1 (all trim levels)
• 1955-1957 Chevrolet Passenger Cars (Bel Air, One-Fifty, Two-Ten)

Fitment Notes

• Firewall-mounted hydraulic master cylinder kit--replaces mechanical linkage
• Designed for use with McLeod 1300/1400 series hydraulic throw-out bearings (sold separately)
• Requires installation of hydraulic hose and slave bearing; self-adjusting function

Features

• Cast-aluminum master cylinder with 0.750" bore, 1.2" stroke
• AN-4 stainless braided hose for durability and clean routing
• Self-adjusting hydraulic slave bearing eliminates pedal free-play adjustments
• Smooth and consistent clutch engagement--street and strip use
• All mounting fittings and hardware included for firewall installation
• Made in USA; lifetime warranty on master cylinder casting
• CA Prop 65 warning applies
• Adjustable pushrod length--customizable to transmission models

Specifications

• Part Number: 1434001
• Master Cylinder Bore: 0.750"
• Stroke Length: 1.2"
• Hose: AN-4 braided stainless steel
• Material: Cast aluminum body
• Warranty: Lifetime on cylinder, component warranty varies

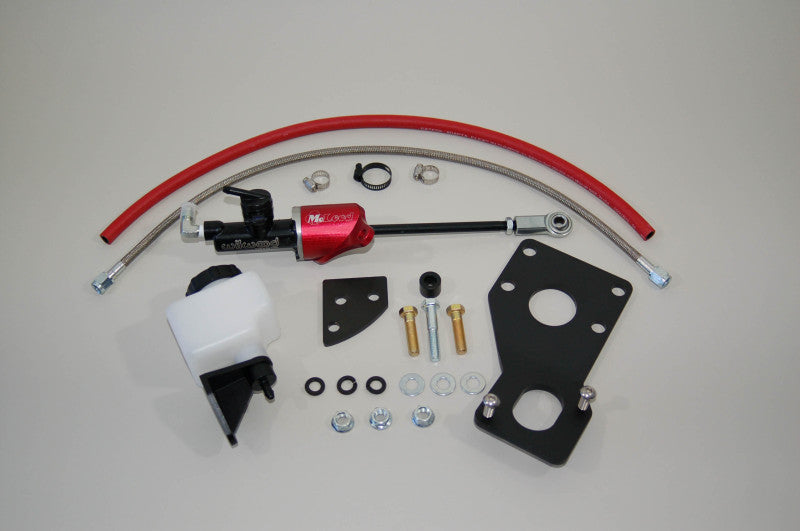

Included Components

• 1x master cylinder assembly
• 1x AN-4 stainless braided hose
• Mounting bracket, fittings, and firewall hardware
• Installation instructions (PDF available)

Product Description

The McLeod 1434001 Hydraulic Clutch Conversion Kit transforms 1955-1957 Chevrolet vehicles (C1 Corvette and full-size Chevrolet cars) from mechanical to hydraulic clutch operation. Featuring a cast-aluminum 0.750" master cylinder and AN-4 stainless braided hose, it delivers smooth, consistent clutch engagement while eliminating tedious pedal adjustments--ideal for restorations and hot-rod builds.

Designed for use with McLeod 1300/1400 series hydraulic throw-out bearings (sold separately), this firewall-mounted kit includes adjustable push-rod, fittings, bracketry, and hardware for clean installation. Self-adjusting and backed by a lifetime warranty, the conversion enhances pedal feel and performance for both street and strip use--bringing modern clutch convenience to classic Chevy drivetrains.
