MBRP S5201409 3" Muffler Bypass Exhaust for 2015-2020 Ford F-150

Vehicle Fitment

• 2015-2020 Ford F-150 (Gas Engines: 2.7L EcoBoost, 3.5L EcoBoost, 5.0L V8)

Features

• 3" muffler bypass exhaust for aggressive performance sound
• Armor Plus T-409 stainless steel construction for corrosion resistance
• Mandrel-bent tubing for improved exhaust flow and reduced backpressure
• Race profile for loud, aggressive exhaust note
• Direct fit design replaces factory muffler section
• Lifetime limited warranty from manufacturer
• Hardware included for installation
• Enhances throttle response and exhaust performance

Specifications

• Part Number: S5201409
• Exhaust Type: Muffler bypass pipe (no muffler)
• Main Tubing Diameter: 3.00"
• Material: T-409 stainless steel
• Fitment: Direct muffler bypass for specified F-150 years
• Series: Armor Plus
• Sound Profile: Race (aggressive tone)
• Warranty: Lifetime limited

Included Components

• 1x Muffler bypass exhaust pipe
• 1x Installation hardware kit

Product Description

The MBRP S5201409 Muffler Bypass Exhaust is engineered for the 2015-2020 Ford F-150 equipped with 2.7L EcoBoost, 3.5L EcoBoost, or 5.0L V8 engines. This T-409 stainless steel muffler bypass replaces the factory muffler section with a straight-through design that eliminates the restrictive muffler, producing a louder and more aggressive exhaust note with a race-oriented profile. Its mandrel-bent 3" tubing improves exhaust flow, helping reduce backpressure while increasing throttle responsiveness and performance feel.

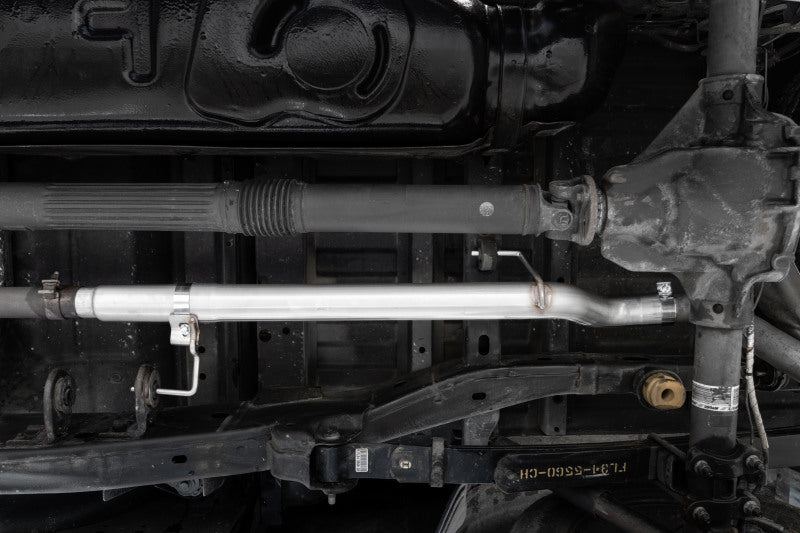

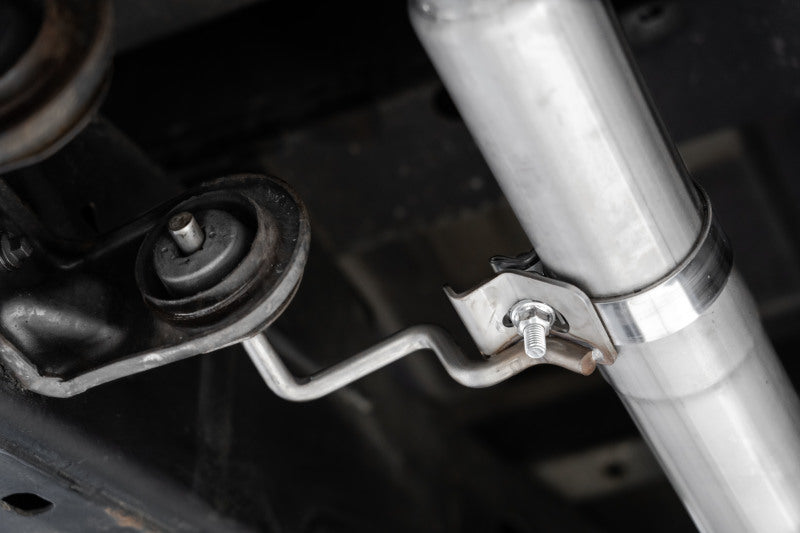

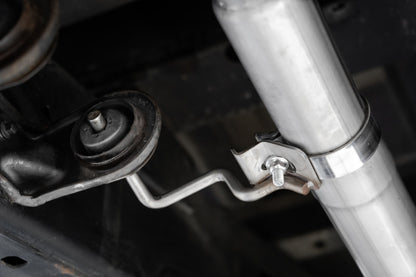

Constructed from corrosion-resistant T-409 stainless steel and backed by a lifetime limited warranty, the S5201409 is built to withstand road use in moderate climates. The direct fit design uses existing hangers and connects in place of the stock muffler for a straightforward installation. While not intended to add significant horsepower on its own, the bypass exhaust enhances exhaust sound and complements other performance modifications like cold air intakes or tuners.

Ideal for F-150 owners seeking a bold exhaust sound and freer-flowing exhaust without replacing the entire system, this performance part delivers an aggressive growl and robust tone that matches enthusiast driving preferences. Be aware that cutting of the stock pipe may be required during installation.
