MBRP S5232AL Armor Lite Cat-Back Dual Side Exhaust for 2011-2014 Ford F-150 5.0L

Vehicle Fitment

• 2011-2014 Ford F-150 Regular Cab/Long Box (5.0L V8; 2WD/4WD)
• 2011-2014 Ford F-150 SuperCab/Short Box (5.0L V8; 2WD/4WD)
• 2011-2014 Ford F-150 SuperCab/Standard Box (5.0L V8; 2WD/4WD)
• 2011-2014 Ford F-150 SuperCrew/Short Box (5.0L V8; 2WD/4WD)
• 2011-2014 Ford F-150 SuperCrew/Standard Box (5.0L V8; 2WD/4WD)

Fitment Notes

• 5.0L V8 engine only - does not fit the 3.5L EcoBoost, 3.7L V6, 5.0L TiVCT, 6.2L V8, or any other engine variant in the 2011-2014 F-150 lineup
• SuperCab/Long Box and SuperCrew/Long Box configurations are not supported - verify bed length before ordering
• Aluminized steel construction is recommended for dry climates with minimal rain or road salt exposure - not recommended for heavy snow-belt or high-salt environments

Features

• Street Profile sound tuning delivers a deeper, more assertive 5.0L V8 exhaust note under throttle while remaining composed and non-droning at highway cruise - a meaningful upgrade over the factory single-outlet system
• Dual side exit configuration routes exhaust out of both sides of the truck simultaneously, delivering a symmetrical, performance-oriented appearance behind both rear tires - a significant visual improvement over the factory single-exit layout
• Full cat-back design replaces all factory exhaust from the catalytic converter rearward for the maximum flow improvement available in a complete bolt-on package
• 16-gauge heavy-duty aluminized steel construction with fully sealed seams - the Armor Lite series delivers the same fitment precision and sound profile as MBRP's stainless systems at a value price point
• Mandrel-bent 3-inch tubing maintains a consistent internal diameter through all bends, reducing backpressure and lowering exhaust gas temperatures versus the factory system

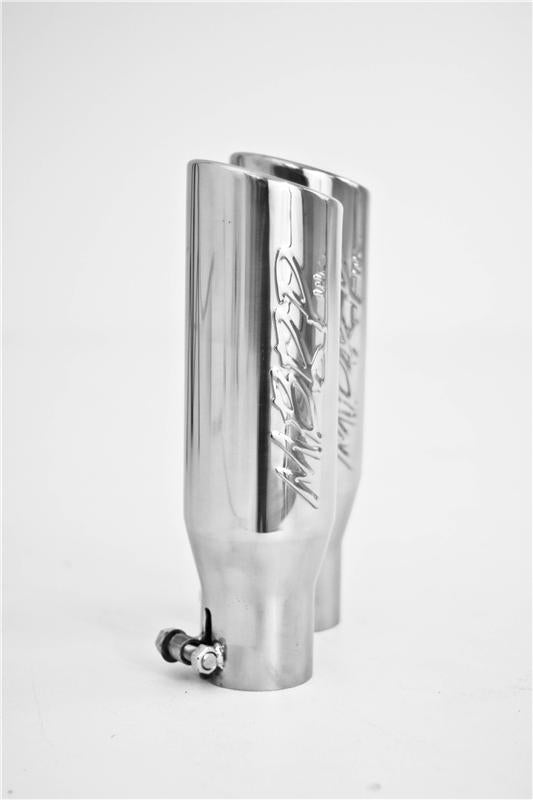

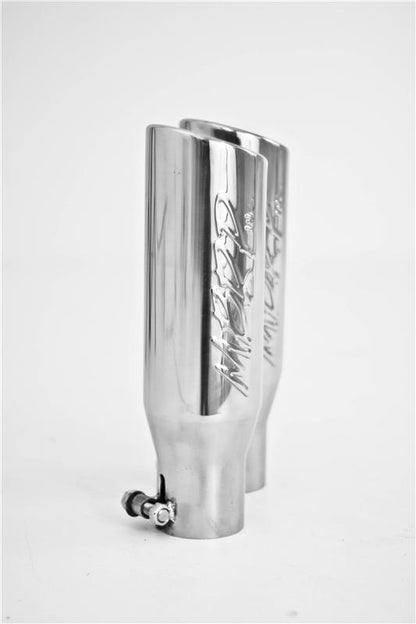

• Dual mirror-polished T304 stainless steel single-wall rolled angle-cut tips (one per side) provide a durable, bright finish at both side exits
• Welded-on hanger brackets align directly with factory OEM mounting points for a secure, rattle-free installation
• Bolt-on installation requires no welding, cutting, or drilling - all necessary clamps and hardware included
• Backed by MBRP's 3-Year Warranty under the Armor Lite series designation

Specifications

• Part Number: S5232AL
• Exhaust Type: Cat-Back
• Series: Armor Lite
• Sound Profile: Street Profile
• Exit Style: Dual Side Exit
• Tubing Diameter: 3 inches
• Body Material: 16-gauge aluminized steel
• Tip Style: Single Wall, Rolled Angle Cut
• Tip Outlet Diameter: 3.5 inches OD
• Tip Material: Mirror-polished T304 Stainless Steel
• Tip Quantity: 2 (one per side)
• Hanger Style: Welded-on
• Drivetrain: 2WD / 4WD
• Fuel Type: Gasoline
• Platform: 2011-2014 Ford F-150 (P415/12th generation)
• Position: Cat-back (replaces all exhaust from catalytic converter outlet rearward)
• Warranty: 3-Year (Armor Lite)

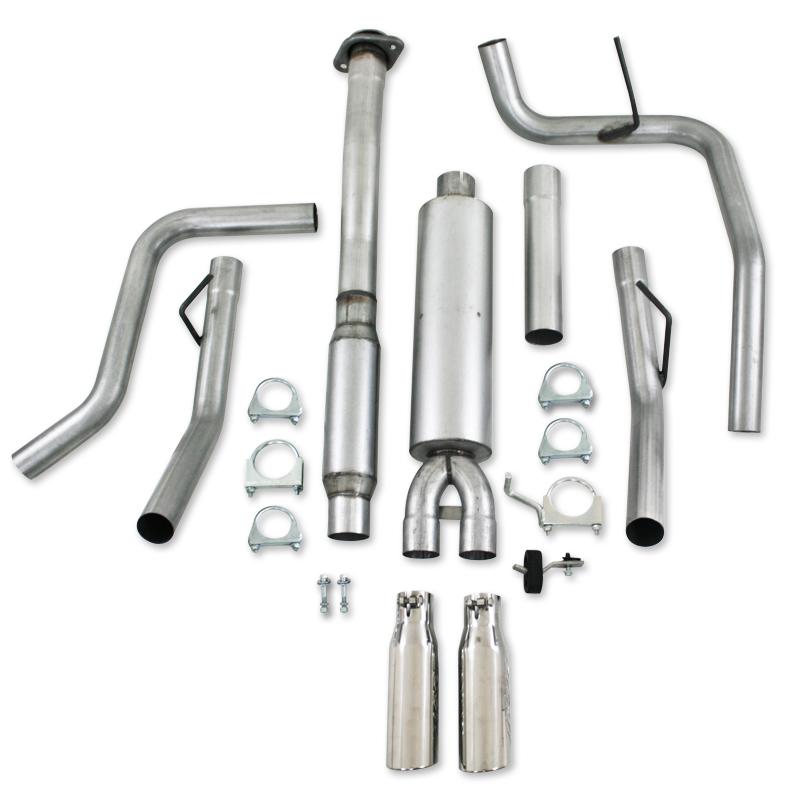

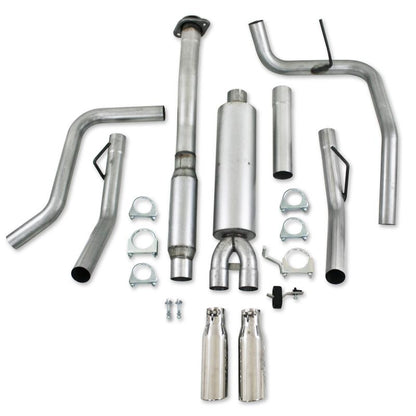

Included Components

• 1x Cat-back exhaust pipe assembly (16-gauge aluminized steel, mandrel-bent 3-inch tubing, welded hangers, dual side exit routing)
• 1x High-flow performance muffler
• 2x Mirror-polished T304 stainless steel rolled angle-cut tips (3.5-inch OD, one per side)
• 1x Hardware and installation kit (clamps and mounting hardware)
• 1x MBRP installation instructions

Product Description

The MBRP S5232AL is a 3-inch Armor Lite dual side exit cat-back exhaust system engineered for the 2011-2014 Ford F-150 equipped with the 5.0L V8 engine. Compatible with Regular Cab/Long Box, SuperCab/Short Box, SuperCab/Standard Box, SuperCrew/Short Box, and SuperCrew/Standard Box configurations, the S5232AL replaces all factory exhaust from the catalytic converter rearward as a full cat-back system, delivering improved exhaust flow, reduced backpressure, and lower exhaust gas temperatures. MBRP's Street Profile tuning shapes a deeper, more commanding tone from the 5.0L V8 under acceleration while remaining composed at steady highway speeds - a balanced upgrade well suited to daily-driven F-150 builds where cab comfort matters.

The dual side exit layout exits behind both rear wheels simultaneously, giving the 2011-2014 F-150 a symmetrical, performance-oriented rear presence that stock trucks lack. Each exit is capped with a mirror-polished T304 stainless steel 3.5-inch single-wall rolled angle-cut tip, providing a bright and long-lasting finish at both exits. The 16-gauge aluminized steel body features fully sealed seams to resist early rust-through, and welded-on hanger brackets align with the factory OEM mounting points for a secure, rattle-free fit. All hardware is included for a bolt-on installation requiring no cutting, welding, or specialized tools.

Buyers must verify both engine and cab/box configuration before ordering. This system is designed exclusively for the 5.0L V8 - the 2011-2014 F-150's other available engines, including the 3.5L EcoBoost, 3.7L V6, and 6.2L V8, are not supported. The SuperCab/Long Box and SuperCrew/Long Box body combinations are also excluded from the supported fitment range. Aluminized steel is best suited for dry climates; owners in snow-belt or high-salt regions should consider the T409 stainless Armor Plus or T304 Armor Pro variant for enhanced long-term corrosion protection. The S5232AL is backed by MBRP's 3-Year Warranty.
