MaxTrac 813150 5" Rear Lift Blocks Pair w/Striker Plate for 04-25 F-150 2WD/4WD

Vehicle Fitment

• 2004 Ford F-150 Heritage (2WD & 4WD)
• 2004-2025 Ford F-150 (All Trims, 2WD & 4WD)

Fitment Notes

• Does NOT fit Ford F-150 Raptor (coil-sprung rear suspension)
• Does NOT fit Ford F-150 Lightning EV (independent rear suspension)
• Designed for vehicles with leaf springs mounted ABOVE the rear axle
• Requires extended U-bolts - sold separately (MaxTrac 913112 for 2004-2020, check application for 2021-2025)
• Factory lift blocks must be removed before installation
• Wider than 9" wheels or less than 4.5" backspacing will void warranty

Features

• Provides a full 5" of rear lift to eliminate factory rake or match front lift kits
• Fabricated heavy-duty steel construction for long-term durability under load
• Built-in pinion angle taper helps correct driveline angle after lift
• Integrated bump stop striker plate protects the axle under compression
• Grey powder-coat finish resists rust, chips, and corrosion
• Simple bolt-on installation - replaces factory blocks with no cutting or welding
• Compatible with stock leaf springs and factory axle components
• Backed by MaxTrac limited lifetime warranty against defects

Specifications

• Position: Rear (Driver & Passenger Side)
• Lift Height: 5 inches
• Material: Fabricated Steel
• Finish: Grey Powder Coat
• Features: Bump Stop Striker Plate + Pinion Angle Taper
• Drivetrain: 2WD & 4WD Compatible
• U-Bolts: Not Included (MaxTrac 913112 or equivalent required)
• Sold as: Pair

Included Components

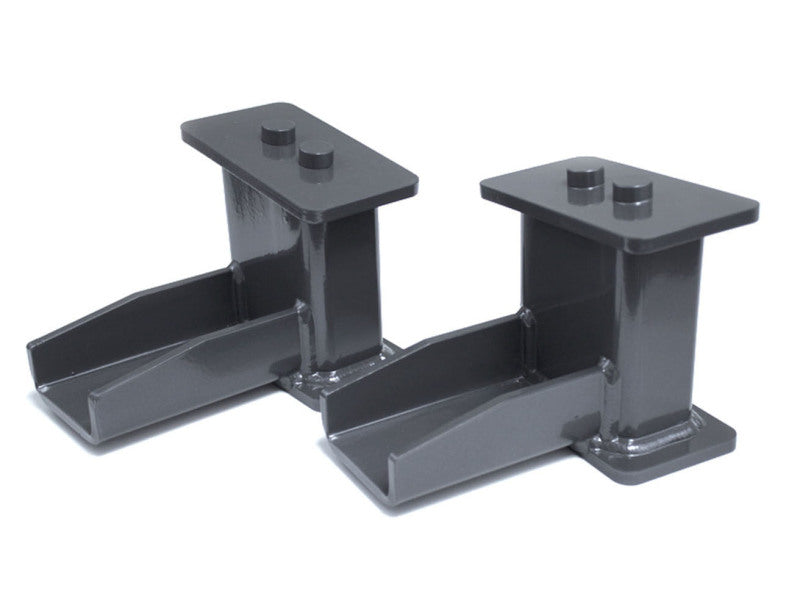

• 2x 5" Fabricated Steel Rear Lift Blocks (with integrated striker plates)

Product Description

The MaxTrac 813150 5" Rear Lift Blocks are a simple, cost-effective way to add serious rear lift to your 2004-2025 Ford F-150, whether you're matching an aggressive front lift kit or eliminating factory rake to achieve a more level, aggressive stance. Fabricated from heavy-duty steel and finished in MaxTrac's signature grey powder coat, these blocks feature a built-in pinion angle taper and integrated bump stop striker plate - addressing both driveline geometry and axle protection concerns that come with a 5" rear lift.

Designed for both 2WD and 4WD F-150 owners running larger tires or serious off-road builds, installation is a direct bolt-on swap that replaces the factory rear lift blocks. Extended U-bolts (sold separately) are required to accommodate the added block height. Note that these blocks do not fit the coil-sprung Raptor or Lightning EV platforms. A post-install alignment and headlight check are recommended. Backed by MaxTrac's limited lifetime warranty.
