Maxtrac K886842 4"/2" Lift Kit w/ Shocks 2005-2023 Toyota Tacoma 2WD 6-Lug SR5

Vehicle Fitment

• 2005-2023 Toyota Tacoma (SR, SR5, TRD Sport, TRD Off-Road, TRD Pro, Limited, Trail - 2WD, 6-Lug)

Fitment Notes

• Fits 2WD, 6-lug Tacoma models only - does NOT fit 4WD or 4-lug Tacoma models
• Front spindles increase track width by 0.75" per side after installation
• Requires 17" wheels or larger with maximum 4.75" backspacing
• Wheel and tire measuring required prior to installation - some trimming may be needed for optimal fender clearance
• MaxTrac does not recommend wheels wider than 9" or with less than 4.5" backspacing - doing so voids the manufacturer warranty
• Alignment check required after installation

Features

• Delivers 4" of front lift via ductile iron spindles and 2" of rear lift via lift blocks
• Ductile iron spindle construction is 100% bolt-on, exceeding OEM strength standards
• Compatible with factory upper control arms, coil springs, and front shocks - no front shock replacement required
• Factory ABS lines and sway bar retained - only brake lines are replaced with the included extended units
• DOT-approved stainless braided extended brake lines included - no cutting or splicing required
• Matched MaxTrac twin-tube rear shocks included and tuned for the 2" rear lift height
• Bolt-on installation - no cutting, welding, or grinding required
• Creates clearance for up to 33" x 11.50" tires with the correct wheel and tire combination

Specifications

• Kit Number: K886842
• Front Lift: 4" (via ductile iron lift spindles - P/N 706840)
• Rear Lift: 2" (via lift blocks - P/N 906820)
• Front Spindle Material: Ductile Iron
• Brake Lines: DOT-Approved Stainless Braided Extended Brake Lines
• Rear Shocks: MaxTrac Twin-Tube
• Drivetrain: 2WD only
• Lug Pattern: 6-Lug only
• Track Width Increase: 0.75" per side
• Min Wheel Size: 17" (max 4.75" backspacing)
• Max Tire Clearance: 33" x 11.50" on correct wheel and tire combination
• Min Wheel Backspacing: 4.5"
• Max Wheel Width: 9"

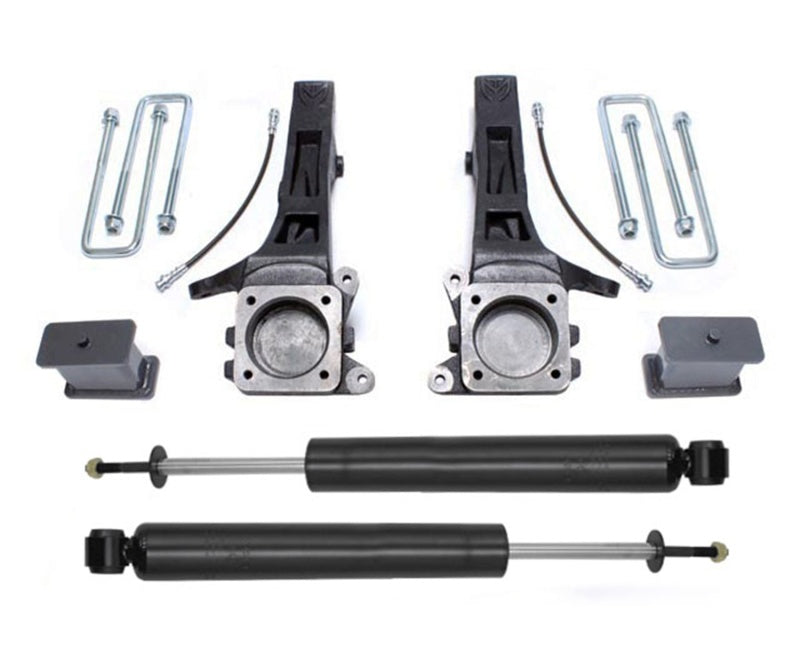

Included Components

• 2x P/N 706840 - 4" Front Lift Spindles with DOT-Approved Extended Brake Lines (Ductile Iron)
• 2x P/N 906820 - 2" Rear Lift Blocks
• 4x U-Bolts for Lift Blocks
• 2x MaxTrac Twin-Tube Rear Shocks
• 1x Hardware Kit (all necessary fasteners)

Product Description

The MaxTrac K886842 is a complete 4"/2" lift kit with MaxTrac rear shocks engineered for the 2005-2023 Toyota Tacoma in 2WD, 6-lug configuration. The front gains 4" of lift through solid ductile iron lift spindles that replace the factory steering knuckles, allowing the wheel hub to drop down relative to the truck's body. This approach retains the factory upper control arms, coil springs, front shocks, sway bar, and ABS lines - only the brake lines are swapped out for the included DOT-approved stainless braided extended units. The result is a 4" front lift with a factory-like turning radius and ride quality.

The rear lifts 2" via fabricated lift blocks, new U-bolts, and matched MaxTrac twin-tube rear shocks tuned for the new ride height. Installation is fully bolt-on with no cutting, welding, or grinding required. The kit clears up to 33" x 11.50" tires with the right wheel combination and requires 17" or larger wheels with a maximum of 4.75" backspacing. Note that this kit is for 2WD, 6-lug Tacomas only and does not fit 4WD or 4-lug models. An alignment check is required after installation.
