MaxTrac 705340 4" Lift Spindles w/ Brake Lines for 04-24 Nissan Titan 2WD

Vehicle Fitment

• 2004-2015 Nissan Titan 2WD (A60, 1st generation, all trims)
• 2017-2024 Nissan Titan 2WD (A61, 2nd generation, all trims)

Fitment Notes

• 2WD models ONLY -- will not fit 4WD Titan (different steering knuckle geometry)
• Does NOT fit Titan XD models
• Requires 17" or larger wheels with 5" backspacing or less
• Clears up to 33" x 11.50" tires on 8"-9" wide wheels
• 34" tires may clear without trimming with 9" or narrower wheels and 5.00" backspacing
• MaxTrac does not recommend wheels wider than 9" or less than 4.5" backspacing -- doing so voids warranty
• Fender trimming may be required depending on wheel/tire combination
• Works with stock control arms, springs, and shocks
• Can be combined with strut spacers and rear blocks for greater total lift (up to 6.5"+)
• Alignment required after installation
• Sold as a pair -- single-side replacement available as 705340-D/P

Features

• 4" front lift via spindle replacement -- lowers hub position to raise vehicle
• Maintains factory ride quality and steering geometry
• Eliminates need for expensive crossmember kits or factory frame cuts
• Single-piece ductile iron construction -- massive upgrade over stock knuckle
• E-coated black for corrosion protection
• 100% bolt-on -- no modifications necessary
• Extended DOT-compliant stainless steel braided brake lines included

Specifications

• Type: 4" lift spindle (steering knuckle replacement)
• Lift Height: 4" front
• Material: Ductile iron (single piece)
• Finish: E-coated black
• Brake Lines: Extended, DOT-compliant, stainless steel braided (included)
• Installation: Bolt-on
• Drivetrain: 2WD only
• Sold As: Pair with extended brake lines and hardware
• Warranty: Limited lifetime (excludes wear items)

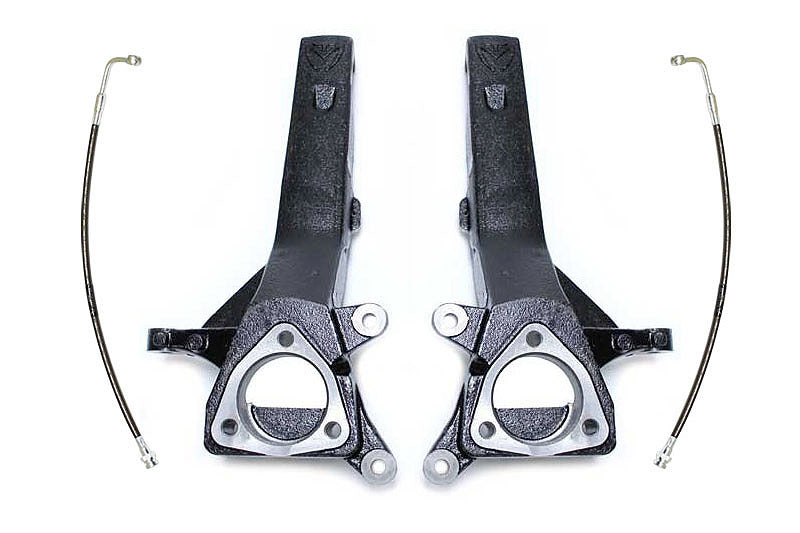

Included Components

• 2x MaxTrac 4" lift spindles (ductile iron, e-coated black)
• 2x Extended DOT-compliant stainless steel braided front brake lines
• All necessary mounting hardware
• Installation instructions

Product Description

The MaxTrac 705340 is a pair of 4" front lift spindles with extended brake lines for the 2004-2024 Nissan Titan 2WD across both the 1st generation (A60, 2004-2015) and 2nd generation (A61, 2017-2024). These spindles are designed from a single piece of ductile iron and work by lowering the wheel hub position relative to the suspension, raising the vehicle 4 inches while retaining stock control arms, coil springs, and shocks. This approach maintains factory ride quality and steering geometry while eliminating the need for expensive crossmember kits that require labor-intensive frame cuts. The bolt-on design requires no vehicle modifications for installation.

Each spindle is e-coated black for long-term corrosion protection, and the included extended stainless steel braided front brake lines are DOT-compliant and properly sized for the 4" lift height to ensure safe braking performance. Clears up to 33" x 11.50" tires on 8"-9" wide wheels with 5" backspacing or less -- 34" tires may clear with proper wheel sizing. Can be stacked with MaxTrac strut spacers and rear lift blocks for total lift heights up to 6.5" or more. 2WD models only -- the different steering knuckle geometry on 4WD Titans prevents 2WD spindles from being used. Does not fit Titan XD models. Alignment is required after installation. Backed by MaxTrac's limited lifetime warranty.
