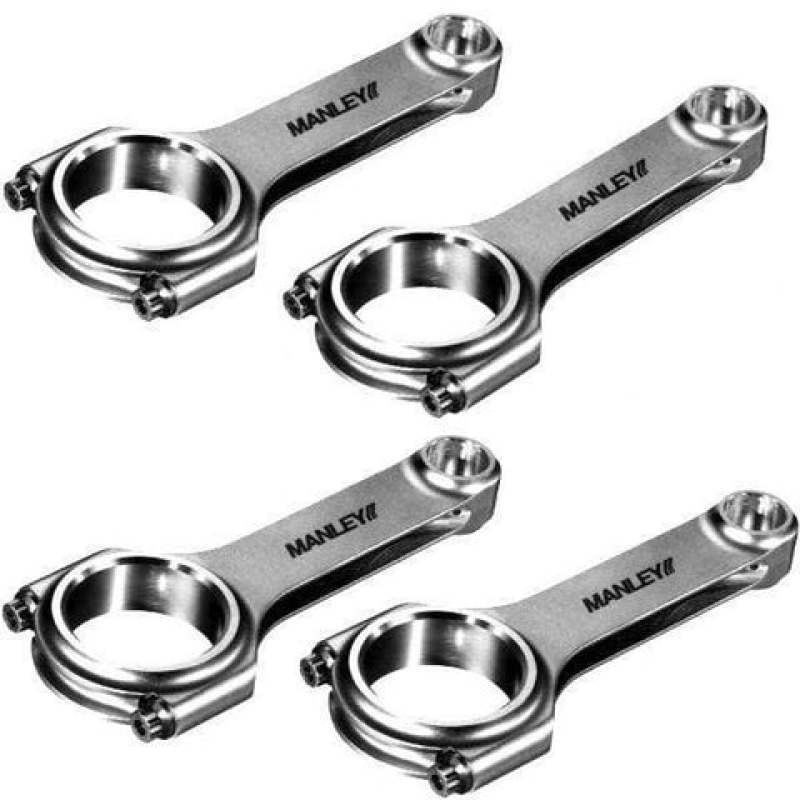

Manley 14032-4 H-Beam Rod Set for 2007-2013 Mazdaspeed 3 MZR 2.3L

Vehicle Fitment

• Fits 2007-2013 Mazda Mazdaspeed 3 equipped with the MZR 2.3 L DISI Turbo engine
• Also compatible with other Mazda vehicles using the MZR 2.3 L DISI Turbo (e.g., Mazdaspeed 6 & CX-7 with same engine)
• Intended for high-performance rebuilds and custom turbo builds - verify specific engine code and pin size before installation

Features

• H-beam connecting rod design forged from premium 4340 steel
• Heat treated, stress relieved, shot peened, and magnafluxed for strength and durability
• Precision weight matched to ±1.5 g for balanced engine operation
• 22.5 mm (.886") wrist pin diameter for robust OEM-plus performance
• 3/8" ARP 2000 cap fasteners included for secure clamping force
• H-beam style provides superior rigidity under high-boost conditions
• Supports high horsepower builds up to and beyond typical street/track modifications
• Sold as a complete set of four rods - ideal for a full engine build

Specifications

• Part Number: Manley 14032-4
• Rod Set: H-beam connecting rods (set of 4)
• Center-to-Center Length: 5.927"
• Big End Bore: 2.166"
• Big End Width: 0.859"
• Pin Diameter: .886" / 22.5 mm
• Pin Bore: .8868"
• Approx. Average Weight: ~610 g per rod
• Material: 4340 forged steel
• Fasteners: 3/8" ARP 2000 cap bolts

Included Components

• 4x Manley H-beam connecting rods (14032-4)
• 4x ARP 2000 rod cap fasteners
• (Rod bearings, pistons, and other hardware are not included)

Product Description

The Manley 14032-4 H-beam connecting rod set is a premium performance engine component designed for high-stress applications in turbocharged MZR 2.3 L DISI engines - such as those found in 2007-2013 Mazdaspeed 3, and compatible with other Mazda vehicles running the same turbo engine. Built from high-strength 4340 steel and precision machined, these rods are heat treated, stress relieved, shot peened, and magnaflux tested to ensure maximum durability and performance under high RPM and boost levels.

Each rod is weight matched within tight tolerances and equipped with stout ARP 2000 fasteners to provide exceptional clamping force and strength. The H-beam design offers increased rigidity and reduced flex during aggressive driving, making this set ideal for both performance street engines and track-oriented turbo builds where strength and reliability matter. Sold as a complete set of four rods with cap bolts included, the 14032-4 provides a solid foundation for your high-performance rebuild or engine upgrade.
