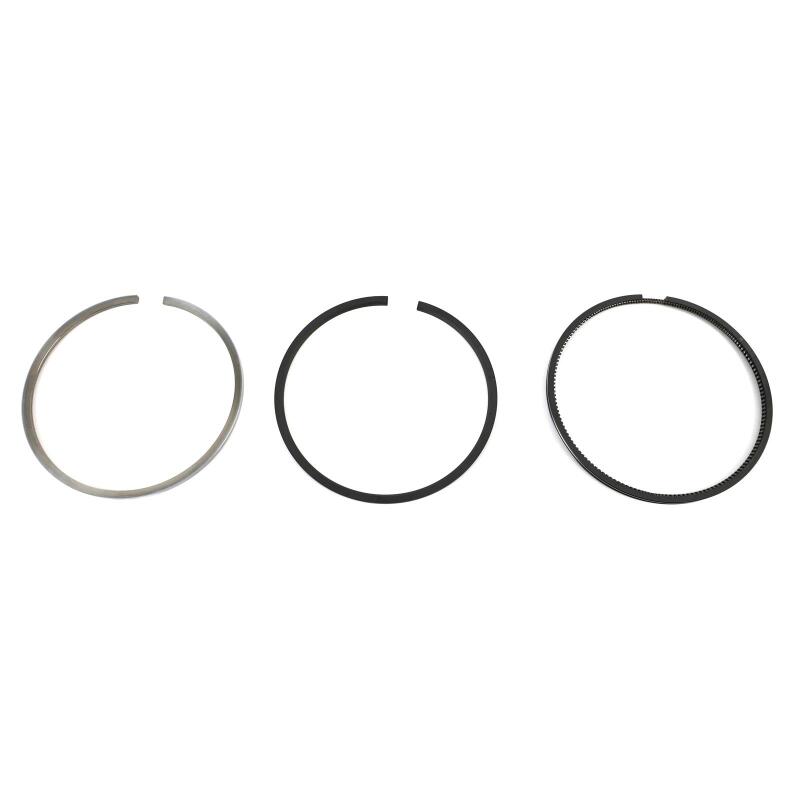

Mahle S42170.020 Piston Ring Set .020 Over for 89-07 Dodge 5.9L Cummins 12V/24V

Vehicle Fitment

• 1989-1993 Dodge RAM 2500/3500 5.9L Cummins 12V (6BT)
• 1994-1998 Dodge RAM 2500/3500 5.9L Cummins 12V (6BT)
• 1998.5-2002 Dodge RAM 2500/3500 5.9L Cummins 24V (ISB)
• 2003-2004 Dodge RAM 2500/3500 5.9L Cummins 24V (ISB)
• 2004.5-2007 Dodge RAM 2500/3500 5.9L Cummins 24V (ISB HO)

Fitment Notes

• .020" overbore (0.50mm) -- fits machined bore of 4.036"
• Ring set for single piston -- 6 sets required for complete engine
• Fits stock OEM and Mahle aftermarket cast pistons
• Companion piston (04.5-07 HO): Mahle 224-3673.020
• Companion piston (03-04): Mahle 224-3523.020
• Companion piston (98.5-02): Mahle 224-3355.020
• Standard bore version: S42170
• .040" overbore version: S42170.040
• File-fit ring end gaps to builder's specification before installation

Features

• Mahle (Clevite) premium piston ring set
• Chrome/ceramic top ring upgrade over standard
• OE-quality materials and specifications
• Direct factory replacement
• Fits all Cummins B-series 5.9L variants (12V and 24V)

Specifications

• Part Number: S42170.020
• Brand: Mahle (Clevite)
• Type: Piston ring set
• Engine: Cummins B-series 3.9L/5.9L
• Overbore Size: .020" (0.50mm)
• Bore Diameter: 4.036"
• Ring Type Code: GCL-40UAW
• Top Ring: Chrome/ceramic upgrade
• Quantity: Single cylinder set (6 required per engine)
• Shipping Weight: 1 lb

Included Components

• 1x Top compression ring (chrome/ceramic)
• 1x Second compression ring
• 1x Oil ring assembly

Product Description

The Mahle S42170.020 is a .020" overbore (4.036" bore) piston ring set for the 1989-2007 Dodge RAM 5.9L Cummins diesel, covering both 12V (6BT) and 24V (ISB) engine variants. This single-cylinder ring set features Mahle's premium chrome/ceramic top ring upgrade for improved wear resistance and sealing over standard rings. Made to OE-quality specifications as a direct factory replacement, these rings fit both stock OEM pistons and Mahle aftermarket cast pistons that have been machined to .020" overbore.

Each set contains the complete ring package for one piston -- top compression ring, second compression ring, and oil ring assembly. A quantity of 6 sets is required for a complete 5.9L engine. Ring end gaps should be file-fit to the engine builder's specification based on bore size, application, and expected boost/temperature conditions. Pairs with Mahle 224-3673.020 pistons for 2004.5-2007 High Output engines, 224-3523.020 for 2003-2004, and 224-3355.020 for 1998.5-2002. Also available in standard bore (S42170) and .040" overbore (S42170.040).
