MAHLE 2243523WR Piston w/Rings for 1991-1993 Dodge 5.9L 12V Cummins

Vehicle Fitment

• 1991 Dodge D250 Base, 5.9L 12V Cummins L6 Diesel, Turbocharged/Intercooled
• 1991 Dodge D350 Base, 5.9L 12V Cummins L6 Diesel, Turbocharged/Intercooled
• 1991-1993 Dodge W250 Base, 5.9L 12V Cummins L6 Diesel, Turbocharged/Intercooled
• 1992-1993 Dodge W350 Base, 5.9L 12V Cummins L6 Diesel, Turbocharged/Intercooled

Fitment Notes

• For 5.9L Cummins 12-valve B-Series/6BT engines with the applicable intercooled configuration.
• Standard-bore piston; verify the final cylinder bore measurement before engine assembly.
• Not intended for 5.9L 24-valve Cummins ISB engines used in later applications.
• Confirm piston bowl configuration, compression height, wrist-pin specification, and engine build before installation.
• Vehicle applications are limited to the Dodge D250, D350, W250, and W350 applications listed above.

Features

• MAHLE Original OE-replacement piston design
• Standard-bore configuration
• Designed for the Cummins B-Series 5.9L 12-valve diesel engine
• Marine/QSB-style bowl configuration
• Aluminum piston construction
• Expansion-controlled piston design supports controlled operating clearances
• Compensated ring-groove design promotes consistent ring loading and oil control
• Supplied with piston rings for engine rebuilding
• Designed for factory-style fit and function when matched to the correct engine configuration
• Suitable for engine rebuild and replacement applications requiring standard-bore pistons

Specifications

• Brand: MAHLE
• Part Number: 224-3523WR / 2243523WR
• Part Type: Piston with Rings
• Engine: Cummins B-Series 5.9L 12-Valve L6 Diesel
• Bore Size: Standard (STD)
• Piston Material: Aluminum
• Piston Head Design: Bowl
• Piston Pin Outside Diameter: 1.57 in (approximately 40 mm)
• Circlip Quantity: 2 per piston
• Application: Turbocharged/intercooled Cummins applications listed above
• Position: Engine piston; cylinder position determined during engine assembly

Included Components

• 6x Standard-bore pistons

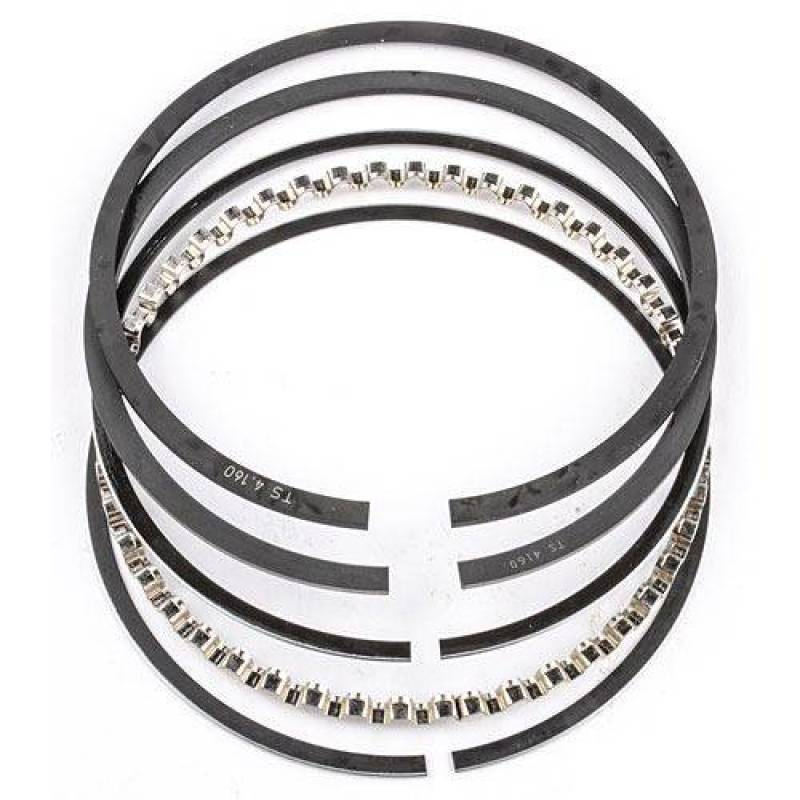

• 6x Piston ring sets
• 6x Wrist pins
• 12x Retaining clips

Product Description

The MAHLE 2243523WR is a standard-bore piston set designed for specified 5.9L 12-valve Cummins B-Series diesel applications in 1991-1993 Dodge D250, D350, W250, and W350 trucks. The piston uses an aluminum construction and bowl-style crown designed for the applicable Cummins engine configuration. Its standard-bore specification makes it appropriate for engines that remain at the original bore dimension and meet the required piston-to-cylinder clearances.

This MAHLE piston set incorporates compensated ring-groove geometry and an expansion-controlled design to support proper ring loading, oil control, operating clearances, and long-term durability. The package includes pistons, rings, wrist pins, and retaining clips, providing the primary piston components needed during an engine rebuild. Verify cylinder bore, piston bowl configuration, wrist-pin dimensions, and engine specifications before assembly to ensure complete compatibility.
