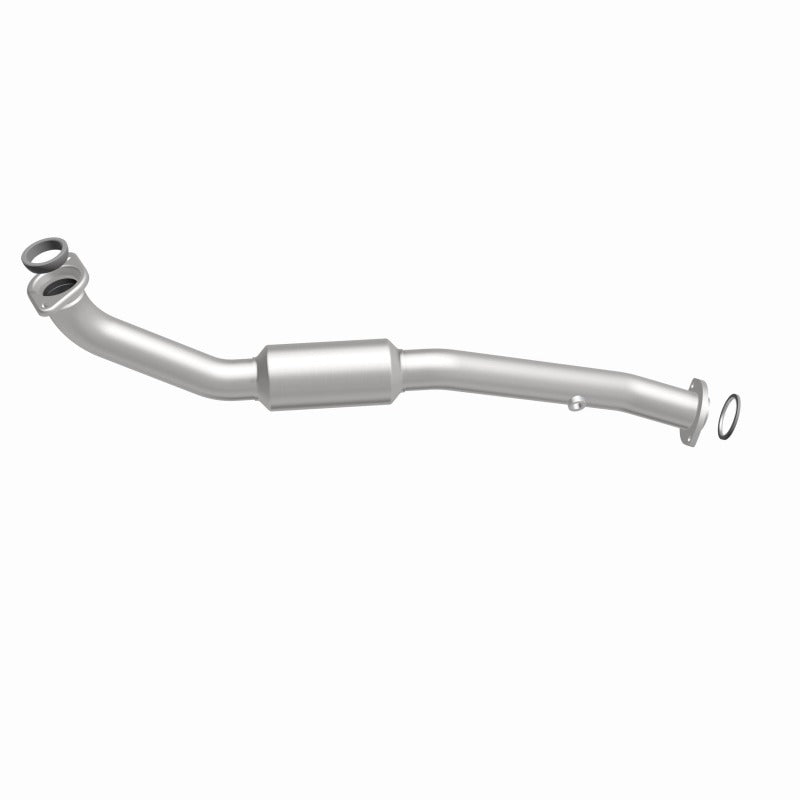

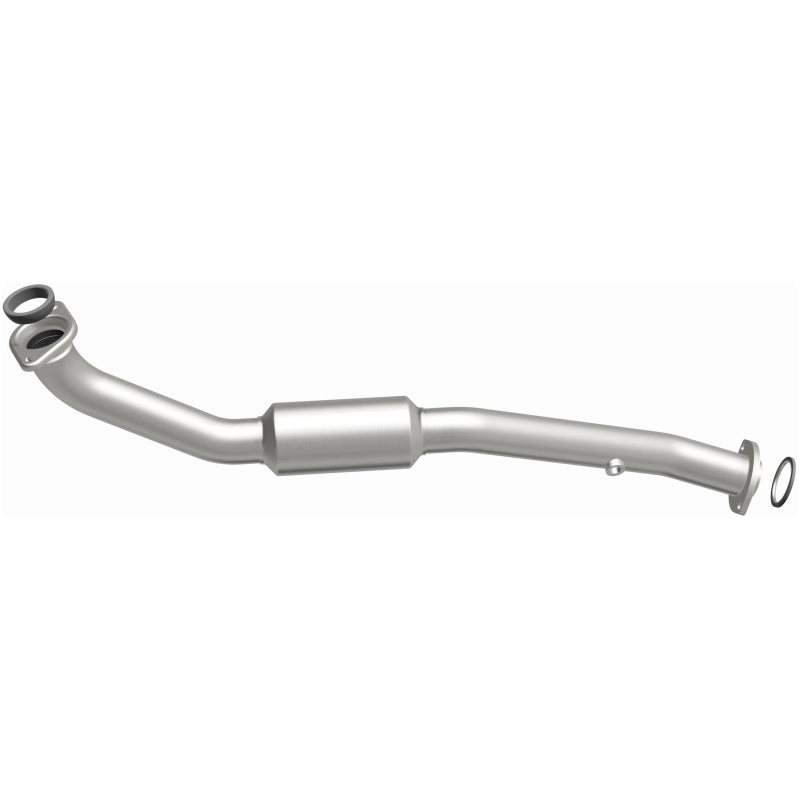

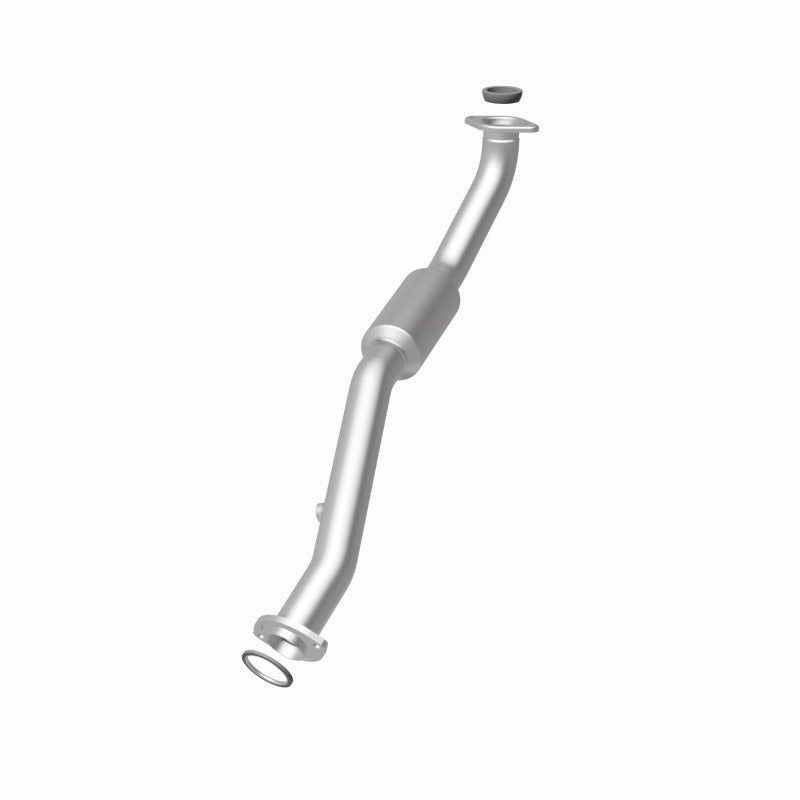

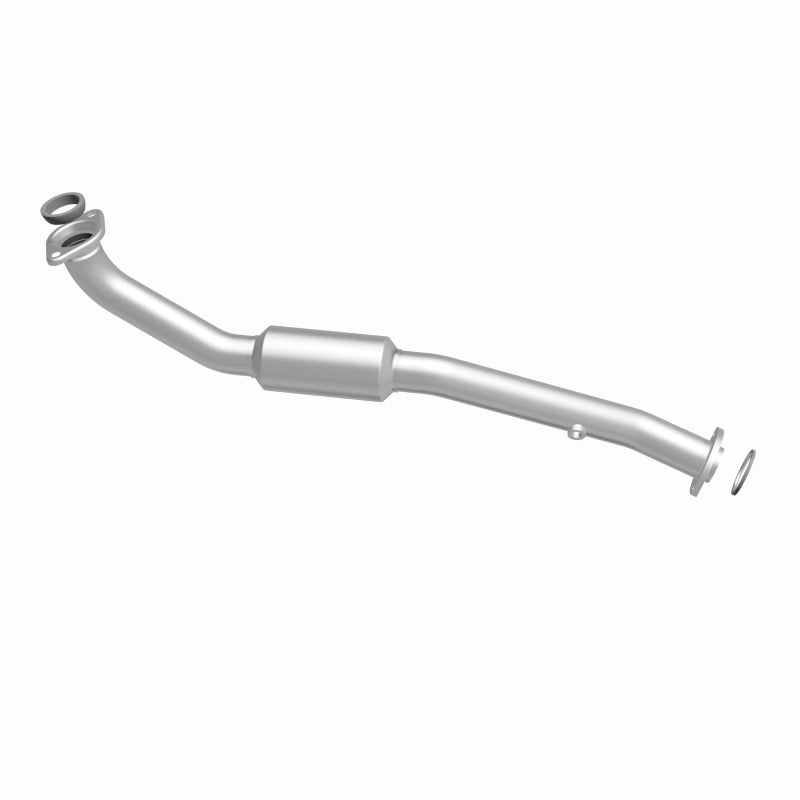

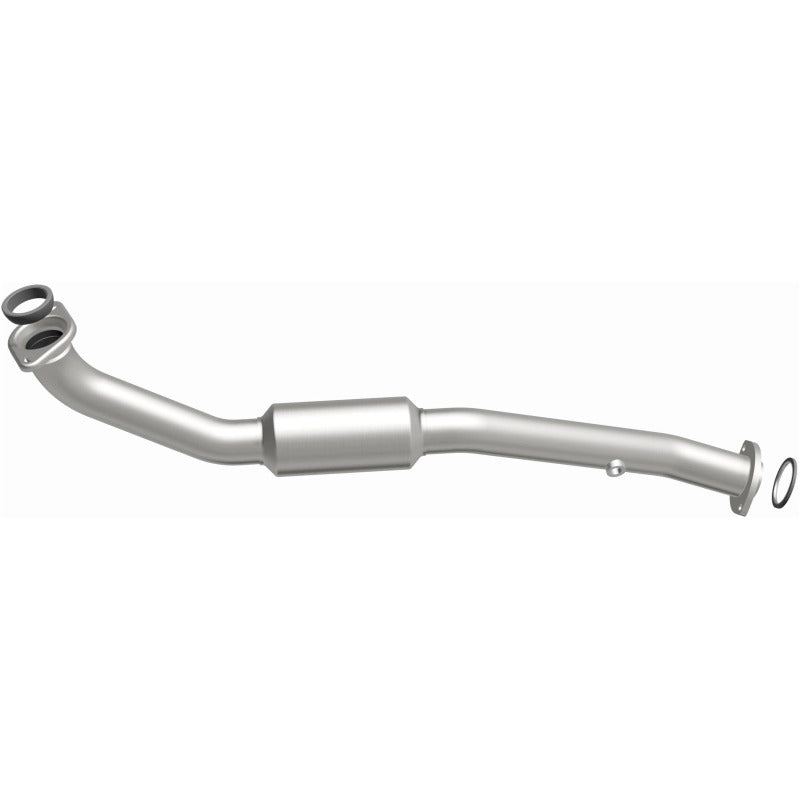

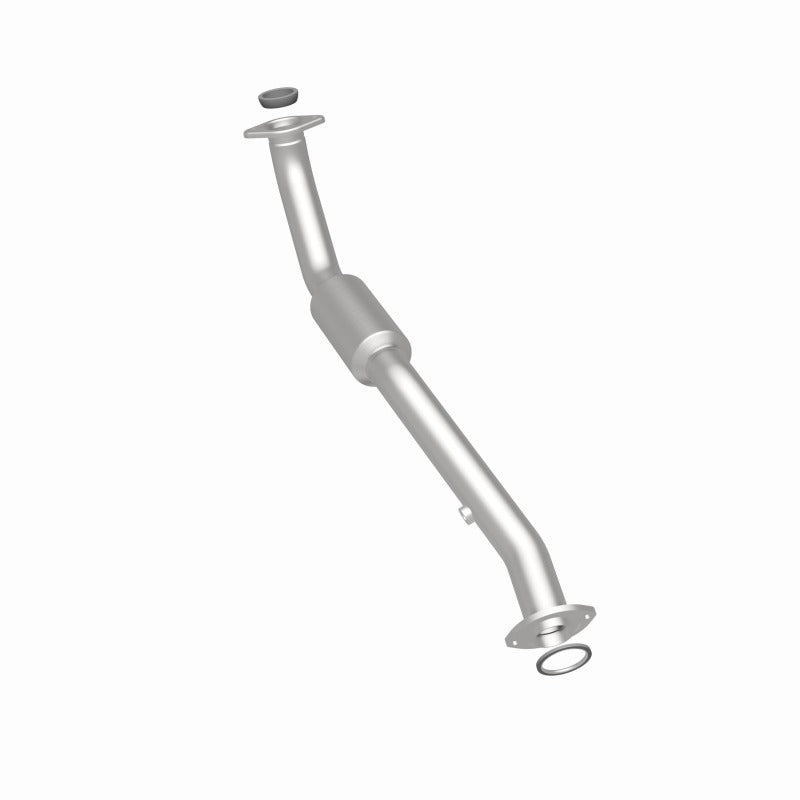

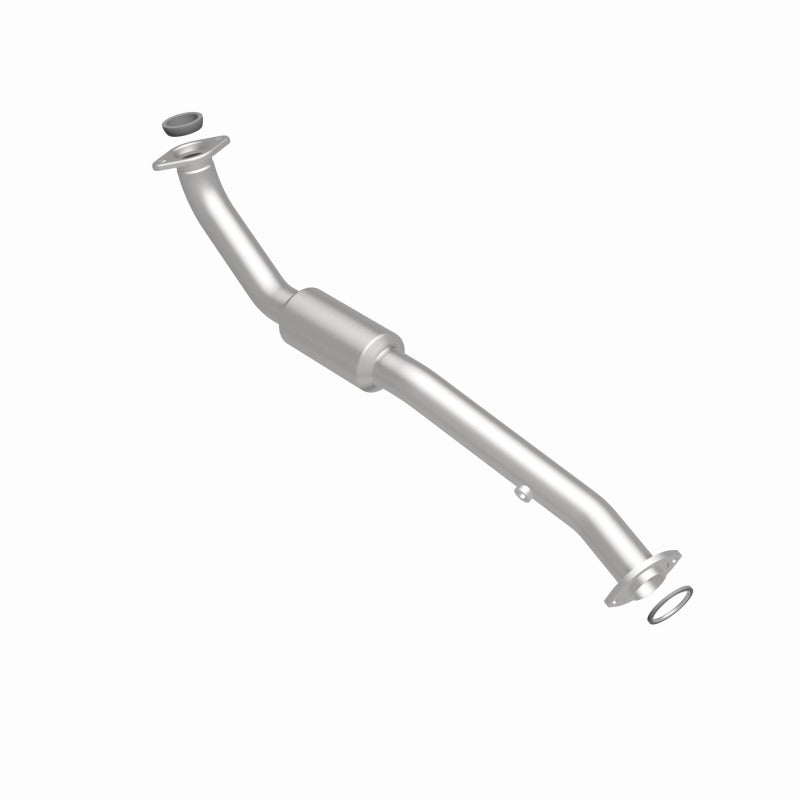

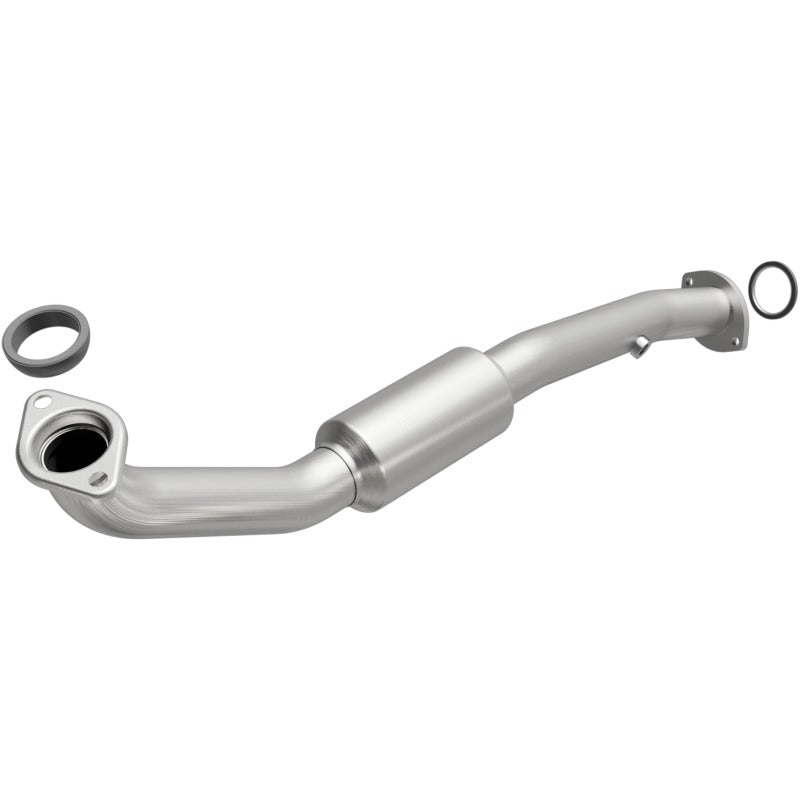

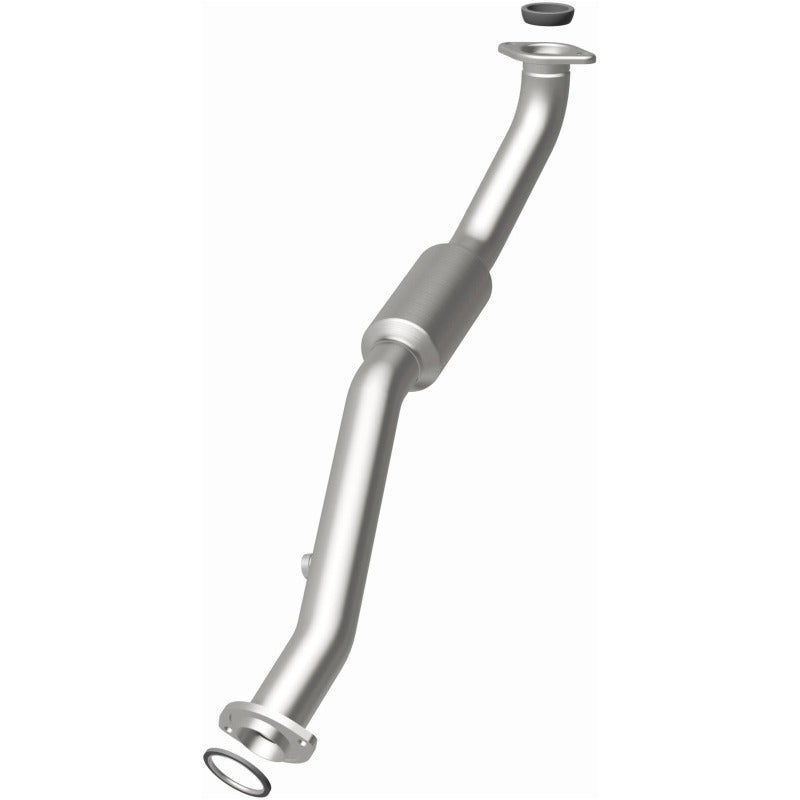

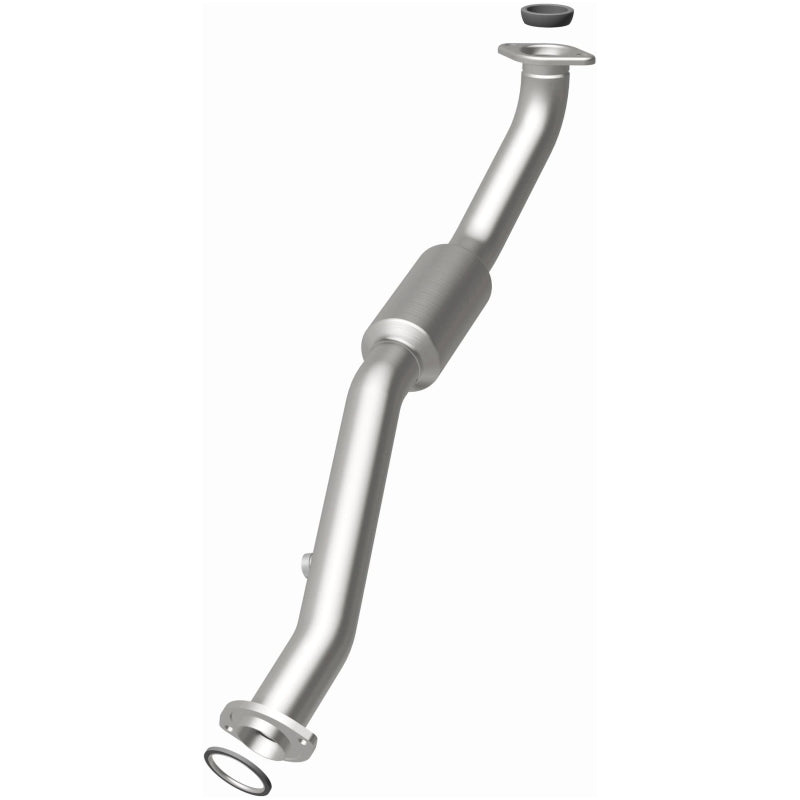

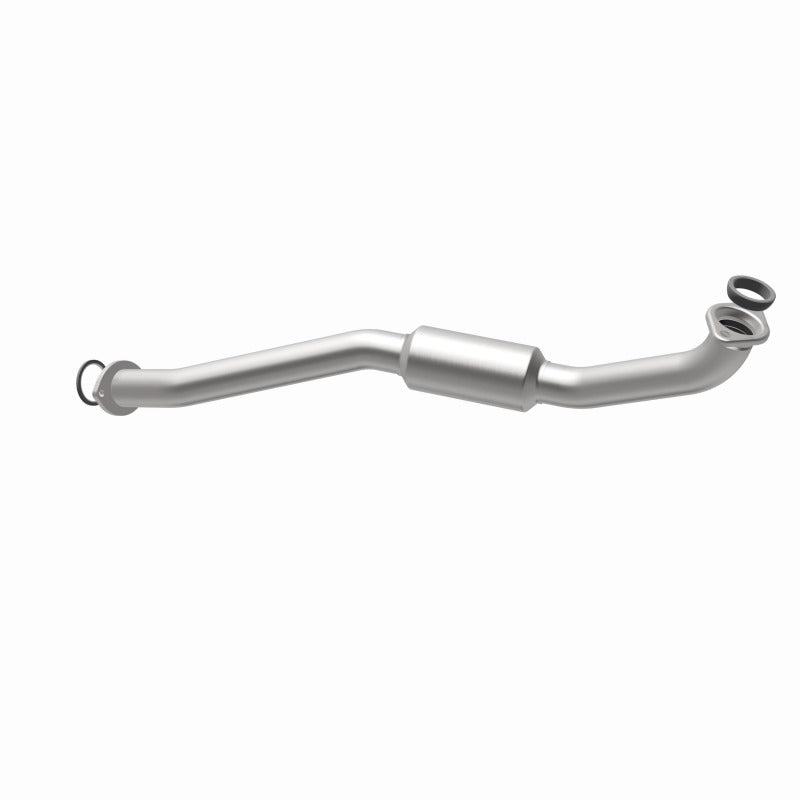

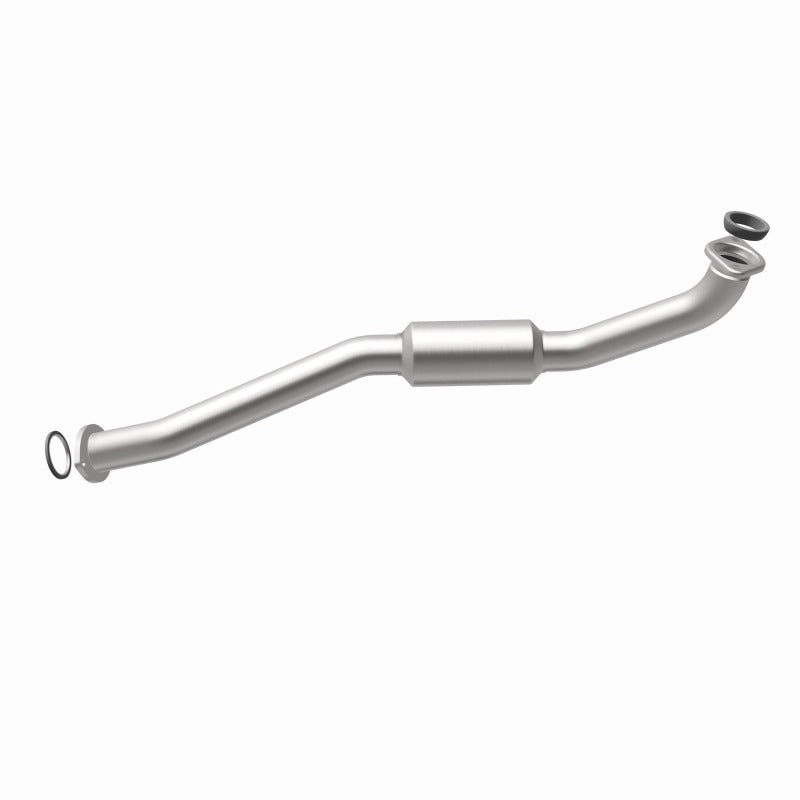

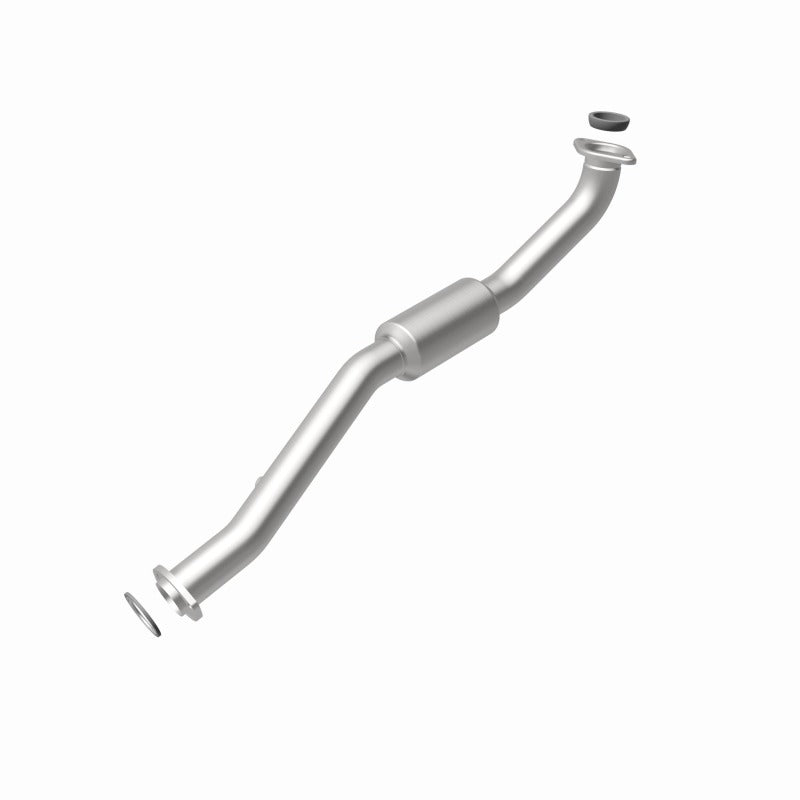

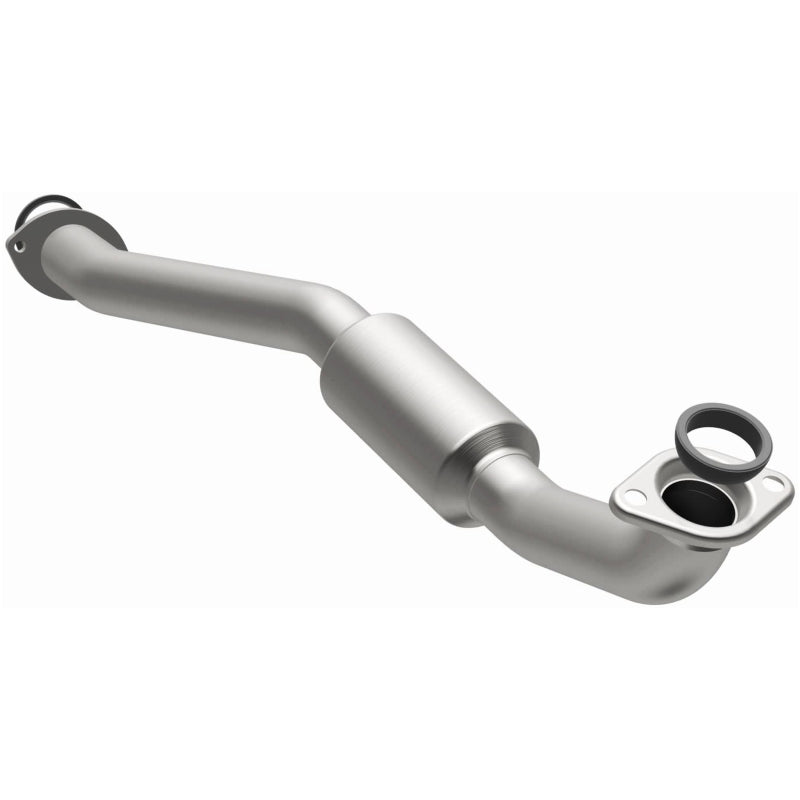

MagnaFlow 52206 Catalytic Converter for 2009-2013 Toyota Highlander 2.7L I4

Vehicle Fitment

• 2009-2013 Toyota Highlander (L4, 2.7L I4)

Fitment Notes

• Front-position direct-fit catalytic converter.
• Designed specifically for the 2.7L I4 engine.
• Uses the factory-style mounting configuration.
• Interchanges with OE parts 17410-0V040 and 17410-36130.
• Federal/EPA compliant catalytic converter; not CARB certified.
• Not legal for installation on vehicles required to meet CARB emissions standards.
• No 2026 application is applicable because the listed Highlander generation ended before 2026.

Features

• MagnaFlow OEM Grade Federal/EPA compliant direct-fit catalytic converter.
• Vehicle-specific design for 2009-2013 Toyota Highlander 2.7L applications.
• Direct-fit configuration replicates the original equipment geometry.
• High-strength 16-gauge 409 stainless-steel tubing provides corrosion resistance.
• Durable 308 stainless-steel MIG welds improve structural integrity.
• Mandrel-bent tubing maintains OEM-like geometry and exhaust flow.
• Spun catalytic-converter body provides an OE-style configuration.
• Single laser-fusion weld reduces potential leak points.
• Compact, low-mass design promotes efficient thermal performance.
• OEM-like oxygen-sensor port location supports proper sensor positioning.
• Designed for bolt-on installation without cutting or welding.

Specifications

• Brand: MagnaFlow
• Part Number: 52206
• Product Type: Direct-fit catalytic converter
• Series: OEM Grade
• Grade Type: Regular
• Emissions: Federal/EPA
• Position: Front
• Vehicle: Toyota Highlander
• Model Years: 2009-2013
• Engine: 2.7L I4
• Body Material: Stainless steel
• Tube Material: Stainless steel
• Substrate Material: Ceramic
• Body Type: Spun
• Inlet Diameter: 2.5 inches
• Outlet Diameter: 2.5 inches
• Inlet Type: Flange/Bolt-on
• Outlet Type: Flange/Bolt-on
• Overall Length: 41.75 inches
• Body Width: 4 inches
• Sensor Port Count: 1
• Oxygen Sensor Location: Post-converter
• Air Tube Count: 0
• Hangers Included: No
• Clamps Included: No
• Heat Shield Attached: No
• Inlet Gasket Included: Yes
• Outlet Gasket Included: Yes
• CARB Certified: No
• Universal or Specific Fit: Specific
• Quantity: 1x

Included Components

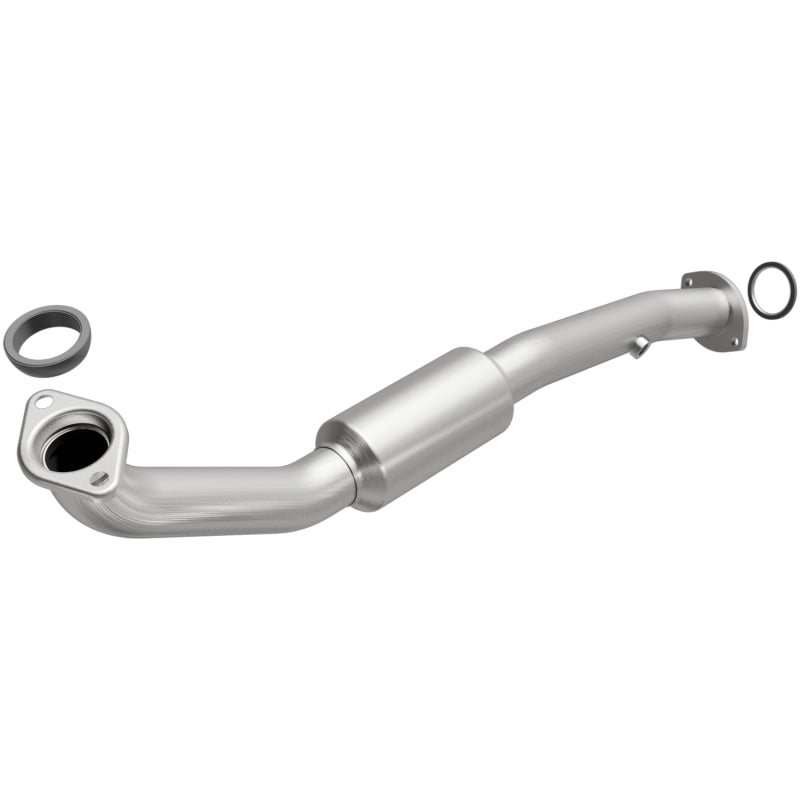

• 1x MagnaFlow 52206 direct-fit catalytic converter
• 1x Flat-ring gasket
• 1x Donut gasket

Product Description

The MagnaFlow 52206 is an OEM Grade Federal/EPA compliant direct-fit catalytic converter designed specifically for 2009-2013 Toyota Highlander models equipped with the 2.7L I4 engine. Its vehicle-specific design replicates the factory exhaust geometry and provides a replacement solution for the original catalytic converter without requiring custom exhaust fabrication.

This front-position converter features high-strength 16-gauge 409 stainless-steel tubing, durable 308 stainless-steel MIG welds, mandrel-bent tubing, and a spun catalytic body with a ceramic substrate. The 2.5-inch inlet and outlet connections, single post-converter oxygen-sensor port, and 41.75-inch overall length are engineered around the specified Highlander application.

The converter is supplied with one flat-ring gasket and one donut gasket for installation. It is a Federal/EPA emissions product and is not CARB certified. Verify the vehicle's exact model year, 2.7L engine configuration, and applicable emissions requirements before installation.
