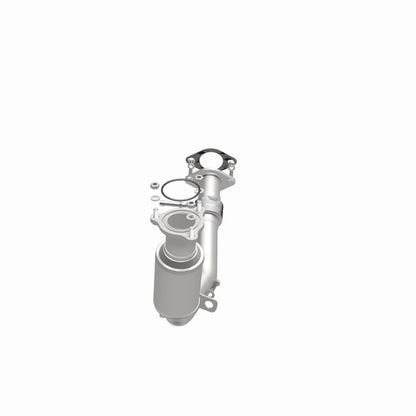

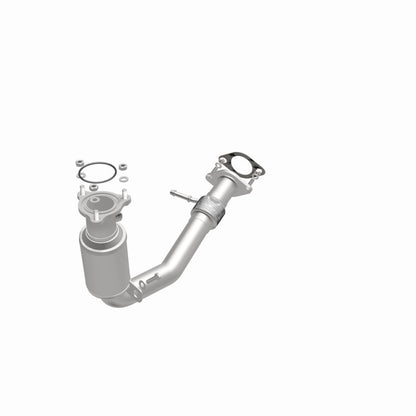

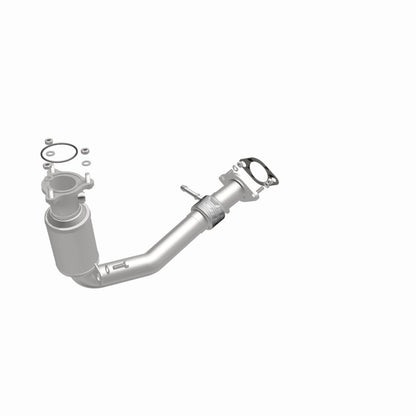

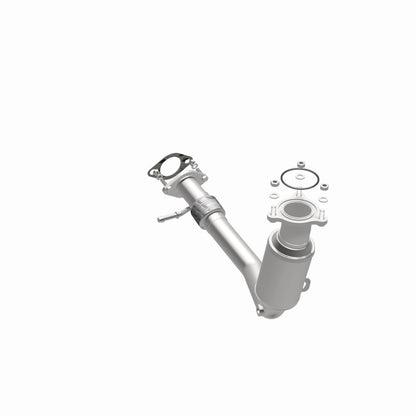

MagnaFlow 52186 OEM Grade Catalytic Converter for 10-17 Equinox/Terrain/Captiva

Vehicle Fitment

• 2010-2017 Chevrolet Equinox (2.4 L I4, FWD/AWD)
• 2010-2017 GMC Terrain (2.4 L I4, FWD/AWD)
• 2012-2015 Chevrolet Captiva Sport (2.4 L I4, FWD)

Features

• OEM-grade direct-fit catalytic converter - bolt-on, no cutting/welding
• Federal/EPA compliant (non-CARB; not for CA/CO/NY/ME)
• Mandrel-bent tubing for smooth exhaust flow
• Stainless steel spun-body design with ribbed reinforcement
• Ceramic monolithic substrate with CatSMART technology
• 3D-scanned for precise OE shape and fit
• Single laser-fusion weld to prevent leaks
• Includes inlet/outlet gaskets and hardware
• Hangers included to match OE mounting points
• Backed by MagnaFlow's 5-year construction warranty

Specifications

• Material: 409 stainless steel; body length: 5.75"; diameter: 4"
• Overall length: 26.75"
• Inlet: 2.5" bolt-on flange; Outlet: 2.25" bolt-on flange
• Sensor ports: 2x O2 (pre- & post-converter)
• Hangers: OE-style included
• Heat shield: Ribbed spun body; Clamps: none included
• Weight: approx. 10 lb
• Legal: Federal/EPA only; not legal for CA/CO/NY/ME

Included Components

• 1x MagnaFlow 52186 catalytic converter
• 1x Crush-ring gasket
• 1x Flange gasket
• 1x O2 port plug
• 6x Bolts + 6x Nuts + 6x Flat washers
• Hangers (qty as needed)

Product Description

The MagnaFlow 52186 OEM-grade catalytic converter delivers a perfect bolt-on replacement for 2.4 L I4 engines in the 2010-2017 Chevrolet Equinox, GMC Terrain, and 2012-2015 Chevrolet Captiva Sport. Featuring mandrel-bent tubing, a spun stainless-steel body enhanced with ribbed reinforcement, and CatSMART-refined ceramic substrate, it replicates OEM flow characteristics while enhancing thermal efficiency and emissions control - all without triggering your check engine light.

This direct-fit unit comes complete with inlet/outlet gaskets, mounting hardware, and OE-styled hangers for a seamless installation - no cutting, welding, or fabrication needed. With dual O2 sensor ports and a laser-fusion weld sealing the system, reliability is assured. Covered by MagnaFlow's 5-year construction warranty and meeting 49-state Federal/EPA standards - but not CARB legal - this converter is ideal for owners seeking durable, compliant, and exacting performance replacement.
