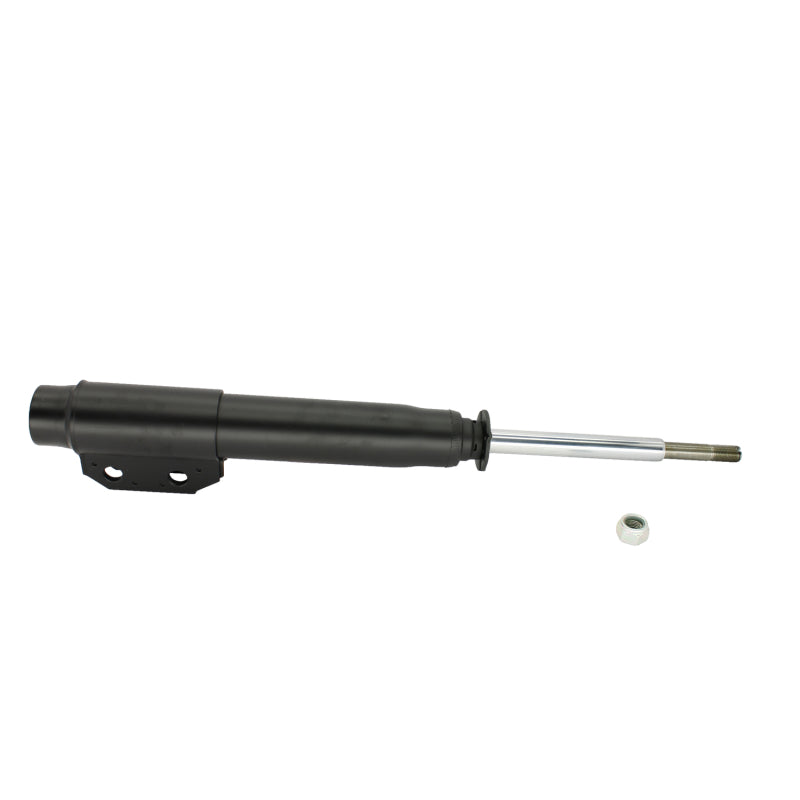

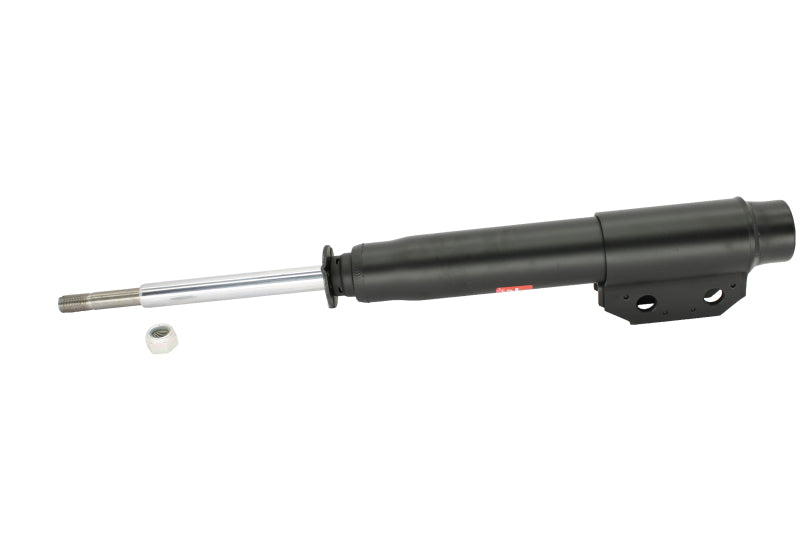

KYB 235009 Excel-G Front Strut 1984-1986 Mustang SVO / 1987-1993 V8 Sold Each

Vehicle Fitment

• 1984-1986 Ford Mustang SVO (Fox Body, 2.3L Turbo I4, RWD) - Front, Left or Right
• 1987-1993 Ford Mustang GT (Fox Body, 5.0L HO V8, RWD) - Front, Left or Right
• 1987-1993 Ford Mustang LX 5.0 (Fox Body, 5.0L HO V8, RWD) - Front, Left or Right
• 1987-1993 Ford Mustang Cobra (Fox Body, 5.0L HO V8, RWD) - Front, Left or Right
• 1987-1989 Saleen Mustang (Fox Body, 5.0L HO V8, RWD) - Front, Left or Right

Fitment Notes

• Sold individually - two struts are required for a complete front axle replacement. Order two units for a full front installation.
• Position: Front (left and right sides use the same part number - this unit fits both sides).
• Designed for the sport-tuned front MacPherson strut suspension used on the SVO and 5.0L V8 Fox body Mustangs - not intended for base 4-cylinder Fox body Mustangs, which use a different strut specification.
• Factory shock mounting bolts are reused during installation. All included washers, bushings, and hardware are new.
• Shock boots are not included and are sold separately. KYB recommends strut boot part number SB103 to protect the strut rod from dirt, debris, and road salt.
• To reduce noise and vibration, KYB recommends replacing strut mounts at the same time. KYB strut mount part number SM5036 is compatible with this application.
• A professional wheel alignment is required after strut installation to restore correct camber, caster, and toe settings.

Features

• OEA (Original Equipment for the Aftermarket) classification - built on the same KYB production lines, with the same materials and assembly processes used to manufacture KYB's global OEM struts for new vehicle manufacturers.
• Vehicle-specific, hand-assembled damping valves - calibrated specifically for the SVO and 5.0L V8 Fox body Mustang front suspension geometry to correctly manage tire contact, steering response, and body movement as originally engineered by Ford.
• Nitrogen gas-charged twin-tube design - provides consistent damping force throughout the full stroke range, eliminating the fade and inconsistency caused by oil aeration in conventional non-gas struts.
• Triple-lip synthetic fluid seal with integral wiper - a multi-lip design engineered to keep hydraulic fluid in and road contaminants out, significantly extending service life compared to single-lip OEM-style seals.
• Triple chrome-plated piston rod - ultra-smooth surface finish reduces seal wear and friction for consistent, quiet operation over the long service life of the strut.
• Seamless extruded steel inner cylinder - eliminates the potential leak points created by seam-welded cylinders, maintaining consistent internal pressure and fluid containment.
• PTFE-banded piston - creates a positive, low-friction seal between the piston and cylinder wall for precise, controlled damping throughout the stroke.
• Thickest and strongest strut body and bracket in the industry - minimizes structural flex to maintain correct alignment geometry under all cornering and braking loads.
• Electronic Stability Control (ESC) and safety system compatible - restores the suspension behavior that ESC, ABS, and traction control systems are calibrated to work with.
• Lifetime warranty to the original vehicle purchaser - covers defects in materials and workmanship for as long as the original purchaser owns the vehicle on which the struts were installed.

Specifications

• Part Number: 235009
• Series: Excel-G
• Type: Strut (MacPherson)
• Position: Front - fits both Left and Right sides
• Design: Nitrogen gas-charged, twin-tube
• Extended Length: 19.25"
• Piston Rod Finish: Triple chrome plated
• Inner Cylinder: Seamless extruded steel
• Piston: PTFE-banded
• Seal: Triple-lip synthetic fluid seal with wiper
• Quantity: Sold individually (2 required per vehicle)
• Recommended Strut Mount: KYB SM5036 (sold separately)
• Recommended Strut Boot: KYB SB103 (sold separately)
• Platform: Ford Fox Body (1979-1993)
• Warranty: Lifetime Limited Warranty to original purchaser

Included Components

• 1x KYB 235009 Excel-G Front Strut
• 1x Hardware Kit (washers, bushings, and mounting nuts)

Product Description

The KYB 235009 is a front Excel-G strut engineered for the sport-tuned MacPherson front suspension used on two distinct Fox body Mustang variants: the 1984-1986 Ford Mustang SVO and the 1987-1993 Ford Mustang GT, LX 5.0, Cobra, and Saleen (1987-1989). This strut is designed for the higher-specification front suspension found on these performance-oriented Fox body models and is not intended for base four-cylinder Mustangs, which use a different damping specification. Each strut is sold individually - two units are required to complete a full front replacement. KYB classifies the Excel-G as OEA (Original Equipment for the Aftermarket), meaning it is built on the same production lines and with the same manufacturing processes used to produce KYB's global OEM struts for vehicle manufacturers, then calibrated specifically to restore the designed handling and ride characteristics of the SVO and V8 Fox body Mustang's front suspension.

The 235009 uses a nitrogen gas-charged twin-tube design that eliminates the oil aeration and fade associated with conventional non-gas struts, providing consistent damping throughout the full stroke range. The triple chrome-plated piston rod reduces friction and seal wear for quiet, long-term operation, while the triple-lip synthetic fluid seal with integral wiper keeps hydraulic fluid contained and road debris excluded. The seamless extruded steel inner cylinder eliminates the leak risks of seam-welded construction, and the PTFE-banded piston maintains a precise, consistent seal against the cylinder wall. The result is a strut that restores - and often exceeds - the original ride quality and handling precision the Fox body Mustang was designed to deliver from the factory.

KYB recommends replacing strut mounts (SM5036) and installing strut boots (SB103) at the same time as the struts to reduce noise, vibration, and rod exposure to corrosion - both are available separately. Factory shock mounting bolts are reused during installation, and all necessary washers, bushings, and mounting hardware are included with the strut. A professional wheel alignment is required after installation to restore correct camber, caster, and toe settings. The 235009 is covered by KYB's Lifetime Limited Warranty against defects in materials and workmanship for as long as the original purchaser owns the vehicle on which the struts were installed.
