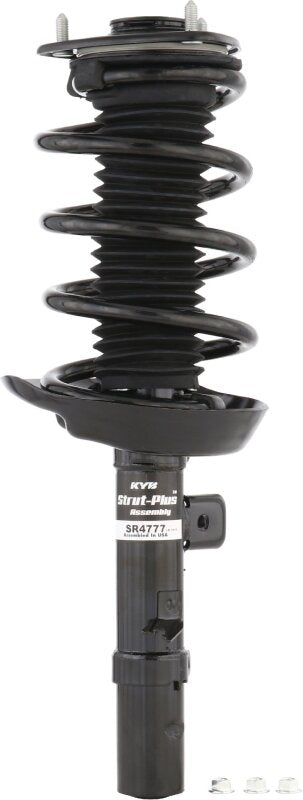

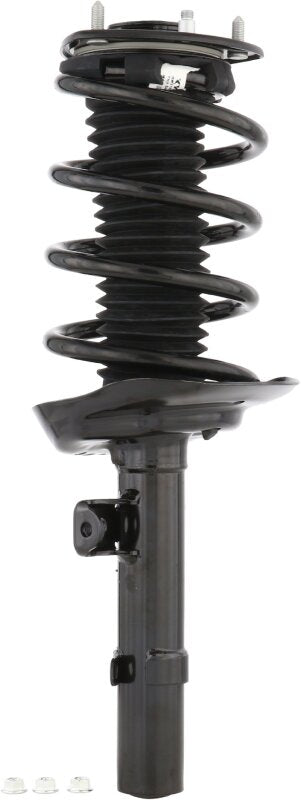

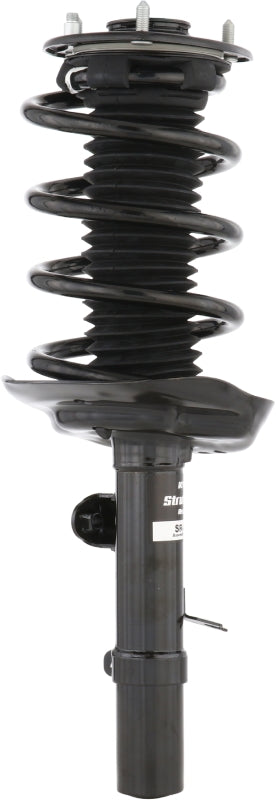

KYB SR4777 Strut-Plus OE Front Right Corner Assembly Honda Accord 2013-2017 2.4L

Vehicle Fitment

• 2013-2017 Honda Accord (2.4L I4, FWD) - Front Right (Passenger Side) Strut Assembly
• Covered 2.4L trims: LX, LX-S, Sport, Sport Special Edition (2017 only), EX, EX-L
• 2014-2015 and 2017 Honda Accord Hybrid (2.0L IMA, FWD) - Front Right (Passenger Side) Strut Assembly
• Covered Hybrid trims: Hybrid, Hybrid EX-L, Hybrid Touring

Fitment Notes

• Front Right (passenger side) position ONLY - this is a corner-specific assembly; the front left (driver side) requires KYB SR4776, which must be purchased separately
• NOT compatible with the 2013-2017 Honda Accord V6 3.5L - the V6 uses a different spring rate and strut specification; verify your Accord's engine before ordering
• Complete corner unit - no spring compressor, strut mount, spring, insulators, bearing plate, boot, or bump stop needed; all components are pre-assembled and ready to install
• Left and right assemblies have side-specific design and components as the manufacturer intended - do not install SR4777 in the front left position
• Applies to FWD variants only - all 9th-generation Honda Accord I4 and Hybrid powertrains are front-wheel drive
• Sold individually - for a complete front axle replacement, purchase one SR4777 (right) and one SR4776 (left)
• Front wheel alignment is required after installation

Features

• Complete Strut-Plus corner unit - pre-assembled and ready to install directly onto the vehicle without a spring compressor, eliminating assembly errors and saving significant installation time over rebuilding a bare strut
• Built around a KYB Excel-G twin-tube gas strut - made on the same KYB OE assembly lines with the same OE-quality components used in Honda production; calibrated to OEA (Original Equipment for the Aftermarket) standards to restore the 9th-generation Accord's original front ride height, handling, and control characteristics
• Application-engineered high-carbon steel coil spring - fatigue-tested and heat-treated to match the exact corner weight and ride height specifications of the 2.4L and Hybrid 9th-generation Accord front suspension; features a corrosion-resistant coating for extended service life
• Corner-specific part number and side-specific design - SR4777 is engineered exclusively for the front right (passenger) position, with the correct spring rate, spring seat geometry, bearing plate orientation, and mount design for that corner as Honda intended
• Hand-assembled in-house damping valves calibrated in a pressurized clean room - restores the front suspension's original rebound and compression characteristics, supporting proper operation of the Accord's Vehicle Stability Assist (VSA) and ABS systems
• Includes strut mount, upper spring seat, upper and lower spring insulators, bearing plate, boot kit, and bump stop - all OE-quality or better, eliminating the need to source small, hard-to-find components separately
• Thick, rigid strut body and brackets minimize flex and metal fatigue to maintain correct front-end alignment throughout the assembly's service life
• Backed by KYB's Lifetime Warranty on the strut damper; 1-Year Warranty on non-damper components (spring, mount, boot, hardware)

Specifications

• Part Number: SR4777
• Product Line: KYB Strut-Plus
• Type: Complete Front Strut and Coil Spring Corner Unit Assembly
• Position: Front Right (Passenger Side) - corner-specific; see SR4776 for Front Left
• Strut Type: KYB Excel-G Twin-Tube Gas (OEA-classified)
• Coil Spring: Included (application-engineered high-carbon steel, corrosion-resistant coating)
• Strut Mount: Included
• Upper Spring Seat: Included
• Upper and Lower Spring Insulators: Included
• Bearing Plate: Included
• Dust Boot Kit: Included
• Bump Stop: Included
• Package Dimensions: 25.50 x 8.00 x 9.00 in
• Shipping Weight: 21.60 lbs
• Quantity: Sold Individually
• Warranty: KYB Lifetime Warranty (strut damper); 1-Year Limited Warranty (non-damper components)

Included Components

• 1x KYB Excel-G Twin-Tube Front Right Strut
• 1x Application-engineered high-carbon steel coil spring (corrosion-resistant coating)
• Strut mount
• Upper spring seat
• Upper and lower spring insulators
• Bearing plate
• Dust boot kit
• Bump stop

Product Description

The KYB SR4777 is a Strut-Plus complete front right (passenger side) strut and coil spring assembly for the 2013-2017 Honda Accord (2.4L I4, FWD - LX, LX-S, Sport, EX, EX-L, and 2017 Sport Special Edition) and the 2014-2015 and 2017 Honda Accord Hybrid (2.0L IMA, FWD - Hybrid, Hybrid EX-L, Hybrid Touring). This part is NOT compatible with the V6 3.5L Accord - confirm your engine before ordering. This is a corner-specific part for the front right position only - the companion front left assembly is KYB SR4776, sold separately. For a complete front axle replacement, purchase one of each.

The Strut-Plus format eliminates the most demanding steps of a conventional front strut job - no spring compressor, no separate sourcing of mounts, insulators, bearing plate, or bump stops, and no risk of assembly errors. The assembly is pre-built and ready to bolt directly onto the vehicle. At the core is a KYB Excel-G twin-tube gas strut built on the same OE assembly lines used in Honda's original equipment supply, calibrated to OEA (Original Equipment for the Aftermarket) standards - tuned to restore the 9th-generation Accord's original front ride height and handling, not alter them. The application-engineered coil spring is matched precisely to the front right corner weight of the 2.4L/Hybrid platform. As a front strut, this assembly also acts as the steering pivot, making correct damping and spring rate critical to steering response, alignment retention, and the proper function of the Accord's Vehicle Stability Assist (VSA) and ABS. Backed by KYB's Lifetime Warranty on the strut damper; non-damper components carry a 1-Year Warranty.
