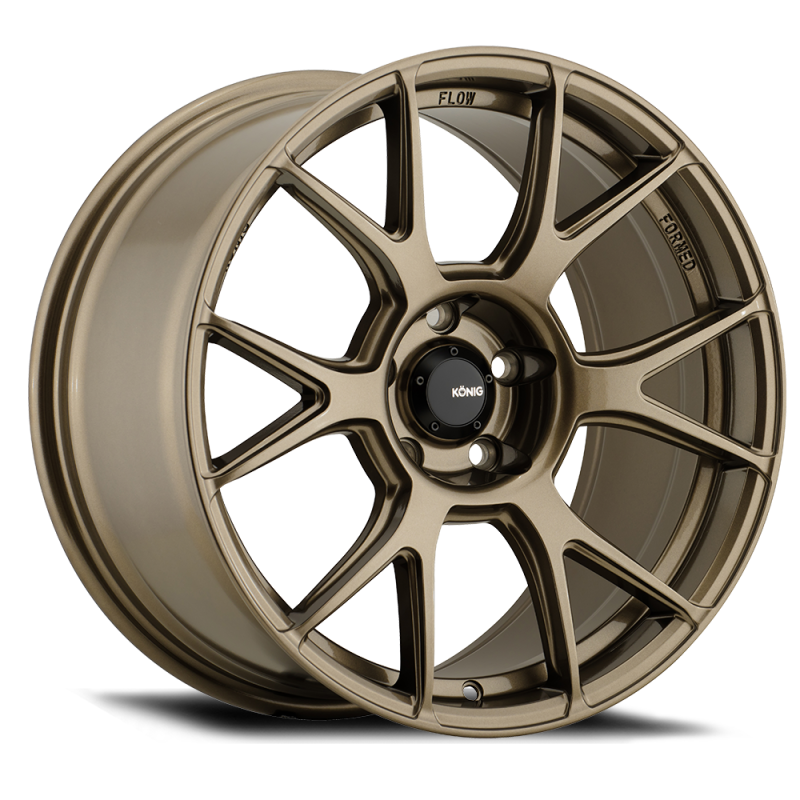

Konig AM87100458 Ampliform 17x8 +45 Gloss Bronze Flow Formed Wheel 4x100 73.1

Vehicle Fitment

Fits vehicles with a 4x100mm bolt pattern and a hub bore of 73.1mm or smaller (hub-centric rings recommended for smaller hub bores). Common fitments include:

• 2016-2025 Mazda MX-5 Miata / MX-5 RF (ND platform)
• 1990-2005 Mazda Miata (NA/NB platform)
• 1992-2000 Honda Civic (EG/EK)
• 2002-2005 Honda Civic (7th Gen, 4x100 applications)
• 1999-2009 Honda S2000
• 1984-1991 BMW 3 Series (E30)
• 1995-2001 BMW 3 Series (E36, 4x100 applications)
• 2002-2013 Mini Cooper / Cooper S (R50/R52/R53/R56)
• 1993-1998 Toyota Supra (4x100 applications)
• 1992-1999 Toyota Paseo / Corolla / Tercel
• 1993-2000 Volkswagen Golf / Jetta / GTI (MK3/MK4, 4x100)
• Many additional vehicles with a 4x100 bolt pattern - always confirm hub bore and offset compatibility before ordering

Fitment Notes

• Bolt pattern: 4x100mm - confirm your vehicle's bolt pattern before ordering
• Hub bore: 73.1mm - hub-centric rings are recommended for vehicles with a smaller hub bore (e.g., Mazda MX-5 ND hub bore is 54.1mm and requires a hub-centric ring)
• Offset: +45mm - verify clearance with brakes, suspension, and fender wells for your specific application
• Clearance note: clears Wilwood big brake kits; does not clear optional Brembo calipers - confirm brake kit clearance for your specific setup
• Lug seat style: conical (tapered) - confirm lug nut type for your vehicle; lug nuts are not included
• Sold individually - one wheel per unit; a set of four requires four units

Features

• Flow Formed (Rotary Forged) construction - cast aluminum center spun under heat and pressure to stretch and strengthen the barrel, producing a wheel significantly lighter and stronger than traditional cast designs
• Weighs approximately 17.19 lbs. - meaningful unsprung weight reduction compared to OEM cast wheels, improving acceleration, braking, and steering response
• Six-spoke mesh-inspired split spoke design - each spoke splits at the face for a 12-spoke visual effect that balances motorsport aesthetics with brake cooling airflow
• Spoke profile promotes efficient airflow for improved brake cooling during track and spirited street use
• Generous brake caliper clearance - confirmed compatible with Wilwood BBK setups
• Gloss Bronze finish - warm, distinctive color that stands out against both light and dark paint
• Load rated at 1,543 lbs. per wheel (700 kg) - strong load rating for a flow-formed wheel in this size class
• Center cap with Konig logo included

Specifications

• Brand / Model: Konig Ampliform
• Part Number: AM87100458
• Size: 17x8
• Bolt Pattern: 4x100mm
• Offset: +45mm
• Backspacing: 6.27"
• Hub Bore: 73.10mm
• Finish: Gloss Bronze
• Construction: One-Piece Flow Formed (Rotary Forged) Aluminum
• Spokes: 6 (split spoke / mesh style)
• Weight: ~17.19 lbs.
• Load Rating: 1,543 lbs. (700 kg)
• TPMS Compatible: Yes
• Center Cap Included: Yes
• Lug Nuts / Valve Stems: Not Included

Included Components

• 1x Konig Ampliform 17x8 wheel - Gloss Bronze
• 1x Konig logo center cap

Product Description

The Konig Ampliform in 17x8 with a +45mm offset is a flow-formed performance wheel built around the 4x100mm bolt pattern - making it a natural fit for sport compact and enthusiast platforms like the Mazda MX-5 Miata, Honda Civic, Mini Cooper, and BMW E30. Konig's Flow Forming Technology begins with a cast aluminum center and uses high-pressure rollers under heat to stretch and compress the barrel, producing a wheel that is substantially stronger and lighter than a conventional cast wheel. At approximately 17.19 lbs., the Ampliform delivers real unsprung weight savings that translate to sharper steering response, quicker acceleration, and improved braking feel - benefits especially noticeable on lightweight sport cars where every pound matters.

The six-spoke split design gives the Ampliform a motorsport-inspired mesh appearance that promotes brake cooling airflow to the rotor - an important detail for track days and spirited driving. The gloss bronze finish is a standout color choice that pairs well with a wide range of paint colors. The Ampliform's spoke geometry is confirmed to clear Wilwood big brake kits (a 3mm spacer may be needed for some Wilwood caliper kits), though it does not clear Brembo calipers - verify brake kit clearance before ordering. Hub-centric rings are required for vehicles with a hub bore smaller than 73.1mm, such as the MX-5 Miata. Lug nuts are not included.
