KONI 8241-1226Sport Sport Front Shock Yellow for 2004-2011 Mazda RX-8 Rotary RWD

Vehicle Fitment

• 2004-2007 Mazda RX-8 Base (SE3P; 1.3L RENESIS 13B-MSP Rotary, RWD)
• 2005 Mazda RX-8 Shinka Special Edition (SE3P; 1.3L RENESIS 13B-MSP Rotary, RWD)
• 2008-2011 Mazda RX-8 Grand Touring (SE3P; 1.3L RENESIS 13B-MSP Rotary, RWD)
• 2008-2011 Mazda RX-8 Sport (SE3P; 1.3L RENESIS 13B-MSP Rotary, RWD)
• 2008-2009 Mazda RX-8 Touring (SE3P; 1.3L RENESIS 13B-MSP Rotary, RWD)
• 2009-2011 Mazda RX-8 R3 (SE3P; 1.3L RENESIS 13B-MSP Rotary, RWD)

Fitment Notes

• Front shock absorber - position is Front Left and Front Right. Left and right units are identical (non-handed). Sold individually (per shock); two units are required for a complete front axle replacement.
• Fits the Mazda RX-8 (SE3P platform, 2004-2011) in all supported North American trims. The RX-8 was discontinued in the North American market after 2011.
• All supported RX-8 variants use the naturally-aspirated 1.3L RENESIS twin-rotor rotary (Wankel) engine in rear-wheel-drive configuration. There are no turbocharged or AWD variants of the North American RX-8.
• The 2008 model year introduced the Grand Touring, Sport, and Touring trims. Some 2008 model year RX-8s were originally equipped with OE Bilstein shocks - primarily on the Grand Touring trim. Verify your vehicle's original shock specification before ordering.
• Compatible with OEM spring rates and performance lowering springs up to 35 mm (approximately 1.4 in) of drop.
• Sold per shock - one unit only. A complete front axle installation requires two units of this part number. The companion rear shock for the RX-8 is a separate KONI part number.

Features

• KONI Sport 8241 Series externally adjustable rebound damping - the adjustment knob at the top of the damper allows rebound to be tuned from full soft to full firm without removing the shock from the vehicle, enabling convenient on-car adjustment for street, autocross, and track use.
• Approximately 100% rebound adjustment range - up to three times the range of competing adjustable shock designs - accommodating both OEM spring rates and a wide variety of performance lowering springs without requiring a different unit.
• Twin-tube, low-pressure gas-charged damper construction engineered specifically for the RX-8's front double-wishbone suspension geometry, delivering improved road holding, body roll reduction, and front-end sharpness over OEM or worn replacement shocks.
• Yellow-painted shock body - KONI Sport's iconic finish and a well-established benchmark front shock upgrade for the RX-8 platform within the rotary enthusiast and autocross community.
• Significantly reduces front dive under braking, nose wander, and body roll through corners - refining the RX-8's already well-regarded chassis balance and improving driver feedback and confidence at the front axle.
• Specifically designed for the RX-8's externally adjustable front strut design - delivers KONI Sport performance without requiring modification to the OEM strut housing.
• Compatible with performance lowering springs and coilover conversion setups designed for the SE3P platform, allowing ride height adjustment over a wider range while retaining KONI's external rebound adjustability.
• Re-buildable and re-valvable - the shock can be serviced and returned to factory-equivalent performance after extended use, or re-valved for custom damping characteristics for dedicated autocross or track use.
• Backed by KONI North America's Limited Lifetime Warranty for street use in the United States and Canada.

Specifications

• Part Number: 8241-1226Sport (also referenced as 8241 1226Sport / 8241 1226SPORT / 82411226SPORT)
• Product Line: KONI Sport 8241 Series
• Position: Front (Left and Right - non-handed, both sides use same unit)
• Damper Color: Yellow
• Internal Design: Twin-Tube, Low-Pressure Gas-Charged
• Valving Adjustability: Yes - External Rebound Adjustment Knob (adjustable on-vehicle)
• Adjustment Range: ~100% (full soft to full firm)
• Compatible Lowering Range (with springs): Up to 35 mm (approx. 1.4 in)
• Re-buildable / Re-valvable: Yes
• Quantity: Sold individually (per shock)
• Application: 2004-2011 Mazda RX-8 (SE3P) - Selected Trims, RWD

Included Components

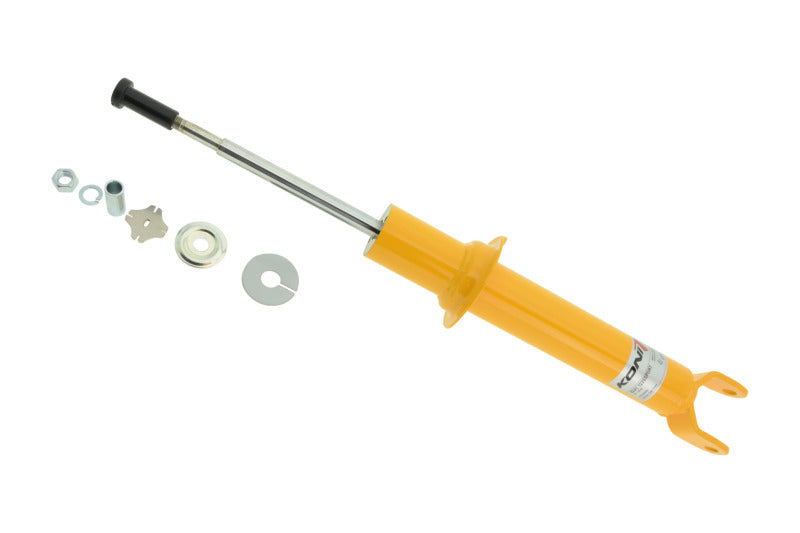

• 1x KONI Sport 8241-1226Sport Front Shock Absorber (Yellow)

Product Description

The KONI 8241-1226Sport is a yellow-painted, externally adjustable front shock absorber from KONI's Sport 8241 Series, engineered for the Mazda RX-8 (SE3P platform, 2004-2011) in the North American market. It covers the Base and Shinka trims in the earlier production years as well as the Grand Touring, Sport, Touring, and R3 trims introduced for 2008 onward - all powered by the 1.3L RENESIS twin-rotor Wankel rotary engine in rear-wheel-drive configuration. The RX-8's front double-wishbone suspension, already praised for its handling balance, benefits from the KONI Sport's improved road holding, body roll resistance, and front-end sharpness compared to OEM or worn replacement shocks, with the externally adjustable rebound knob allowing the full tuning range to be accessed without removing the shock from the vehicle.

The 8241 Series external adjustment knob provides approximately 100% of rebound adjustment range - from a soft, comfortable street setting to a firm, autocross or track-optimized tune - making it practical to adapt the RX-8's front damping to a wide variety of spring rates, driving applications, and road conditions. The shock is compatible with performance lowering springs up to 35 mm of drop and aftermarket coilover conversion setups designed for the SE3P platform. Within the RX-8 enthusiast and autocross community, the KONI 8241-1226Sport has long been the benchmark front shock upgrade, valued for both its tuning range and its durability under the sustained high-rpm rotary engine loads that characterize spirited RX-8 driving.

Left and right front units are identical - two units of this single part number are required for a complete front axle installation. The companion rear shock is sold separately. The damper is re-buildable and re-valvable, extending its service life and enabling custom valving for dedicated autocross and track builds. Backed by KONI North America's Limited Lifetime Warranty for street use in the United States and Canada.
