King Shocks 25001-400A Front 2.5 Coilovers w/Res for 23-26 Toyota Sequoia 4WD

Vehicle Fitment

• 2023-2026 Toyota Sequoia (4WD, All Trims)

Fitment Notes

• 4WD models only - does not fit 2WD applications
• Compatible with stock ride height and lifted configurations
• Provides over 30% increase in wheel travel compared to factory suspension

Features

• 2.5" diameter precision-bored shock bodies dramatically increase fluid capacity for sustained performance
• Wide range compression adjuster allows precise damping adjustment for personalized ride quality
• External finned reservoirs maximize heat dissipation and prevent fade under extreme conditions
• Threaded end cap design with integrated Schrader valve protective cap for easy servicing
• Custom-tuned damping curves and spring rates developed specifically for the Sequoia platform
• Coilover design provides adjustable ride height for leveling or lifting applications
• Built from aircraft-quality materials with same tolerances as King's Pure Race series shocks
• Improved reservoir mounts eliminate hose clamps for cleaner installation and better reliability
• Extensive dynamometer lab testing and real-world validation ensure optimal performance
• Over 30% increase in effective wheel travel for improved off-road capability
• 100% bolt-on installation requires no cutting or welding
• Fully rebuildable, serviceable, and tunable design for long-term ownership
• Hand-built in the USA by experienced King shock technicians

Specifications

• Position: Front axle
• Shock Body Diameter: 2.5 inches
• Shock Body Material: Precision-bored steel cylinder
• Reservoir Type: External finned design with remote mounting
• Reservoir Material: Extruded 6061-T6 aluminum
• Compression Adjustment: Wide range adjustable via reservoir-mounted adjuster
• Compressed Length: 16.277 inches
• Extended Length: 22.250 inches
• Stroke Length: 5.973 inches
• Gas Pressure: 200 PSI
• Drivetrain Compatibility: 4WD only
• Ride Height: Adjustable via threaded preload collar
• Weight: 70 lbs (pair with springs)
• Package Dimensions: 36"L x 12"W x 11"H

Included Components

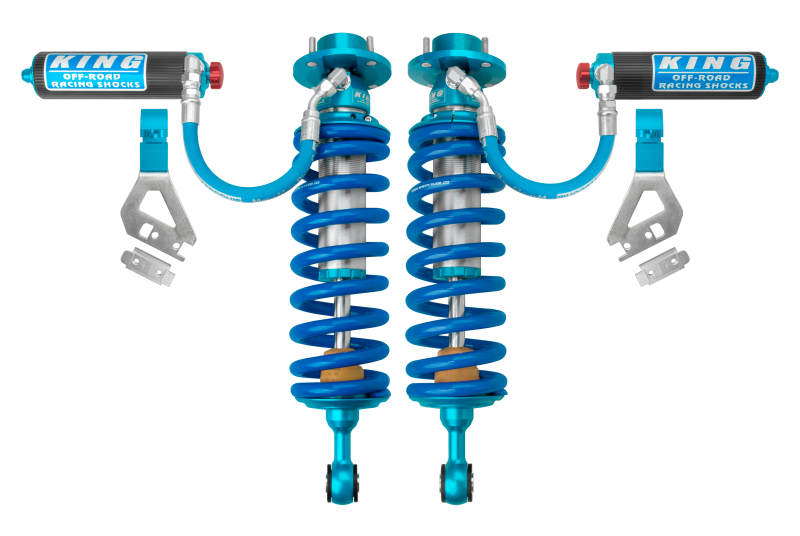

• 2x King 2.5" coilover shock absorbers with compression adjusters
• 2x External finned reservoirs with improved mounting brackets
• 2x High-pressure hoses with pre-installed fittings
• 2x Coil springs custom-rated for Toyota Sequoia
• 2x Threaded spring preload adjusters with locking mechanism
• 1x Complete vehicle-specific mounting hardware kit
• 1x Detailed installation instructions

Product Description

The King 25001-400A OEM Performance Series Front Coilover Kit transforms your 2023-2026 Toyota Sequoia into a capable adventure machine with race-proven suspension technology. This complete bolt-on coilover system replaces factory struts with King's renowned 2.5-inch diameter remote reservoir coilovers, delivering unmatched ride quality both on and off the pavement. Featuring fully adjustable compression damping via wide-range adjusters mounted on the external finned reservoirs, you can fine-tune your Sequoia's ride characteristics to match any terrain or load condition. The adjustable spring preload collars allow you to level your Sequoia with aftermarket bumpers or winches, or add lift for increased ground clearance and tire clearance for larger wheels and tires.

Every component in this kit is engineered to King's exacting standards, utilizing the same precision materials and manufacturing tolerances found in their professional racing shocks. The 2.5-inch shock bodies are precision-bored and paired with external finned reservoirs made from extruded 6061-T6 aluminum, dramatically increasing fluid capacity while maximizing heat dissipation. This combination ensures consistent damping performance even during extended off-road sessions or when towing near the Sequoia's maximum capacity. The improved reservoir mounting system eliminates traditional hose clamps in favor of purpose-designed brackets that provide cleaner installation and better long-term reliability. Each kit includes custom-valved shocks and application-specific coil springs developed through extensive dynamometer testing and real-world validation on the Sequoia platform.

Installation is straightforward with 100% bolt-on fitment requiring no modifications to your Sequoia. All necessary vehicle-specific mounting hardware and detailed instructions are included. The coilover design provides over 30% more wheel travel than factory suspension, significantly improving off-road capability and ride comfort over rough terrain. Unlike disposable factory struts, King coilovers are fully rebuildable and serviceable, making them a long-term investment in your vehicle's performance. Whether you're exploring remote trails, towing a boat to the lake, or simply want the best possible ride quality for daily driving with a full load of passengers and gear, the King 25001-400A coilover kit delivers the performance, adjustability, and durability that Toyota Sequoia owners demand.
