King Shocks 30001-407 3.0 Front Coilover w/Adjuster Pair 2010-2014 Ford Raptor

Vehicle Fitment

• 2010-2014 Ford F-150 SVT Raptor, 4WD - Front

Fitment Notes

• 4WD models only - fits spring suspension Raptor models
• Front position only - sold as a pair of two coilover assemblies; companion rear shocks sold separately (see 30001-402 for standard reservoir or 30001-402F for finned reservoir)
• Compression adjuster included as standard - Wide Range Compression Adjuster (20-click) comes factory-installed on 30001-407
• For the finned remote reservoir version with enhanced heat dissipation see 30001-407F
• Provides approximately 2" of front lift for a leveled stance; ride height is adjustable across a range to accommodate lift kits or other ride height preferences
• Front kits provide up to a 25% increase in usable wheel travel over factory shocks
• 100% bolt-on installation - no cutting or welding required; all necessary washers, bushings, and nuts included; factory shock mounting bolts are reused

Features

• Massive 3.0" diameter shock body - King's largest OEM Performance coilover body diameter - delivers maximum damping force, fluid capacity, and consistency over the most demanding terrain
• Wide Range Compression Adjuster included as standard - 20 precise clicks of compression damping adjustment from super soft to super firm via a single knob; ideal for tuning between road comfort and off-road performance
• External remote reservoir in hard-anodized 6063 aluminum dramatically increases fluid volume and heat dissipation for fade-free performance under sustained high-speed off-road use
• Aeroquip high-pressure hose fittings resist abrasion and kinking for a durable, reliable reservoir connection
• Internally threaded top cap design maximizes piston travel inside the shock body for full use of available stroke
• Heat-treated aluminum alloy piston with highly developed port geometry delivers the precise, progressive damping King shocks are known for
• Large-diameter hard-chromed micro-polished shafts (minimum 100,000 PSI tensile strength) for maximum debris resistance and extended seal life
• Aluminum components and vehicle-specific mounts machined from aircraft-quality billet
• Fully rebuildable, serviceable, and tunable with simple hand tools
• Hand-built in the USA by King's experienced shock technicians - the same components found in King's trophy truck race applications

Specifications

• Part Number: 30001-407
• Position: Front (pair - 2 coilover assemblies)
• Shock Body Diameter: 3.0 inches
• Reservoir: External remote reservoir (6063 hard-anodized aluminum)
• Piston: Heat-treated aluminum alloy
• Shaft Tensile Strength: Minimum 100,000 PSI (hard-chromed, micro-polished)
• Extended Length: 27.265 inches
• Compressed Length: 20.575 inches
• Stroke: 6.690 inches
• Gas Pressure: 200 PSI
• Drivetrain: 4WD
• Lift Range: 0-2" (adjustable ride height)
• Compression Adjuster: Included (20-click Wide Range Compression Adjuster)
• Installation: 100% bolt-on; no cutting or welding
• Package Weight: 51 lbs
• Package Dimensions: 33" L x 12" W x 9" H
• Warranty: King Shocks 90-day manufacturer warranty
• Made in USA

Included Components

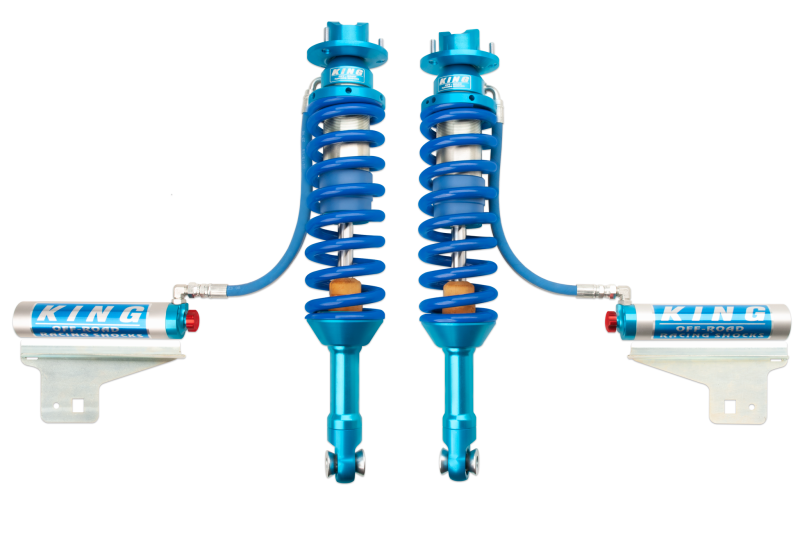

• 2x King Shocks 3.0" Remote Reservoir Front Coilover Assemblies (driver and passenger side)
• Wide Range Compression Adjusters (pre-installed, 20-click)
• All necessary washers, bushings, and nuts for installation
• Note: Rear shocks and coil springs NOT included; factory mounting bolts are reused

Product Description

The King Shocks 30001-407 is a pair of 3.0" remote reservoir front coilovers for the 2010-2014 Ford F-150 SVT Raptor 4WD - King's largest-diameter OEM Performance coilover body, purpose-built for a platform that was already engineered for high-speed desert running. The 3.0" body delivers maximum damping force, fluid volume, and heat capacity in a bolt-on package, while the external remote reservoir in hard-anodized 6063 aluminum further expands those capacities for sustained high-speed off-road performance without fade. Unlike most base-tier King OEM coilovers, the 30001-407 comes standard with King's 20-click Wide Range Compression Adjuster, giving Raptor owners immediate access to tunable damping from soft highway cruising to full-firm desert blasting via a single knob twist.

Installation is 100% bolt-on with all hardware included and approximately 2" of adjustable front lift available - enough to level the Raptor's stock rake or match various lift kit configurations. Front kits provide up to a 25% increase in usable wheel travel over factory shocks, putting significantly more suspension travel at the driver's disposal on high-speed desert and trail runs. Aircraft-quality billet aluminum mounts, Aeroquip high-pressure hose fittings, and the same materials and tolerances as King's trophy truck race shocks make this a true race-bred upgrade for a vehicle built to demand it. For the finned reservoir version with accelerated heat exchange see 30001-407F. Rear shocks sold separately (30001-402 / 30001-402F). 90-day manufacturer warranty, hand-built in the USA.
