King Shocks 25001-213 2.5" Front Coilover Kit w/Res for 09-13 Ford F150 2WD/4WD

Vehicle Fitment

• 2009-2013 Ford F-150 (2WD or 4WD; all engine trims)

Fitment Notes

• Front axle coil-over kit only -- for left & right sides.
• Fits stock ride height and lifted setups (custom applications may vary).
• Verify wheel/tire clearance and adjust ride height accordingly.
• Does not fit the Ford Raptor model (special front geometry).

Features

• 2.50" diameter remote-reservoir coil-over design for increased fluid capacity.
• Adjustable ride height and industry-leading valving tuned for F-150 performance.
• Rebuildable, serviceable, and custom-tunable like King's Pure Race series.
• Bolt-on installation at factory mounting points--no cutting required.
• Enhanced wheel travel and ride quality for on- and off-road use.
• Made in the USA with precision machined components and premium materials.
• Standard coil spring provided (600 lb) with optional upgrade (700 lb) available.
• Replaceable components for long-term service life and tuning flexibility.

Specifications

• Part Number: 25001-213
• Type: Front Coilover Kit (left + right)
• Shock Body Diameter: 2.50" (63.5 mm)
• Compression Gas Pressure: 200 psi
• Collapsed Length: 17.65" (448 mm approx)
• Extended Length: 22.997" (584 mm approx)
• Maximum Recommended Lift: ~2.5" Front (standard spring)
• Warranty: Limited (original purchaser)

Included Components

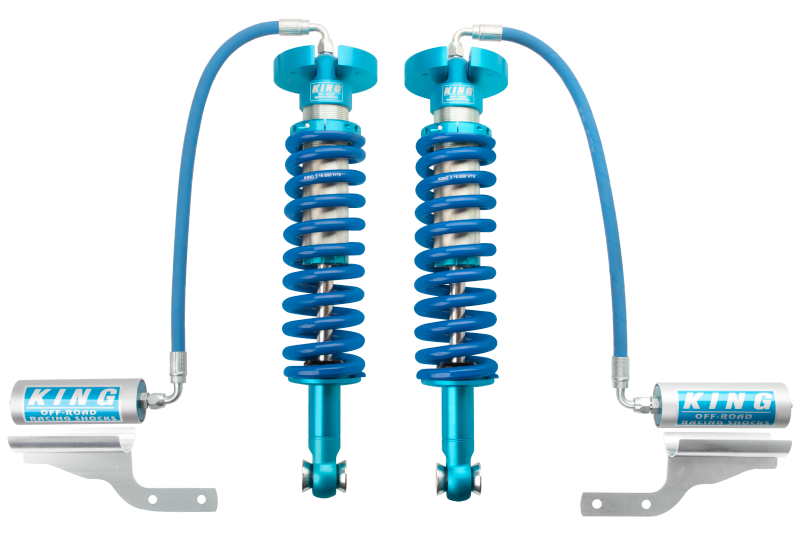

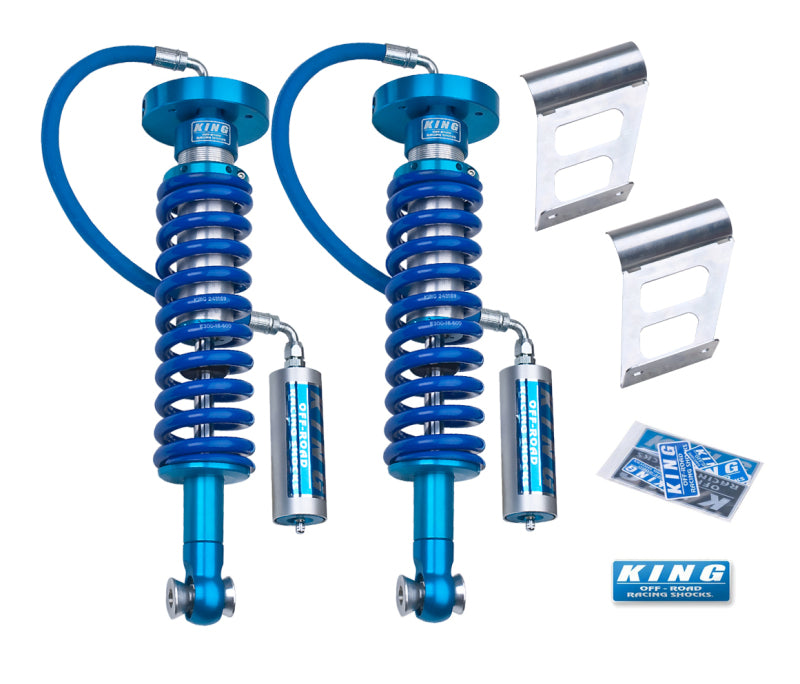

• 2x Front coil-over assemblies (left & right)
• 2x Remote reservoir mounting hardware
• Coils, spring seats, adjustable perches and locking collars
• Installation instructions and torque specifications

Product Description

The King Shocks 25001-213 Coilover Kit is engineered for 2009-2013 Ford F-150 trucks (2WD or 4WD) and replaces the factory front shock assembly with a high-performance 2.50" diameter remote-reservoir coil-over system. With adjustable ride height, premium internals, and rebuildable design, this kit provides superior ride quality, increased wheel travel, and real performance for daily driving and mild off-road use.

Installation uses factory mounting points and requires no cutting, while settings can be tuned for your specific use case--whether stock height or lightly lifted. With its built-in serviceability and high material standards, it's a solid upgrade for any F-150 owner seeking long-term suspension performance and reliability.
