KC HiLiTES 6324 Gravity Titan LED Light Bar Wiring Harness for 20-57in Bars

Vehicle Fitment

• Universal - compatible with all KC Gravity® Titan™ LED Light Bars in 20", 26", 32", 39", 45", 50", and 57" sizes
• Not vehicle-specific - fitment is determined by the Titan light bar installed on the vehicle, not the vehicle itself

Fitment Notes

• 6324 is designed exclusively for KC Gravity® Titan™ LED Light Bars. It is not compatible with other KC light bar families such as the Pro6 Gravity, C-Series, or M-Racks, which use different connectors, relay capacities, and switch configurations.
• This harness is included at no additional cost when purchasing a new KC Gravity® Titan™ LED Light Bar. The 6324 is sold separately as a standalone replacement for owners who need to replace a lost, damaged, or worn harness.
• The 3-position rocker switch in this harness is required to independently control the Titan bar's two operating modes: amber backlight mode (low-power, always-on accent/perimeter lighting) and high-power white LED mode (full off-road or work-site illumination). A standard 2-position switch cannot power both circuits correctly.
• Compatible with OE factory switch panel systems as well as aftermarket switch setups - the harness can be integrated into a rocker switch panel or dash-mounted switch bank in place of the included standalone rocker switch if desired.

Features

• High-power capacity wiring harness engineered specifically for the KC Gravity® Titan™ LED Light Bar's dual-circuit power demands - the Titan bar operates in two distinct modes (amber backlight and high-power white LED), each drawing significantly different current levels, and the 6324 harness is sized and configured to handle both circuits reliably through a single, organized installation.
• 50A relay provides ample capacity for the high-power white LED circuit of even the largest 57" Titan bar, which draws the highest total wattage of any bar in the Titan lineup - preventing voltage drop, relay overheating, and premature relay failure that would result from undersized relay hardware.
• 3-position rocker switch is included and pre-wired into the harness, providing three operating states: off, amber backlight only, and full high-power white LED mode. The switch eliminates the need to source a compatible 3-position switch separately and ensures the correct switch type for the Titan bar's dual-circuit design is used from the start.
• Clean factory-finish installation result - the harness is routed and terminated to produce an organized, professional-looking installation with no excess wire bulk at the light bar or switch location, consistent with KC's standard for their factory-included harnesses.
• All necessary fuses and mounting hardware are included in the kit, allowing a complete installation without sourcing additional components.
• Backed by KC HiLiTES' Adventure Further Guarantee - electrical components (wiring, relay, switch) covered for 5 years from date of purchase; mechanical hardware covered for the lifetime of the product.

Specifications

• Part Number: 6324
• Product Type: LED Light Bar Wiring Harness (Replacement)
• Compatible Light Bar: KC Gravity® Titan™ LED Light Bar - 20", 26", 32", 39", 45", 50", and 57" sizes
• Relay: 50A
• Switch Type: 3-Position Rocker Switch (Off / Amber Backlight / High-Power White LED)
• Circuits Powered: 2 (Amber Backlight Mode + High-Power White LED Mode)
• Fitment: Universal (Titan bar application - not vehicle-specific)
• Warranty: KC Adventure Further Guarantee - Electrical: 5 years; Mechanical hardware: Lifetime

Included Components

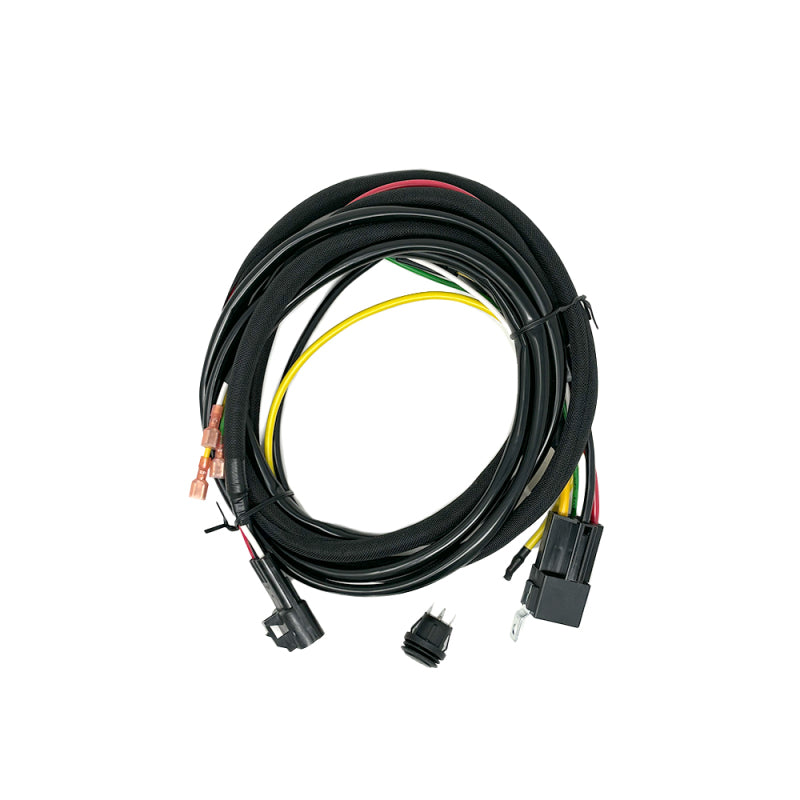

• 1x Vehicle-to-light bar wiring harness
• 1x 50A relay
• 1x 3-position rocker switch
• 1x Fuse kit
• 1x Mounting hardware kit

Product Description

The KC HiLiTES 6324 is the dedicated replacement wiring harness for the KC Gravity® Titan™ LED Light Bar, compatible with all Titan bar sizes from 20" through 57". It is the same harness that KC includes in the box with every new Titan bar purchase and is sold separately for owners who need to replace a lost, damaged, or worn harness, or who are wiring a Titan bar into a build that requires a fresh harness installation. The 6324 is not a generic LED light bar harness - it is engineered specifically for the Titan bar's dual-circuit architecture, which requires separate power circuits for the amber backlight accent mode and the high-power white LED main beam mode.

The Titan bar's dual-mode design is what differentiates it from conventional single-circuit LED light bars, and it is also what makes a correctly specified harness essential. The amber backlight runs at low current draw and is typically left on as a perimeter or accent light, while the high-power white LED circuit drives the full wattage output of the bar - which, on a 57" Titan, is substantial. The 6324 addresses both circuits through a single organized harness, with a 50A relay sized to handle the high-power circuit load of the largest Titan bars without voltage drop or relay stress. The included 3-position rocker switch provides the off / amber-only / full-power operating modes the Titan bar is designed around, and eliminates the common installation error of using a standard 2-position switch that cannot correctly manage both circuits independently.

Installation produces a clean, factory-finish result - the harness is designed to be routed from the battery to the light bar with an organized, professional-looking wire path and no excess bulk at either the switch or bar end. All fuses and mounting hardware are included. The 6324 is backed by KC HiLiTES' Adventure Further Guarantee, covering electrical components including the harness, relay, and switch for 5 years from purchase, and mechanical hardware for the lifetime of the product.
