KC HiLiTES 521 FLEX ERA 1 Flush Mount Backup Light Kit 23W Spread 2-Light

Vehicle Fitment

• Universal - designed for rear bumpers with flush-mount provisions for backup/reverse lights or dust lights
• Compatible with a wide variety of aftermarket bumpers that use standard bump-out or inset fog/backup light pockets; some OEM bumpers may accept the flush mount plates with minor adaptation
• Not vehicle-specific - fitment is determined by the rear bumper's flush-mount opening dimensions and bolt pattern, not the vehicle make or model

Fitment Notes

• 521 includes flush mount faceplates (pre-installed on the lights) for a low-profile, surface-flush installation in bumper cutouts. For the same FLEX ERA 1 backup light kit without flush mount plates - using a universal bottom-mount bracket instead - see KC HiLiTES part number 520 (Standard Backup Light Kit).
• Important: Installing the flush mount faceplate on the FLEX ERA 1 light removes the ability to use the Clear Lens Shield, Amber Lens Shield, and the Black and Yellow Light Cover accessories. These optional accessories are incompatible with the flush mount configuration.
• The flush mount faceplates include a cut template to aid in marking and cutting the bumper opening to the correct dimensions, along with rubber gaskets for a weatherproof, vibration-dampened seal between the light and the bumper surface.
• The included wiring harness is an extended-length backup/reverse light harness - designed with sufficient wire length to route from the rear of the vehicle to the reverse light circuit or a dedicated switch, rather than the shorter harness included with standard forward-facing KC light kits.
• The full-power white LED mode is for off-road use only and is not street-legal as a reverse light in most jurisdictions at this output level. The amber backlight mode may be used as an accent or perimeter light at the operator's discretion.

Features

• Dual power mode FLEX ERA® 1 LED lights - each light operates in two distinct states: a low-draw 5W amber backlight mode that provides an eclipse-like amber ring accent effect, and a full 23W high-power white LED spread beam mode for maximum rear-area illumination during off-road reversing, camp setup, and dusty-condition driving where rearward visibility is critical.
• Spread beam pattern optimized for rear-facing use - the FE1's spread beam projects a wide, flat field of light in the near and mid-field rearward zone rather than a focused narrow spot, providing maximum coverage of the area directly behind the vehicle where backup and dust lights need to illuminate.

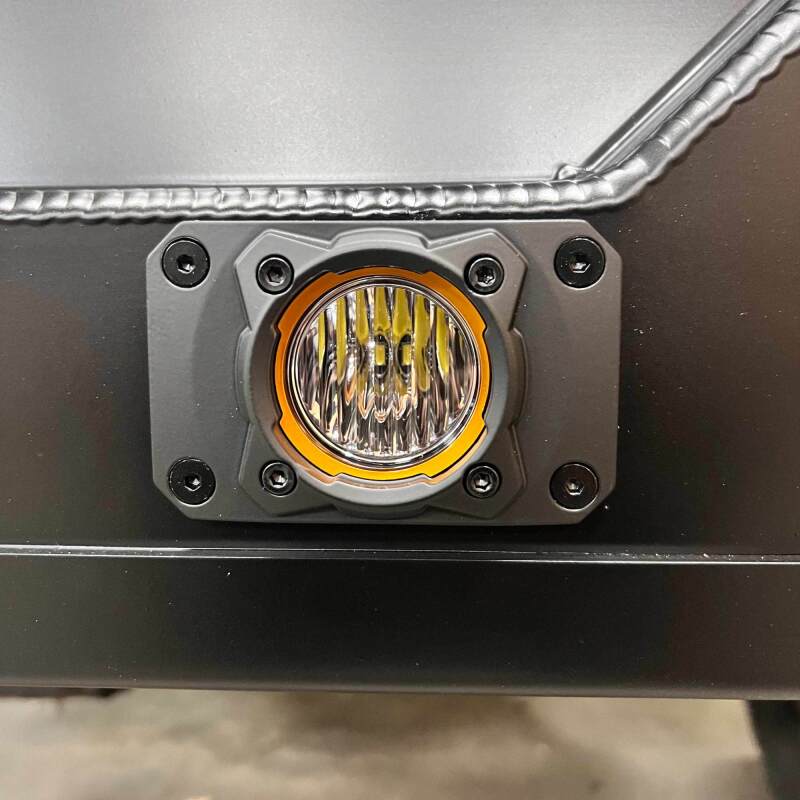

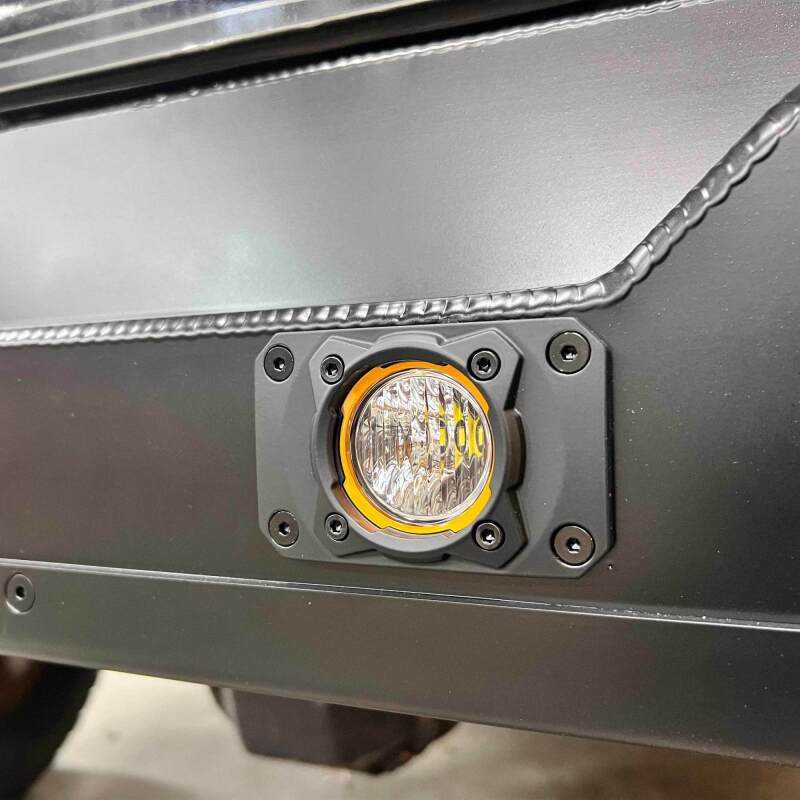

• Flush mount faceplates allow the lights to sit flush with the bumper face - eliminating the protruding pod or bracket common with conventional bumper-mounted auxiliary lights. The flush-mount profile is significantly more resistant to trail damage and rock strikes than protruding pod mounts, and produces a factory-integrated appearance.

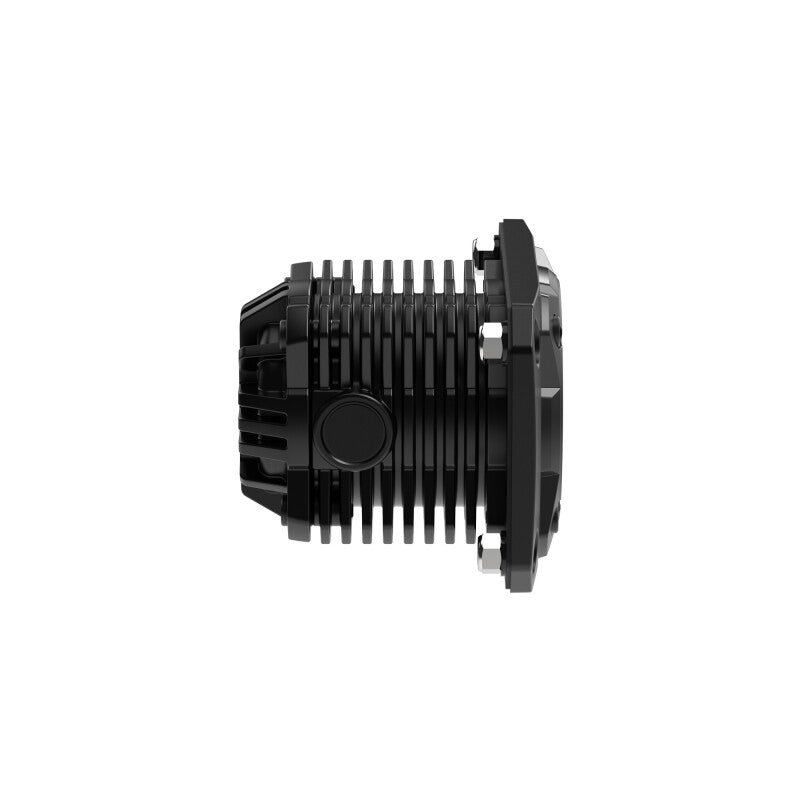

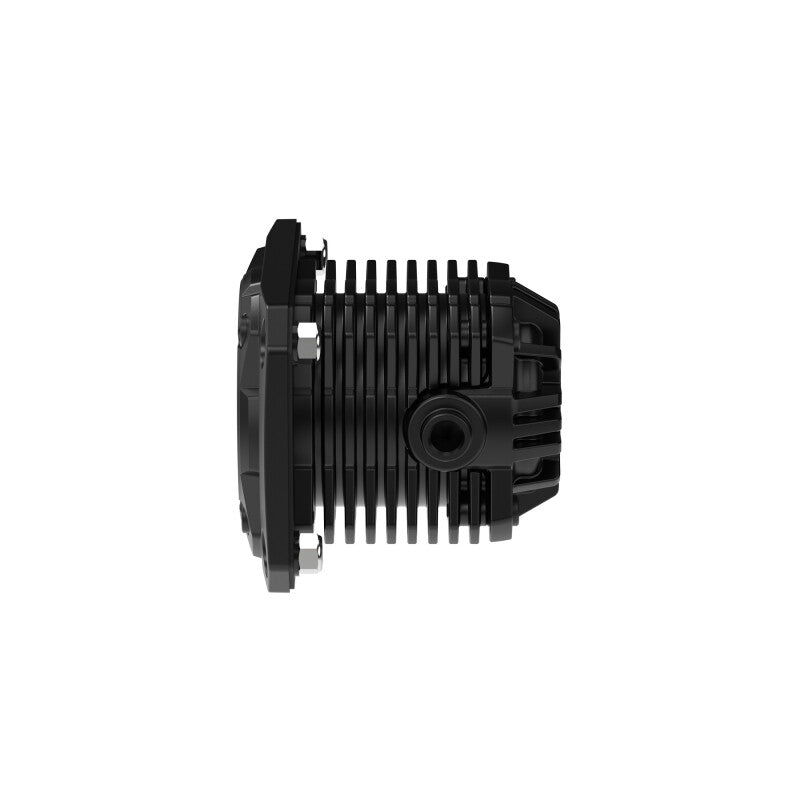

• Compact FLEX ERA 1 footprint - at less than 2.7" in profile depth - fits into shallow bumper pockets and recessed bumper light cutouts that cannot accommodate larger light pods, making the 521 compatible with a wider range of bumper designs than conventional 6" or larger backup lights.

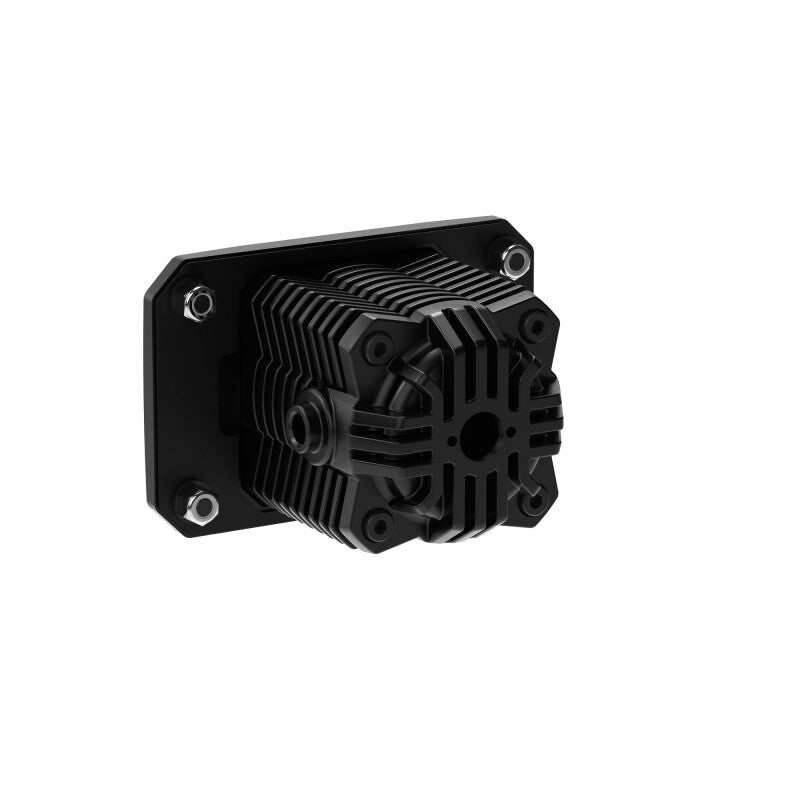

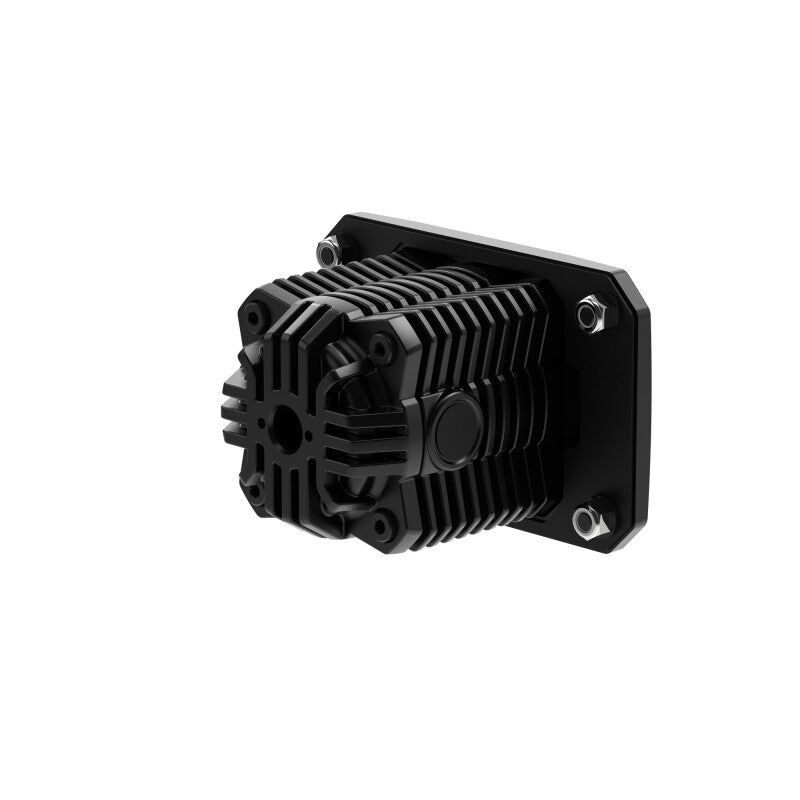

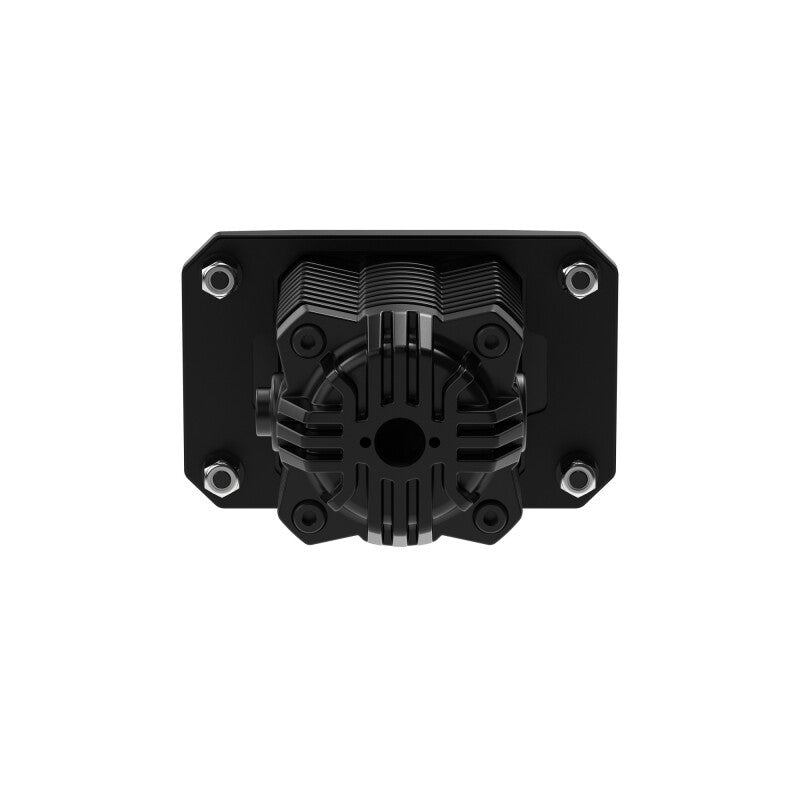

• Aluminum alloy housing with black powder-coat finish provides a corrosion-resistant, durable enclosure that withstands the vibration, trail debris, and water exposure typical of off-road and overland rear bumper positions.
• IP68-rated weatherproofing - fully sealed against dust and continuous water immersion - ensuring the lights remain operational after water crossings, heavy rain, and pressure washing.
• Rubber gasket at the flush mount interface provides vibration dampening between the light and the bumper face, preventing mechanical fatigue at the mounting points and maintaining a weatherproof seal over time.
• Swappable accent bezels allow personalization - standard gold bezel included; red, blue, and black bezels available separately. Note: bezel swapping is only possible when not using the flush mount plate, as the flush mount plate covers the bezel area.
• Wide voltage range of 9V-36V provides compatibility with 12V and 24V electrical systems and tolerates the voltage fluctuations generated by winches, high-draw accessories, and aftermarket electrical systems common on built overland rigs.

Specifications

• Part Number: 521
• Product Type: Flush Mount Backup / Reverse Light Kit
• Light Family: FLEX ERA® 1 (FE1)
• Number of Lights: 2 (complete kit)
• Beam Pattern: Spread (rear-facing)
• RAW Lumens (per light): 2,430 lm
• Lux @ 10 Meters (per light): 162 lx
• Candela (per light): 16,200 cd
• Beam Distance (per light): 127.3m
• Wattage (per light): 5W (Amber Backlight) / 23W (Full Power)
• Amp Draw (per light): 0.83A (Amber) / 3.83A (Full Power)
• Operating Voltage: 9V-36V
• IP Rating: IP68
• Product Dimensions (per light): W 2.6" x H 2.72" x D 2.9"
• Housing Material: Aluminum Alloy
• Finish: Black Powder Coat
• Accent Bezel Color (included): Gold (red, blue, black sold separately)
• Warranty: KC Adventure Further Guarantee

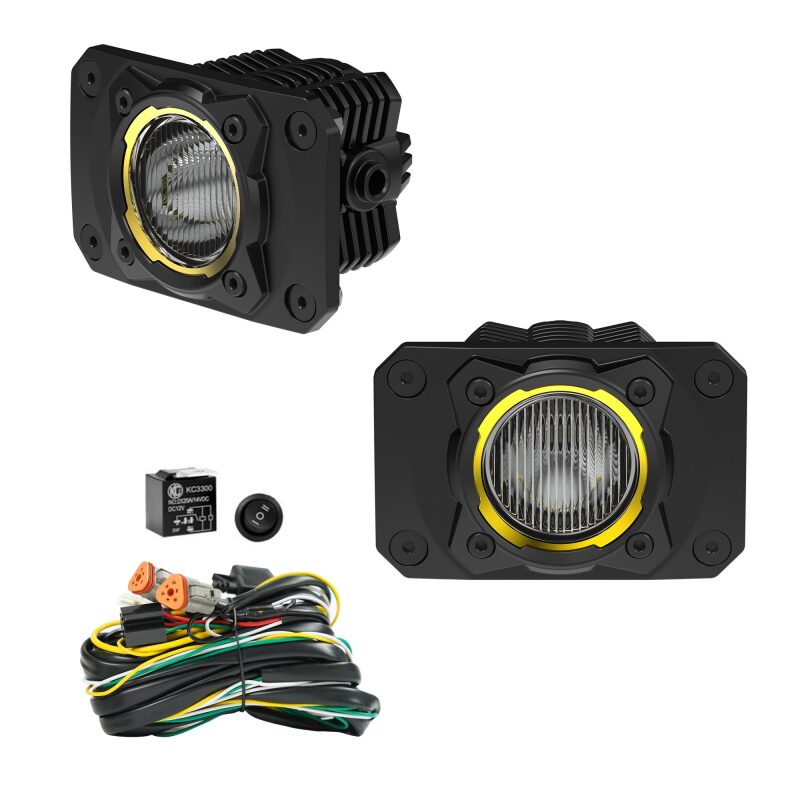

Included Components

• 2x FLEX ERA® 1 LED lights with spread beam lens (pre-assembled)

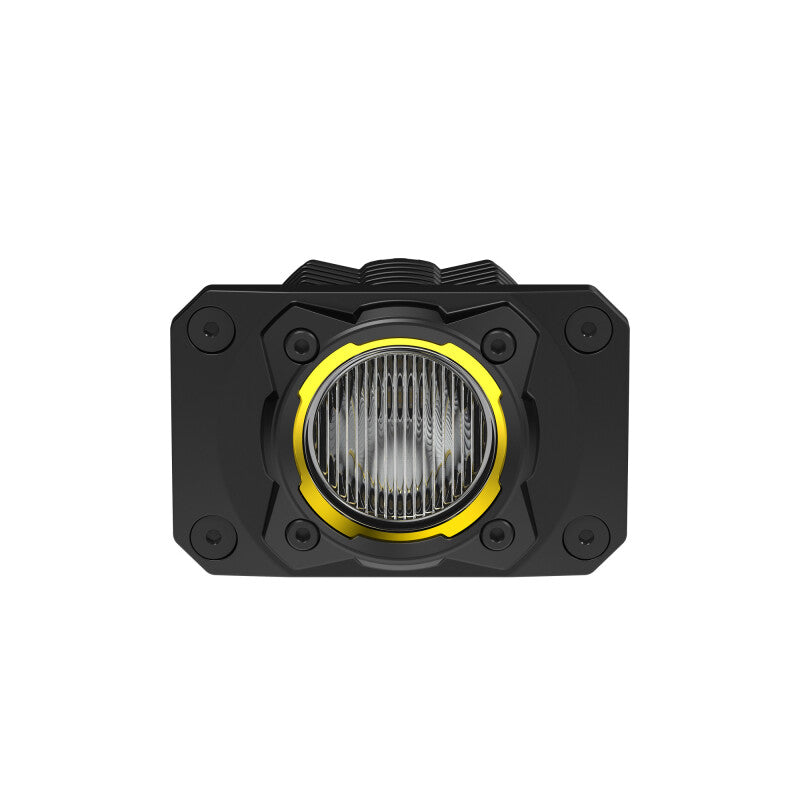

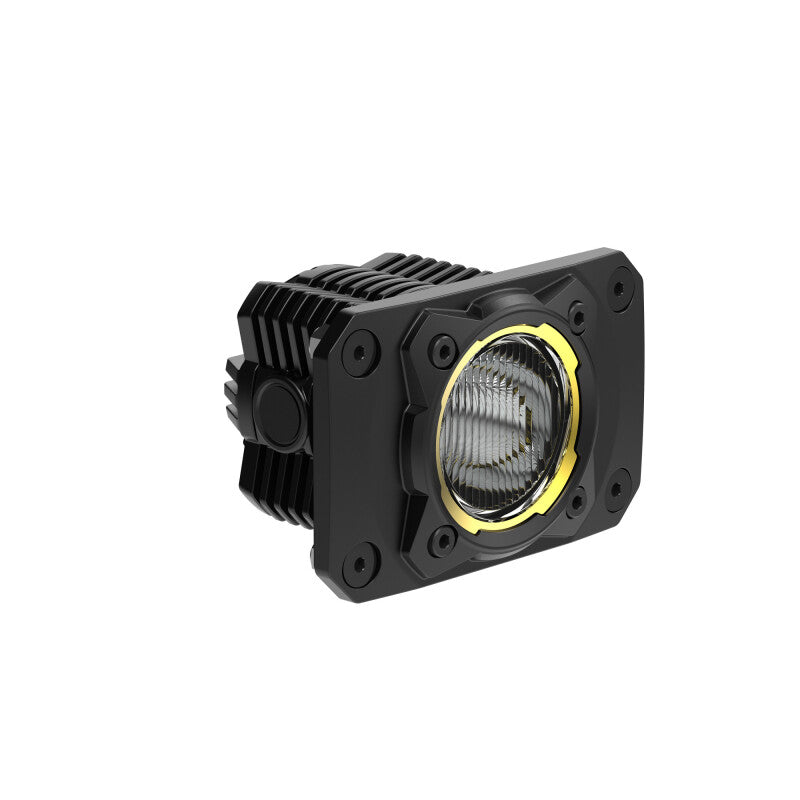

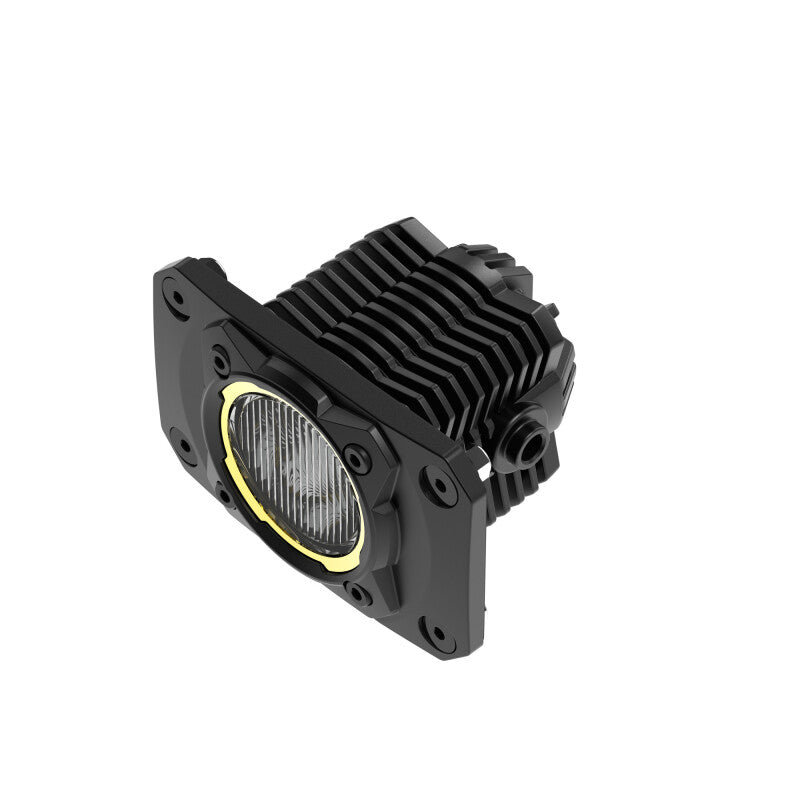

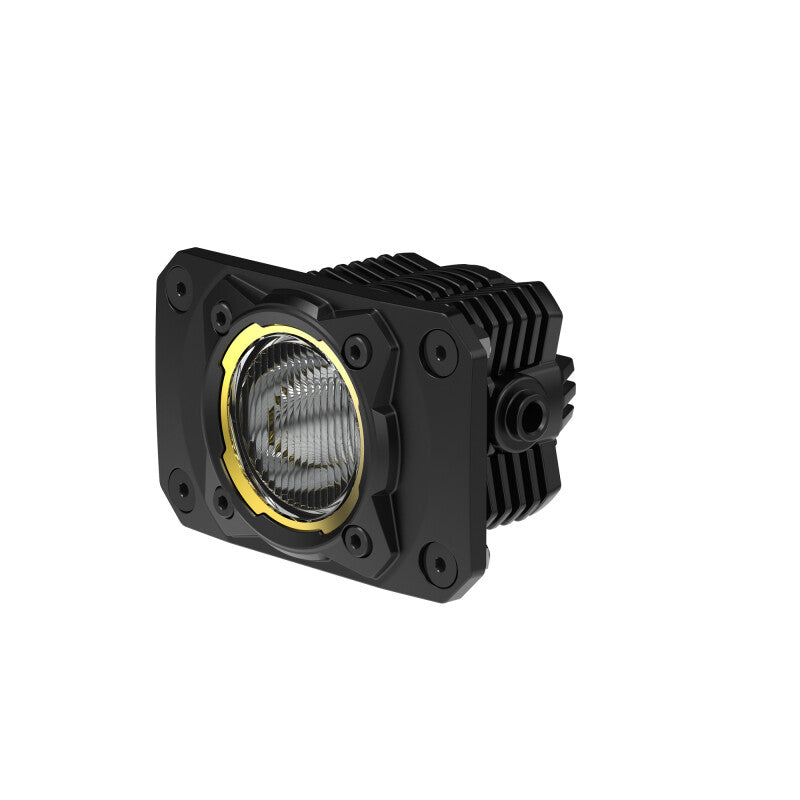

• 2x Flush mount faceplates (pre-installed on lights)
• 2x Rubber gaskets (for flush mount weatherproofing and vibration dampening)
• 1x Complete extended-length wiring harness for FLEX ERA backup/reverse lights (with weatherproof connectors)
• 1x 3-position switch
• 1x Bumper cut template
• 1x Mounting hardware kit

Product Description

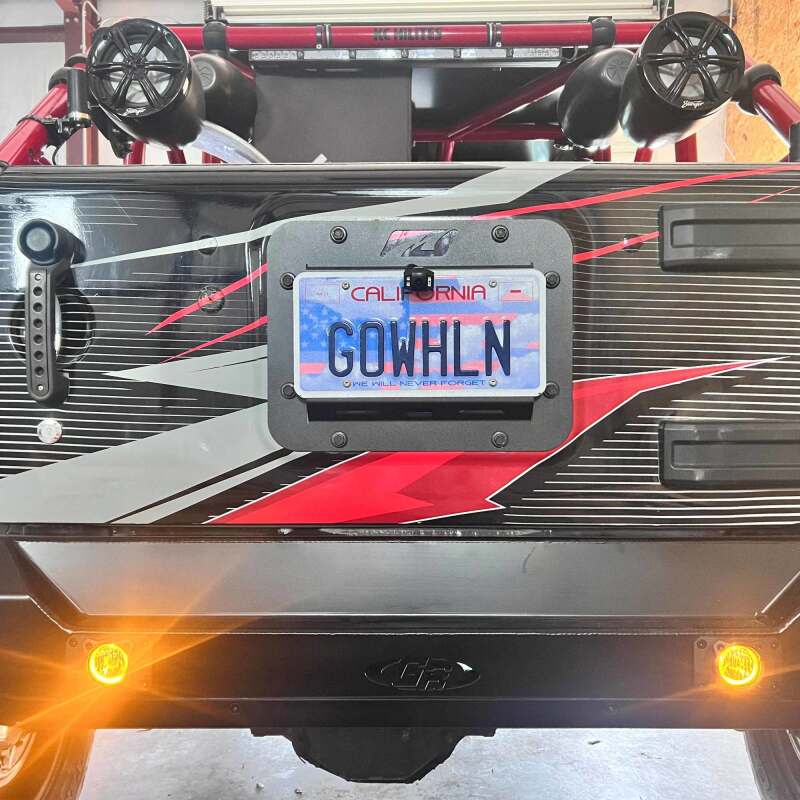

The KC HiLiTES 521 is a complete two-light FLEX ERA® 1 Flush Mount Backup Light Kit designed for installation in the rear bumper of vehicles equipped with aftermarket bumpers - or certain OEM bumpers - that feature flush-mount backup or dust light provisions. The kit provides everything needed for a complete, low-profile installation: two FLEX ERA 1 LED lights pre-assembled in spread beam configuration, flush mount faceplates pre-installed on the lights, an extended-length wiring harness built for rear-of-vehicle routing, a 3-position switch, a bumper cut template, rubber gaskets, and all mounting hardware. The result is a flush-mounted backup lighting installation where the light face sits at or below the bumper surface - eliminating the protruding pod profile of conventional auxiliary backup lights and significantly improving resistance to trail damage.

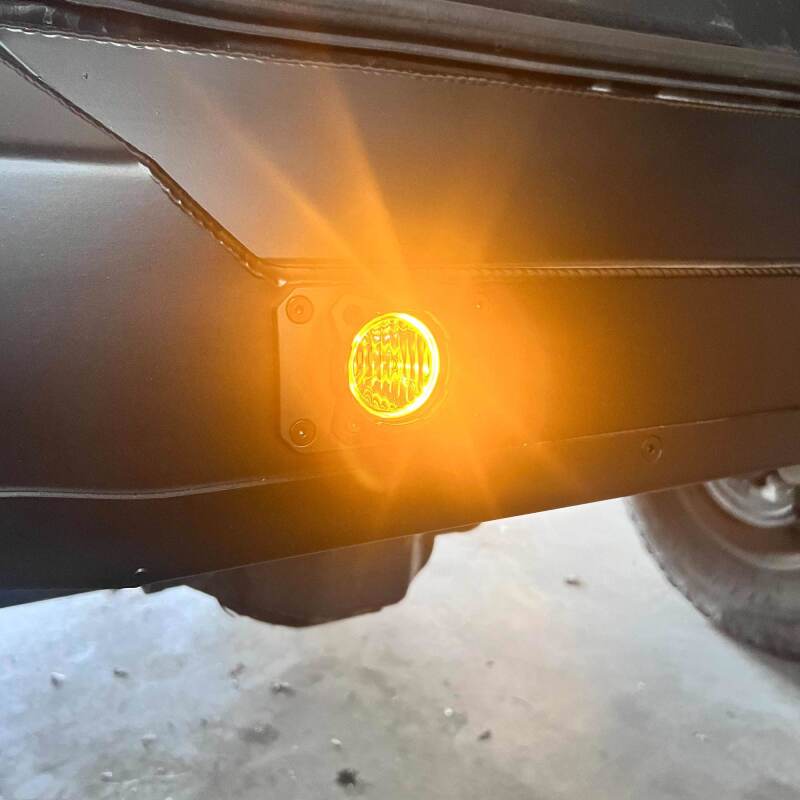

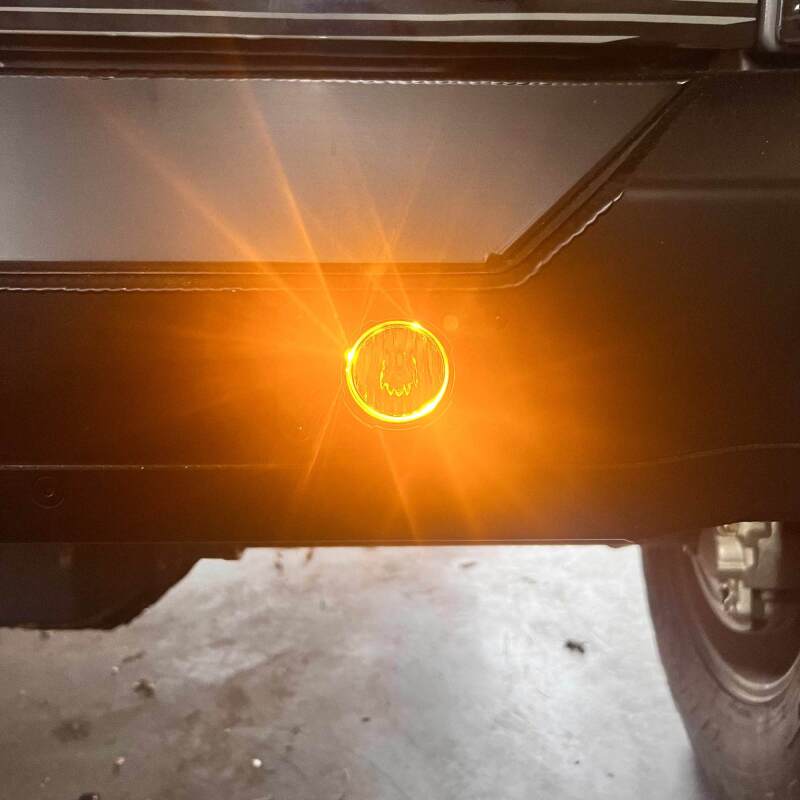

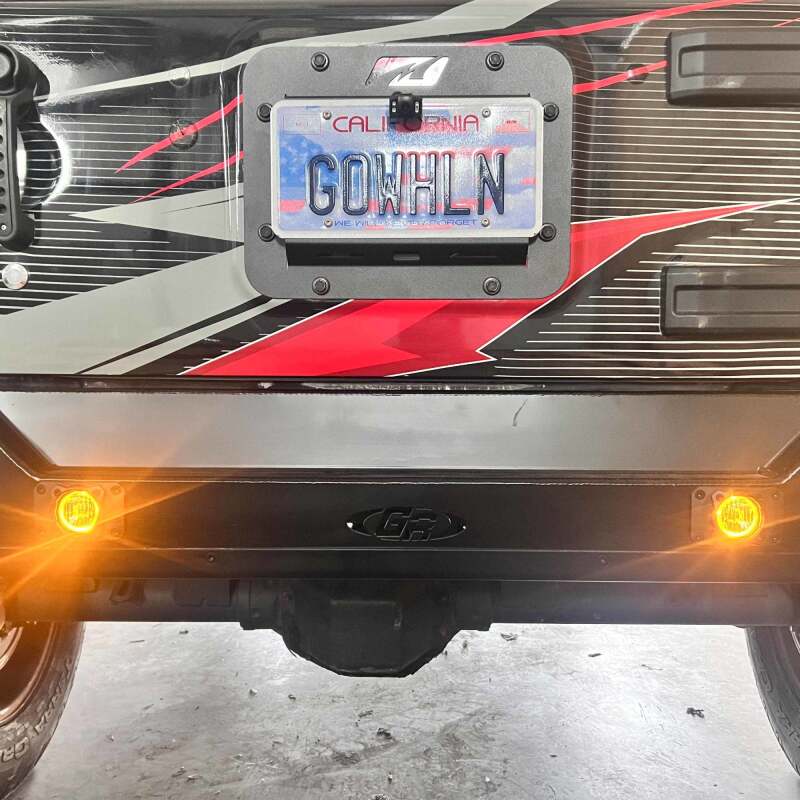

Each FLEX ERA 1 in the kit operates in two distinct modes. The 5W amber backlight mode activates the ring of amber LEDs around the perimeter of the light face, creating a distinctive eclipse-like accent effect at low current draw - suitable for use as a perimeter marker or style element when not reversing. The 23W full-power mode activates the high-output white LED array for maximum spread-beam illumination of the area behind the vehicle, delivering 2,430 lumens, 162 lux at 10 meters, and a 127.3-meter beam distance per light - a meaningful improvement over stock incandescent or low-output LED backup lights. The full-power mode is rated for off-road use only. The 3-position switch manages both circuits independently, providing off, amber-only, and full-power operating states.

One important installation note: the flush mount faceplate occupies the same mounting surface as the FLEX ERA 1's optional lens shields and light covers, meaning that Clear Lens Shields, Amber Lens Shields, and the Black and Yellow Cover accessories are not compatible with the flush-mount configuration. Owners who want those accessory options should instead use the KC 520 (Standard Backup Light Kit), which includes a universal bottom-mount bracket rather than flush mount plates and retains full accessory compatibility. The 521 is backed by KC HiLiTES' Adventure Further Guarantee, covering electrical components for 5 years and mechanical hardware for the lifetime of the product.
