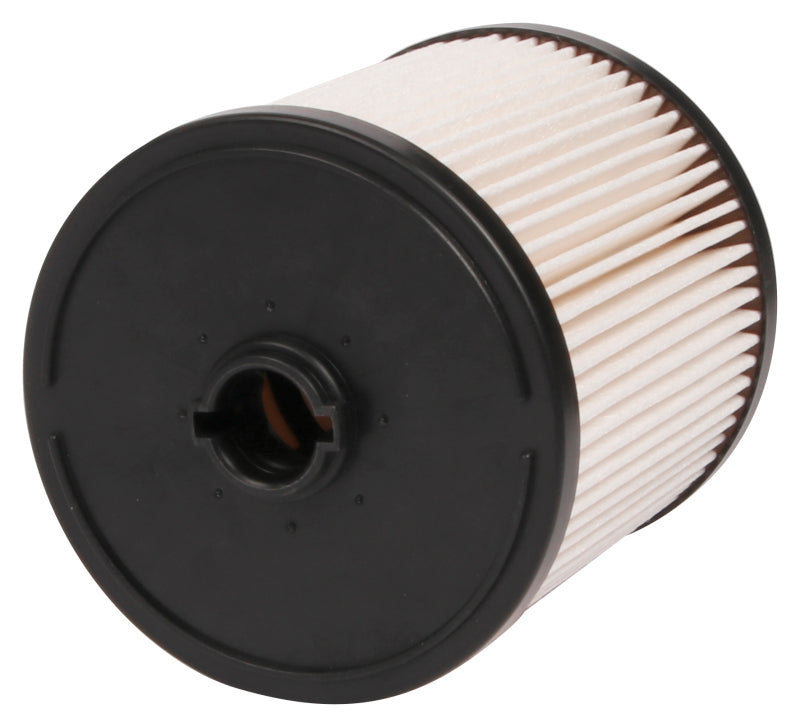

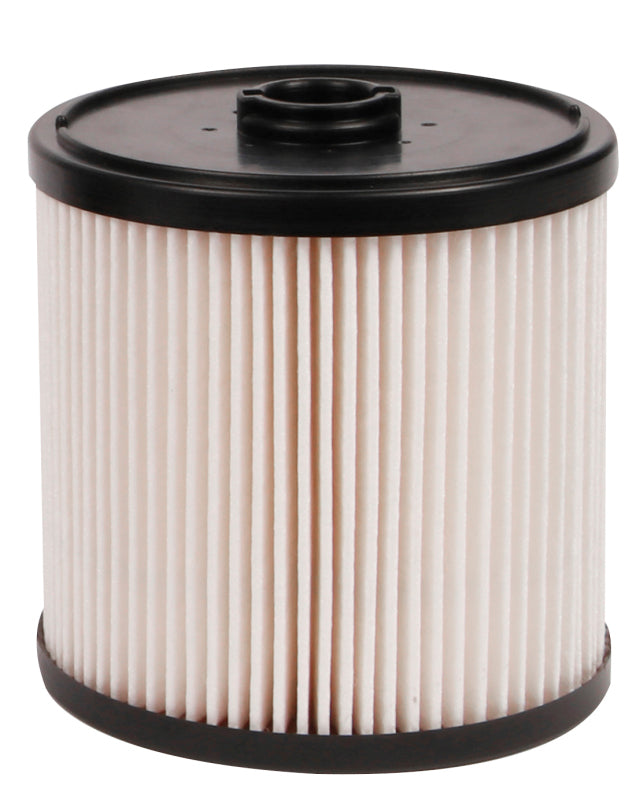

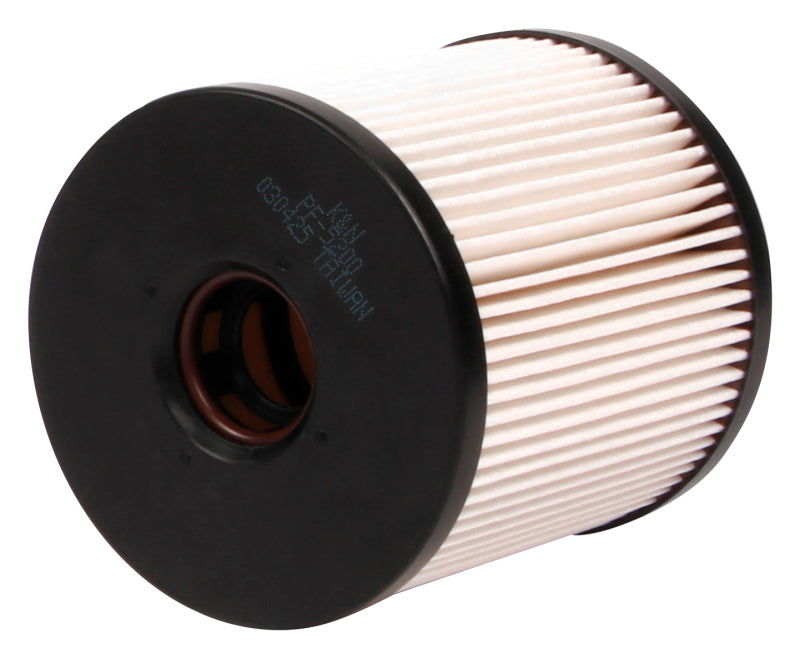

K&N PF-5200 Fuel Filter for 2019-2024 Ram 2500/3500/4500/5500 6.7L Diesel

Vehicle Fitment

• 2019-2024 Ram 2500 (All trims, 6.7L Cummins I6 Diesel, 4WD/4x4 or 2WD)
• 2019-2024 Ram 3500 (All trims, 6.7L Cummins I6 Diesel, 4WD/4x4 or 2WD)
• 2019-2024 Ram 4500 (All trims, 6.7L Cummins I6 Diesel, 4WD/4x4 or 2WD)
• 2019-2024 Ram 5500 (All trims, 6.7L Cummins I6 Diesel, 4WD/4x4 or 2WD)
• 2020-2023 Ram 1500 (All trims equipped with 3.0L EcoDiesel V6, 4WD/4x4 or 2WD)
• 2020-2023 Jeep Wrangler JL (All trims equipped with 3.0L EcoDiesel V6, 4WD)
• 2021-2023 Jeep Gladiator JT (All trims equipped with 3.0L EcoDiesel V6, 4WD)

Fitment Notes

• For the listed diesel applications only; do not use with gasoline engines or other diesel engine configurations.
• For Ram 2500/3500/4500/5500 6.7L Cummins applications, PF-5200 is the primary/frame-mounted fuel filter and requires K&N PF-4801 as the secondary filter.
• Jeep Wrangler application is the JL platform and requires the 3.0L EcoDiesel V6 engine.
• Jeep Gladiator application is the JT platform and requires the 3.0L EcoDiesel V6 engine.
• No 2025-2026 vehicle application was verified for PF-5200; later model years are therefore not listed.

Features

• Performance cartridge fuel filter designed for high fuel-flow rates.
• High-capacity filter pleats provide increased contaminant-holding capacity.
• Cellulose media effectively captures rust, dirt, scale, and other foreign material.
• Low-restriction filter media supports high fuel-flow capacity.
• Provides high-efficiency fuel filtration for demanding diesel applications.
• Designed for OEM-style fit and installation.
• Direct replacement design simplifies routine fuel-filter service.
• 3-micron filtration efficiency rating at 99.0%.
• Designed for frame-mounted fuel-filter applications where specified.
• Includes a replacement O-ring for installation.
• Single-filter package is suitable for replacing the specified primary filter.
• Backed by K&N's 1-year limited warranty.

Specifications

• Brand: K&N
• Part Number: PF-5200
• Product Type: Performance Cartridge Fuel Filter
• Product Style: Fuel Filter
• Filter Material: Cellulose Media
• Filtration Efficiency: 3 microns at 99.0%
• Height: 3.976 in (101 mm)
• Length: 3.976 in (101 mm)
• Outside Diameter: 3.988 in (101 mm)
• Weight: 0.9 lb (0.4 kg)
• Mounting Position: Frame-mounted primary fuel filter where specified
• Cross Reference: Ford 68436631AA
• Package Quantity: 1
• Warranty: 1 Year Limited

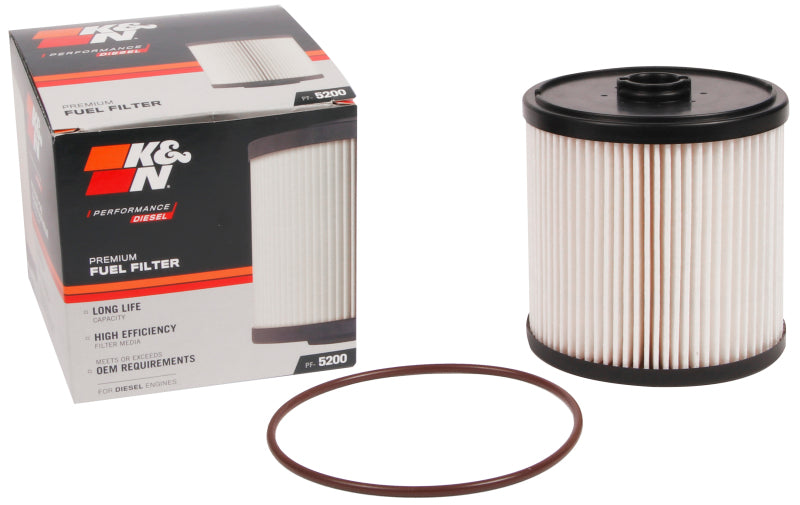

Included Components

• 1x K&N PF-5200 Fuel Filter
• 1x O-Ring

Product Description

The K&N PF-5200 Performance Cartridge Fuel Filter is designed to provide high-flow fuel filtration for specific diesel applications from Ram, Jeep, and the Jeep Gladiator. Its high-performance cellulose media is engineered to trap contaminants including rust, dirt, scale, and other foreign material while maintaining low restriction for strong fuel-flow capacity. The filter is available for 2019-2024 Ram 2500, 3500, 4500, and 5500 models equipped with the 6.7L Cummins I6 diesel, as well as verified EcoDiesel applications.

On the 2019-2024 Ram 2500/3500/4500/5500 6.7L Cummins applications, the PF-5200 serves as the primary frame-mounted fuel filter and is used with K&N PF-4801 as the secondary filter. It is also cataloged for 2020-2023 Ram 1500 3.0L EcoDiesel, 2020-2023 Jeep Wrangler JL 3.0L EcoDiesel, and 2021-2023 Jeep Gladiator JT 3.0L EcoDiesel applications.

Measuring 3.976 inches in height and length with a 3.988-inch outside diameter, the PF-5200 is engineered as an OEM-fit replacement for the specified applications. The package includes one fuel filter and one O-ring. Verify the vehicle's year, platform, and diesel engine configuration before installation to ensure the correct fuel-filter application.
