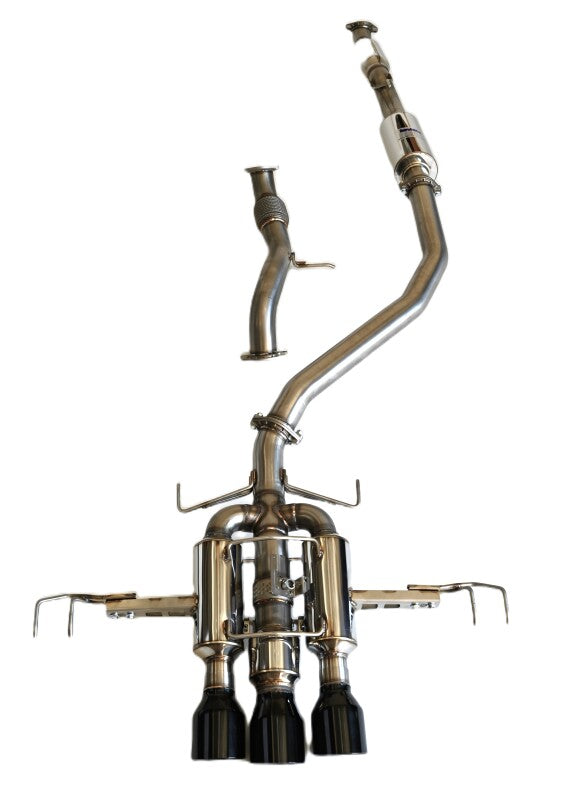

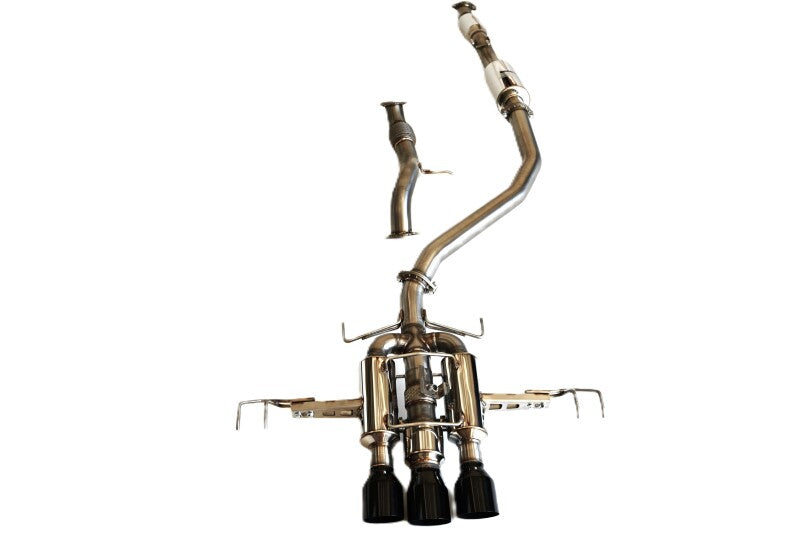

Invidia HS22CTRFGM3SBL R400 Cat-Back Exhaust Black for 22-26 Civic Type R FL5

Vehicle Fitment

• 2022-2026 Honda Civic Type R (FL5, All Trims, 2.0L Turbo)

Fitment Notes

• Cat-back system only -- does not include front pipe
• Retains OEM exhaust valve control function
• Triple-exit configuration maintains factory FL5 rear diffuser styling
• Titanium tip version available: Invidia HS22CTRFGM3STL
• Not legal for sale or use on emissions-controlled vehicles in California

Features

• R400 muffler -- tuned between Q300 and N1 for aggressive tone with minimal cabin drone
• Non-polished SUS304 stainless steel piping -- raw race-inspired finish
• Mandrel bent piping -- smooth, unrestricted exhaust flow
• CNC machined flanges for precise, leak-free fitment
• Robot TIG welded construction throughout
• Single layer black stainless steel exhaust tips
• Direct bolt-on installation -- no cutting or welding required
• Pronounced exhaust note throughout the full RPM range

Specifications

• Pipe material: SUS304 stainless steel (non-polished)
• Pipe diameter: 76mm (3.0")
• Tip diameter: 101mm
• Tip style: Single layer black stainless steel
• Tip quantity: 3 (triple-exit)
• Construction: Mandrel bent, CNC flanges, robot TIG welded

Included Components

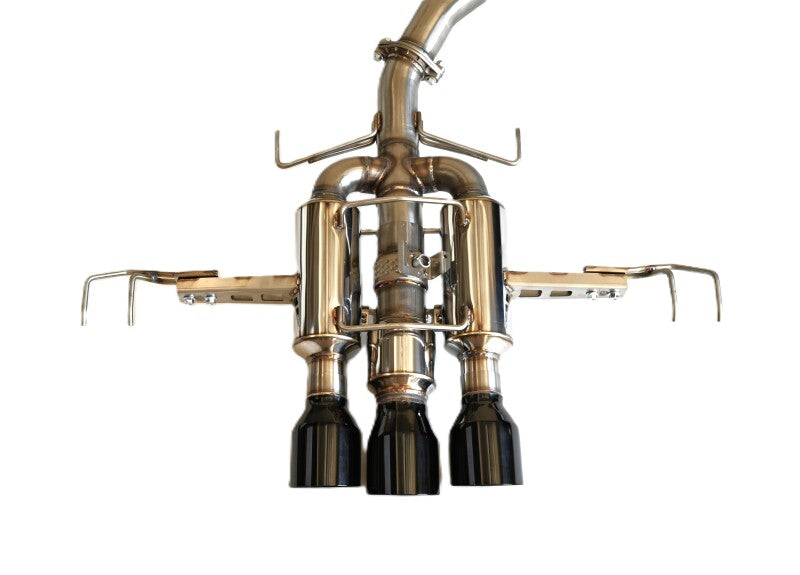

• R400 muffler assembly

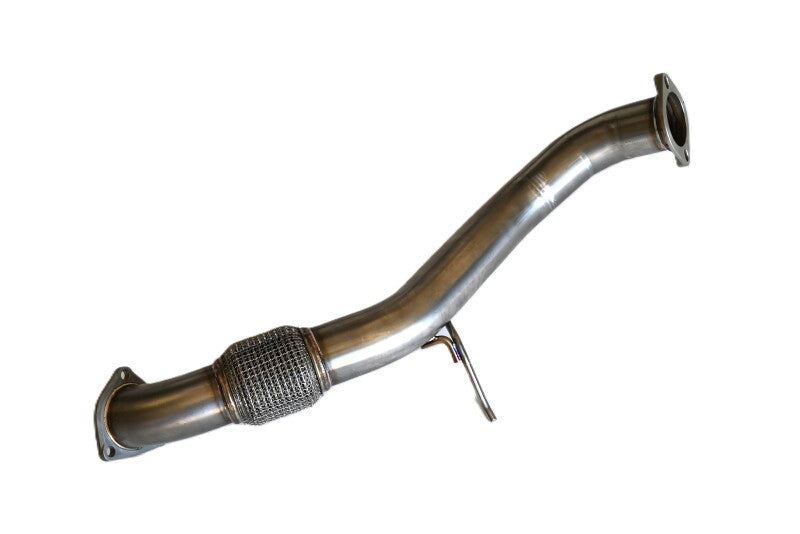

• SUS304 non-polished stainless steel mid-pipe

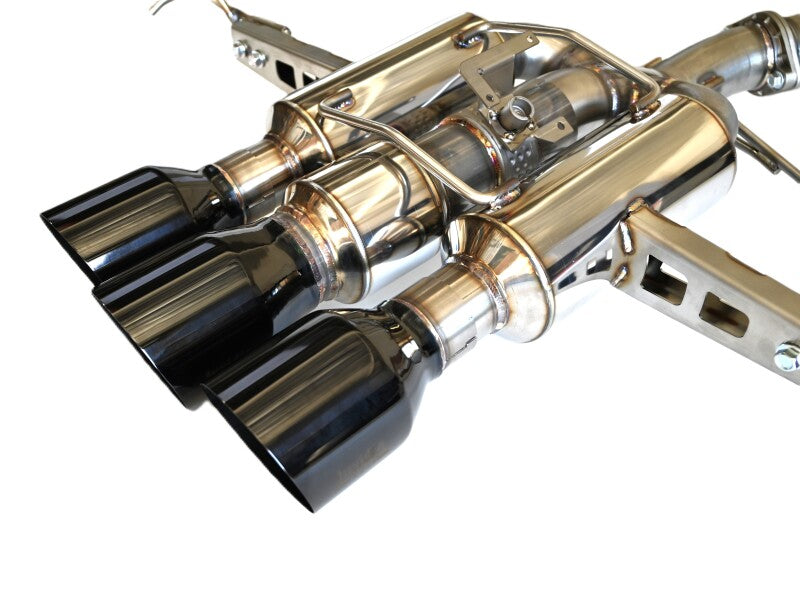

• 3x single layer black stainless steel tips (101mm)
• All required hardware and gaskets

Product Description

The Invidia HS22CTRFGM3SBL is an R400 cat-back exhaust system built specifically for the 2022-2025 Honda Civic Type R FL5. The R400 muffler is Invidia's most popular exhaust line, engineered to bridge the sound gap between the quieter Q300 and the race-oriented N1 -- delivering a pronounced, aggressive exhaust note throughout the RPM range without introducing the cabin drone associated with louder systems.

The system uses mandrel bent SUS304 stainless steel piping in a non-polished finish, maintaining a raw, motorsport-inspired appearance. CNC machined flanges and robot TIG welding ensure precise fitment and long-term durability. The triple-exit configuration and 101mm tips preserve the factory FL5 rear diffuser aesthetic while significantly upgrading exhaust flow and sound. OEM exhaust valve control is fully retained. Direct bolt-on installation with no cutting or welding required.
