Innovative Mounts B50050 Billet 2-Bolt Post Mount for 92-00 Honda Civic B-Series

Vehicle Fitment

• 1992-2000 Honda Civic (EJ/EH/EG/EK, FWD, B-Series Engine, Manual Transmission)

Fitment Notes

• This is a 2-bolt style driver side timing belt post mount bracket - required when running a B-Series engine in a 92-00 Civic chassis
• Replicates and replaces the OEM 97-01 Honda CR-V / 1999-2000 Civic Si(R) B-Series timing belt post bracket for use in EG/EK B-Swap builds
• Compatible with all B-Series engines: B16A, B18A, B18B, B18C, B20B
• For the 3-bolt style post mount (Integra / 94-01 Civic), see Innovative Mounts B50150
• Professional installation strongly recommended; bracket cannot be returned once bolted down

Features

• Billet aluminum construction - significantly stronger and lighter than the OEM bracket
• 2-bolt driver side design bolts directly to the B-Series engine block under the timing belt cover
• CAD/CAM designed for precise geometry and correct engine positioning in EG/EK chassis
• Stress analyzed for long-term durability under performance and motorsport conditions
• Eliminates the need to source a used OEM CR-V or Civic Si(R) post mount for B-Swap builds
• Bolt-on installation - no chassis modification required
• Hardware included for complete installation
• Backed by Innovative Mounts' Lifetime Warranty

Specifications

• Material: Billet Aluminum
• Bracket Type: Driver Side Timing Belt Post Mount (2-Bolt)
• Engine Compatibility: B-Series (B16A, B18A, B18B, B18C, B20B)
• Chassis Compatibility: Honda Civic EJ/EH/EG/EK (1992-2000)
• OEM Equivalent: 97-01 CR-V / 99-00 Civic Si(R) timing belt post bracket
• Design: CAD/CAM Designed, Stress Analyzed
• Weight: 3 lbs

Included Components

• 1x Billet aluminum 2-bolt driver side timing belt post mount bracket
• 1x Hardware kit

Product Description

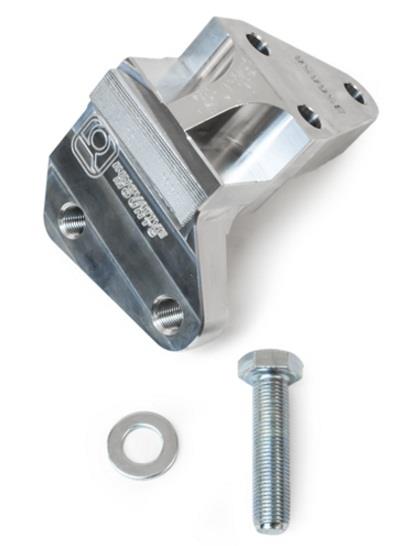

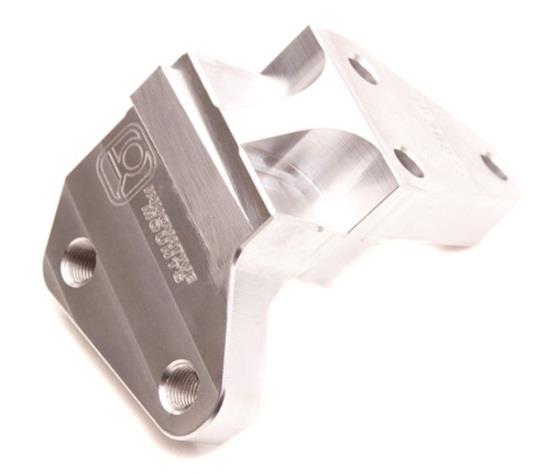

The Innovative Mounts B50050 is a billet aluminum 2-bolt driver side timing belt post mount bracket designed for the 1992-2000 Honda Civic (EG/EK chassis) running a B-Series engine. When performing a B-Series swap into a 5th or 6th gen Civic, the stock Integra-sourced B-Series engines use a different driver side mount geometry than what the EG/EK chassis expects. The B50050 replicates the OEM 97-01 Honda CR-V and 99-00 Civic Si(R) timing belt post bracket, which is the correct piece needed to properly locate the engine and connect to the driver side mount in this application - eliminating the need to hunt down a used OEM bracket.

Machined from billet aluminum and CAD/CAM designed for precision fitment, this bracket bolts directly to the B-Series block under the timing belt cover and installs without any chassis modification. It is a required component when using most Innovative Mounts EG/EK mount kits with B-Series engines. For Integra chassis or 3-bolt applications, see the Innovative Mounts B50150. Hardware is included and Innovative Mounts backs this bracket with their Lifetime Warranty.
