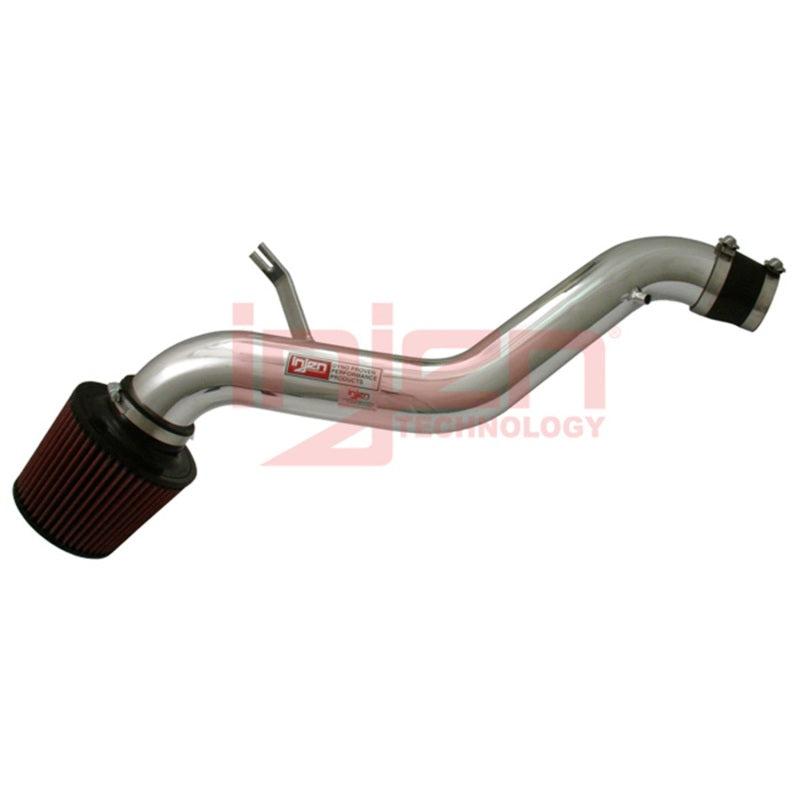

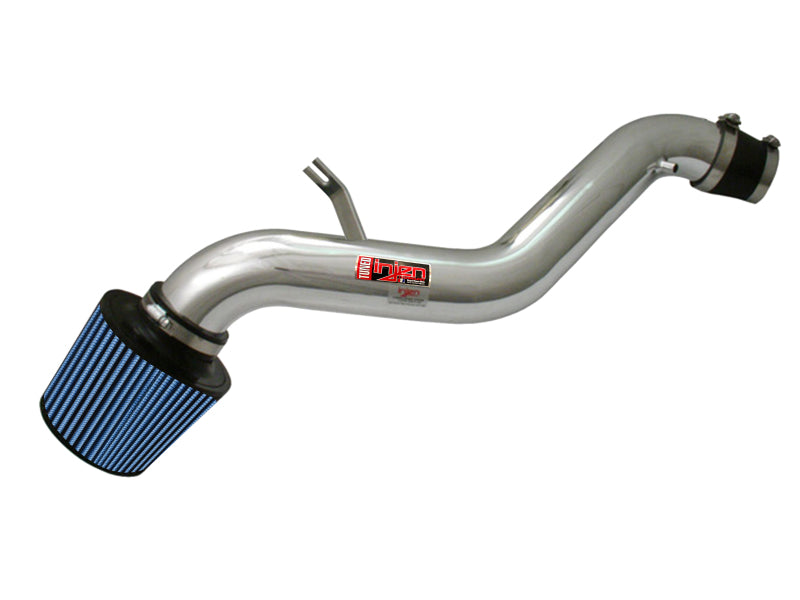

Injen IS1720P IS Short Ram Intake for 1997-2001 Honda Prelude 2.2L Polished

Vehicle Fitment

• 1997-2001 Honda Prelude (Base, Type SH | L4-2.2L VTEC | H22A4)

Fitment Notes

• Compatible with all 5th-generation Honda Prelude trims equipped with the 2.2L VTEC four-cylinder (H22A4) engine - both the standard Base and ATTS-equipped Type SH.
• No tune required. The IS1720P is engineered to maintain safe air/fuel ratios across the full RPM range, including the VTEC engagement point, using the stock ECU calibration.
• CARB Exempt - CARB Executive Order D-476-3. Legal for use on vehicles registered in California and all other CARB-compliant states.
• This intake is also available in a laser black wrinkle powdercoat finish - see Injen IS1720BLK for that option.
• Optional Hydroshield (black): Part #1033BLK - fits filter X-1014. Optional Hydroshield (red): Part #1033RED - recommended for wet or dusty driving conditions.

Features

• Dyno-tested and tuned for the 1997-2001 Prelude's 2.2L VTEC engine - engineered to deliver power gains while maintaining safe air/fuel ratios throughout the entire RPM range and across the VTEC crossover point
• Mandrel-bent 6061-T6 aluminum intake tube provides a smooth, turbulence-free airflow path from filter to throttle body - replacing the restrictive factory plastic ducting with a single uninterrupted flow channel
• High-polish mirror finish on the aluminum tube delivers a premium, show-quality underhood appearance that complements the Prelude's engine bay presentation
• Fully serviceable SuperNano-Web Dry air filter provides greater filtration surface area and lower airflow restriction than the stock paper element - cleanable with compressed air and reusable indefinitely without re-oiling

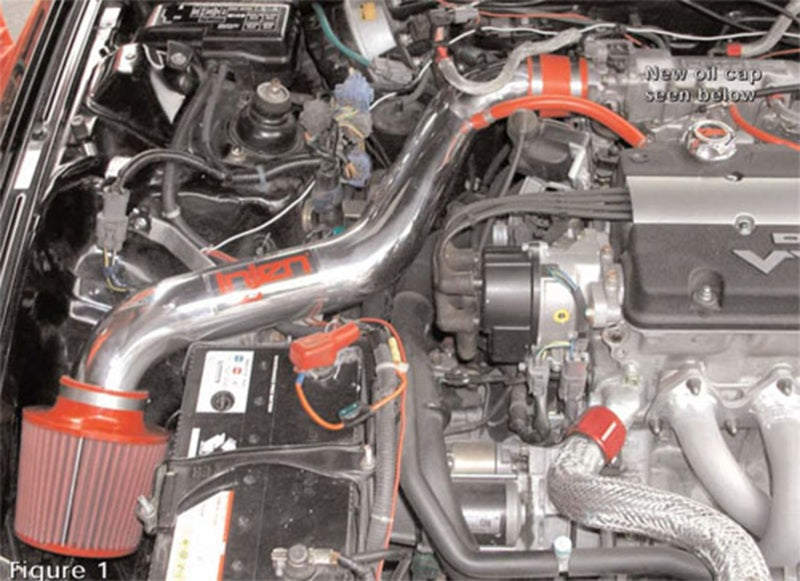

• Underhood / stock-location installation replaces the factory airbox and intake tube directly - no low-mounted piping near wheel wells or areas susceptible to water ingestion
• Aggressive induction sound enhancement under acceleration and at the VTEC engagement point - the open-element aluminum design lets the 2.2L VTEC's induction note come through clearly
• Stainless steel band clamps with inner protective liner prevent tube damage and ensure an airtight connection at every joint
• Reinforced automotive-grade silicone coupler for a durable, vibration-resistant throttle body connection
• Bolt-on installation in the factory airbox location - no cutting, drilling, or permanent modification required
• Made in Pomona, California, USA
• Protected by Injen Technology's Limited Lifetime Warranty to the original purchaser against defects in material and workmanship

Specifications

• Part Number: IS1720P
• Series: IS (Short Ram / Underhood)
• Application: 1997-2001 Honda Prelude L4-2.2L VTEC (H22A4)
• Intake Type: Short Ram / Underhood (stock location)
• Tube Material: 6061-T6 Mandrel-Bent Aluminum
• Tube Finish: Polished (Mirror)
• Filter Type: SuperNano-Web Dry
• Filter Color: Blue
• Replacement Filter Part Number: X-1014-BB
• Optional Hydroshield (Black): 1033BLK
• Optional Hydroshield (Red): 1033RED
• Tune Required: No
• CARB Status: CARB Exempt - EO D-476-3
• Made in USA (Pomona, California)
• Weight: 6.0 lbs
• Package Dimensions: 36" L x 9" W x 6" H
• Warranty: Limited Lifetime Warranty (original purchaser)

Included Components

• 1x Mandrel-Bent 6061-T6 Aluminum Intake Tube (Polished Mirror Finish)
• 1x SuperNano-Web Dry Air Filter
• 1x Complete Mounting Hardware Kit (stainless steel band clamps with inner liner, silicone coupler, and fasteners)
• 1x Installation Instructions

Product Description

The Injen IS1720P is an IS Series short ram intake system engineered specifically for all 1997-2001 Honda Prelude models equipped with the 2.2L VTEC four-cylinder (H22A4) engine, covering both the standard Base trim and the ATTS-equipped Type SH. It delivers dyno-tested power gains with no tune required, designed to work within stock ECU parameters while maintaining safe air/fuel ratios through the full RPM range including the VTEC engagement point. The IS1720P is the polished mirror-finish version; owners who prefer a stealthy matte look should see the IS1720BLK.

The IS Series is Injen's traditional underhood intake line - it installs directly in the factory airbox position rather than routing a long pipe down to a low-mounted cold air location. The mandrel-bent 6061-T6 aluminum tube replaces the factory restrictive plastic ducting with a single smooth, seamless airflow path, maximizing velocity into the 2.2L VTEC's throttle body at all engine speeds. The polished finish adds a classic, premium appearance to the Prelude's engine bay that has become iconic in Honda tuning culture. The SuperNano-Web Dry filter provides greater surface area and lower restriction than the OEM paper element, is cleanable with compressed air, and never requires re-oiling for the long term.

For owners in wet or muddy environments, the optional Hydroshields (Part #1033BLK or #1033RED) are available to cover the filter and protect against water ingestion. Installation is bolt-on to the factory airbox mounting location with all included hardware - stainless steel band clamps, silicone coupler, and all necessary fasteners - no permanent modifications required. CARB Executive Order D-476-3 makes this intake fully legal for street use in California and all CARB-compliant states. Made in Pomona, California and backed by Injen Technology's Limited Lifetime Warranty against defects in material and workmanship for the original purchaser.
